| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | MQ-320-Y |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Length Of Die Cutting: | 190-476 Mm | Unwinding Max Diameter: | 500mm |
|---|---|---|---|
| Max Material Feeding Width: | 320mm | Die Cutting Speed: | 120m/min |
| Model: | MQ-320-Y | Slitting Speed: | 120m/min |
| Power: | 1.5kw | Voltage: | 380V/220V |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | MQ-320-Y FULL ROTARY DIE CUTTING MACHINE WITH LENGTH OF DIE CUTTING 190-476 MM UNPRINTED LABEL BLANK LABEL FILM LAMINATE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

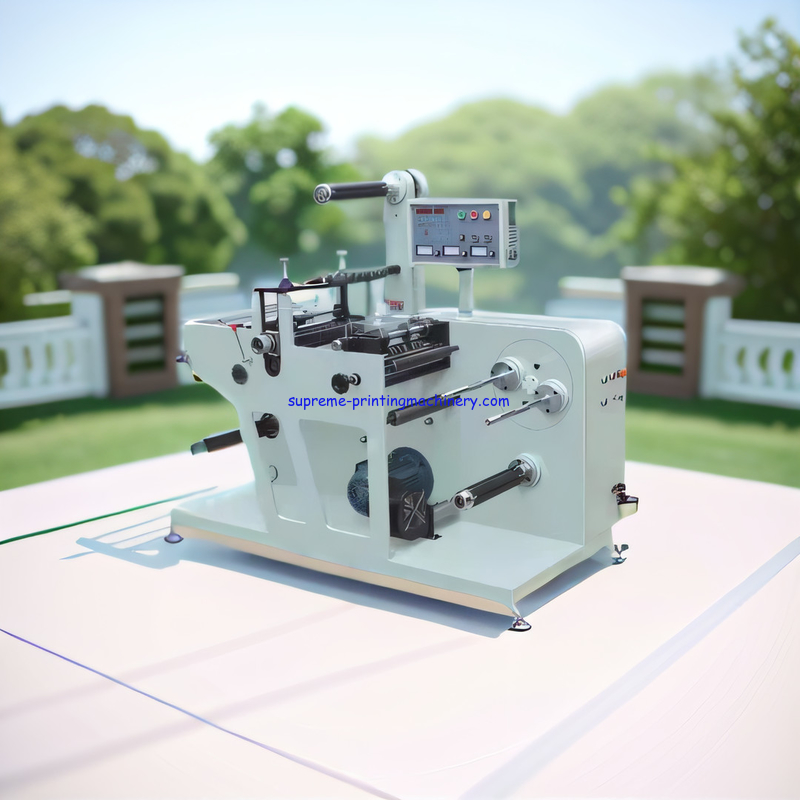

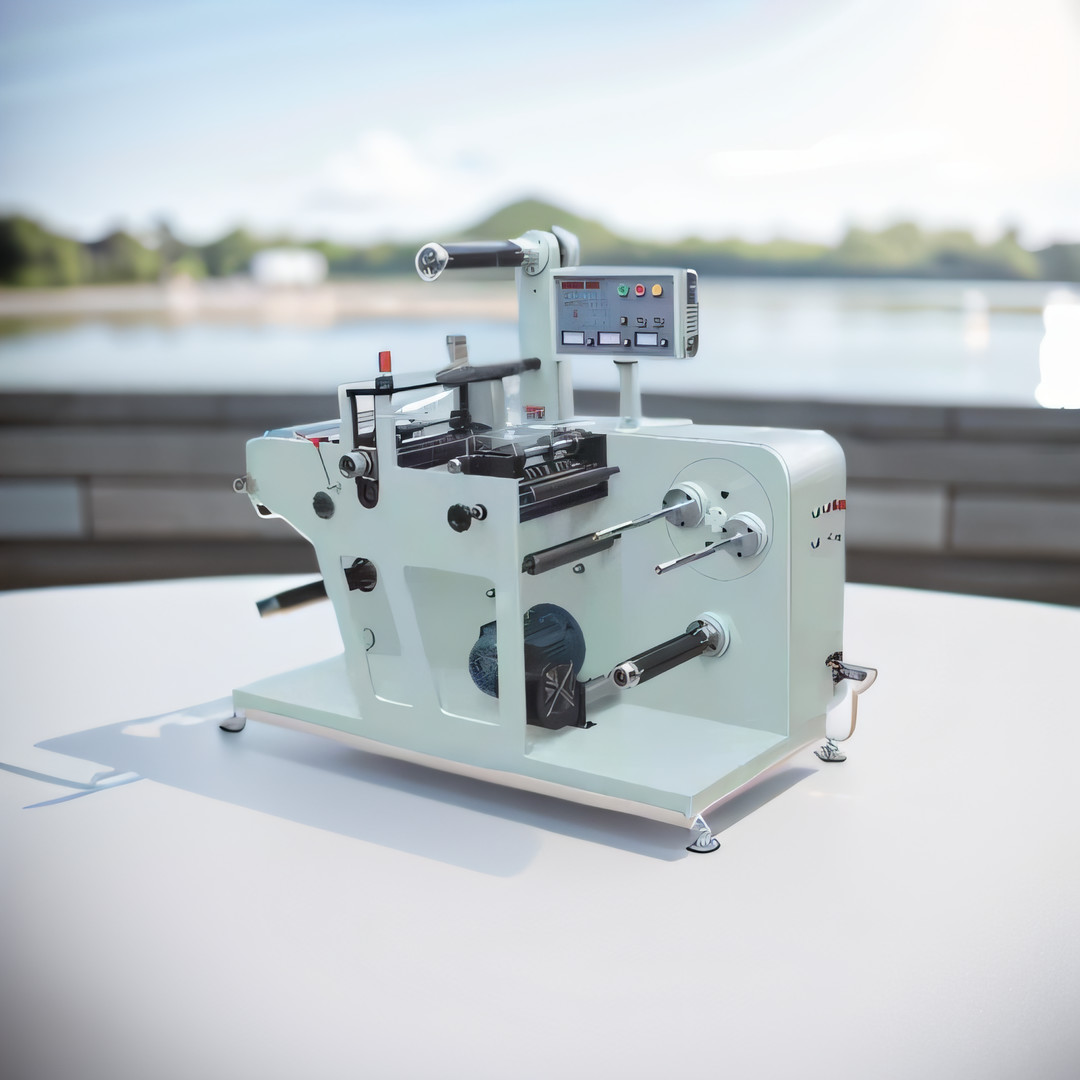

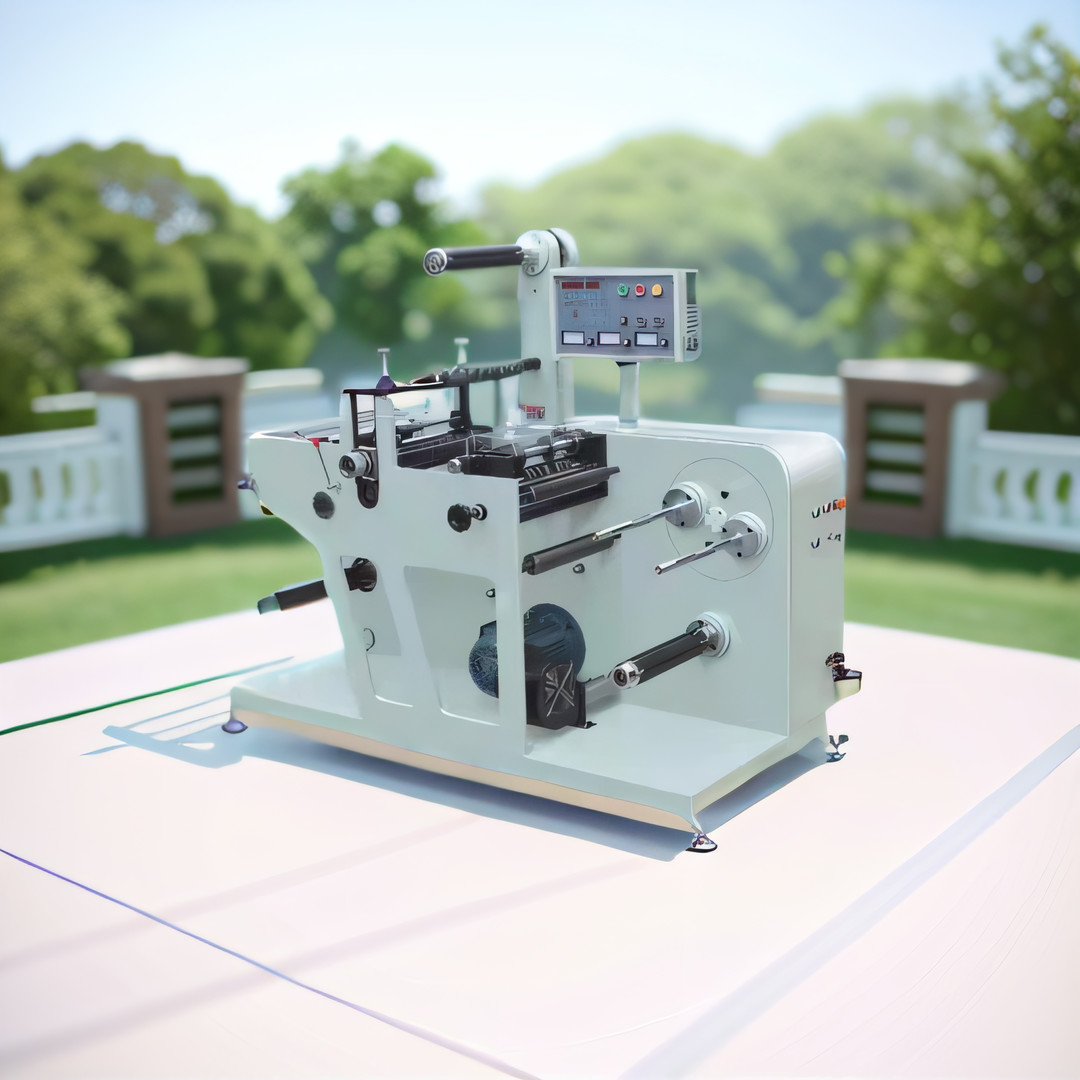

MQ320-Y Rotary Blank Label Die Cutting Machine with Slitter is a new machinery specially created for clients with single product structure. This machine boasts a high precision rotary die cutting station, slitting station, as well as an optional turret rewinding into 2 inch, 1.5 inch, or even 1 inch air shaft, and it can also be used for blank label laminating. It is also features:
1. Automatic meter/number counting and stopping.
2. Web guiding by using photoelectric eye
3. Compact structure, fast speed, high efficiency, easy operation, accurate slitting, and stable operation.
We provide comprehensive technical support and service for MQ-320-Y FULL ROTARY DIE CUTTING MACHINE WITH LENGTH OF DIE CUTTING 190-476 MM UNPRINTED LABEL BLANK LABEL FILM LAMINATE.
Our team of experienced engineers offer professional and timely advice on the installation and maintenance of the machinery as well as troubleshooting for any technical issues that may arise.
We also provide extensive remote support services such as online webinars and video tutorials.
Our team is available 24/7 to provide assistance and ensure that your MQ-320-Y FULL ROTARY DIE CUTTING MACHINE WITH LENGTH OF DIE CUTTING 190-476 MM UNPRINTED LABEL BLANK LABEL FILM LAMINATE is running smoothly.
Packaging and Shipping for MQ-320-Y FULL ROTARY DIE CUTTING MACHINE WITH LENGTH OF DIE CUTTING 190-476 MM UNPRINTED LABEL BLANK LABEL FILM LAMINATE:
The MQ-320-Y FULL ROTARY DIE CUTTING MACHINE WITH LENGTH OF DIE CUTTING 190-476 MM UNPRINTED LABEL BLANK LABEL FILM LAMINATE will be securely packaged in wrapped film and placed in a protective fumigation wooden box. The box will be secured with tape and labeled with the product name and address of the customer.
The product will be shipped via a reliable carrier, such as sea, air, truck ect, and insured for the full purchase price. The customer will be provided with a tracking number for easy monitoring of the shipment. The product will be delivered to the customer's designated address.
Standard:
1:Rotary die cutting station
2:Slitting station with 8 sets round knife
3:1 pcs 3 inch unwinding air shaft+1 pcs rewinding air shaft+2 pcs 1.5/1/2inch air shaft. (Automatic inflation)
4:meter/number counter.
5:web guide 2 pcs right and left for material
6:1 magnetic brake, 3 pcs magnetic clutch
7:Fan blower for blowing away the waste
8:Main motor
9:Inverter
10: Synchronous motor for waste rewinding controlled
Specification:
| Machine Model | MQ320-Y | MQ420-Y |
| Slitting Speed | 120m/min | 120m/min |
| Die Cutting Speed | 120m/min | 120m/min |
| Max. Web Width | 320mm | 420mm |
| Max. Unwinding Diameter | 500mm | 500mm |
| Max. Rewinding diameter for big roll | 500mm | 500mm |
| Max. Rewinding diameter for small roll | 300mm | 300mm |
| Length of Die Cutting | 190-476 mm | 190-476mm |
| Dimensions | 1700*1000*1600mm | 1800*1300*1700mm |
| Main motor | 1.5 KW | 2.2KW |
| Voltage | 220V/380V | 220V/380V |
| Min. Slitting width | 16mm | 16mm |
| Machine weight | 600 kgs | 800 kgs |
