MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-320-Y
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Unwinding Max Diameter: 500mm Max Rewinding Diameter: 500mm
Max Material Feeding Width: 320mm Die Cutting Speed: 120m/min
Length Of Die Cutting: 190-476 Mm Mini Slit Width: 16mm
Voltage: 380V/220V Model: MQ-320-Y
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET

Product Description:

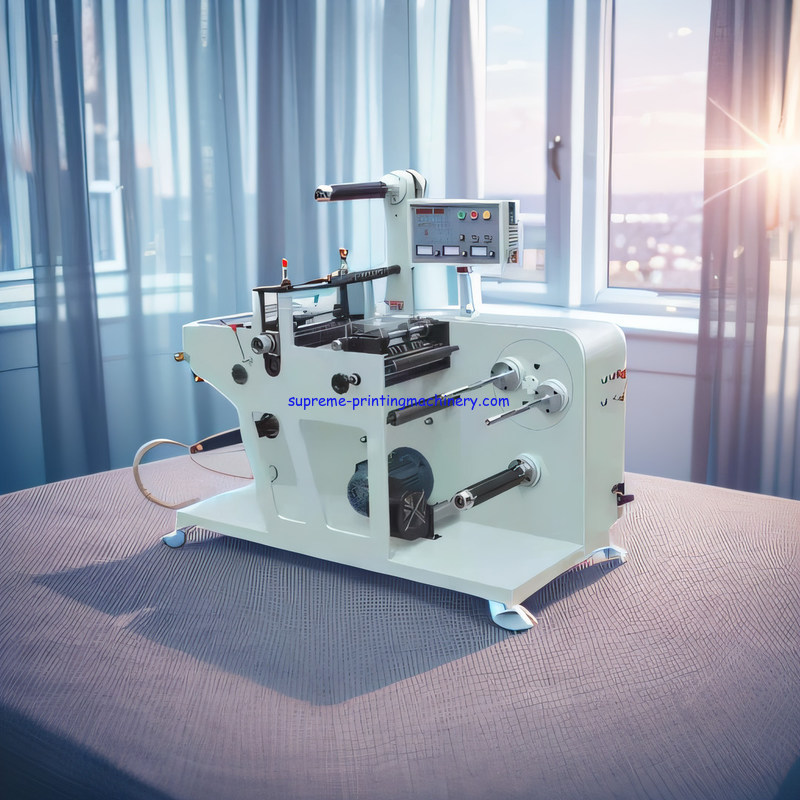

MQ320-Y Rotary Blank Label Die Cutting Machine With Slitter is a newly developed machinery tailored for clients with single product structure. It boasts high precision rotary die cutting station and slitting station functions, with an optional turret rewinder ranging from 2 inch, 1.5 inch to 1 inch air shaft, and is capable of blank label laminating.

Some of its features include meter/number counting with auto stopping, photoelectric eye web guide, compact structure, high speed operation, easy operation, accurate slitting, and stable performance.



Applications:

It is also applicable to blank label printing.



Customization:

MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET - Supreme MQ-320-Y
  • Brand Name: Supreme
  • Model Number: MQ-320-Y
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Fumigation Wooden Box
  • Delivery Time: 20-30 Working Days
  • Payment Terms: TT; LC
  • Supply Ability: 40 Sets/Month
  • Power: 1.5KW
  • Unwinding Max Diameter: 500mm
  • Max Rewinding Diameter: 500mm
  • Length of Die Cutting: 190-476mm
  • Mini Slit Width: 16mm

Supreme MQ-320-Y MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET is a standard and custom automated rotary die-cutting machine. Our precision die-cutting machines provide accuracy that is perfect for plain label production. Our machines are suitable for all kinds of adhesive label papers, film, and paper materials. They are equipped with a strong unwinding system, full servo operation(optional), and a quick change die-cutting station.



Support and Services:

MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET technical support and service includes:

  • 24-hour online technical support
  • Respond to customer inquiries in a timely manner
  • Regular maintenance and troubleshooting of machinery
  • Provide training on the operation and maintenance of machinery
  • Provide customized solutions according to customer's needs


Packing and Shipping:

Packaging and Shipping for MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET

MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET is packaged and shipped in a manner that ensures its safe, secure and timely delivery. All shipments are carefully packed to minimize the risk of damage during transit.

The machinery is wrapped in plastic film, and then placed into a custom-made wooden crate.

Once the package is loaded onto the transport, it is monitored with GPS tracking devices at all times. This allows the package to be monitored in real-time, ensuring its safe delivery.

In order to guarantee that the machinery arrives in perfect condition, all shipments are insured against any damage or loss.



FAQ:

Q1: What is the Brand Name of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET?
A1: The Brand Name of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET is Supreme.
Q2: What is the Model Number of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET?
A2: The Model Number of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET is MQ-320-Y.
Q3: Where is MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET from?
A3: MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET is from China.
Q4: What is the Certification of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET?
A4: The Certification of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET is CE.
Q5: How many MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET can you supply per month?
A5: We can supply 40sets/month of MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET.


Standard:

1:Rotary die cutting station

2:Slitting station with 8 sets round knife

3:1 pcs 3 inch unwinding air shaft+1 pcs rewinding air shaft+2 pcs 1.5/1/2inch air shaft. (Automatic inflation)

4:meter/number counter.

5:web guide 2 pcs right and left for material

6:1 magnetic brake, 3 pcs magnetic clutch

7:Fan blower for blowing away the waste

8:Main motor

9:Inverter

10: Synchronous motor for waste rewinding controlled



Specification:

Machine Model MQ320-Y MQ420-Y
Slitting Speed 120m/min 120m/min
Die Cutting Speed 120m/min 120m/min
Max. Web Width 320mm 420mm
Max. Unwinding Diameter 500mm 500mm
Max. Rewinding diameter for big roll 500mm 500mm
Max. Rewinding diameter for small roll 300mm 300mm
Length of Die Cutting 190-476 mm 190-476mm
Dimensions 1700*1000*1600mm 1800*1300*1700mm
Main motor 1.5 KW 2.2KW
Voltage 220V/380V 220V/380V
Min. Slitting width 16mm 16mm
Machine weight 600 kgs 800 kgs

MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET 0MQ-320-Y ADHESIVE LABEL PAPER PROCESS MACHINERY WITH UNWINDING MAX DIAMETER 500MM DIE CUTTING AND SLITTING ROTARY TURRET 1
