| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | MQ-320-Y |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Warranty: | 1 Year | Mini Slit Width: | 16mm |
|---|---|---|---|
| Max Rewinding Diameter: | 500mm | Unwinding Max Diameter: | 500mm |
| Power: | 1.5kw | Model: | MQ-320-Y |
| Die Cutting Speed: | 120m/min | Length Of Die Cutting: | 190-476 Mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | SLITTING SPEED FOR ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 500MM UNWINDING MAX DIAMETER BLANK LABEL ROTARY DIE CUT | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

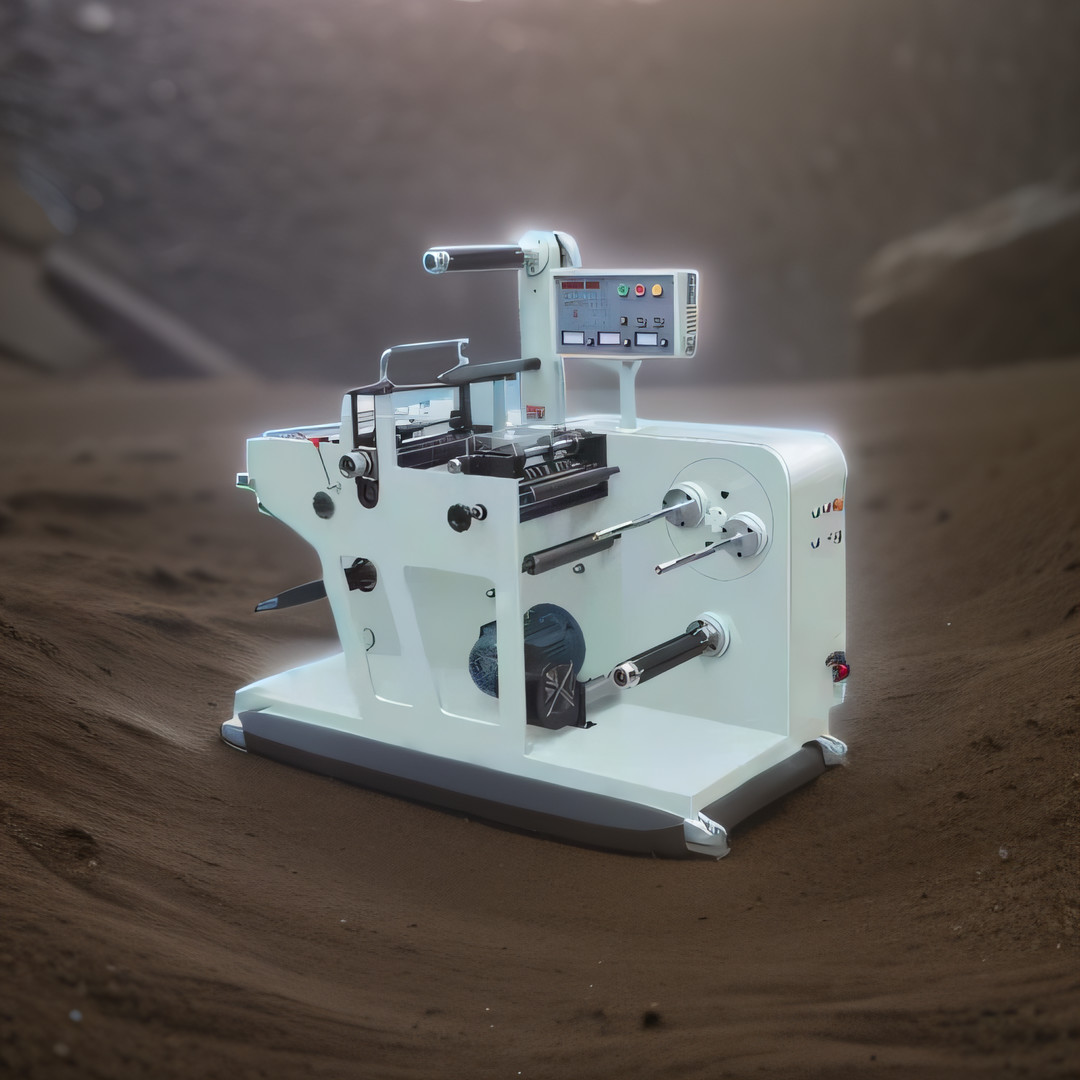

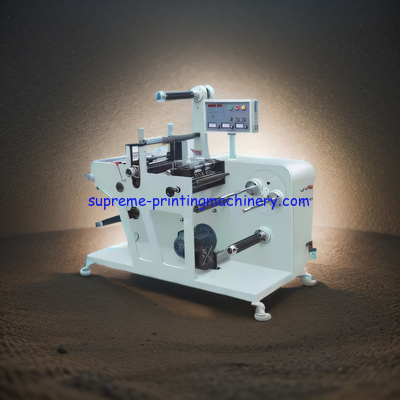

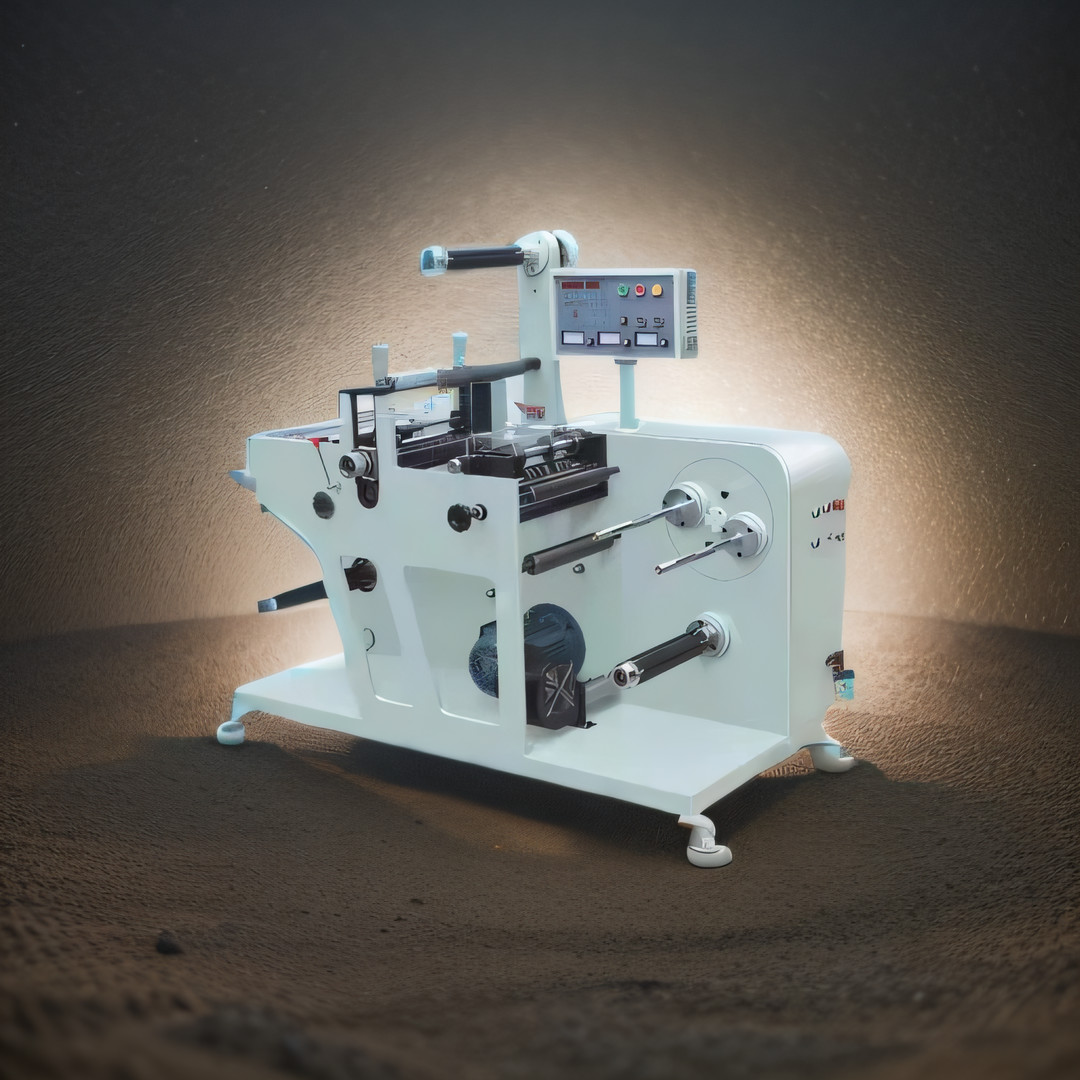

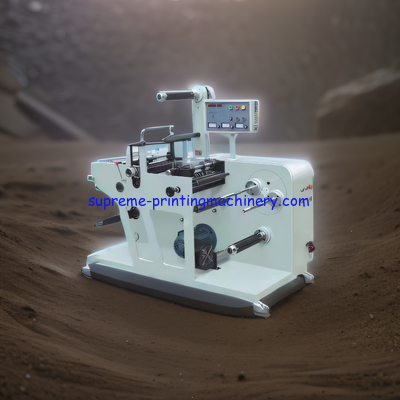

The MQ320-Y Rotary Blank Label Die Cuting Machine With Slitter is the latest designed machinery focused on client who has single product structure. It consists of a high precision rotary die cut station, slitting station, and optional turret rewinding into 2 inch, 1.5 inch, or 1 inch air shaft. This machine provides advantages such as in-built laminating for blank labelling.
Moreover, this machine offers distinct features like auto meter/number counting, auto stopping; web guidance by photoelectric eye; along with its attractive characteristics such as compact design, fast speed, high efficiency, convenient operation, accurate slitting and stable performance.
Brand Name: Supreme
Model Number: MQ-320-Y
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Fumigation Wooden Box
Delivery Time: 20-30 Working Days
Payment Terms: TT; LC
Supply Ability: 40sets/Month
Unwinding Max Diameter: 500mm
Model: MQ-320-Y
Max Material Feeding Width: 320mm
Length of Die Cutting: 190-476 Mm
Slitting Speed: 120m/min
Our SLITTING SPEED FOR ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 500MM UNWINDING MAX DIAMETER BLANK LABEL ROTARY DIE CUT is an automatic die cutting machine, perfect for small rotary die cutting projects. It offers precise cutting of adhesive labels with a maximum material feeding width of 320mm and length of die cutting of 190-476mm. It also features a maximum unwinding diameter of 500mm, with a slitting speed of 120m/min.
We provide comprehensive technical support and service for our SLITTING SPEED FOR ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 500MM UNWINDING MAX DIAMETER BLANK LABEL ROTARY DIE CUT. Our experienced technicians have in-depth knowledge of the product and can offer a wide range of services, including:
Our technical support and service team is available 24/7 to answer all of your questions and help you resolve any issues you may have with your SLITTING SPEED FOR ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 500MM UNWINDING MAX DIAMETER BLANK LABEL ROTARY DIE CUT.
For the packaging and shipping of the SLITTING SPEED FOR ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 500MM UNWINDING MAX DIAMETER BLANK LABEL ROTARY DIE CUT, the products will be securely wrapped with film wrap. the outside with the fumigation wooden box or crate. The shipment will be labeled with the appropriate shipping labels and be sent out via a reputable carrier.
Standard:
1:Rotary die cutting station
2:Slitting station with 8 sets round knife
3:1 pcs 3 inch unwinding air shaft+1 pcs rewinding air shaft+2 pcs 1.5/1/2inch air shaft. (Automatic inflation)
4:meter/number counter.
5:web guide 2 pcs right and left for material
6:1 magnetic brake, 3 pcs magnetic clutch
7:Fan blower for blowing away the waste
8:Main motor
9:Inverter
10: Synchronous motor for waste rewinding controlled
Specification:
| Machine Model | MQ320-Y | MQ420-Y |
| Slitting Speed | 120m/min | 120m/min |
| Die Cutting Speed | 120m/min | 120m/min |
| Max. Web Width | 320mm | 420mm |
| Max. Unwinding Diameter | 500mm | 500mm |
| Max. Rewinding diameter for big roll | 500mm | 500mm |
| Max. Rewinding diameter for small roll | 300mm | 300mm |
| Length of Die Cutting | 190-476 mm | 190-476mm |
| Dimensions | 1700*1000*1600mm | 1800*1300*1700mm |
| Main motor | 1.5 KW | 2.2KW |
| Voltage | 220V/380V | 220V/380V |
| Min. Slitting width | 16mm | 16mm |
| Machine weight | 600 kgs | 800 kgs |
