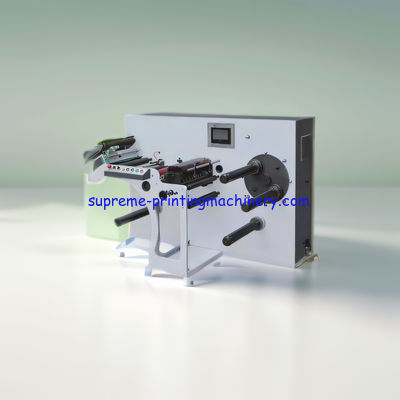

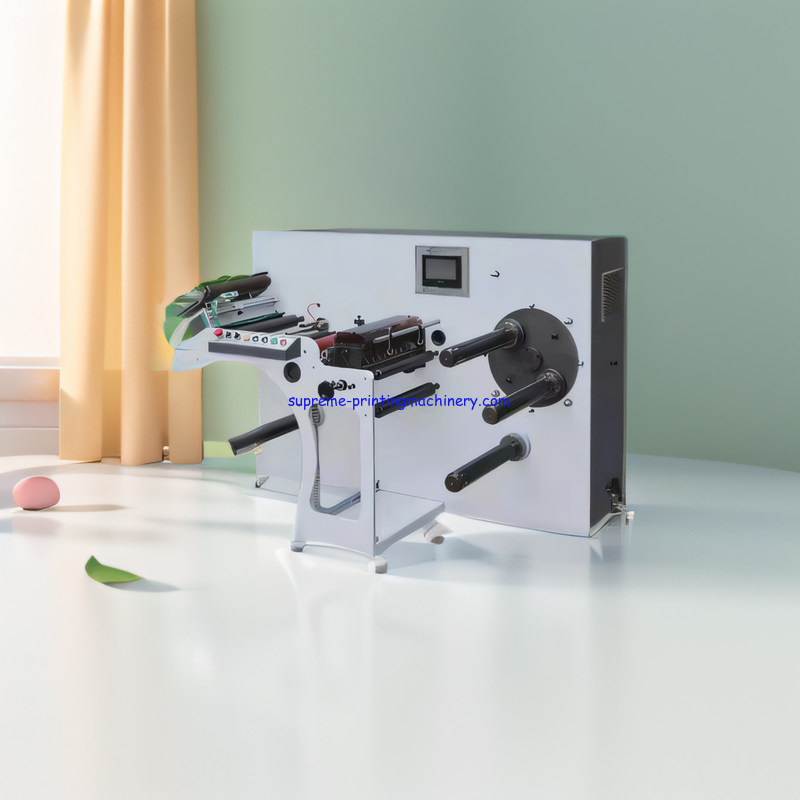

1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-350FG
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Model: FQ-350FG Max Rewinding Diameter: 500mm
Warranty: 1 Year Mini Slit Width: 16mm
Unwinding Max Diameter: 700mm Slitting Speed: 350m/min
Air Supply: 0.8mpa Voltage: 380V/220V
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: 1 Year Adhesive Label Paper Process Machinery With Unwinding Max Diameter 700mm Slitting Equipment For The High Level Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level

Product Description:

Slitting Equipment For The High Level Market

A new product has been researched, and it is mainly used for slitting narrow roll material. This slitting equipment is intended for a high-end market, as it is equipped with a full servo-driven system, a typer tension system, as well as web guiding from a top-brand. Enabling features such as meter and number counting, static eliminator, and no material no working make this machine quite special.

Performance and Characteristics

  • Web guide control by EPC System
  • Rewind is turret type and auto rotating
  • Equipped with 4 full servo motors
  • Sensors are from Germany Sick brand, allowing for metering, counter, and quantity counting
  • PLC and touch screen control system for simple and clear operations
  • Core size of 76mm, plus other sizes are possible


Applications:

The narrow roll material of web, printing, and paper-conversion are mostly used for slitting.

Slitting is a process used to cut long rolls of material into narrower rolls. It can be performed on a variety of materials, including paper, film, foil, fabric, and more.

The purpose of slitting is to prepare materials for further processing, or to facilitate and speed up the consumer’s use. As such, slitting is used in the printing industry, to cut and package paper for home or office use, as well as in paper converting where rolls of paper are cut into various shapes and sizes.



Customization:

Customized 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level

Brand Name: Supreme
Model Number: FQ-350FG
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: TT;LC
Supply Ability: 40sets/month
Warranty: 1 Year
Mini Slit Width: 16mm
Voltage: 380V/220V
Max Material Feeding width: 350mm
Max Rewinding Diameter: 500mm

Are you looking for a high speed label-stock paper slitting rewinding machine? Supreme, the leading manufacturer of micro slitting machine, offers you the perfect solution for slitting and rewinding blank label, paper, sticker, film, and adhesive label paper process machinery. Our high speed automatic slitting rewinding machine is designed to meet your needs of a reliable and efficient machine.

Contact us today for more information and to discuss your requirements.



Support and Services:

1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level technical support and service include:

  • Provide installation and commissioning services as well as on-site training for operators.
  • Provide detailed operation manual.
  • Provide professional technical advice and guidance.
  • Provide customized solutions for your special needs.
  • Provide 24/7 online remote service.
  • Provide quick response and timely after-sales service.


Packing and Shipping:

1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level is packaged and shipped in a secure, environmentally friendly fumigtion wooden box. The package includes all necessary components and instructions for the installation and operation of the machinery. All parts are securely fastened to the fumigation wooden box to ensure that they do not move around during transportation. The box is labeled with a clear description of the product and its contents.

The product is then shipped using an appropriate shipping carrier, depending on the destination, and the customer is provided with a tracking number. The package is then tracked throughout its journey to ensure it arrives in the customer’s hands in perfect condition.



FAQ:

Q: What is the Brand Name of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level ?
A: The Brand Name of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level is Supreme.
Q: What is the Model Number of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level ?
A: The Model Number of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level  is FQ-350FG.
Q: Where is the place of origin of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level ?
A: The place of origin of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level  is China.
Q: What is the Certification of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level ?
A: The Certification of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level  is CE.
Q: What is the Minimum Order Quantity of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level ?
A: The Minimum Order Quantity of 1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level  is 1.


Performance and characteristics

1. Web guide control by EPC SYSTEM.

2. Rewind is turret type, auto rotate.

3. With full servo motor(4 servo motor)

4. Sensor use germany sick brand, it can meter counter and quantity counter.

5. with PLC, touch screen control system



Technical Data

model FQ-350FG FQ-450FG
Max. Slitting speed 350 m/min
Max web width 350mm 450mm
Min. Slitting width 16mm
Cutter installed 8 sets
Max. Unwinding Dia 700mm
Max. Rewinding Dia

500mm



Air supply 0.8mpa
weight 1200kg
Dimension(L*W*H) 1850*1200*1300





1 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level 01 Year Adhesive Label Paper Process Machinery with Unwinding Max Diameter 700mm Slitting Equipment For The High Level 1
