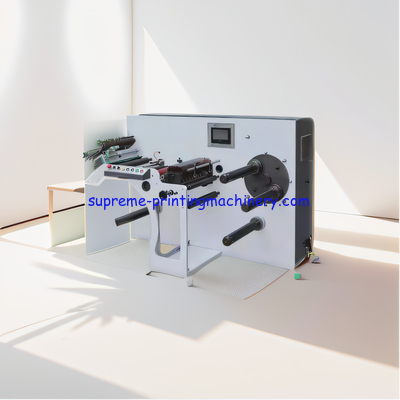

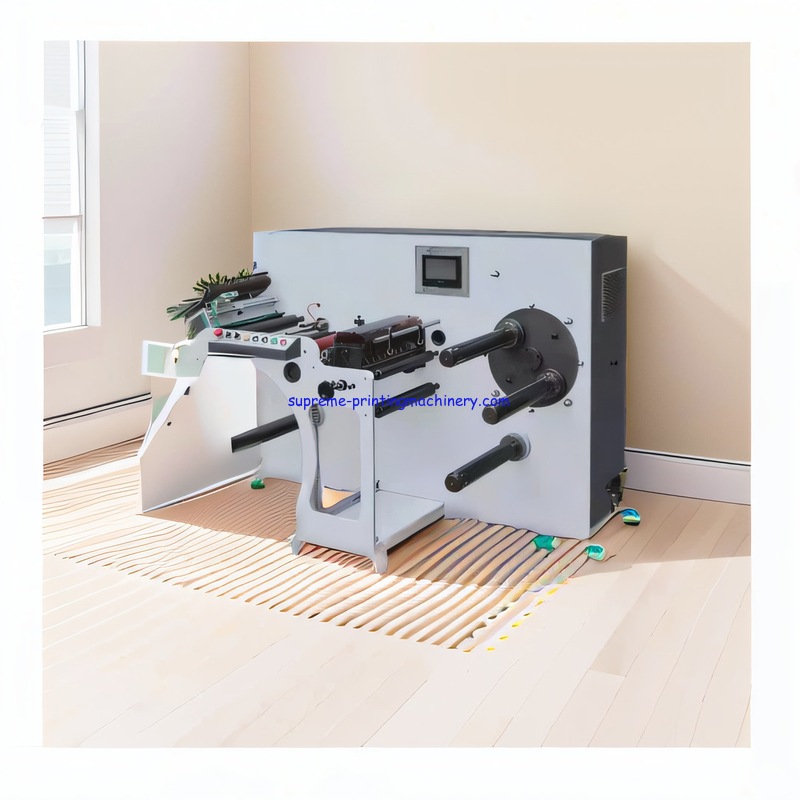

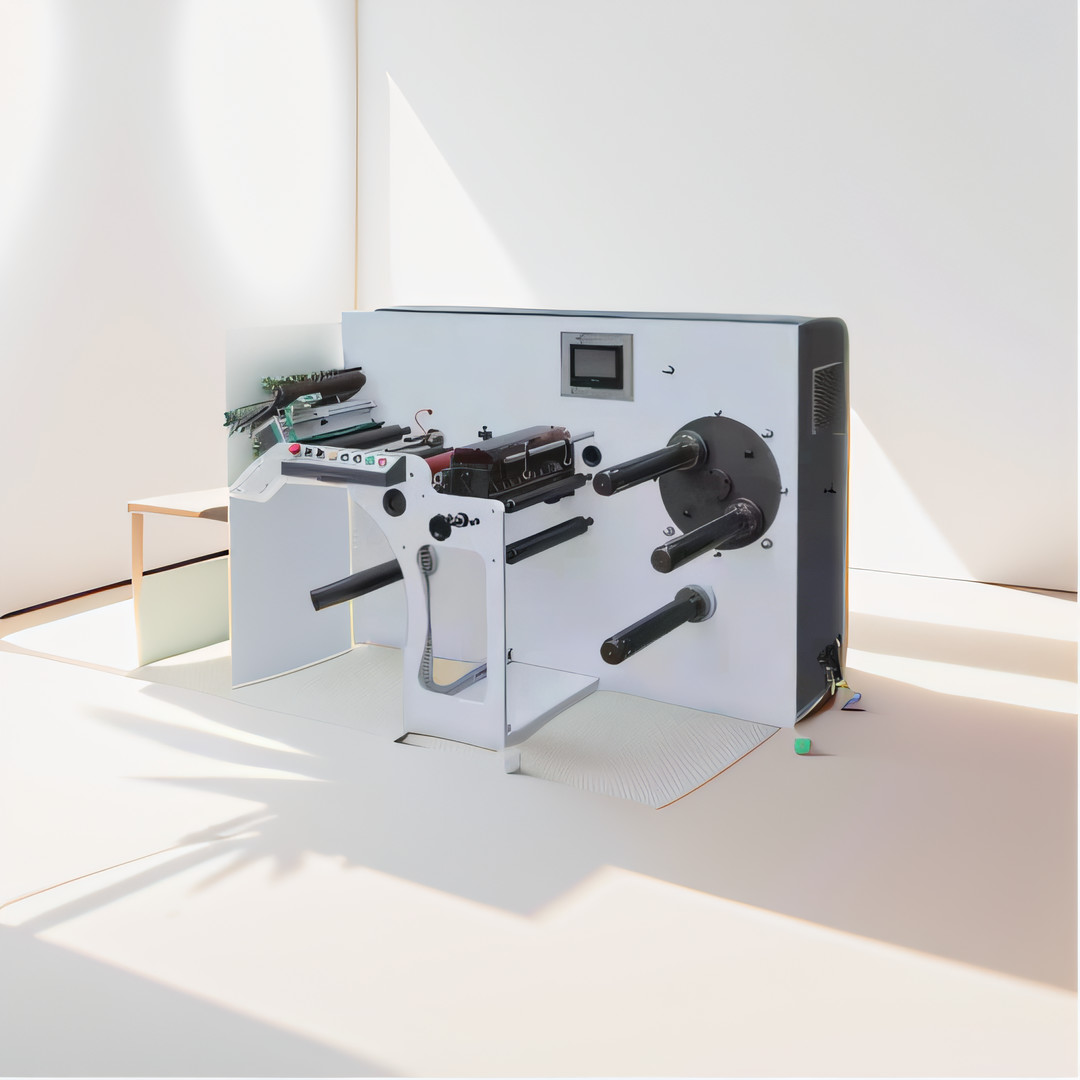

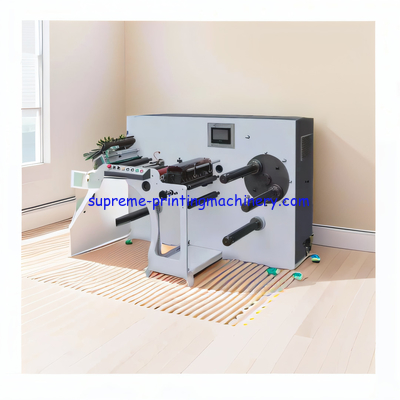

MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-350FG
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Slitting Speed: 350m/min Air Supply: 0.8mpa
Mini Slit Width: 16mm Warranty: 1 Year
Max Rewinding Diameter: 500mm Unwinding Max Diameter: 700mm
Voltage: 380V/220V Max Material Feeding Width: 350mm
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION

Product Description:

This new product is mainly used for slitting narrow roll material and is targeted to high-level markets. It is equipped with a full servo-driven system, type tension system, top brand web guiding, turret rewind, metering and number counting capabilities, and a static eliminator. In addition, it is designed with a no material no working feature.

The web guiding is controlled by an EPC system, the rewind is turret-type and auto-rotates, PLC and a touch screen control system are also included. It is powered by four servo motors and the sensor systems are made with German Sick brand parts, which can do both metering and quantity counting.



Applications:

Slitting is primarily a process used for reducing the width of rolls of material. It involves feeding a roll of material through a cutting device that divides the material into multiple narrower rolls. It is mainly used to slit narrow roll materials such as paper, film, foil, non woven fabric, and metal strips. Different types of knives and saws are used to cut through rolls of material, depending on the material type. The slitting process is also used in many industries including packaging, food services, and construction.



Customization:

Supreme FQ-350FG MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION
  • Brand Name: Supreme
  • Model Number: FQ-350FG
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 20-30 working days
  • Payment Terms: TT;LC
  • Supply Ability: 40sets/month
  • Mini Slit Width: 16mm
  • Model: FQ-350FG
  • Slitting Speed: 350m/min
  • Max Rewinding Diameter: 500mm
  • Voltage: 380V/220V
  • High speed label slitting machine(350/450/550)
  • High speed label slitting machine with non stop rewinding machine(optional)
  • High Speed Label Slitting Machine with Rotary Die-Cutting Station(optional)


Support and Services:

MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION technical support and services provided by us include:

  • Installation and commissioning
  • Troubleshooting and maintenance
  • Process optimization
  • On-site training
  • Spare parts supply
  • Efficient and timely customer service


Packing and Shipping:

For the MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION, the packaging and shipping process includes the following steps:

  • The product is securely packaged according to international standards.
  • The package is inspected for any damages or defects.
  • The product is placed onto a pallet and secured with stretch wrap.
  • The package is labeled according to international shipping standards.
  • The package is loaded onto a truck and shipped to its destination.


FAQ:

Adhesive Label Paper Process Machinery

  • Q: What is the Brand Name?
    A: Supreme.
  • Q: What is the Model Number?
    A: FQ-350FG.
  • Q: Where is the Place of Origin?
    A: China.
  • Q: Does it have Certification?
    A: Yes, it has CE Certification.
  • Q: What is the Minimum Order Quantity?
    A: 1.
  • Q: How much is the Price?
    A: The price is negotiable.
  • Q: How is the Packaging?
    A: The packaging is fumigation wooden box.
  • Q: How about the Delivery Time?
    A: The delivery time is 20-30 working days.
  • Q: What are the Payment Terms?
    A: The payment term is TT;LC.
  • Q: What is the Supply Ability?
    A: The supply ability is 40sets/month.

Performance and characteristics

1. Web guide control by EPC SYSTEM.

2. Rewind is turret type, auto rotate.

3. With full servo motor(4 servo motor)

4. Sensor use germany sick brand, it can meter counter and quantity counter.

5. with PLC, touch screen control system



Technical Data

model FQ-350FG FQ-450FG
Max. Slitting speed 350 m/min
Max web width 350mm 450mm
Min. Slitting width 16mm
Cutter installed 8 sets
Max. Unwinding Dia 700mm
Max. Rewinding Dia

500mm



Air supply 0.8mpa
weight 1200kg
Dimension(L*W*H) 1850*1200*1300





MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION 0MAX REWINDING DIAMETER 500MM FQ-350/450 HIGH SPEED LABEL SLITTER MACHINE NARROW SCOPE PAPER EPC PLC TOUCH SCREEN TENSION 1
