| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FQ-350FG |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Slitting Speed: | 350m/min | Model: | FQ-350FG |
|---|---|---|---|
| Warranty: | 1 Year | Max Rewinding Diameter: | 500mm |
| Air Supply: | 0.8mpa | Voltage: | 380V/220V |
| Max Material Feeding Width: | 350mm | Unwinding Max Diameter: | 700mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | DURABLE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR HIGH-SPEED SLITTING 1 YEAR INCLUDED TURRET REWINDING MACHINE SERVO | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

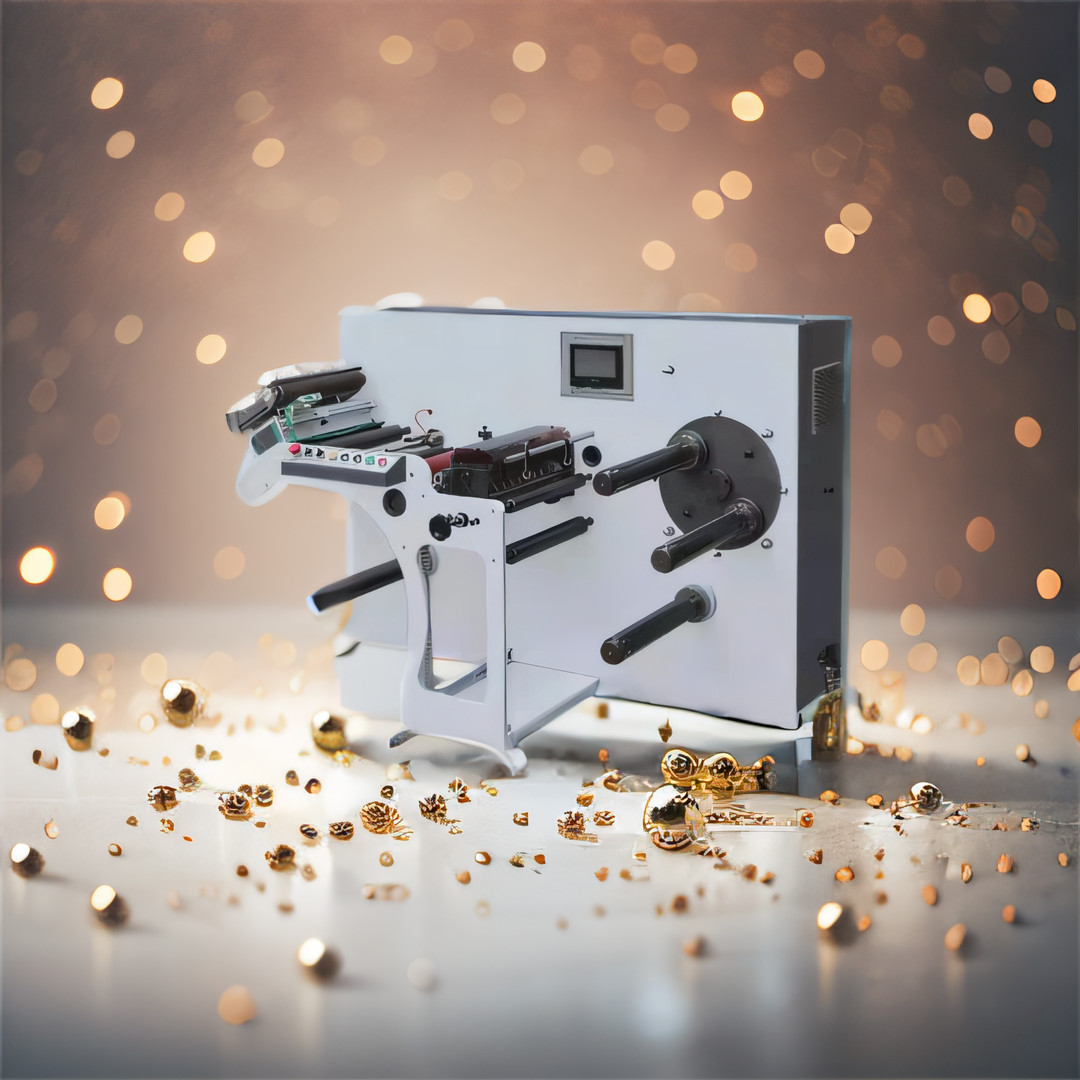

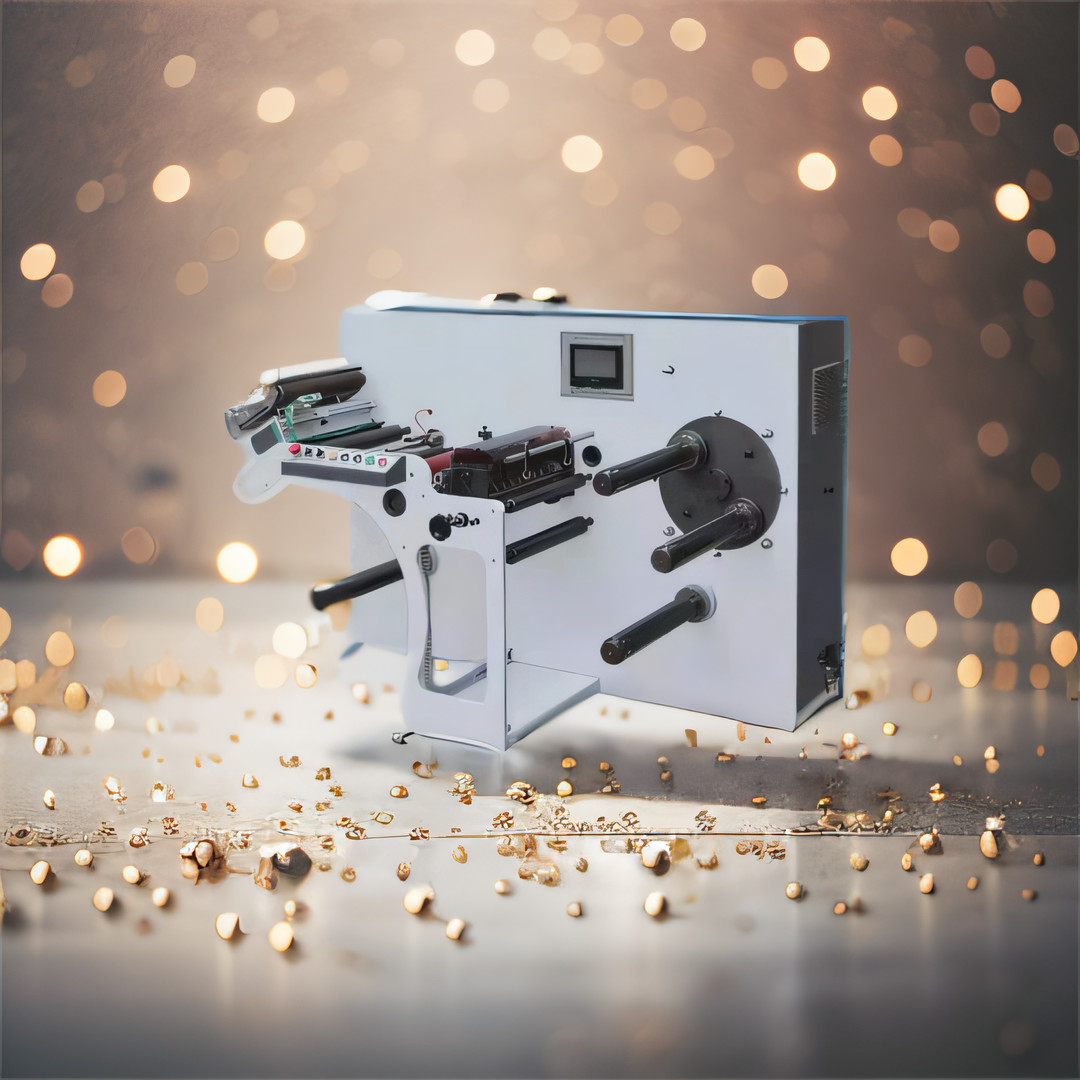

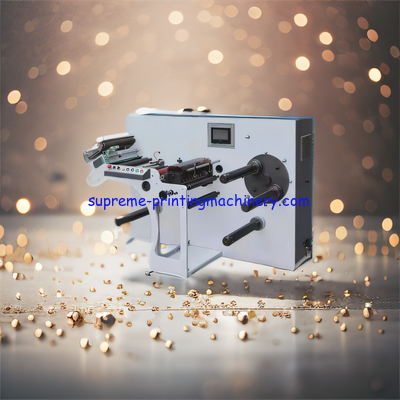

This new product is mainly used for slitting narrow rolls of material, and is specifically tailored for top-level markets. It is equipped with a full servo drive system, tapper tension system, and a top brand web guide. Furthermore, it comes with turret rewind, material metering and number counting, static eliminator, as well as a no material no working feature.
Its performance an characteristics are summarized as follows: firstly, the web guide is driven by an EPC system, secondly, the rewind is turret type that allows for auto rotation and it is equipped with four servo motors. Thirdly, the sensor used is of the German brand Sick, which provides metering, counting, as well as quantity counting functions. Lastly, the machine has a PLC, touch screen control system that helps with the store and retrieval operations thereby making the operation and maintenance process easier.
Narrow roll material can be slitted mostly by means of one of the forms of slitting, which is to cut a long roll of material into narrower rolls. This process is commonly used in the printing industry and is vital for producing continuous web materials such as labels, films and cartridges.
Multiple slitting methods can be used, such as razor knife slitting, shear slitting or score slitting. Each method has different advantages and disadvantages. For example, using a razor blade slitting method allows for narrow cuts, while a shear slitting method often results in cleaner, straighter cuts.
Slitting narrow roll materials can be a time consuming process, depending on the material and the level of accuracy required for the output. It's important that the cutting and slitting setup is well measured before the process begins so as to avoid any material wastage.
This DURABLE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR HIGH-SPEED SLITTING 1 YEAR INCLUDED TURRET REWINDING MACHINE SERVO is a High Speed Slitting and Rewinding Machine for Label, High Speed Label-stock Paper Slitting Rewinding Machine which can slit the thicker flexible film, computer security labels, electronic computers film, optical materials film roll, etc. at high speed.
DURABLE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR HIGH-SPEED SLITTING 1 YEAR INCLUDED TURRET REWINDING MACHINE SERVO provides technical support and services to customers. Our support teams are available 24/7 to answer any questions or concerns you may have about our products. Our services include installation, maintenance, troubleshooting, and repairs. We also provide training for customers who want to use the machine more efficiently. If you ever have any issue with our products, we are here to help you solve them quickly and efficiently.
DURABLE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR HIGH-SPEED SLITTING 1 YEAR INCLUDED TURRET REWINDING MACHINE SERVO is packed and shipped in accordance with the highest industry standards. All machines are shipped in sturdy fumigation wooden boxes to ensure safe delivery. The boxes are also labeled with the product name, product number, and shipping address to ensure the product arrives at the correct address. Shipping is handled by a trusted third-party carrier like air, sea, truck ect, ensuring safe and timely delivery.
Performance and characteristics
1. Web guide control by EPC SYSTEM.
2. Rewind is turret type, auto rotate.
3. With full servo motor(4 servo motor)
4. Sensor use germany sick brand, it can meter counter and quantity counter.
5. with PLC, touch screen control system
Technical Data
| model | FQ-350FG | FQ-450FG |
| Max. Slitting speed | 350 m/min | |
| Max web width | 350mm | 450mm |
| Min. Slitting width | 16mm | |
| Cutter installed | 8 sets | |
| Max. Unwinding Dia | 700mm | |
| Max. Rewinding Dia |
500mm
|
|
| Air supply | 0.8mpa | |
| weight | 1200kg | |
| Dimension(L*W*H) | 1850*1200*1300 | |
