| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FQ-350FG |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Air Supply: | 0.8mpa | Max Rewinding Diameter: | 500mm |
|---|---|---|---|
| Voltage: | 380V/220V | Model: | FQ-350FG |
| Slitting Speed: | 350m/min | Unwinding Max Diameter: | 700mm |
| Max Material Feeding Width: | 350mm | Mini Slit Width: | 16mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |

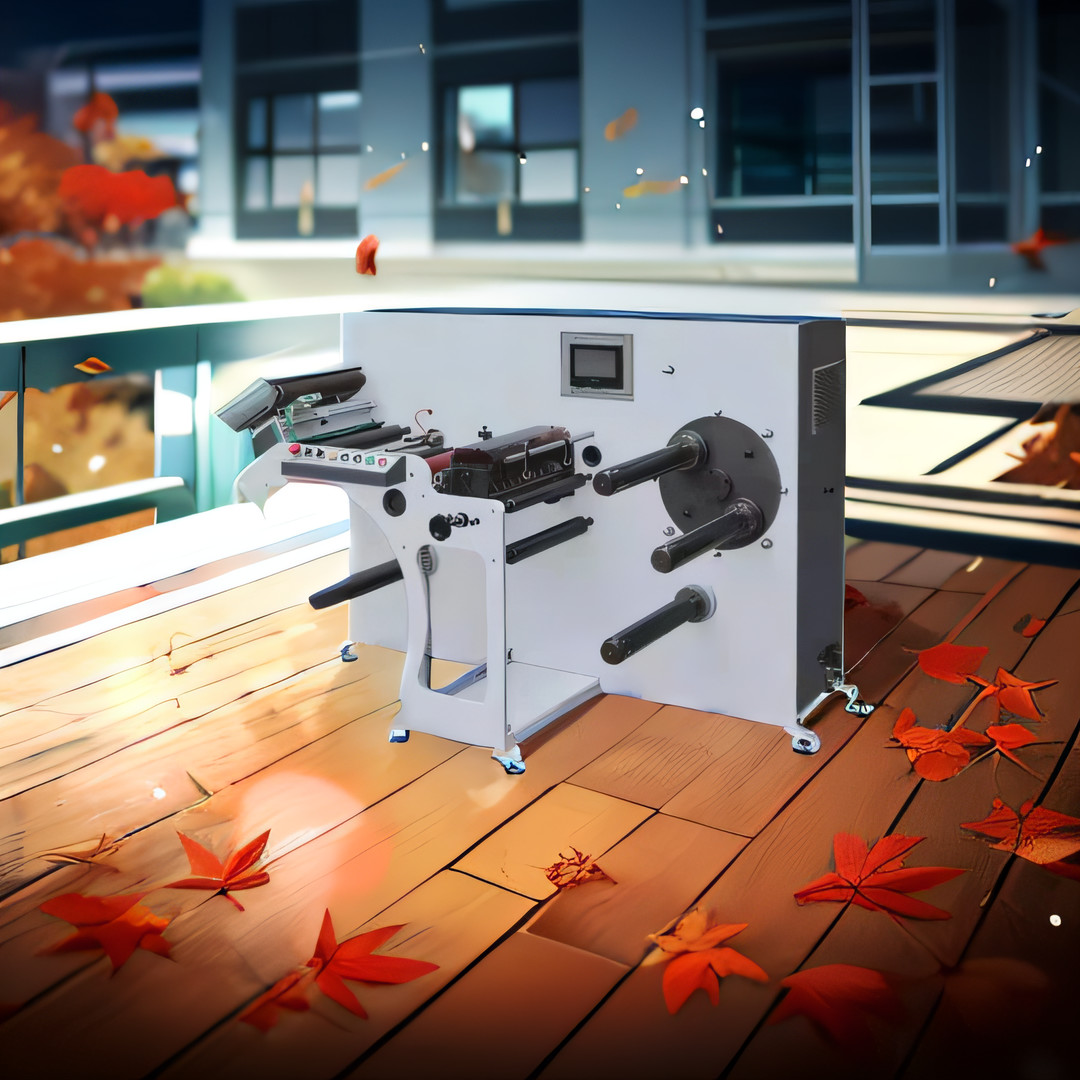

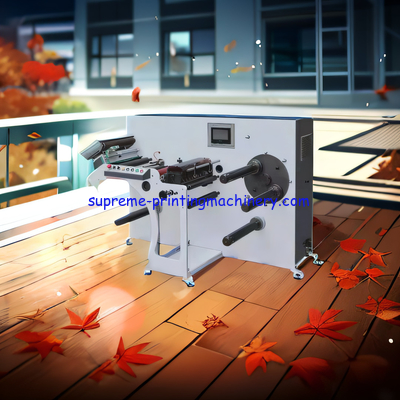

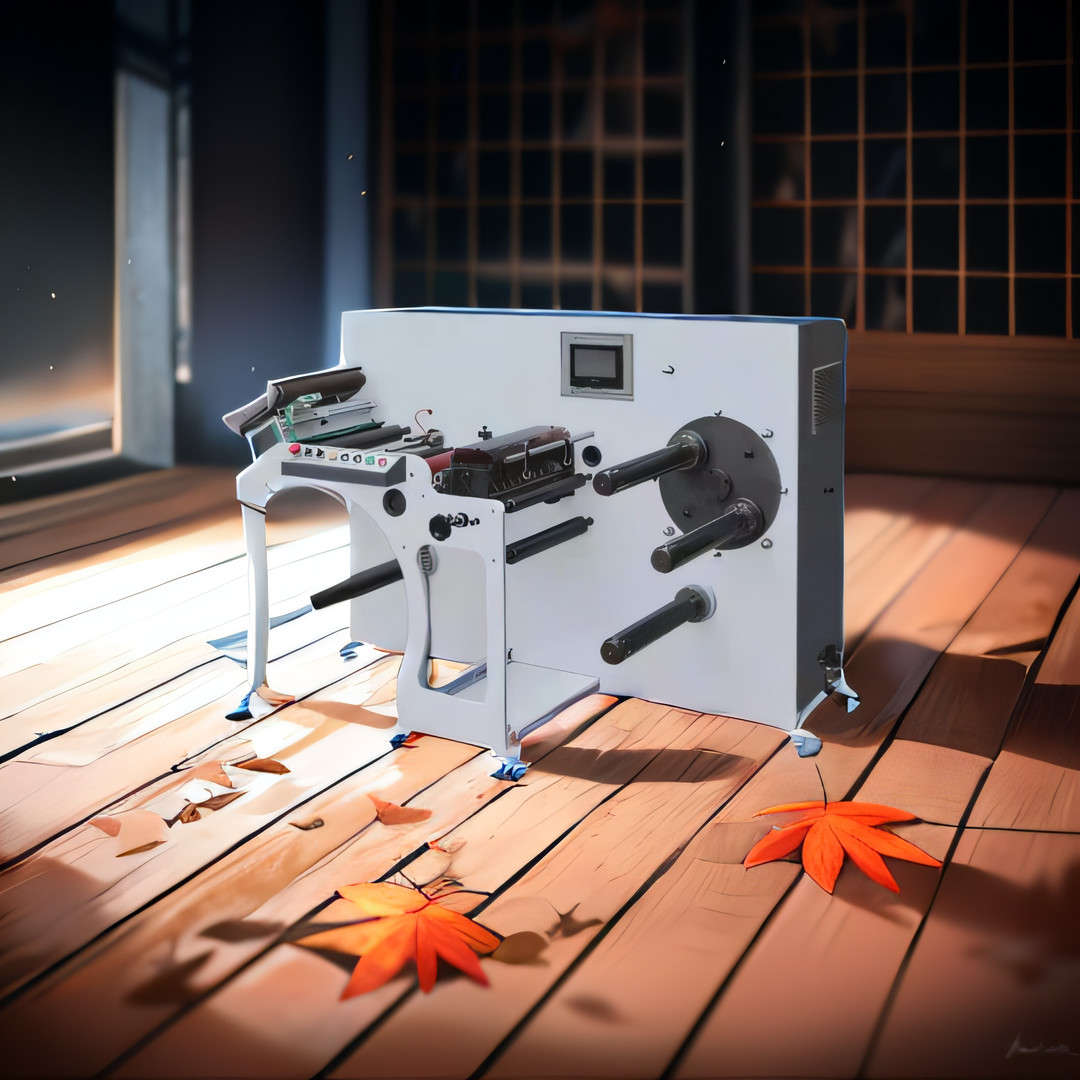

| Product Name: | 350M/MIN ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 350MM MAX MATERIAL FEEDING WIDTH HIGH SPEED SLITTER MACHINE TURRET | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
A recently researched product, essential for the slitting of limited size roll material, has been developed for high-level markets with a full servo driven system, variable tension system, and the latest web guiding technology.
Its performance capabilities and characteristics, such as the web guide being controlled by an EPC SYSTEM, turret rewinder with auto rotation, and a German Sick sensor to assist with metering and counting, are all fundamental features of the product.
The product also includes four servo motors, PLC, and an intuitive touchscreen control system, for more efficient use and easy handling.
In addition, safety-related features such as a static eliminator and ‘no material, no working’ are also implemented.
The slitting process is a common operation for narrow roll materials. It is mainly used to divide one large roll into multiple smaller rolls with various required width.
The advantages of the slitting process include faster delivery of narrow roll materials, flexibility in width and accuracy in width. In addition, higher efficiency and precision are also achieved.
350M/MIN ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 350MM MAX MATERIAL FEEDING WIDTH HIGH SPEED SLITTER MACHINE TURRET provides comprehensive technical support and service for its products. This includes providing reliable technical advice, clear instructions, high-quality parts replacement, and maintenance services to ensure the best performance of the machine. We also provide technical support services such as remote assistance, online troubleshooting, and software updates. In addition, we offer training and consultation services to help customers maximize the value of their investment.
Packaging and Shipping for 350M/MIN ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 350MM MAX MATERIAL FEEDING WIDTH HIGH SPEED SLITTER MACHINE TURRET
350M/MIN ADHESIVE LABEL PAPER PROCESS MACHINERY WITH 350MM MAX MATERIAL FEEDING WIDTH HIGH SPEED SLITTER MACHINE TURRET is packaged carefully to ensure safe delivery. The following packaging and shipping methods are used:
Machinery is shipped by land, sea, and air using trusted and reliable carriers. Delivery times vary depending on the method of transport chosen.
Performance and characteristics
1. Web guide control by EPC SYSTEM.
2. Rewind is turret type, auto rotate.
3. With full servo motor(4 servo motor)
4. Sensor use germany sick brand, it can meter counter and quantity counter.
5. with PLC, touch screen control system
Technical Data
| model | FQ-350FG | FQ-450FG |
| Max. Slitting speed | 350 m/min | |
| Max web width | 350mm | 450mm |
| Min. Slitting width | 16mm | |
| Cutter installed | 8 sets | |
| Max. Unwinding Dia | 700mm | |
| Max. Rewinding Dia |
500mm
|
|
| Air supply | 0.8mpa | |
| weight | 1200kg | |
| Dimension(L*W*H) | 1850*1200*1300 | |
