| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FQ-350FZ |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Model: | FQ-350FZ | Max Rewinding Diameter: | 600mm |
|---|---|---|---|
| Warranty: | 1 Year | Unwinding Max Diameter: | 600mm |
| Mini Slit Width: | 16mm | Voltage: | 380V/220V |
| Slitting Speed: | 200m/min | Max Material Feeding Width: | 350mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | MAX MATERIAL FEEDING WIDTH 350MM ADHESIVE LABEL PAPER PROCESS MACHINERY NARROW LABEL MEDIUM SPEED SLITTING MACHINE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

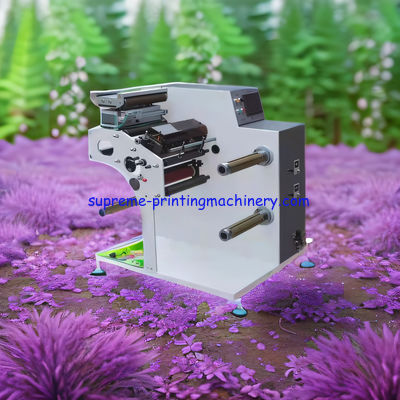

Our company has independently researched and developed the machine. It is a kind of narrow label medium speed slitting machine, with a fully servo unwinding and rewinding taper tension system of high quality, imported famous brand web guide system, a turret rewinding air shaft fully automatic rotation and transposition device, and a preparatory air shaft preparation device that can significantly improve the productivity.
It is worthwhile to mention that this machine supports the exchange of multiple specifications of inflatable shafts, meter/number counting, static treatment, and no material reduce speed or stop function. All of these are useful for guaranteeing the product quality.
This slitting machine operates at medium speeds with a narrow label.
It is designed with a powerful motor, ensuring efficient performance. Its simple structure and small footprint allow operators to conveniently move it around the shop floor.
The slitting machine is easy to operate. By simply turning the knob on the front of the machine, users can adjust the cutting speed and slit width as needed.
This versatile machine is suitable for a wide range of applications, making it an ideal choice for any industry.
The MAX MATERIAL FEEDING WIDTH 350MM ADHESIVE LABEL PAPER PROCESS MACHINERY NARROW LABEL MEDIUM SPEED SLITTING MACHINE will be packaged with film wrap and then placed in a fumigation wooden box for shipping.
A1:The Brand Name is Supreme.
A2:The Model Number is FQ-350FZ.
A3:The Place of Origin is China.
A4:The Certification is CE.
A5:The Minimum Order Quantity is 1.
Feature:
1:Unwinding+web guide: adopts an independent servo taper tension control system, with preset automatic no material speed reduced or stop. web guide adopts ultrasonic edge guidance
2:Slitting station: Portable circular knife cutting structure, quick disassembly and assembly, optional flat knife, with high-pressure vacuum waste suction system
3:Rewinding: Taper tension control system, rotating device greatly saves roll changing time, ensuring label alignment with paper core during roll changing
4:Counting: The counting system adopts a well-known German brand, ensuring a calculation accuracy of 1/10000. Transparent materials require the purchase of additional special sensors
Technical Data
| 型号 | model | FQ-350FZ | FQ-450FZ |
| 最快分切速度 | Max. Slitting speed | 200m/min | |
| 最大进纸宽度 | Max web width | 350mm | 450mm |
| 最小分切宽度 | Min. Slitting width | 16mm | |
| 剪切刀具数量 | Cutter installed | 8sets | |
| 最大放卷直径 | Max. Unwinding Dia | 600mm | |
| 最大收卷直径 | Max. Rewinding Dia | 600mm | |
| 气压要求 | Air supply | 0.8mpa | |
| 重量 | weight | 500kg/600kg | |
| 外形尺寸 | Dimension(L*W*H) | 1100*1000*1200mm/1100*1100*1200mm | |
