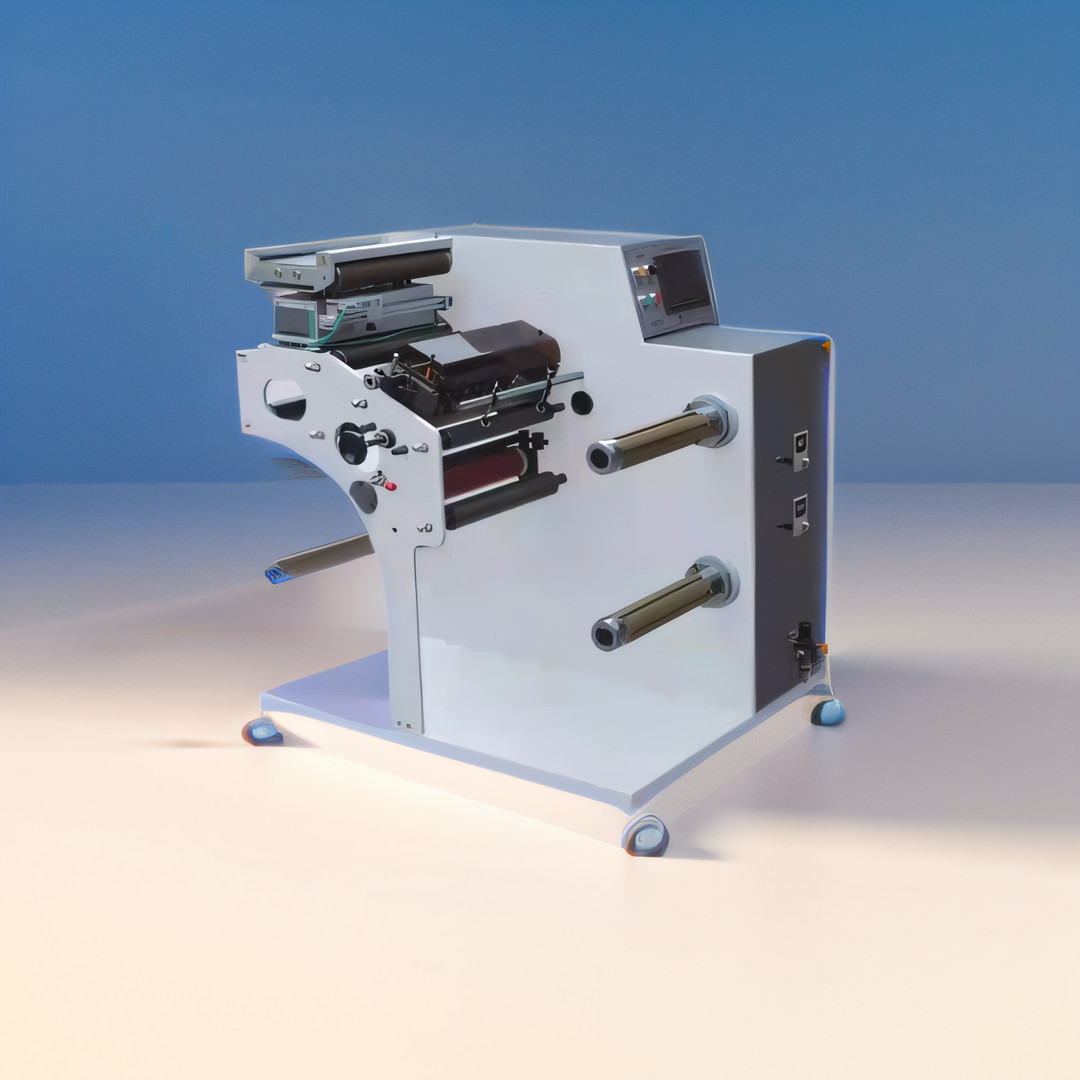

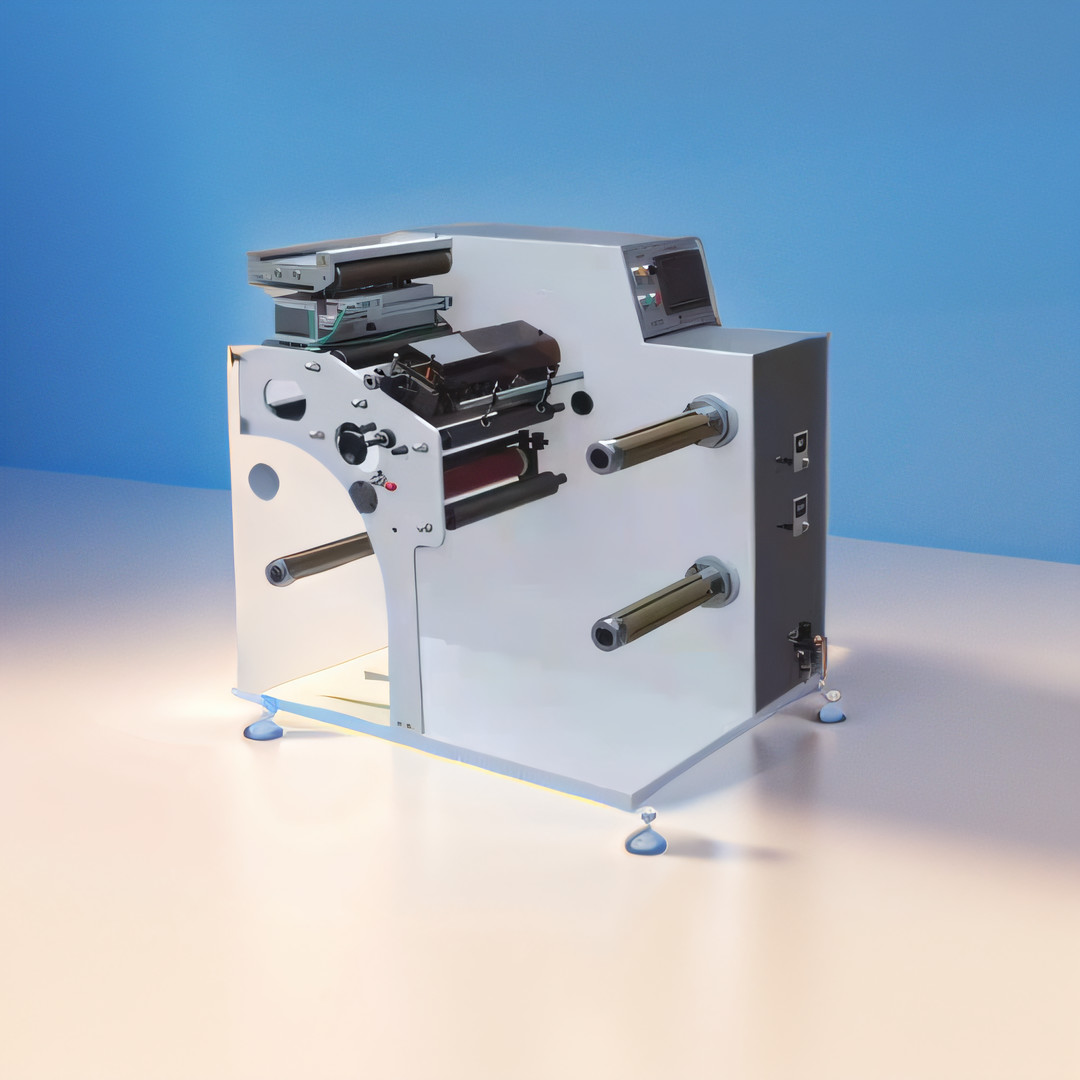

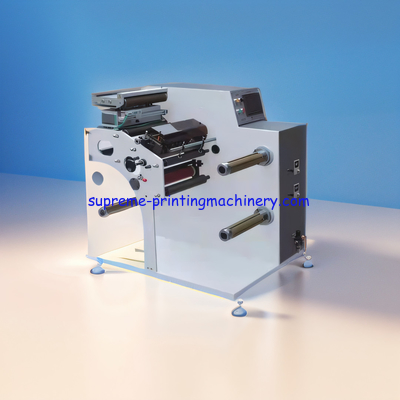

HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-350FZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Air Supply: 0.8mpa Max Material Feeding Width: 350mm
Unwinding Max Diameter: 600mm Mini Slit Width: 16mm
Slitting Speed: 200m/min Model: FQ-350FZ
Warranty: 1 Year Voltage: 380V/220V
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING

Product Description:

Our company has independently researched and developed this machine. The machine is a high-end narrow label medium speed slitting machine, equipped with a fully servo unwinding and rewinding taper tension system, imported famous brand web guide system, turrets rewinding air shaft fully automatic rotation device and transposition device, and a preparatory air shaft preparation device. These features together contribute to great improvement of production efficiency.
Moreover, it facilitates exchange of multiple specifications of inflatable shafts, meter/number counting, static treatment, and no material speed reduction or stop function.

Applications:

This machine is a narrow label, medium-speed slitting machine. It is specifically designed to cut labels into smaller strips or pieces in an efficient and accurate manner.

The machine is equipped with an advanced control system and sensors to ensure the accuracy of the cutting process. With its high output and high precision, this machine is ideal for solvent-free processes.

Due to its small size and low energy consumption, this machine is very cost-effective and environmentally friendly. Its unique design also ensures it is easy to install and operate.

This narrow label medium-speed slitting machine is perfect for those who want a reliable and effective labelling solution for their business.



Customization:



Customized HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING
  • Brand Name: Supreme
  • Model Number: FQ-350FZ
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 20-30 working days
  • Payment Terms: TT;LC
  • Supply Ability: 40sets/month
  • Air Supply: 0.8mpa
  • Slitting Speed: 200m/min
  • Max Material Feeding Width: 350mm
  • Unwinding Max Diameter: 600mm
  • Warranty: 1 Year

We provide customized services for HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING, such as High Speed Slitting and Rewinding Machine for Label, High speed slitting machine 350 suitable for slitting label rolls and adhesive labels, and it also could slit general paper and film, High speed label slitting machine with non stop rewinding machine(optional).



Support and Services:



HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING provides technical support and services to ensure that the customer can use the product correctly and safely. Our technical support and service includes:

  • 24/7 technical support hotline
  • On-site installation and commissioning
  • Regular maintenance and repair service
  • Software upgrade and troubleshooting
  • Customer training and guidance



Packing and Shipping:



HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING will be packaged for shipping in fumigation wooden boxes. The boxes will be sized according to the size and weight of the machinery. Each box will be clearly labeled with the type of machinery, the date of manufacture, and the shipping address. The boxes will be transported to the customer via a trusted courier service.



FAQ:



Q1: What is the brand name of this product?
A1: The brand name of this product is Supreme.
Q2: What is the model number of this product?
A2: The model number of this product is FQ-350FZ.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Is this product CE certified?
A4: Yes, it is CE certified.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 1.


Feature:

1:Unwinding+web guide: adopts an independent servo taper tension control system, with preset automatic no material speed reduced or stop. web guide adopts ultrasonic edge guidance



2:Slitting station: Portable circular knife cutting structure, quick disassembly and assembly, optional flat knife, with high-pressure vacuum waste suction system



3:Rewinding: Taper tension control system, rotating device greatly saves roll changing time, ensuring label alignment with paper core during roll changing



4:Counting: The counting system adopts a well-known German brand, ensuring a calculation accuracy of 1/10000. Transparent materials require the purchase of additional special sensors



Technical Data

型号 model FQ-350FZ FQ-450FZ
最快分切速度 Max. Slitting speed 200m/min
最大进纸宽度 Max web width 350mm 450mm
最小分切宽度 Min. Slitting width 16mm
剪切刀具数量 Cutter installed 8sets
最大放卷直径 Max. Unwinding Dia 600mm
最大收卷直径 Max. Rewinding Dia 600mm
气压要求 Air supply 0.8mpa
重量 weight 500kg/600kg
外形尺寸 Dimension(L*W*H) 1100*1000*1200mm/1100*1100*1200mm



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company



HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING 0HIGH SPEED SLITTING MACHINE IDEAL FOR THICKER FILM ALUMINUM FOIL AND COATED MATERIALS NARROW LABEL MEDIUM SPEED SLITTING 1
