380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-350FZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Unwinding Max Diameter: 600mm Max Material Feeding Width: 350mm
Model: FQ-350FZ Mini Slit Width: 16mm
Voltage: 380V/220V Air Supply: 0.8mpa
Max Rewinding Diameter: 600mm Slitting Speed: 200m/min
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING

Product Description:

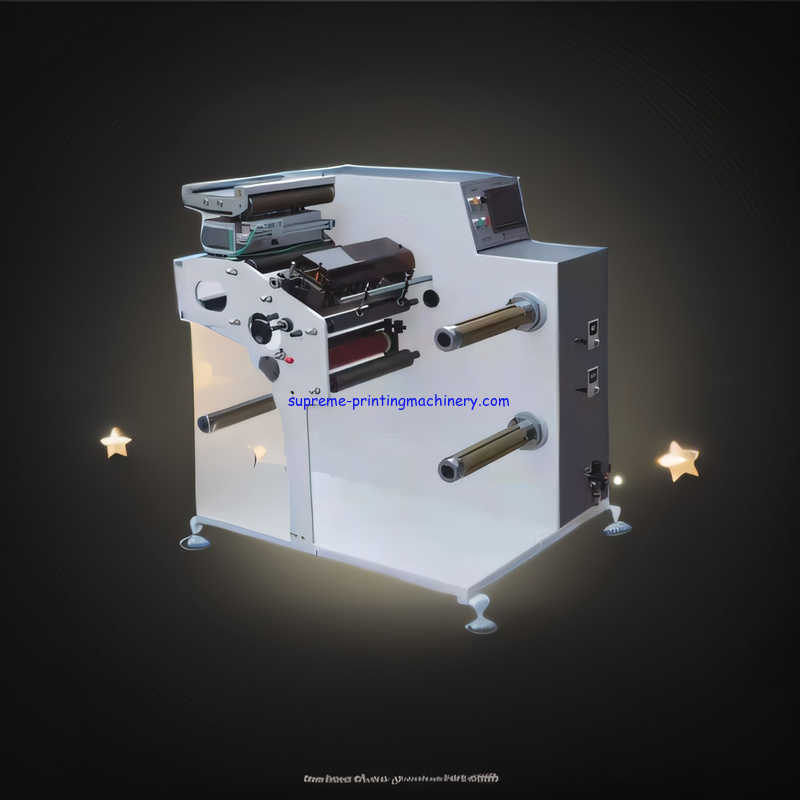

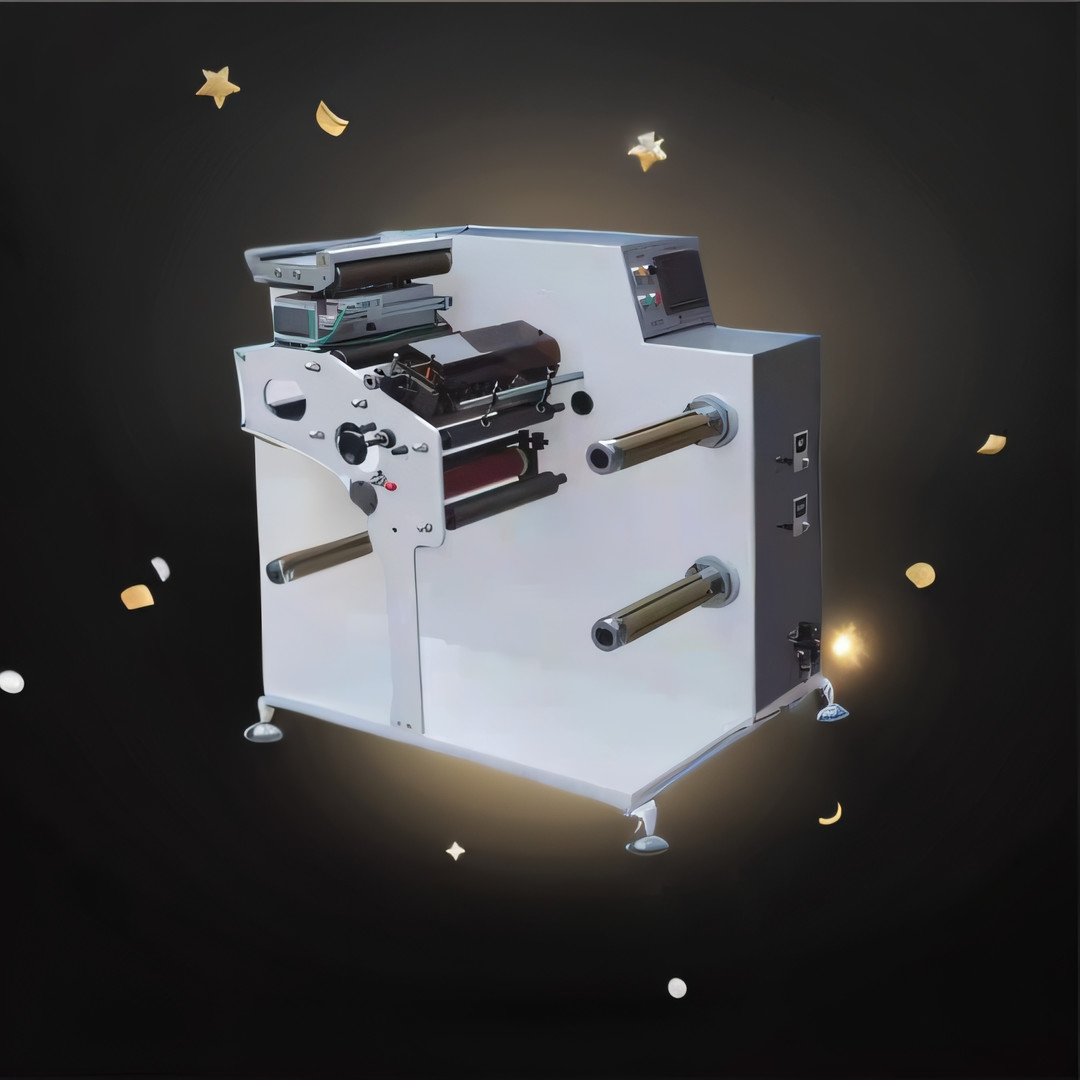

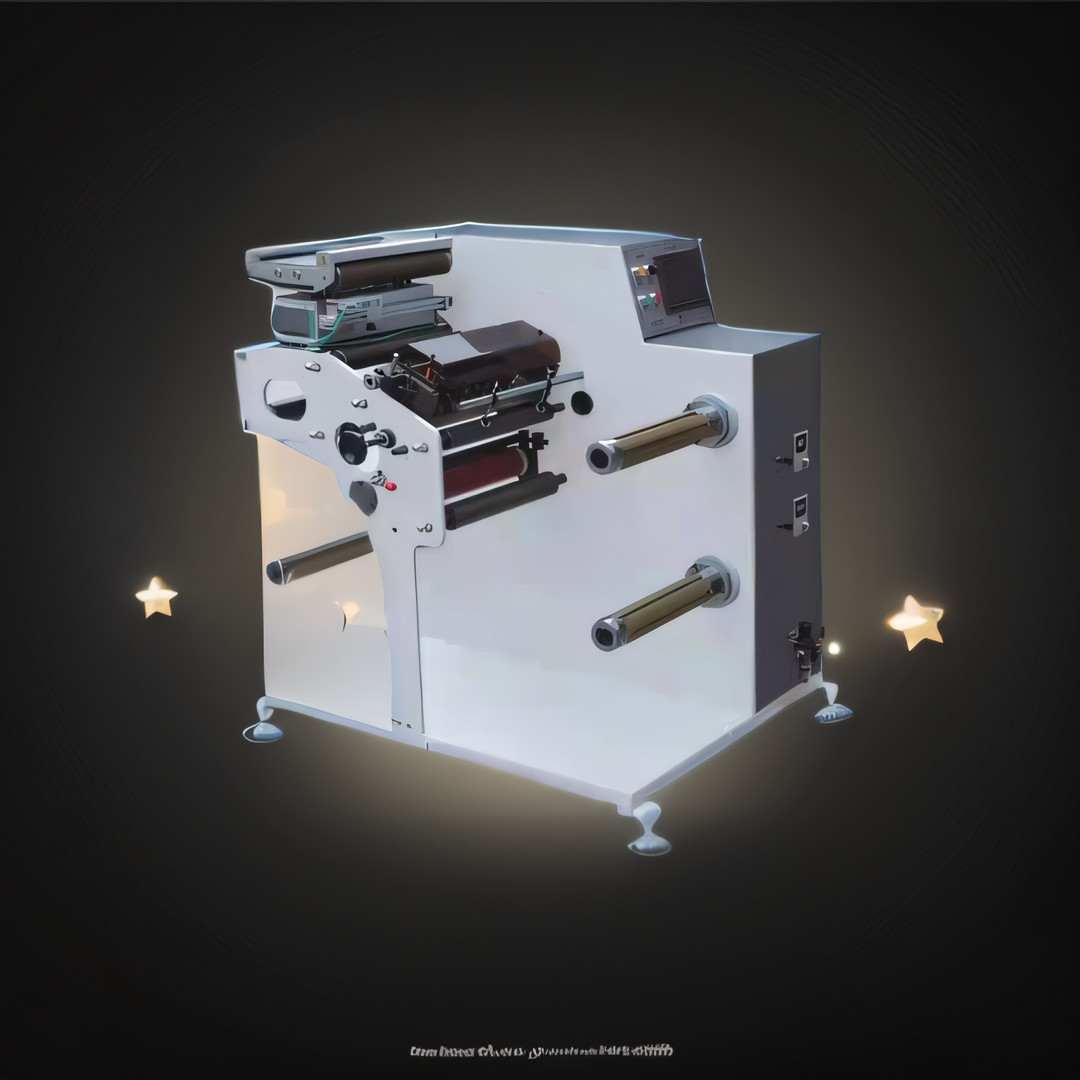

This machine is a product that has been independently researched and developed by our company. It is a kind of narrow label medium speed slitting machine, with a high-end fully servo unwinding and rewinding taper tension system. Moreover, it is fitted with an imported famous brand web guide system. The turret rewinding air shaft is equipped with a full-automatic rotation and transposition device. In addition, there is a preparatory air shaft preparation device. This device greatly improves the production efficiency. Furthermore, it supports the exchange of multiple specifications of inflatable shafts, meter/number counting, static treatment, no material to reduce speed or stop function, and other functions.



Applications:

This is a slitting machine with a narrow roll and medium speed.

It is suitable for Slitting and Rewinding all kinds of films, laminates, paper etc. It is perfect for either large-format applications or precision narrow web jobs.

Equipped with advanced control devices and reliable safety protection systems, the machine is easy to operate and provides a long working life.



Customization:

Supreme FQ-350FZ 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING is a high quality, high speed sticker label slitting machine rewinding machine. It has a maximum rewinding diameter of 600mm, a maximum material feeding width of 350mm, and a minimum slit width of 16mm. It is certified by CE and has a voltage of 380V/220V and requires an air supply of 0.8mpa. It is suitable for slitting label rolls and adhesive labels, and is also able to slit general paper and film. It can even slit thicker film, labels, aluminum foil, and laminated or coated materials. We offer a minimum order quantity of 1, and the price is negotiable. We offer packaging with fumigation wooden boxes, and delivery time of 20-30 working days. Payment terms are TT or LC, and we can supply up to 40 sets per month.



Support and Services:

380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING offers technical support and services to ensure that our customers get the best use out of our products. Our technical support team is available 24/7 for any technical questions or issues that may arise. Our services include installation, maintenance, and troubleshooting to keep your machine running smoothly. We also offer training to ensure that your team is up to speed on the latest technology. We are committed to providing the best customer experience possible.



Packing and Shipping:

Packaging and Shipping

380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING is packaged in high-quality fumigation wooden boxes, to ensure products remain safe and secure during transit.



FAQ:

Q1: What is the brand name of 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING ?
A1: The brand name of 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING is Supreme.
Q2: What is the model number of 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING ?
A2: The model number of 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING is FQ-350FZ.
Q3: Where is 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING made?
A3: 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING is made in China.
Q4: Does 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING  have CE certification?
A4: Yes, 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING has CE certification.
Q5: How many 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING can be supplied per month?
A5: The supply ability of 380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING is 40sets/month.


Feature:

1:Unwinding+web guide: adopts an independent servo taper tension control system, with preset automatic no material speed reduced or stop. web guide adopts ultrasonic edge guidance



2:Slitting station: Portable circular knife cutting structure, quick disassembly and assembly, optional flat knife, with high-pressure vacuum waste suction system



3:Rewinding: Taper tension control system, rotating device greatly saves roll changing time, ensuring label alignment with paper core during roll changing



4:Counting: The counting system adopts a well-known German brand, ensuring a calculation accuracy of 1/10000. Transparent materials require the purchase of additional special sensors



Technical Data

型号 model FQ-350FZ FQ-450FZ
最快分切速度 Max. Slitting speed 200m/min
最大进纸宽度 Max web width 350mm 450mm
最小分切宽度 Min. Slitting width 16mm
剪切刀具数量 Cutter installed 8sets
最大放卷直径 Max. Unwinding Dia 600mm
最大收卷直径 Max. Rewinding Dia 600mm
气压要求 Air supply 0.8mpa
重量 weight 500kg/600kg
外形尺寸 Dimension(L*W*H) 1100*1000*1200mm/1100*1100*1200mm



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company



380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING 0380V/220V ADHESIVE LABEL PAPER PROCESS MACHINERY 1 YEAR MAX REWINDING DIAMETER 600MM NARROW LABEL MEDIUM SPEED SLITTING 1
