MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ350F
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Max Rewinding Diameter: 500mm Slitting Speed: 120m/min
Voltage: 380V/220V Mini Slit Width: 16mm
Main Motor: 2kw Unwinding Max Diameter: 500mm
Warranty: 1 Year Max Material Feeding Width: 350mm
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

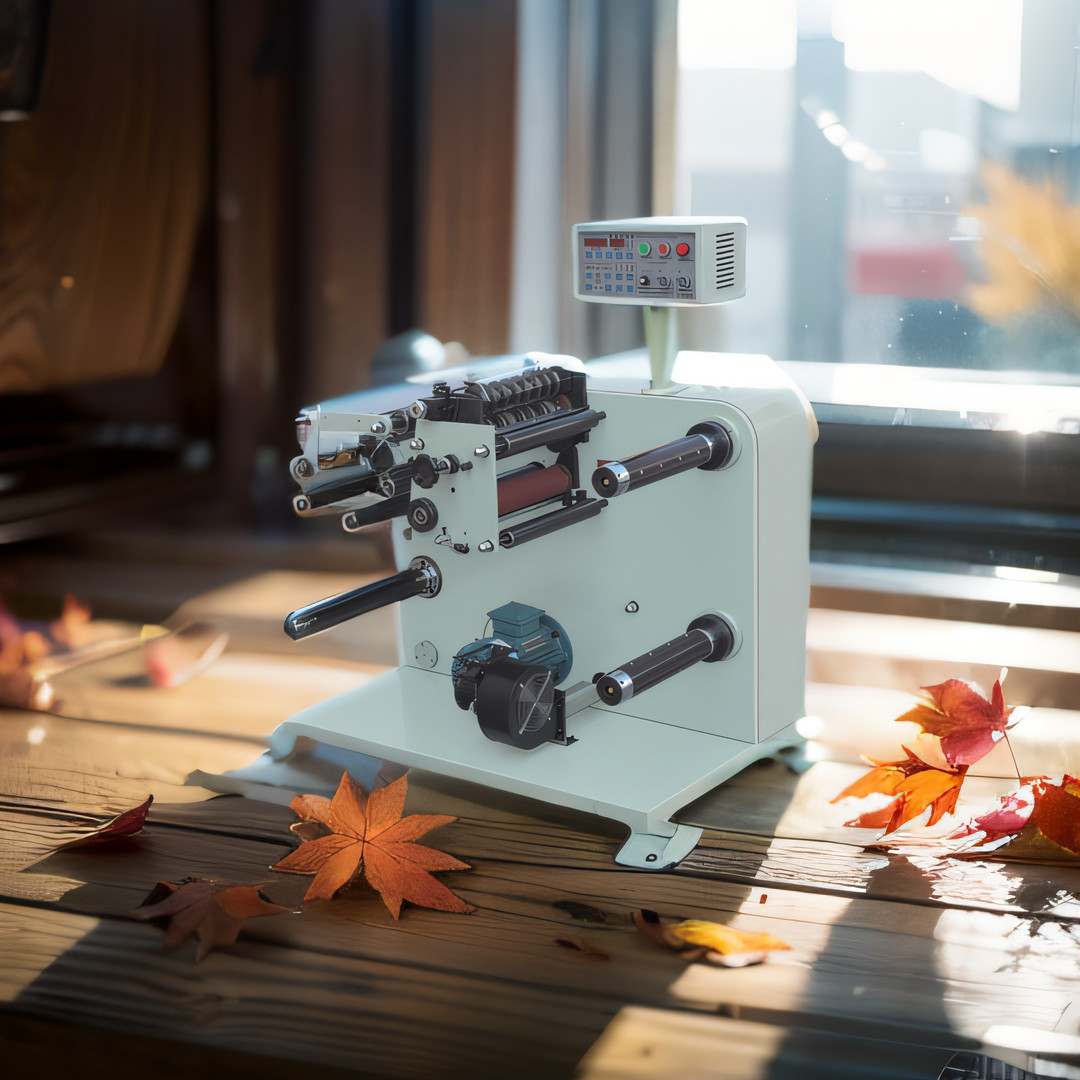

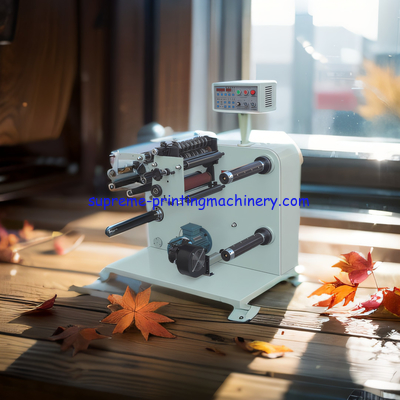

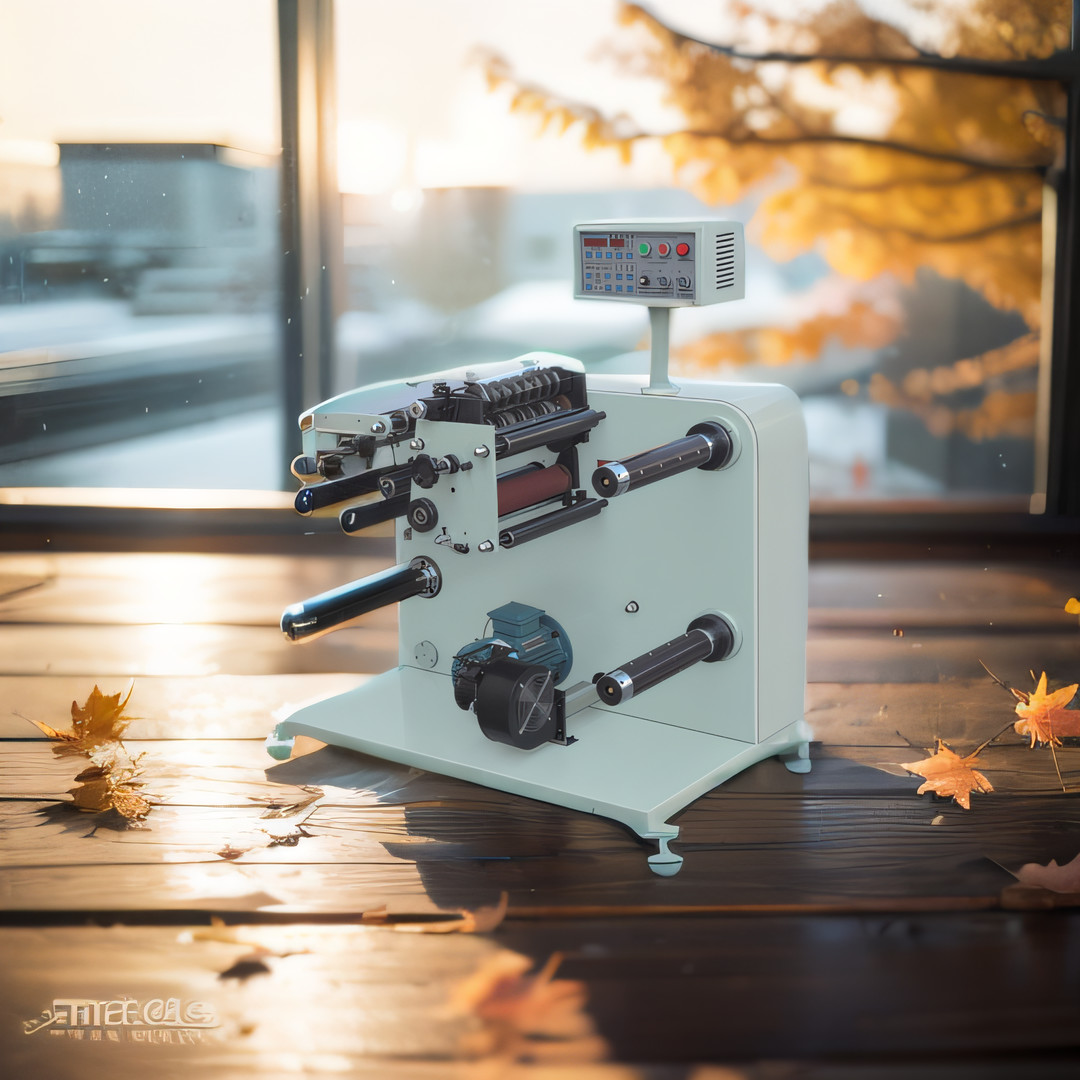

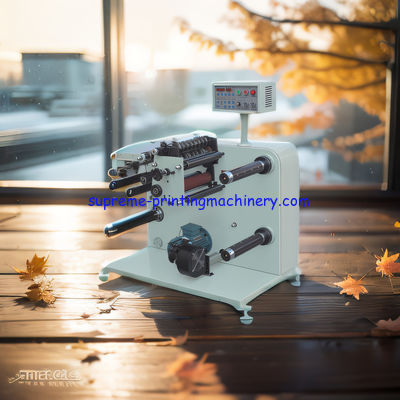

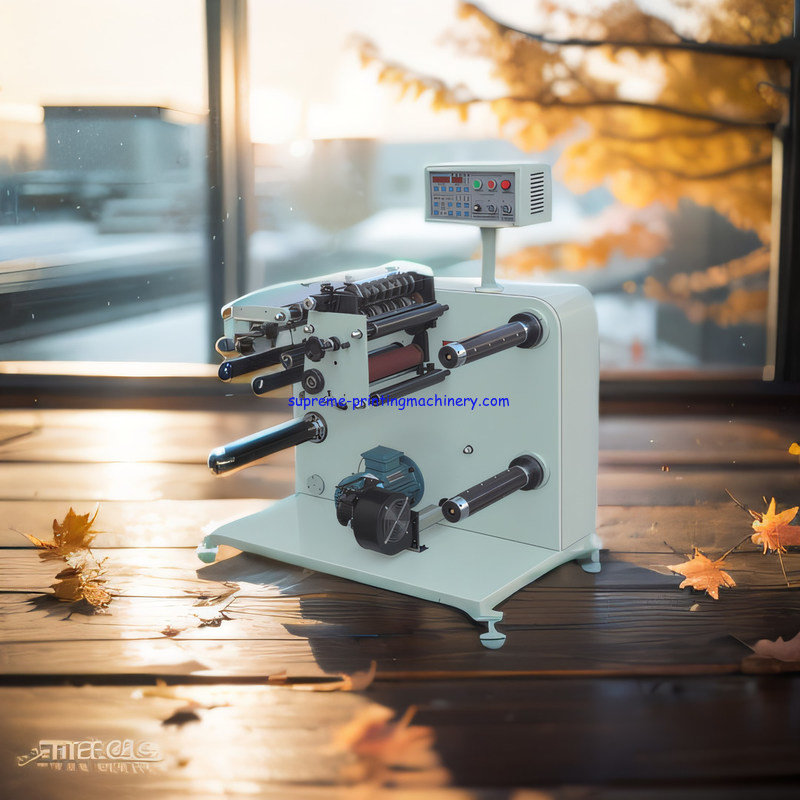

MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL

Product Description:

FQ-350F Slitting machine is a purely automatic work designed for the narrow paper. Its features include:

  1. Automatic meter/number counting
  2. Length setting
  3. Automatic stopping
  4. Material shortage reminder
  5. Web guide(2pcs) on both left and right sides
  6. Three 3-inch air shafts for unwinding and rewinding
  7. Optional magnetic brake and clutch to control the tension
  8. Real-time display of the number or meters recorded
  9. Optional turret rewinding into mini rolls
  10. Features such as compact structure, fast running, high efficiency, high accuracy, easy operation and stable running.


Applications:

The FQ-350F Slitting Machine is an automated device to work on narrow paper. It is a simple and user-friendly device, offering great convenience and flexibility.

This slitting machine is equipped with a high-precision, adjustable blade for fast and accurate cutting. The paper can be easily cut into a variety of sizes with different feeding speeds.

It is designed with a waste collecting compartment to collect any discarded pieces of paper(optional), enabling it to run continuously. The paper roll can be easily changed..

The FQ-350F Slitting Machine is an ideal choice for operations that require highly accurate and fast processing speeds. This machine can easily handle work of high precision and complexity.



Customization:

MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL
Brand Name: Supreme

Model Number: FQ350F
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: TT;LC
Supply Ability: 40sets/month
Slitting Speed: 120m/min
Max Rewinding Diameter: 500mm
Mini Slit Width: 16mm
main motor: 2kw
Voltage: 380V/220V

High Speed Label-stock Paper Slitting Rewinding Machine is a High Speed Label Slitting and Rewinding Machine, which is mainly used for narrow-range slitting of printed materials. This Automatic high speed slitting machine adopts full servo motor(optional), microcomputer control system, touch screen operation, auto meter counter, tension control, with functions of auto slitting, web guiding, auto stopping, auto counting, rewinding, trim winding, making narrow web label slitting easier and faster.



Support and Services:

MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL is supported by a team of experts that provide technical support and service. Our professional team can provide repair and maintenance services so that your label paper process machinery is always running at peak performance. We can help you troubleshoot any issues you may have, and our team of engineers can provide upgrades to your equipment so that it is always up to date. We also offer training to ensure that your personnel are well-versed in the operation of the machine and can handle any issues that may arise. With our technical support and service, you can be sure that your label paper process machinery is running at its best.



Packing and Shipping:

Packaging and Shipping for MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL

MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL is packaged safely and securely to ensure that the product arrives in perfect condition. All components are individually wrapped and protected with film wrap and other protections materials. The parts are then placed into a strong fumigation wooden box and sealed for shipping.

The box is then sent to the customer via a reliable shipping service. To ensure that the product arrives in perfect condition, we use only the most reliable carriers such as air, sea, truck ect. All orders are tracked and monitored from the time of shipment until they are safely delivered to the customer's destination.



FAQ:

Q1: What is the Brand Name of MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL?
A1: The Brand Name is Supreme.
Q2: What is the Model Number of Adhesive Label Paper Process Machinery?
A2: The Model Number is FQ350F.
Q3: Where is MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL from?
A3: It is from China.
Q4: Does MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL have CE certification?
A4: Yes, it has CE certification.
Q5: What is the Minimum Order Quantity of MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL?
A5: The Minimum Order Quantity is 1.


Standard with machine:

1: 1 slitting station with 8 sets round knife

2: 3 pcs 3 inch unwinding and rewinding air shaft

3: optional: turret for 2 pcs 1 inch/1.5 inch

4: meter/number counting by Germany Sick

5: web guide 2 pcs right and left for material

6: optional magnetic brake and clutch for the automatic tension control

7: fan blower for the waste blowing

8: low voltage made in Fench Schneider









Specification:

Machine Model FQ350F FQ450F
Slitting speed 120m/min 120m/min
Max. Web Width 350mm 450mm
Max. Unwinding Diameter 500mm 500mm
Max. Rewinding Diameter 500mm 500mm
Dimensions 1200*800*1280mm 1300*900*1280mm
Main motor 2kw 2kw
Voltage 220V/380V 220V/380V
Min. Slitting Width 16mm 16mm
Machine weight 400kg 500kg


About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company



MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL 0MAX REWINDING DIAMETER 500MM HIGH SPEED LABEL SLITTING MACHINE WITH VOLTAGE 380V/220V 120M/MIN WITH TURRET OPTIONAL 1
