| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FM-350 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Max Laminating Speed: | 65m/min | Max Paper Diameter: | 600mm |
|---|---|---|---|
| Suit For Paper Thickness: | 105-500gsm | Warranty: | 1 Year |
| Machine Size: | 1655*1030*1235mm | Machine Weight: | 450kg |
| Total Power: | 16.5kw | Model: | FM-350 |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |

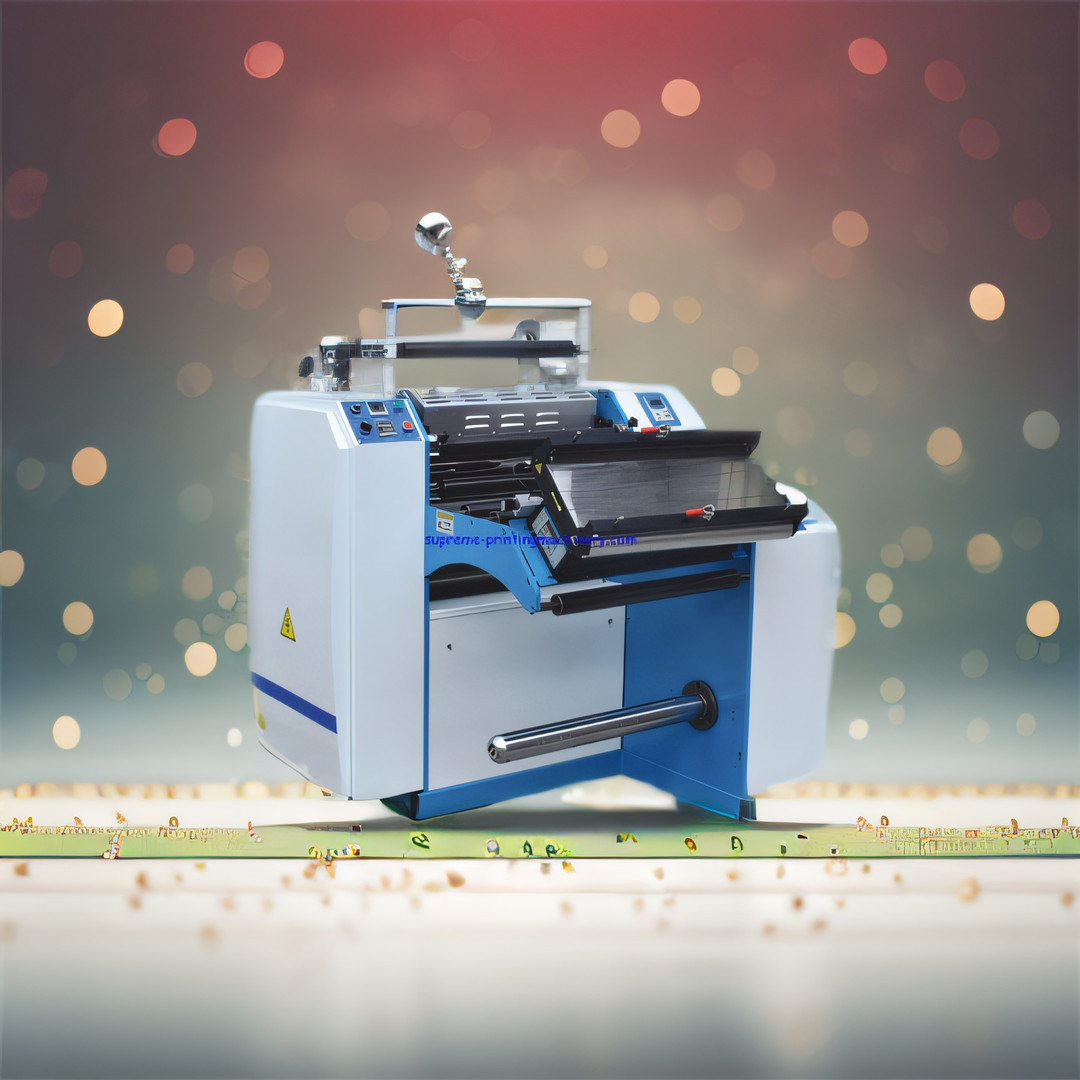

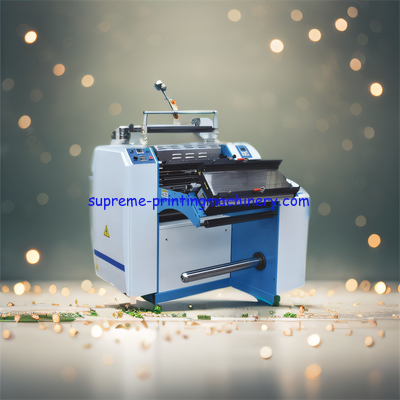

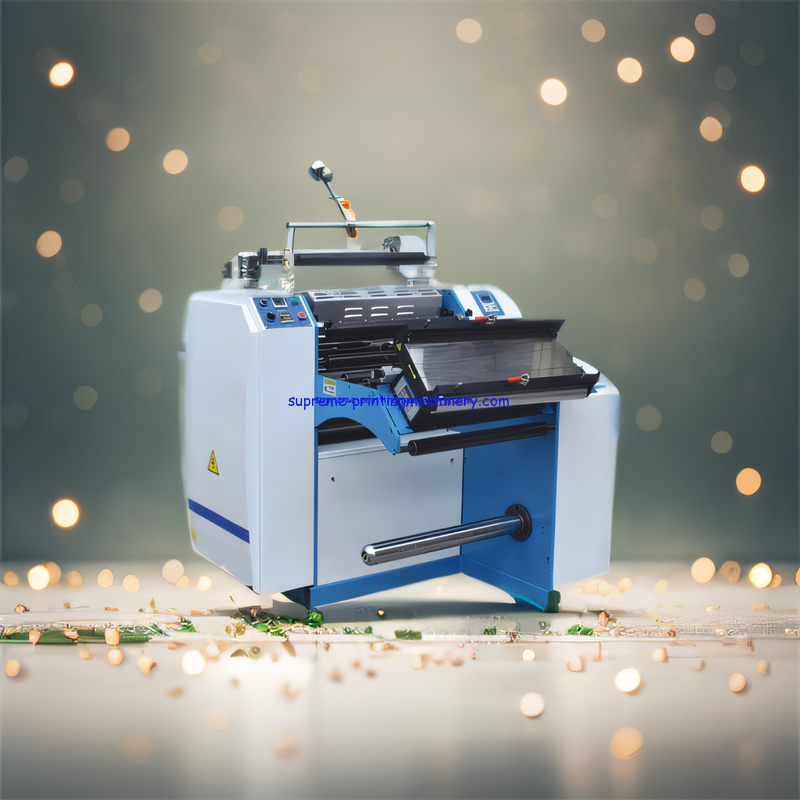

| Product Name: | HIGH-POWER ADHESIVE LABEL PAPER PROCESS MACHINERY FM-350 FOR 105-500GSM PAPER PRE-COATING FILM LAMINATING MACHINE CE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
The machine has a compact structure, greatly saving land space for enterprises. It adopts oil pressure constant temperature heating control to ensure the quality of printed products. It adopts pre coating film, which is lower in cost than ordinary cold film. The machine adopts magnetic powder tension control for unwinding and rewinding to ensure machine quality.
Equipped with an automatic web guide, uneven products can also be perfectly coated, saving materials. This machine is a necessary post press helper for major printing enterprises.
This machine is an essential asset for many of the largest printing companies in the world. It can help them with their post printing tasks, such as cutting paper into various shapes, laminating, and bookbinding. It is an important part of their production process, allowing them to complete their work faster and more efficiently.
Brand Name: Supreme
Model Number: FM-350
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC
Supply Ability: 20sets/month
Machine size : 1655*1030*1235mm
Warranty: 1 Year
Max paper diameter: 600mm
Suit for paper thickness: 105-500gsm
Machine weight : 450kg
Our team of experts provides technical support and service for HIGH-POWER ADHESIVE LABEL PAPER PROCESS MACHINERY FM-350 FOR 105-500GSM PAPER PRE-COATING FILM LAMINATING MACHINE CE. We can help you with installation, maintenance, operation, and repairs. We offer quick and reliable service, with on-site support available to ensure your machine is running in optimal condition. We can help you troubleshoot any issues that may arise, and provide advice on how to get the most out of your machine. Our team is experienced and knowledgeable, and is dedicated to helping you get the most out of your HIGH-POWER ADHESIVE LABEL PAPER PROCESS MACHINERY FM-350 FOR 105-500GSM PAPER PRE-COATING FILM LAMINATING MACHINE CE
HIGH-POWER ADHESIVE LABEL PAPER PROCESS MACHINERY FM-350 FOR 105-500GSM PAPER PRE-COATING FILM LAMINATING MACHINE CE Packaging and Shipping:
The HIGH-POWER ADHESIVE LABEL PAPER PROCESS MACHINERY FM-350 FOR 105-500GSM PAPER PRE-COATING FILM LAMINATING MACHINE CE will be securely packaged and shipped in custom boxes to prevent any damage during transportation. The boxes will be clearly marked with the product name and shipping details. All shipments will be tracked to ensure safe and timely delivery.
Specifications:
| model | FM-350 |
| Max paper diameter | 600mm |
| Suit for paper thickness | 105-500gsm |
| Max laminating speed | 65m/min |
| Total power | 16.5kw |
| Machine weight | 450kg |
| Machine size | 1655*1030*1235mm |
1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction
during processing.
2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it
3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material
4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time
5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.
6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating
7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast
8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.
9:paper drawing:
