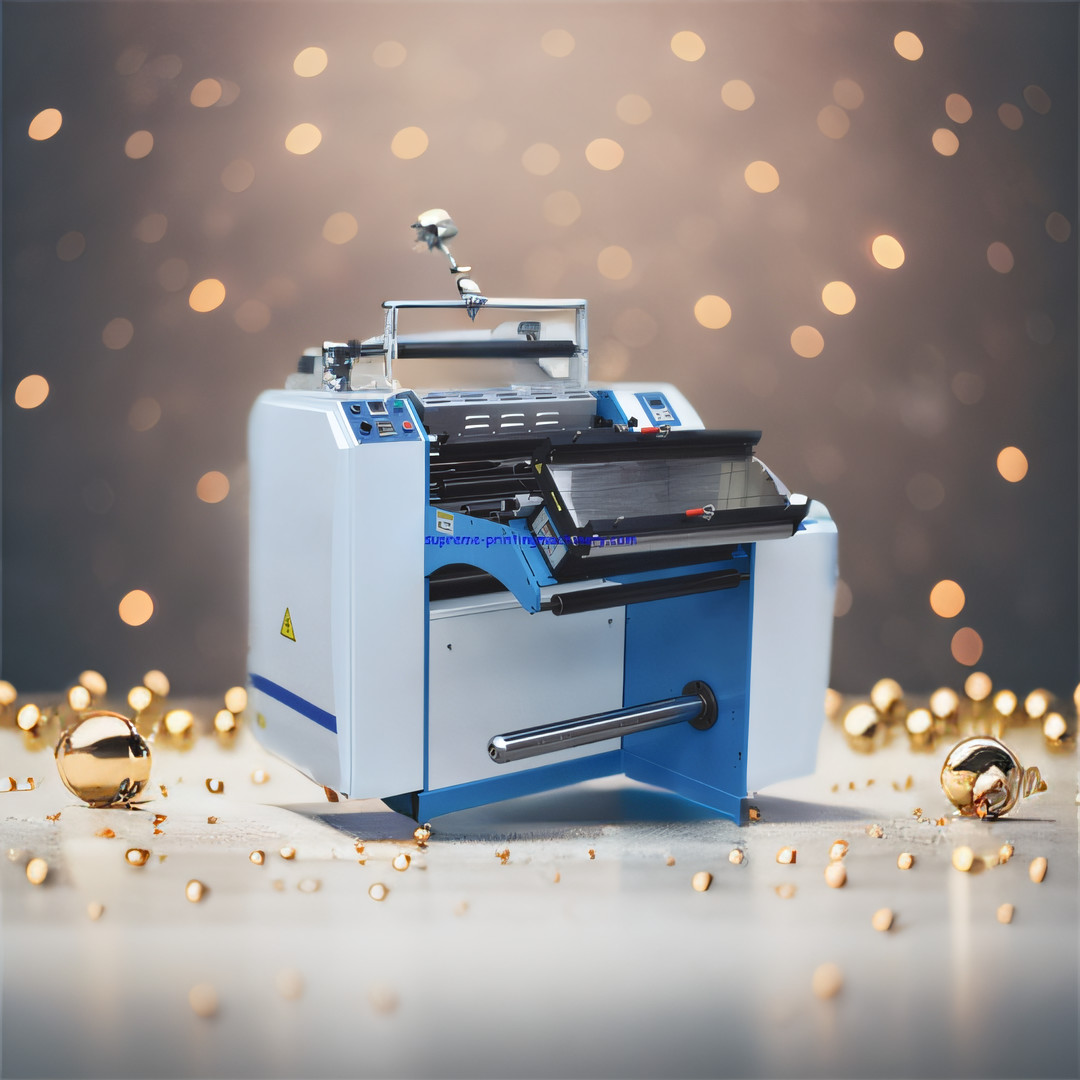

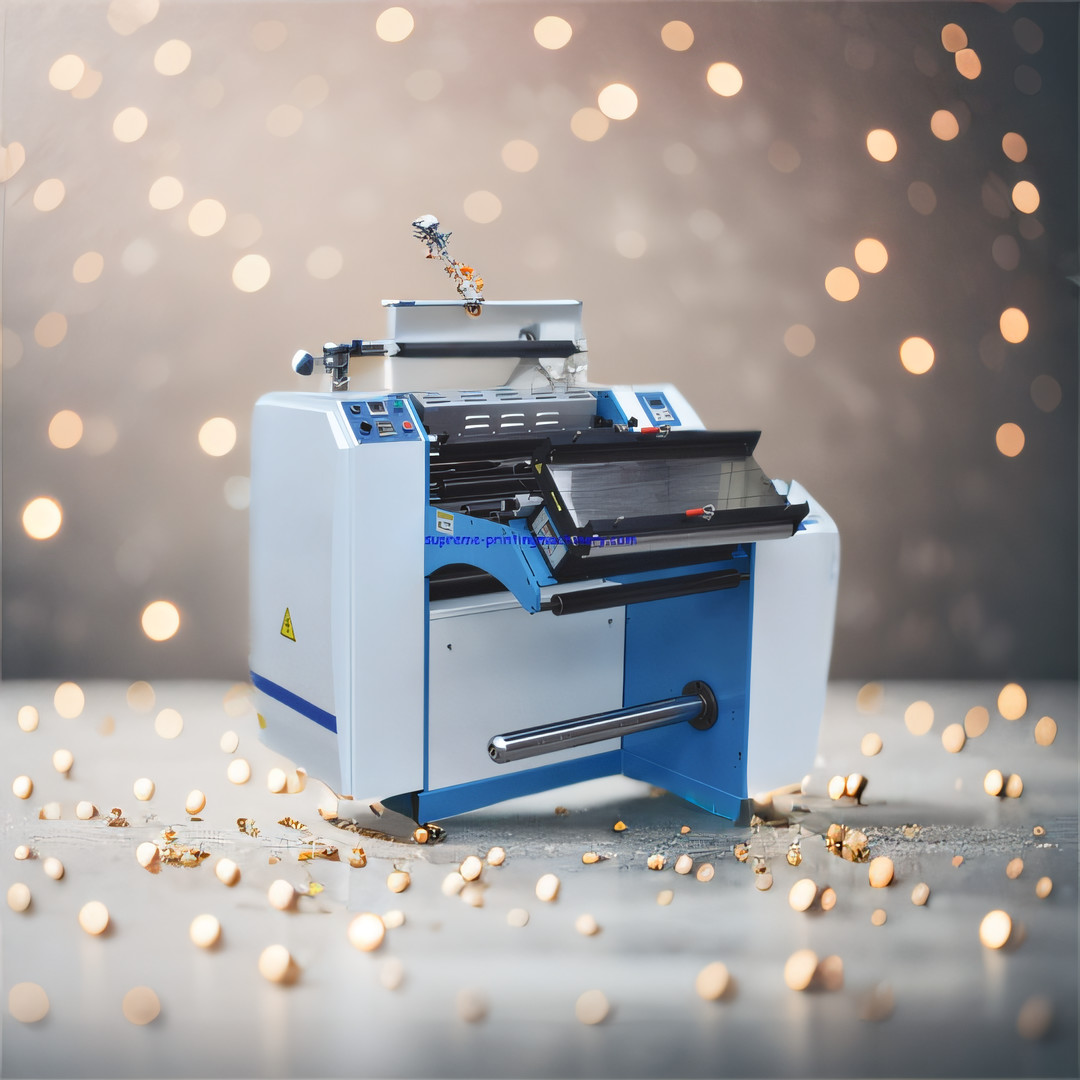

PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FM-350
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Model: FM-350 Max Paper Diameter: 600mm
Suit For Paper Thickness: 105-500gsm Machine Size: 1655*1030*1235mm
Total Power: 16.5kw Max Laminating Speed: 65m/min
Warranty: 1 Year Machine Weight: 450kg
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS

Product Description:

This machine has a compact structure which greatly saves land space for enterprises. It uses oil pressure constant temperature heating control, this ensures high quality printed products. Instead of using ordinary cold film, it adopts pre coating film which is more cost effective. The machine uses magnetic powder tension control for unwinding and rewinding to guarantee its quality. Moreover, an automatic web guide is equipped, meaning even unconventional shaped products could be easily coated, reducing the wastage of materials. In short, this machine is an important post press assistant for many printing businesses.



Applications:

This machine is an indispensable tool for major printing enterprises. It provides great assistance in the post printing process.

This machine has many remarkable features. For example, its accuracy and stability can ensure that all printing products produced have the desired quality.

In addition, its high throughput, low cost and ease of maintenance make it ideal for large-scale production.

All in all, this machine is a necessary helper for a major printing enterprise.



Customization:

Customized Service for PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS
  • Brand Name: Supreme
  • Model Number: FM-350
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 30-60 working days
  • Payment Terms: TT;LC
  • Supply Ability: 20sets/month
  • Max paper diameter: 600mm
  • Machine weight: 450kg
  • Max laminating speed: 65m/min
  • Warranty: 1 Year
  • Machine size: 1655*1030*1235mm

PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS is a High Speed Automatic Pre-coating Film Laminating Machine. It can help you laminate laminating film quickly and efficiently. With the features of easy operation, fast speed, and high quality, it can meet your needs in various aspects.



Support and Services:

PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS provides technical support and services including:

  • On-site installation and commissioning of machines
  • Providing spare parts and accessories
  • Product training
  • Technical consulting
  • Maintenance and repair services
  • Software support


Packing and Shipping:

Packaging and Shipping PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS

PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS will be securely packaged in wooden crates, or other appropriate materials for safe transport. The machinery will be properly secured and cushioned to prevent any damage during transit.

We will arrange for the shipment of the machinery based on customer requirements. We can ship via ground, air, or sea transportation services depending on the customer's location and desired delivery time.

Our packaging and shipping services are designed to ensure that the machinery is delivered in the same condition in which it was shipped.



FAQ:

Q1: What is the Brand Name of this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS?
A1: The Brand Name of this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS is Supreme.
Q2: What is the Model Number of this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS?
A2: The Model Number of this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS is FM-350.
Q3: What is the Place of Origin of this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS?
A3: The Place of Origin of this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS is China.
Q4: Does this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS have Certifications?
A4: Yes, this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS has CE Certifications.
Q5: How much is the Minimum Order Quantity for this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS?
A5: The Minimum Order Quantity for this PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS is 1.


Specifications:

model FM-350
Max paper diameter 600mm
Suit for paper thickness 105-500gsm
Max laminating speed 65m/min
Total power 16.5kw
Machine weight 450kg
Machine size 1655*1030*1235mm



1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction

during processing.

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

9:paper drawing:

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS 9PRE-COATING FILM LAMINATION MACHINE EFFICIENT MACHINE SIZE 1655*1030*1235MM WEB GUIDE REDUCING THE WASTAGE OF MATERIALS 10
