| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FM-350 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Max Laminating Speed: | 65m/min | Total Power: | 16.5kw |
|---|---|---|---|
| Model: | FM-350 | Suit For Paper Thickness: | 105-500gsm |
| Machine Size: | 1655*1030*1235mm | Machine Weight: | 450kg |
| Max Paper Diameter: | 600mm | Warranty: | 1 Year |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

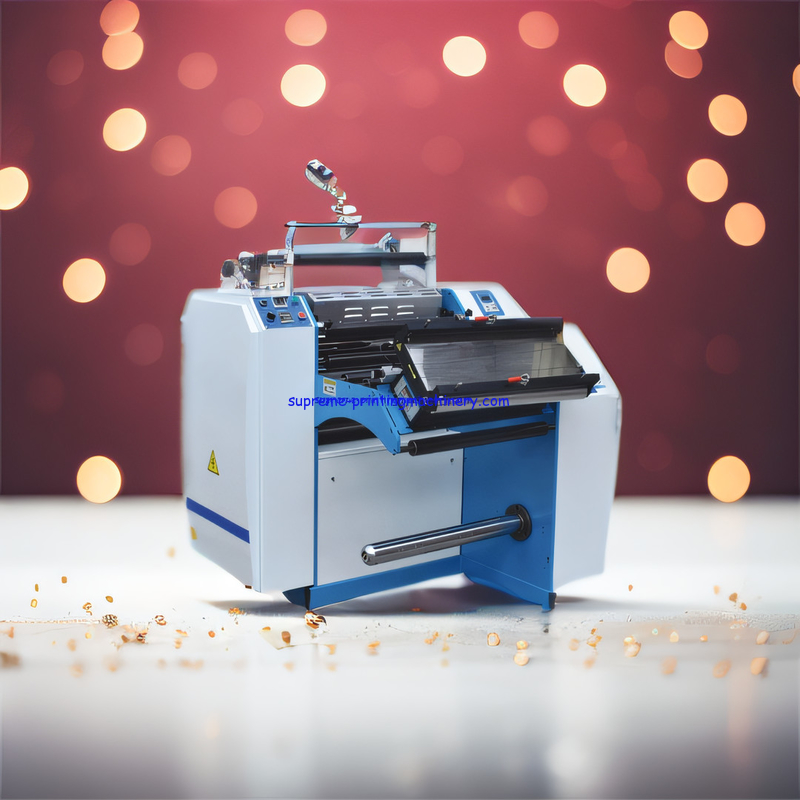

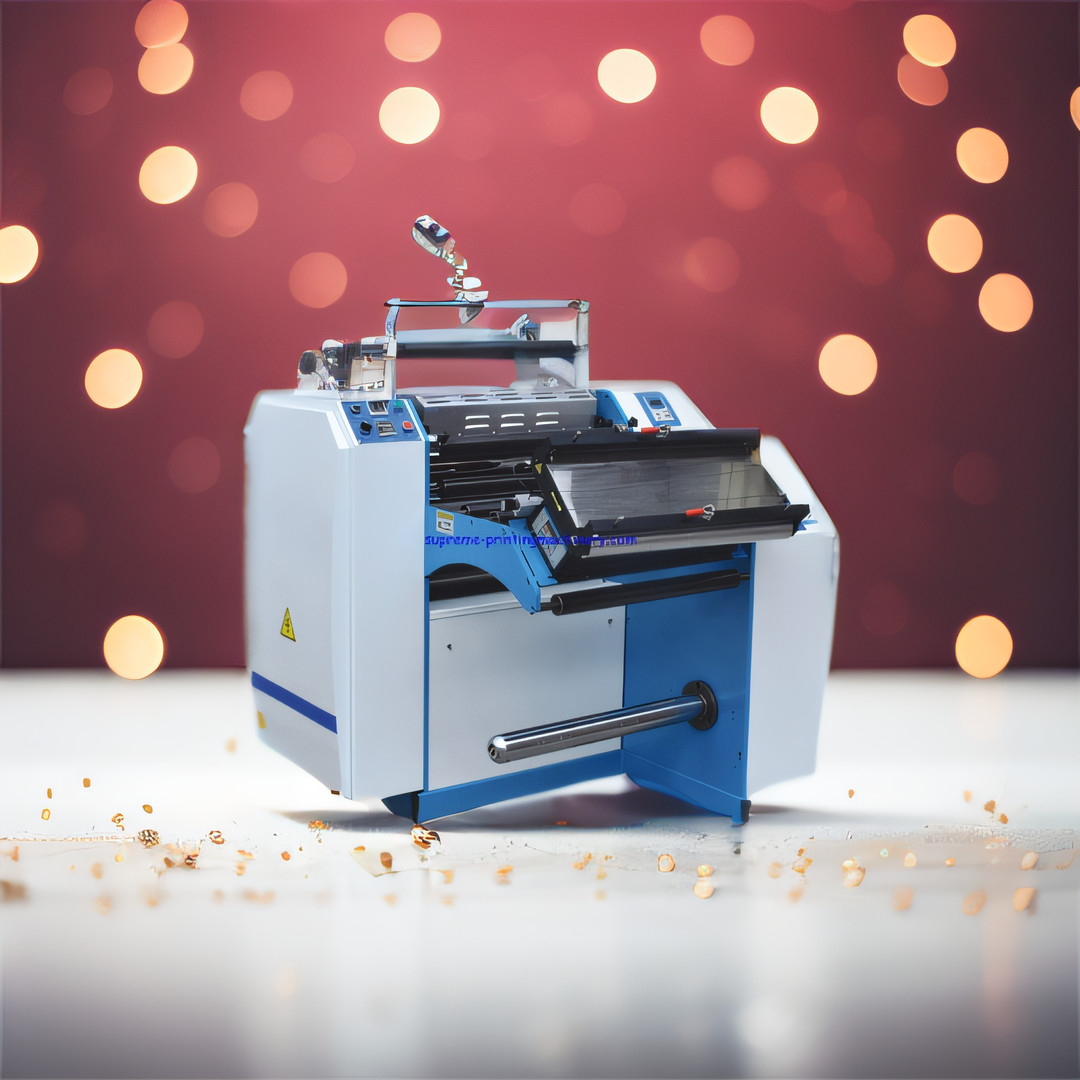

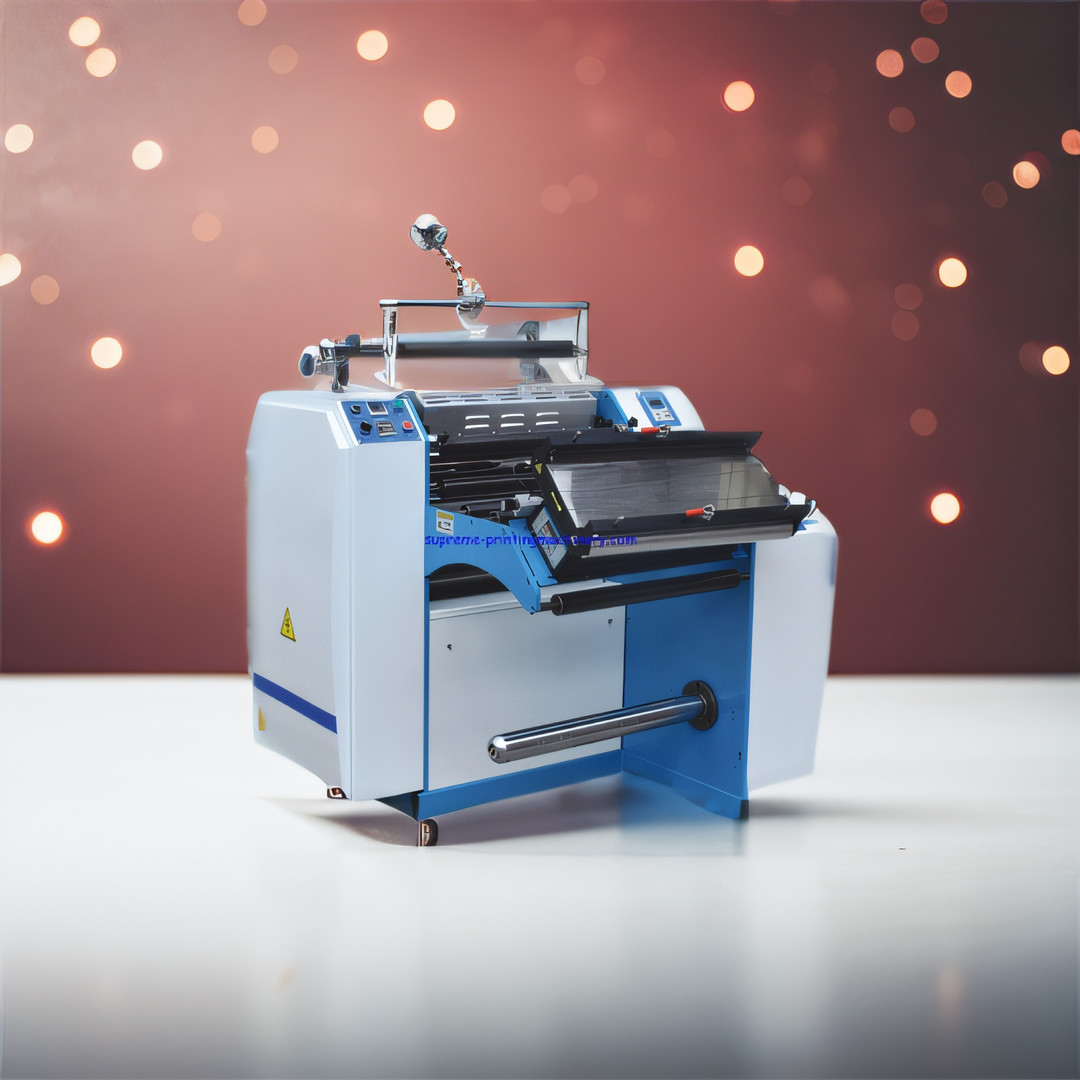

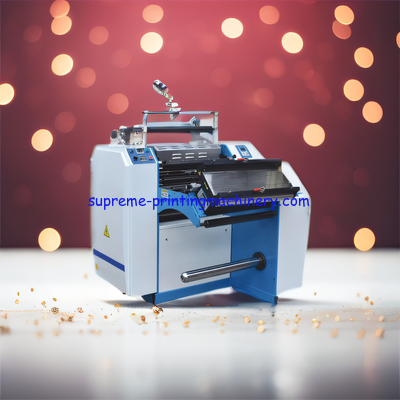

The machine has a compact structure,greatly saving land space for enterprises. It adopts oil pressure constant temperature heating controlto ensure the quality of printed products. It adopts pre coating film which is lower in cost than ordinary cold film. The machine adopts magnetic powder tension control for unwinding and rewinding to ensure machine quality.
Equipped with an automatic web guide, uneven products can also be perfectly coated, saving materials. This machine is a necessary post press helper for major printing enterprises.
This machine is essential for major printing enterprises in the post press stage. It is useful in helping to save time and cost. It can handle larger printing job quickly and accurately. Moreover, it has efficient post press maintenance and support, resulting in a smoother printing operation for the enterprise.
Brand Name: Supreme
Model Number: FM-350
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC
Supply Ability: 20sets/month
Suit for paper thickness: 105-500gsm
Model: FM-350
Machine weight: 450kg
Total power: 16.5kw
Warranty: 1 Year
Our MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM is a roll to roll film lamination machine that is suitable for laminating film paper and metalized materials. It is a narrow-type thermal laminating machine with a flying knife that provides high-speed laminating with quick and accurate cutting. The machine weight is 450kg, total power is 16.5kw, and it provides a 1-year warranty. It is suitable for paper thickness ranging from 105-500gsm and has a minimum order quantity of 1. It comes with CE certification and is delivered in fumigation wooden boxes. Our price is negotiable and we can supply 20sets/month. Payment terms are TT or LC, and delivery time is 30-60 working days.
Our team of technical professionals provides customers with prompt and reliable support for their MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM . Our team of experts has years of experience in the MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM industry and can provide customers with a wealth of knowledge and advice.
We provide technical support and service for all types of MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM, including:
We are dedicated to providing the highest quality technical support and service to our customers, and we strive to ensure that our customers are satisfied with our work. Our team of technicians are available to help with any issues, from installation and setup to troubleshooting and maintenance.
If you need technical support or service for your MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM , please don't hesitate to contact us. We look forward to hearing from you.
MAX PAPER DIAMETER 600MM ADHESIVE LABEL PAPER PROCESS MACHINERY ROLL TO ROLL FILM LAMINATION MACHINE PRE COATING FILM is packaged and shipped in accordance with the conditions of our customers. We pack our products in a standard box to ensure that the product is not damaged during the shipping process. We also use strong adhesive tape to ensure that the box is securely sealed before shipping. We offer both land and air shipping services.
Specifications:
| model | FM-350 |
| Max paper diameter | 600mm |
| Suit for paper thickness | 105-500gsm |
| Max laminating speed | 65m/min |
| Total power | 16.5kw |
| Machine weight | 450kg |
| Machine size | 1655*1030*1235mm |
1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction
during processing.
2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it
3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material
4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time
5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.
6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating
7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast
8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.
9:paper drawing:
