Max Paper Diameter: | 600mm | Max Laminating Speed: | 65m/min |
---|---|---|---|
Warranty: | 1 Year | Model: | FM-350 |
Machine Weight: | 450kg | Suit For Paper Thickness: | 105-500gsm |
Total Power: | 16.5kw | Machine Size: | 1655*1030*1235mm |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
Product Name: | EFFICIENT ROLL TO ROLL LAMINATION MACHINE FILM LAMINATING - 450KG ESSENTIAL ASSISTANT TO MAJOR PRINTING ENTERPRISES | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

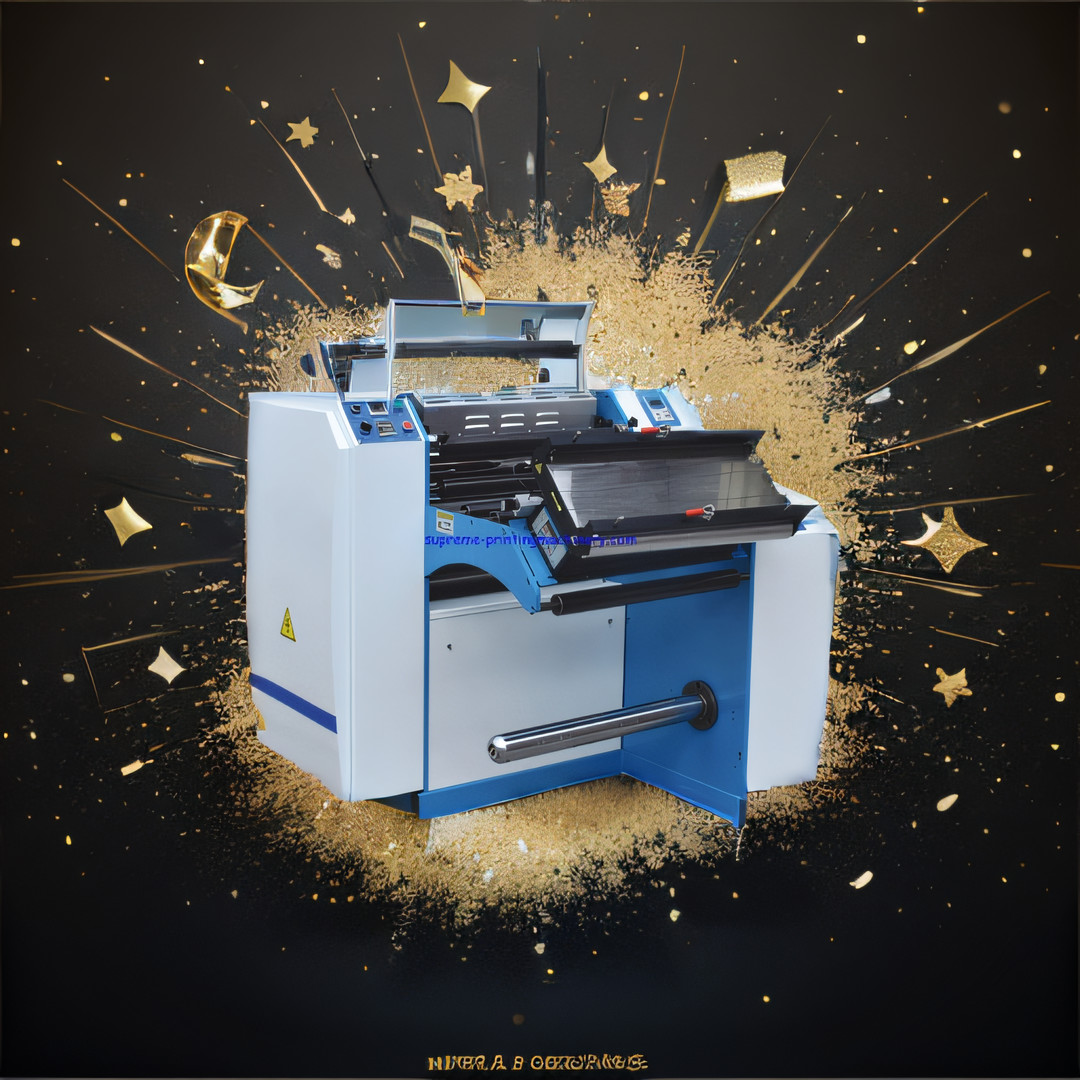

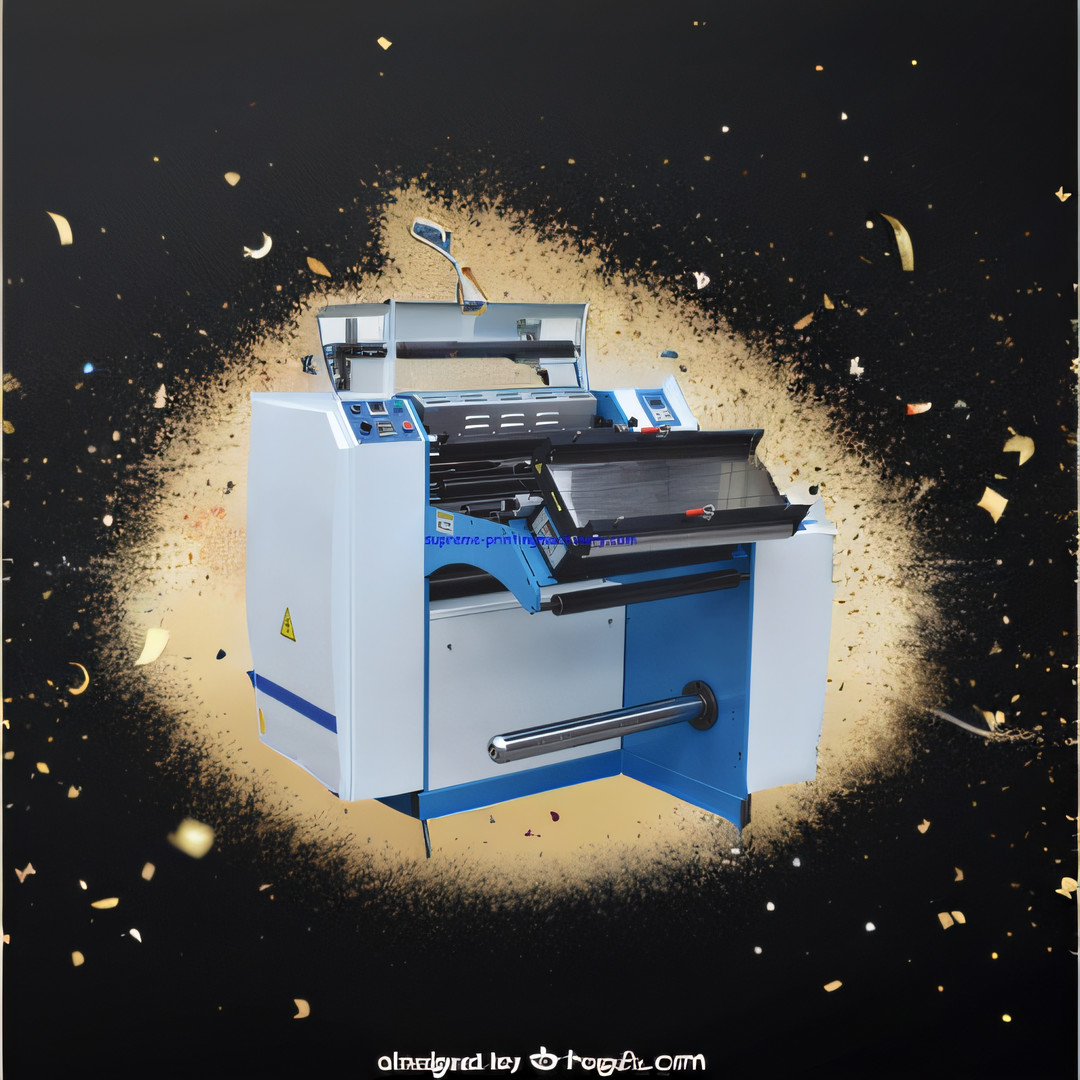

This machine has a very compact structure, and can save a significant amount of space for businesses. The temperature of oil pressure is controlled during the process of printing, guaranteeing that the quality of the end products will always be highly satisfactory. Pre coating film, which is cheaper than regular cold film, is used when coating the product. A magnetic powder tension control is used for unwinding and rewinding, helping to ensure that the machine works without any hitches. Plus, an automatic web guide is integrated into the machine, making it easy to produce even products that won't waste any material. This machine is regarded as an essential assistant to major printing enterprises.
This machine is an essential assistant for large printing companies. It greatly enhances the efficiency of post printing processes, which is extremely beneficial for businesses in the industry.
Brand Name: Supreme
Model Number: FM-350
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Fumigation Wooden Box
Delivery Time: 30-60 Working Days
Payment Terms: TT;LC
Supply Ability: 20sets/Month
Suit for Paper Thickness: 105-500gsm
Max Laminating Speed: 65m/min
Model: FM-350
Total Power: 16.5Kw
Warranty: 1 Year
This EFFICIENT ROLL TO ROLL LAMINATION MACHINE FILM LAMINATING - 450KG ESSENTIAL ASSISTANT TO MAJOR PRINTING ENTERPRISES is from brand Supreme, model FM-350, with CE certification. It is suitable for paper thickness 105-500gsm with max laminating speed 65m/min. It has a total power of 16.5Kw. With good price, it is made in China. It is manual pre-coating thermal film, hot melt BOPP plastic film roll laminator pre-coated paper, roll to roll film lamination (film paper and metalized paper). We provide 1 year warranty for it. Minimum order quantity is 1 and price is negotiable. Delivery time is 30-60 working days and it will be packed in fumigation wooden box.
EFFICIENT ROLL TO ROLL LAMINATION MACHINE FILM LAMINATING - 450KG ESSENTIAL ASSISTANT TO MAJOR PRINTING ENTERPRISES technical support and service includes:
The EFFICIENT ROLL TO ROLL LAMINATION MACHINE FILM LAMINATING - 450KG ESSENTIAL ASSISTANT TO MAJOR PRINTING ENTERPRISES will be packaged in a secure and sturdy fumigation wooden box to ensure that it is safe during transport. The box will be sealed with adhesive tape and labeled with relevant shipping information. The customer will be provided with a tracking number that can be used to track the location of the delivery.
The shipping method will depend on the customer's preferences. We offer both ground and air shipping services. We also provide international shipping services, with the exception of countries that are restricted for shipment.
Specifications:
model | FM-350 |
Max paper diameter | 600mm |
Suit for paper thickness | 105-500gsm |
Max laminating speed | 65m/min |
Total power | 16.5kw |
Machine weight | 450kg |
Machine size | 1655*1030*1235mm |
1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction
during processing.
2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it
3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material
4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time
5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.
6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating
7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast
8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.
9:paper drawing:
