| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FM-350 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Max Paper Diameter: | 600mm | Suit For Paper Thickness: | 105-500gsm |
|---|---|---|---|
| Machine Weight: | 450kg | Model: | FM-350 |
| Max Laminating Speed: | 65m/min | Total Power: | 16.5kw |
| Warranty: | 1 Year | Machine Size: | 1655*1030*1235mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | HIGH-PERFORMANCE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR EXCEPTIONAL RESULTS PLASTIC FILM ROLL LAMINATOR PRE-COATED | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

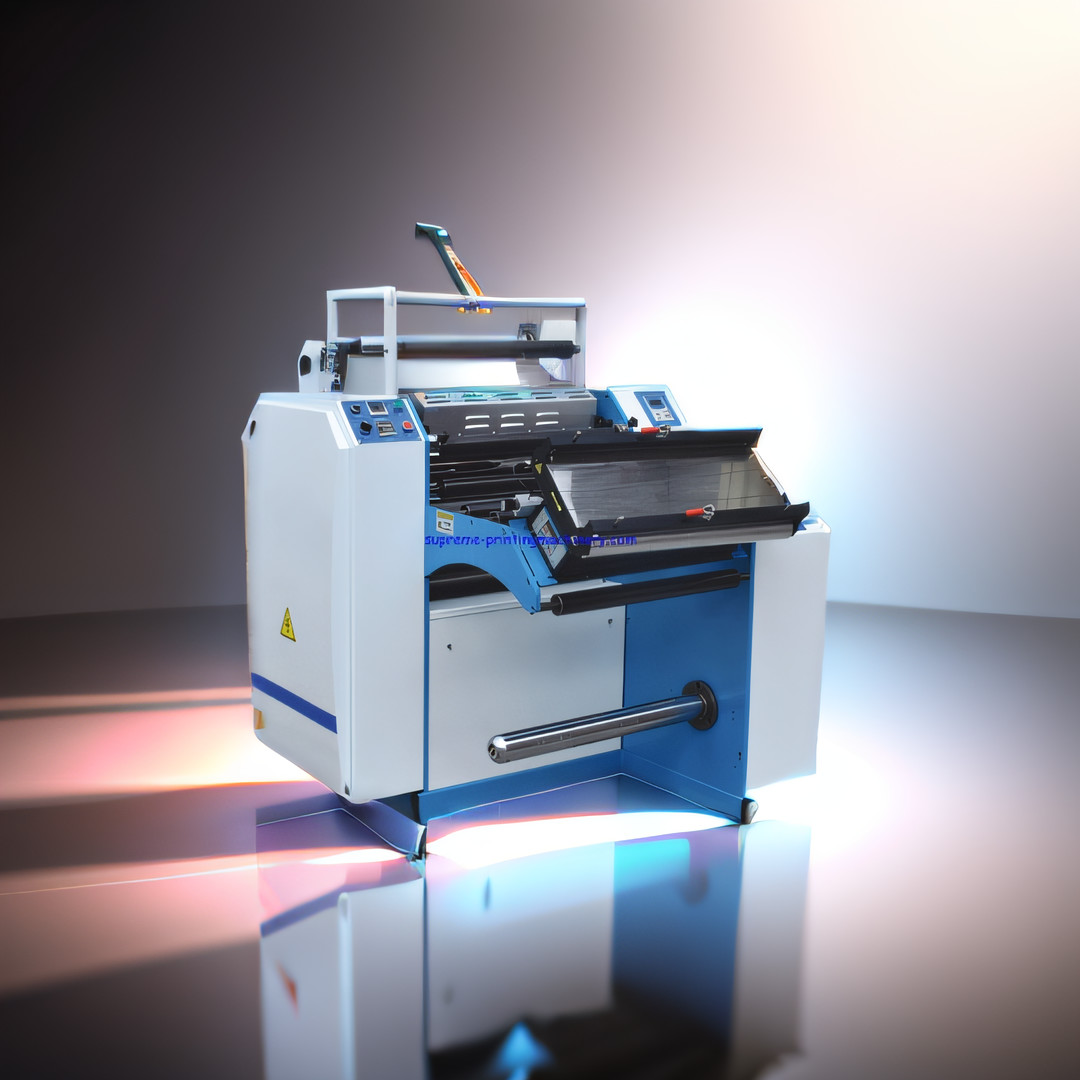

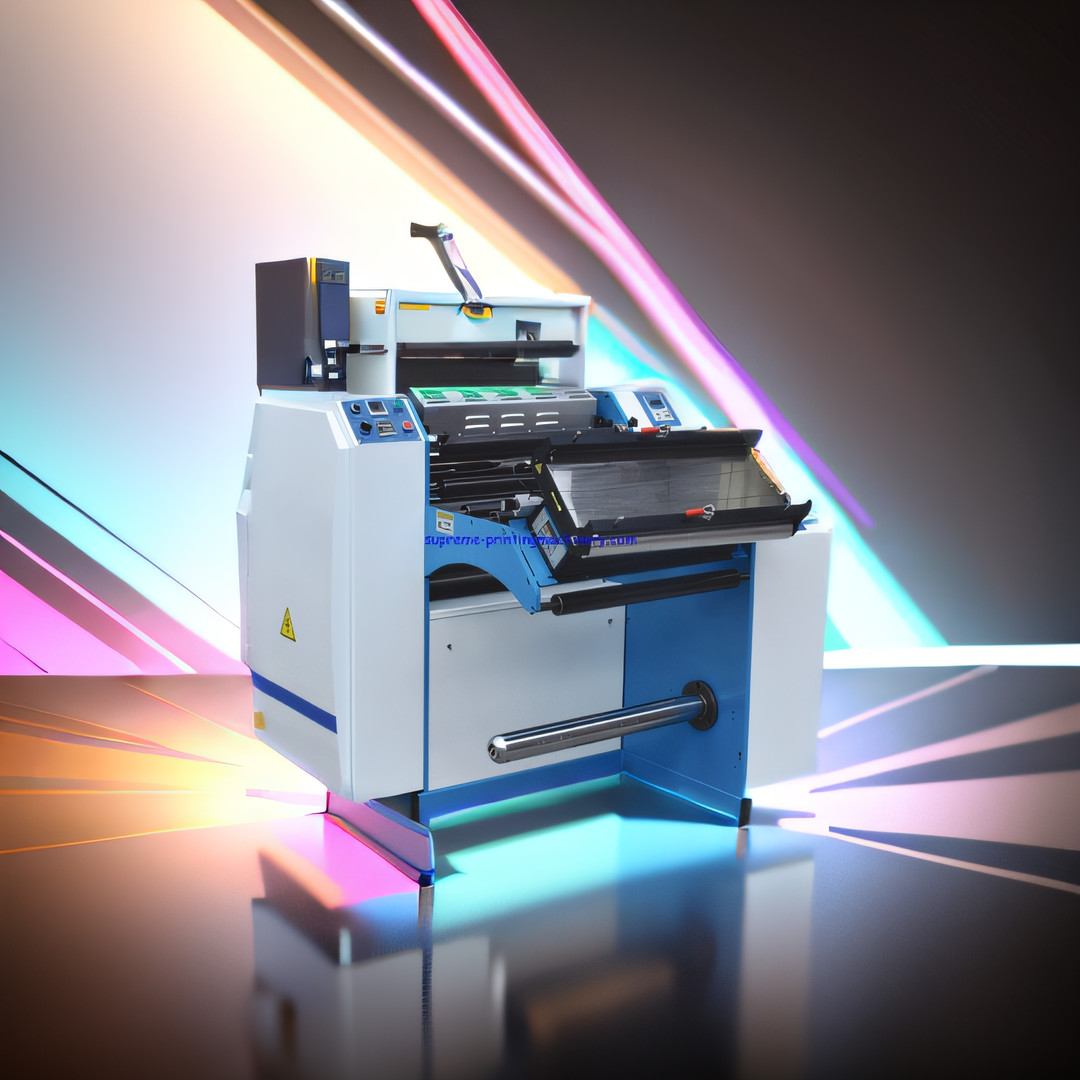

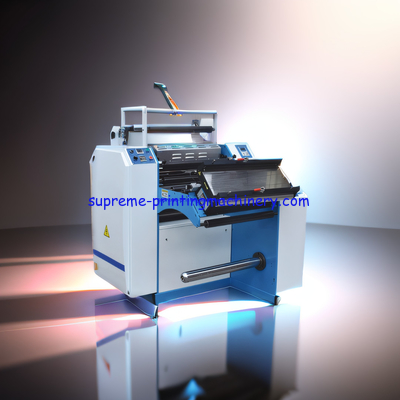

This machine is excellent for printing enterprises that are looking for a compact structure and looking to save on land space. It is equipped with oil pressure constant temperature heating control, ensuring quality print products as well as pre coating films. Additionally, magnetic powder tension control is used when unwinding and rewinding to guarantee its performance.
Furthermore, it comes with an automatic web guide, allowing even the most uneven products to be perfectly coated without wasting material. All in all, this machine is a must-have for printing companies looking for a post press helper.
Printing enterprises have always faced the difficulty of streamlining post press processes.
This machine is designed to help solve that challenge, and provides a powerful solution to major printing enterprises.
It tackles the challenge by speedily organizing the labor-intensive task of post press workflows, resulting in increased efficiency and productivity.
The machine is highly reliable and cost-efficient, and is becoming an essential part of the post press process.
Brand Name: Supreme
Model Number: FM-350
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Fumigation Wooden Box
Delivery Time: 30-60 Working Days
Payment Terms: TT; LC
Supply Ability: 20sets/Month
Max Paper Diameter: 600mm
Total Power: 16.5kw
Suit for Paper Thickness: 105-500gsm
Machine Size: 1655*1030*1235mm
Machine Weight: 450kg
Highlight Feature: Hot melt BOPP plastic film roll laminator pre-coated paper, automatic pre-coating flim laminating machine, Pre-coated film gloss matte BOPP single-sided double-sided plastic film roll laminating machine.
We provide professional technical support and service for HIGH-PERFORMANCE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR EXCEPTIONAL RESULTS PLASTIC FILM ROLL LAMINATOR PRE-COATED .
HIGH-PERFORMANCE ADHESIVE LABEL PAPER PROCESS MACHINERY FOR EXCEPTIONAL RESULTS PLASTIC FILM ROLL LAMINATOR PRE-COATED will be packaged and shipped in a secure fumigation wooden box. The box will include the following:
The package will be shipped with a reliable courier service and will be insured for the full purchase amount.
Specifications:
| model | FM-350 |
| Max paper diameter | 600mm |
| Suit for paper thickness | 105-500gsm |
| Max laminating speed | 65m/min |
| Total power | 16.5kw |
| Machine weight | 450kg |
| Machine size | 1655*1030*1235mm |
1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction
during processing.
2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it
3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material
4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time
5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.
6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating
7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast
8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.
9:paper drawing:
