| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FM-350 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Machine Size: | 1655*1030*1235mm | Suit For Paper Thickness: | 105-500gsm |
|---|---|---|---|
| Warranty: | 1 Year | Max Laminating Speed: | 65m/min |
| Max Paper Diameter: | 600mm | Total Power: | 16.5kw |
| Machine Weight: | 450kg | Model: | FM-350 |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | FM-350 ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MAXIMUM PAPER DIAMETER 600MM ROLL TO ROLL LAMINATION MACHINE PRE COAT | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
This machine has a compact structure, which occupies minimal space for enterprises. This not only increases the efficiency of these companies, but also saves them land space.
It makes use of oil pressure constant temperature heating control, not only providing the best quality printed products, but also preventing damage of the machine.
It uses pre coating film, which is cheaper than the cold film that is usually used. Additionally, magnetic powder tension control for the unwinding and rewinding parts guarantees the quality of the machine.
Furthermore, an automatic web guide allows even products to be coated perfectly, reducing wastage of materials. So this machine can be considered an essential post press helper for major printing enterprises.
Printing enterprises often have large quantities of printing orders every day and they need to update post press machine frequently. This machine provides a reliable solution to this requirement. It is suitable for both post press production line and individual printing service industry.

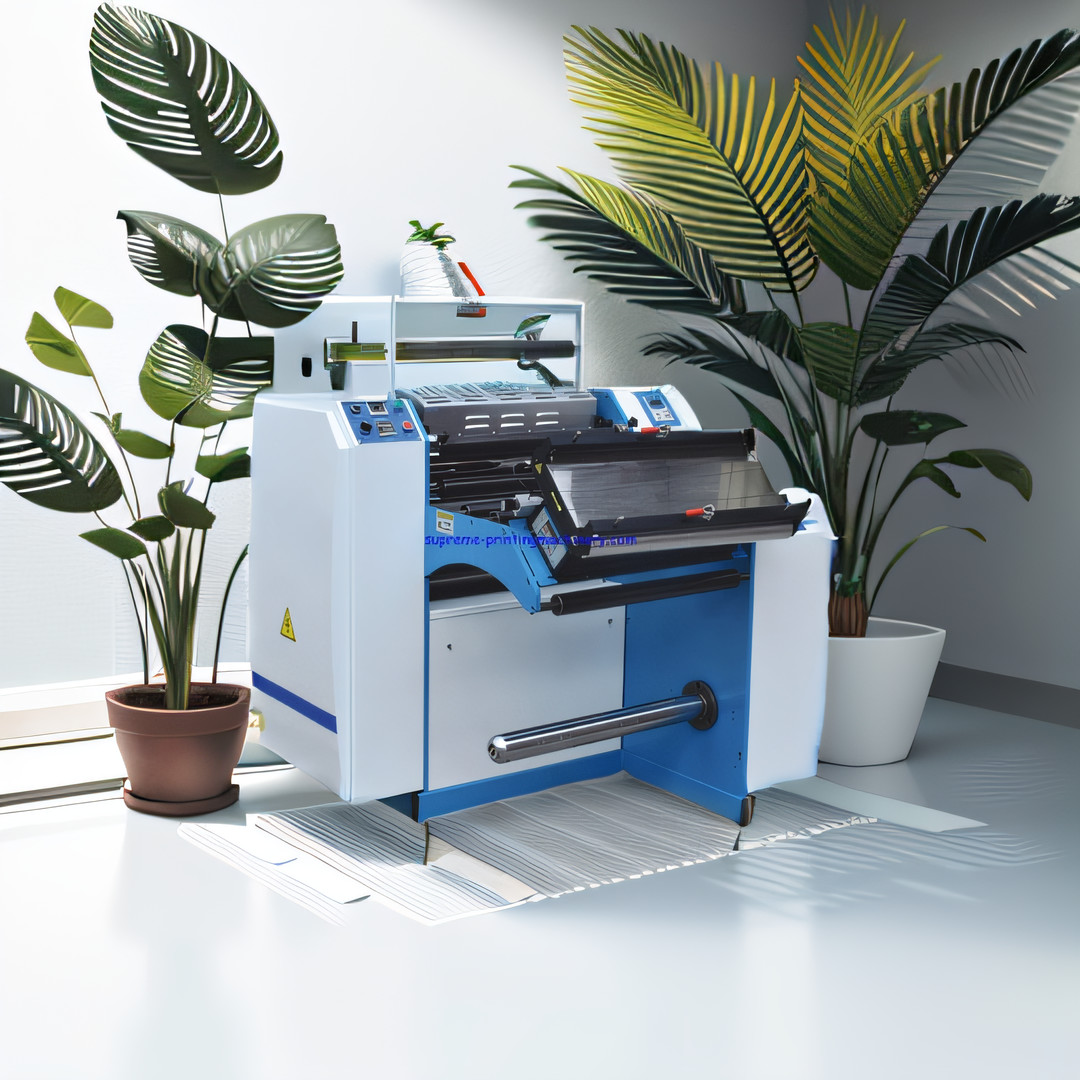

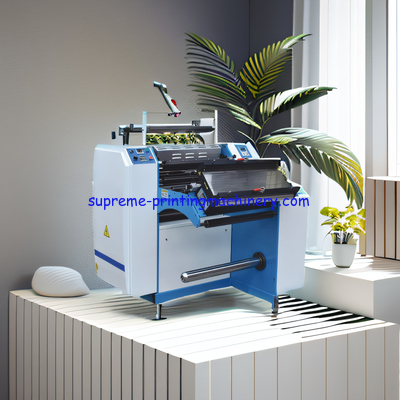

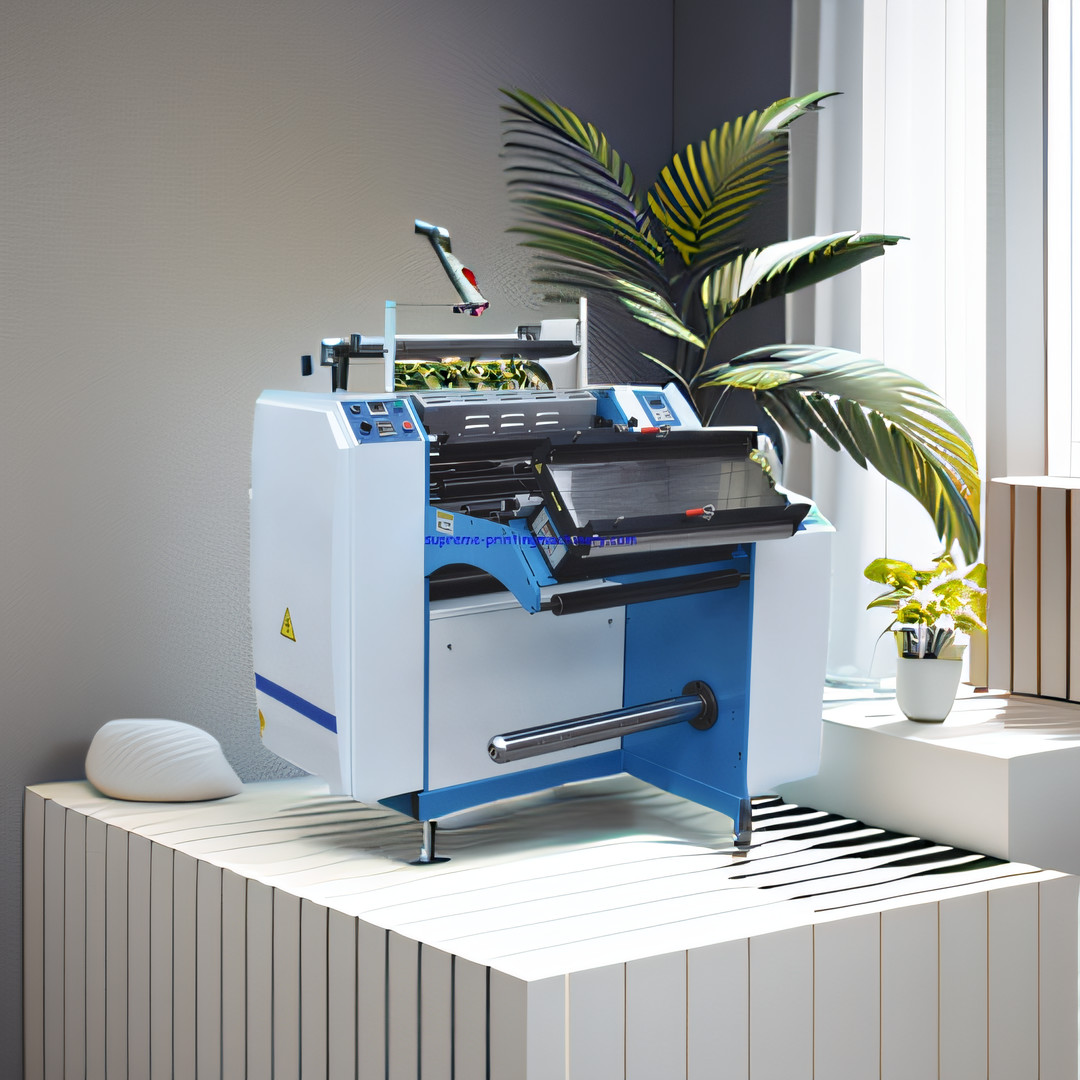

Supreme FM-350 FM-350 ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MAXIMUM PAPER DIAMETER 600MM ROLL TO ROLL LAMINATION MACHINE PRE COAT is a roll to roll pre coating film laminating machine, which is certified by CE and is available for a minimum order quantity of 1. With a machine size of 1655*1030*1235mm and a machine weight of 450kg, it has a total power of 16.5kw, suitable for paper thickness ranging from 105-500gsm and a maximum paper diameter of 600mm. The price is negotiable and the delivery time is 30-60 working days. Payment can be made by TT or LC and the supply ability is 20sets/month. The packaging is fumigation wooden box.
This High Speed industrial automatic laminating machine BOPP is especially suitable for roll to roll lamination machine film laminating. It is an ideal choice for FM-350 ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MAXIMUM PAPER DIAMETER 600MM ROLL TO ROLL LAMINATION MACHINE PRE COAT. Get your Supreme FM-350 FM-350 ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MAXIMUM PAPER DIAMETER 600MM ROLL TO ROLL LAMINATION MACHINE PRE COAT now and enjoy its reliable performance.
FM-350 ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MAXIMUM PAPER DIAMETER 600MM ROLL TO ROLL LAMINATION MACHINE PRE COAT Technical Support and Services include:
FM-350 ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MAXIMUM PAPER DIAMETER 600MM ROLL TO ROLL LAMINATION MACHINE PRE COAT is packaged in sturdy fumigation wooden boxes for protection during shipping. The machinery is then palletized, and loaded onto a truck or container for shipping.
The shipping time and cost varies depending on the customer's location. Customers are advised to contact their local carrier for more information.
Specifications:
| model | FM-350 |
| Max paper diameter | 600mm |
| Suit for paper thickness | 105-500gsm |
| Max laminating speed | 65m/min |
| Total power | 16.5kw |
| Machine weight | 450kg |
| Machine size | 1655*1030*1235mm |
1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction
during processing.
2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it
3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material
4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time
5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.
6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating
7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast
8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.
9:paper drawing:
