| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FM-350 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Suit For Paper Thickness: | 105-500gsm | Warranty: | 1 Year |
|---|---|---|---|
| Max Paper Diameter: | 600mm | Machine Weight: | 450kg |
| Max Laminating Speed: | 65m/min | Total Power: | 16.5kw |
| Model: | FM-350 | Machine Size: | 1655*1030*1235mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | CUSTOMIZABLE ADHESIVE LABEL PAPER PROCESS MACHINERY - MAX LAMINATING SPEED 65M/MIN ROLL TO ROLL PRE COATING FILM LAMINAT | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
This machine has a compact structure, which can save a lot of space for enterprises. Furthermore, it adopts oil-pressure-constant-temperature heating control to ensure the printed products with quality. It is worth mentioning that it uses pre-coating film, which has a lower cost than the ordinary cold film. And it is also equipped with a magnetic powder tension control for unwinding and rewinding, guaranteeing the quality of the machine.
Moreover, it has an automatic web guide that can perfectly coat the uneven products, thus reducing the materials' cost. As a result, this machine is highly recommended as necessary post press helper to all of the printing enterprises.
This machine is an essential tool for major print companies. It can help to improve the post-press process by increasing efficiency and accuracy.
This machine has a number of features that can help save time, labor and money.
Brand Name: Supreme
Model Number: FM-350
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC
Supply Ability: 20sets/month
Total power: 16.5kw
Warranty: 1 Year
Max laminating speed: 65m/min
Machine size: 1655*1030*1235mm
Max paper diameter: 600mm

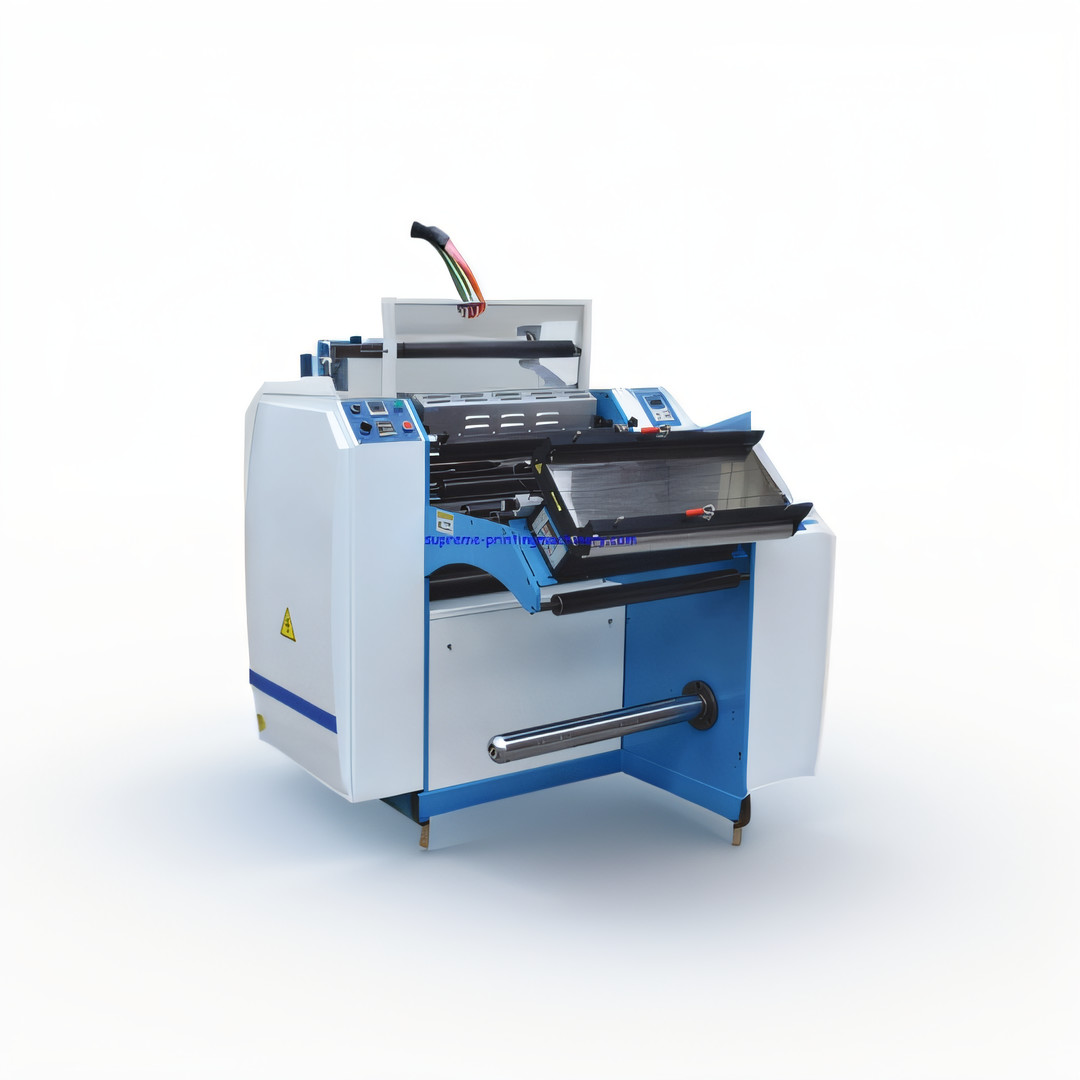

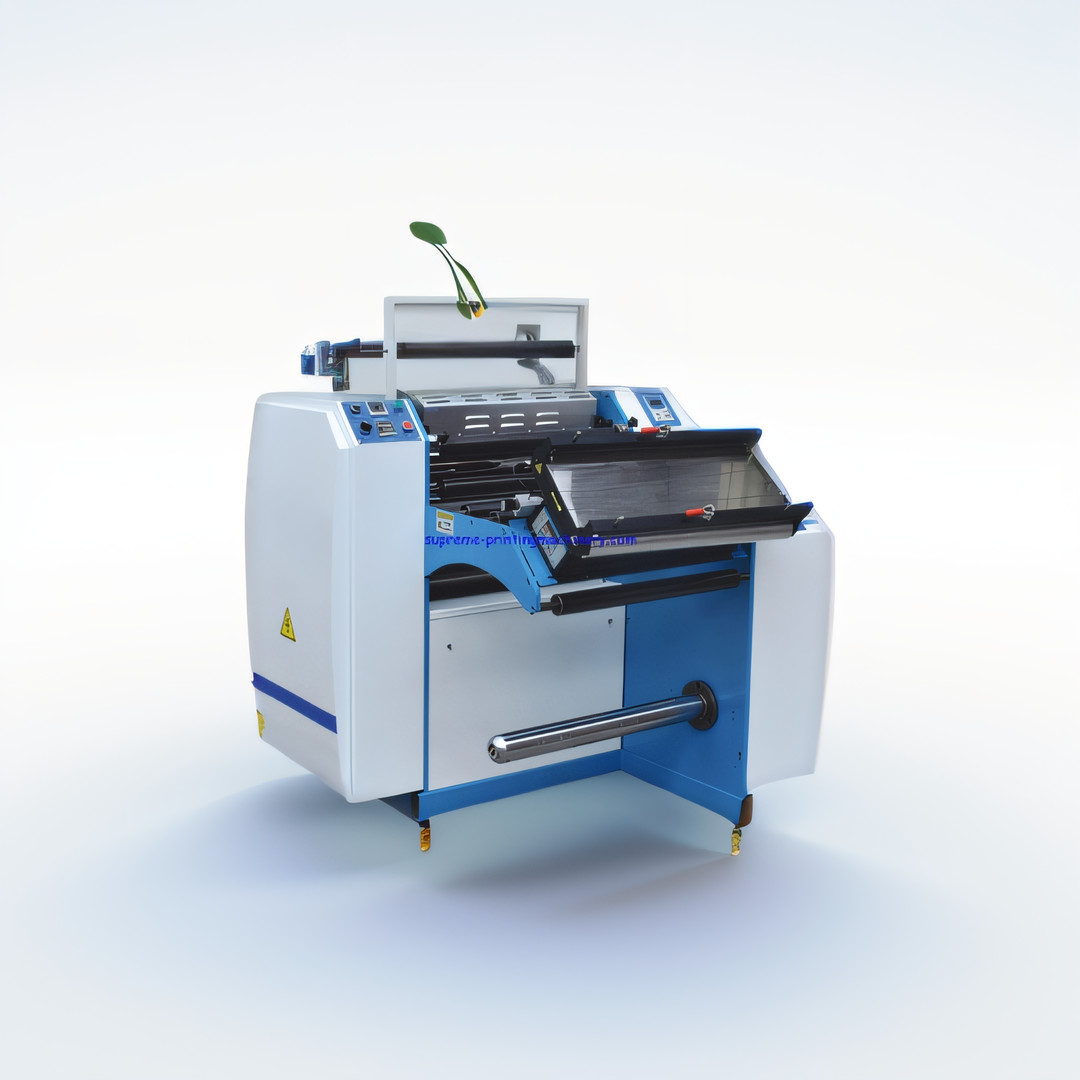

Supreme FM-350 CUSTOMIZABLE ADHESIVE LABEL PAPER PROCESS MACHINERY - MAX LAMINATING SPEED 65M/MIN ROLL TO ROLL PRE COATING FILM LAMINAT is a roll to roll pre coating film laminating machine that is designed for Bopp Matte Laminating Film Thermal Lamination Pre-coating Film for Laminating Machine and Paper and Film Laminating Machine.
It has maximum laminating speed of 65m/min and total power of 16.5kw. Its machine size is 1655*1030*1235mm and maximum paper diameter is 600mm. It comes with 1 year warranty.
CUSTOMIZABLE ADHESIVE LABEL PAPER PROCESS MACHINERY - MAX LAMINATING SPEED 65M/MIN ROLL TO ROLL PRE COATING FILM LAMINAT provides technical support and services which include:
The CUSTOMIZABLE ADHESIVE LABEL PAPER PROCESS MACHINERY - MAX LAMINATING SPEED 65M/MIN ROLL TO ROLL PRE COATING FILM LAMINAT is wrapped in strong plastic to protect it during the shipping process. It is then placed in a sturdy fumigation wooden box for further protection. The box is sealed with packing tape and labeled with the product name and shipping address. The box is then shipped via a reputable shipping company such as UPS or FedEx.
Specifications:
| model | FM-350 |
| Max paper diameter | 600mm |
| Suit for paper thickness | 105-500gsm |
| Max laminating speed | 65m/min |
| Total power | 16.5kw |
| Machine weight | 450kg |
| Machine size | 1655*1030*1235mm |
1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction
during processing.
2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it
3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material
4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time
5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.
6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating
7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast
8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.
9:paper drawing:
