| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | MQ-320/420YE |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Power: | 3kw | Power Supply: | 380V, 3P, 50/60Hz |
|---|---|---|---|
| Die Cutting Speed: | 90m/min | Max. Web Width: | 320mm |
| Warranty: | 1 Year | Model: | MQ-320/420YE |
| Color: | Customized | Wa: | +8618072118971 |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | MQ-320/420YE WITH 50/60HZ POWER SUPPLY SEMI-ROTARY LABEL DIE-CUTTING MACHINE DESIGNED FOR IML LABEL INTERMITTENT DIE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

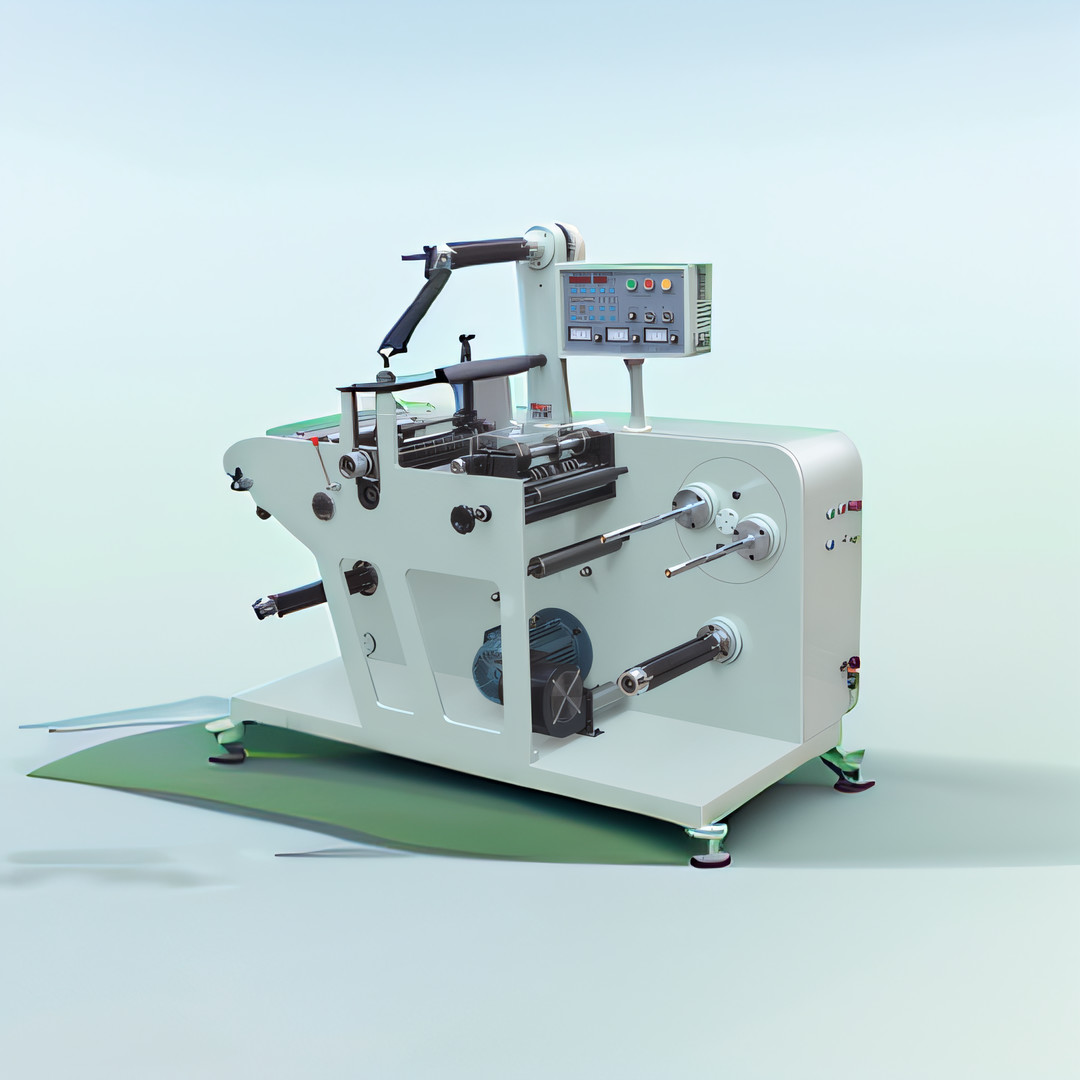

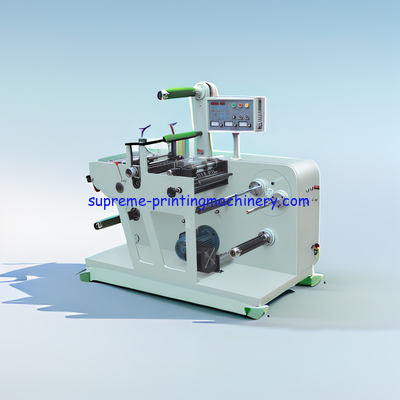

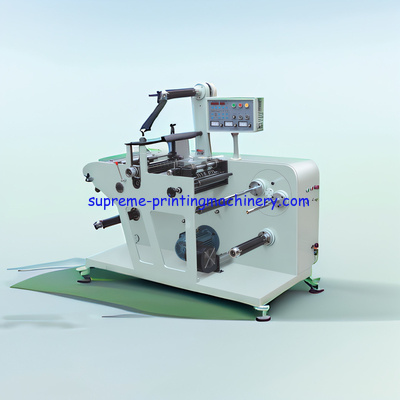

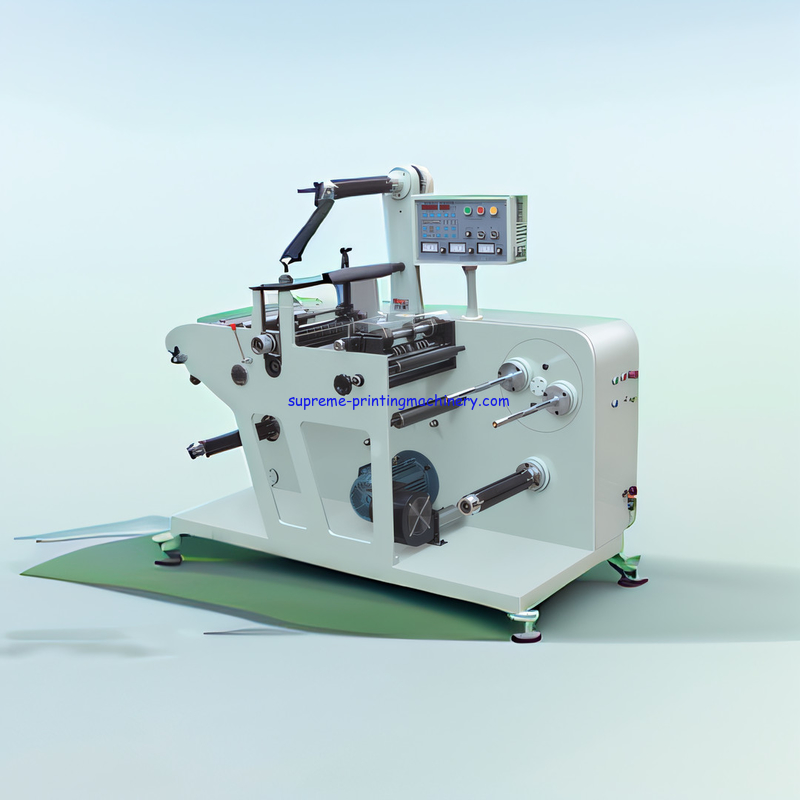

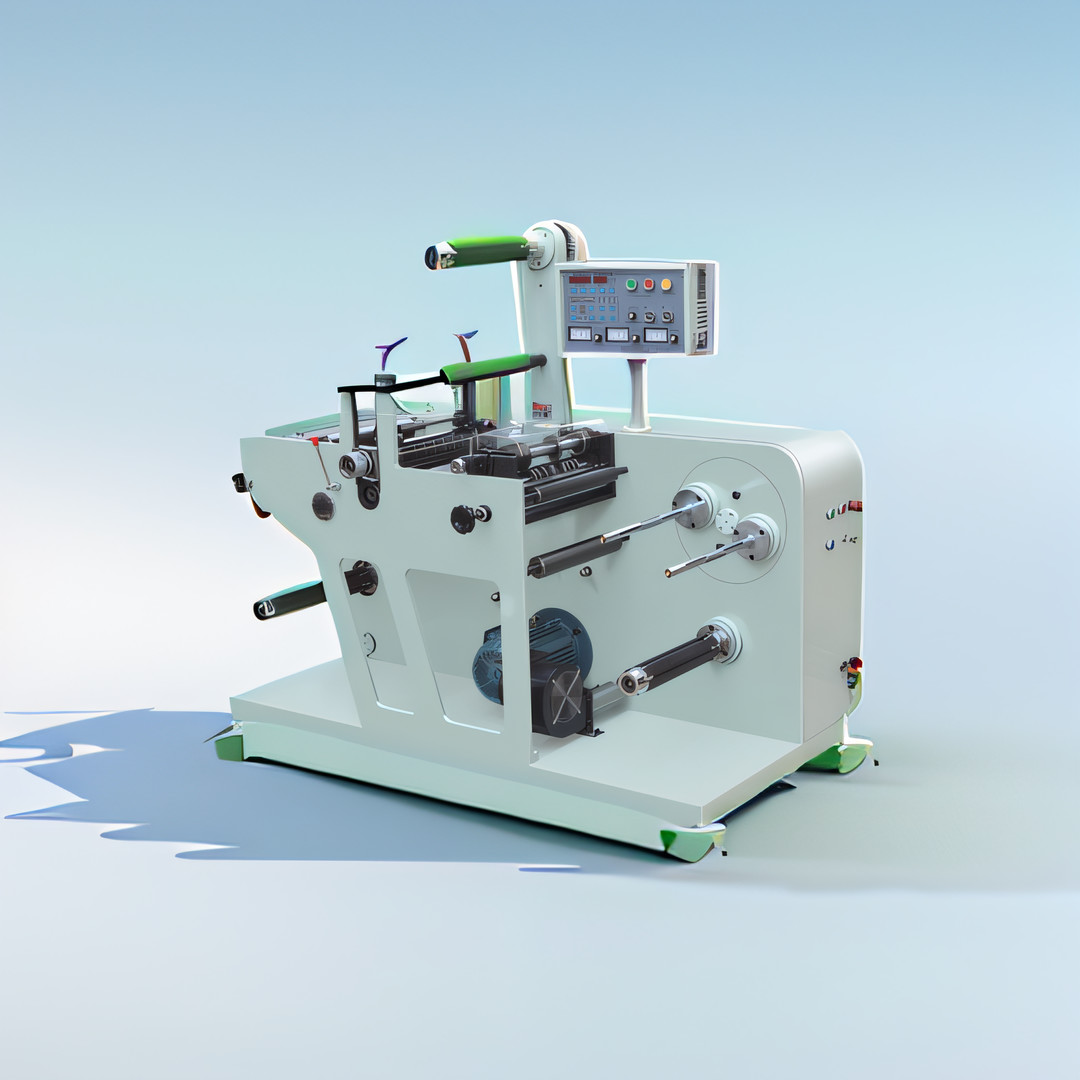

The MQ-320/420YE rotary die cutting machine has added a set of die-cutting stations to its 320 slitting machine. This product can be used to die-cut and slit self-adhesive labels in one go, which not only saves time but also improves work efficiency. It provides functions like automatic metering, number counting, length & quantity setting, automatic stop, and automatic photoelectric correction control for unwinding.
In addition, the MQ-320/420YE is notable for features such as compact construction, rapid speed, high efficiency, precise cutting, user-friendly operations, and smooth operation.
This product is an ideal device for cutting and slitting blank self-adhesive labels and paper labels. It is equipped with a wide cutting range which makes it suitable for various types of materials. The design of the device allows for easy adjustment when used for die-cutting and slitting.
Brand Name: Supreme
Model Number: MQ-320/420YE
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC
Supply Ability: 20sets/month
Color: Customized
Model: MQ-320/420YE
Die cutting speed: 90m/min
Max. web width: 320mm
Max. unwinder diameter: 500mm
Supreme MQ-320/420YE WITH 50/60HZ POWER SUPPLY SEMI-ROTARY LABEL DIE-CUTTING MACHINE DESIGNED FOR IML LABEL INTERMITTENT DIE is an affordable label high-speed compact semi-rotary die-cutting machine, tabletop die-cutting machine, and rotary-semi-rotary label die-cutting machine designed for IML Label Die Cutting Machine. It has a maximum web width of 320mm and a maximum unwinder diameter of 500mm. It also comes with a die-cutting speed of 90m/min and a CE certification. This machine is available in customized colors and offers an unbeatable price. It also comes with a minimum order quantity of 1 and a delivery time of 30-60 working days.
MQ-320/420YE WITH 50/60HZ POWER SUPPLY SEMI-ROTARY LABEL DIE-CUTTING MACHINE DESIGNED FOR IML LABEL INTERMITTENT DIE offers technical support and services to ensure that our customers are always satisfied with their purchase. Our team of highly-skilled technicians are available to help answer any questions you may have, provide troubleshooting tips, and provide general advice on the best way to use our products. We also offer a range of maintenance and repair services for our machines, ensuring that they remain in optimal working order. In addition, we offer a range of replacement parts and accessories to keep your MQ-320/420YE WITH 50/60HZ POWER SUPPLY SEMI-ROTARY LABEL DIE-CUTTING MACHINE DESIGNED FOR IML LABEL INTERMITTENT DIE performing at its best. Whatever your needs, our team of experts is here to help.
MQ-320/420YE WITH 50/60HZ POWER SUPPLY SEMI-ROTARY LABEL DIE-CUTTING MACHINE DESIGNED FOR IML LABEL INTERMITTENT DIE will be securely packaged and shipped directly to the customer as soon as possible. The packaging process takes into consideration the weight and size of the machinery as well as any possible damage that may occur during the shipping process. Protective packaging materials, such as film wrapped and fumigation wooden box are used to ensure that the machinery is properly protected. Shipments are tracked and monitored to ensure safe and timely delivery.
Specification:
| Machine Model | MQ-320YE | MQ-420YE |
| Die cutting speed | 90m/min | 90m/min |
| Max Web Width | 320mm | 420mm |
| Max Unwinding Diameter | 500mm | 500mm |
| Max Rewinding Diameter | 500mm | 500mm |
| The cutting precision | +-0.5mm | +-0.5mm |
| Machine size | 1750*1050*1680(mm) | 1750*1150*1680(mm) |
| Package size | 1800*1100*1700(mm) | 1800*1200*1700(mm) |
| Machine weight |
about 650kg
|
about 700kg
|
| Machine motor power | 3kw | 3.5kw |
