| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | RY-L |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Solid Reply: | Japan | Printing Girth: | 175-381mm(56T-120T) |
|---|---|---|---|
| Electromagnetism Valve: | Japan | Machine Thickness: | 22mm |
| Time Replay: | Taiwan | Standard With Machine: | Stop Automatic When Paper Lack |
| Machine Size: | Depends The Colors And Functions And The Width | Max. Winding Diameter: | 600mm |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | HIGH-PERFORMANCE FOCUS FLEXO LABEL PRINTING MACHINE MAGNETIC POWER BRAKE PRINTING PAPER AND TOP-GRADE ADHESIVE LABELS | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

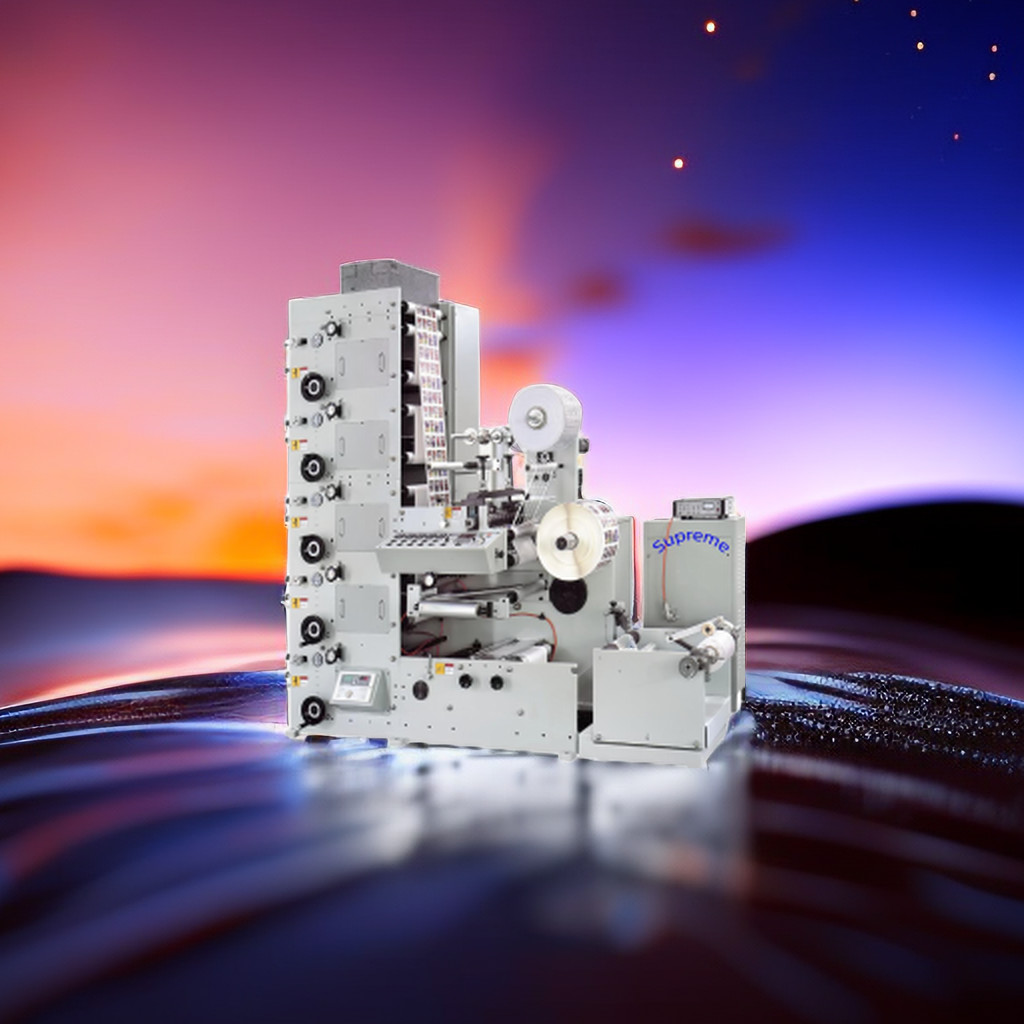

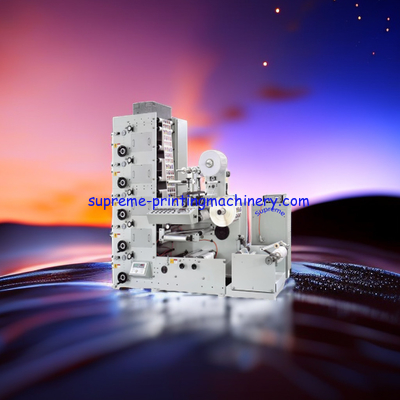

The flexo printing machine adopts the ceramic anilox rollers to spread ink, which is characterized by wearable, harden treatment and long using life, etc. It can improve the printing efficiency and more pretty products.
Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch.Tension controller is automatic.
Printing unit of the flexo printing machine adopt 360º to regulate for registration.
Each printing unit of the flexo printing machine has one IR drier(6 fans, customized for more efficient). UV dryer can be optional.
The rubber roller of the flexo printing machine can break away automatically while stop, and running at a low speed, in order to avoid ink being dried to damage the flexo resin plate.
The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
Unwinding and rewinding shaft adopt air shaft each 1 pc 3 inch, it's convenient to change load and unload the material.
Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive paper labels and other commercial label.
It is an ideal machine suited for printing paper and top-grade adhesive label.
The machine is designed to supports the printing of large volume of paper and labels. It also offers accurate and high-quality outputs. With the precise mechanism and dynamic power, it ensures easy maintenance and smooth operations.
Supreme RY-L HIGH-PERFORMANCE FOCUS FLEXO LABEL PRINTING MACHINE MAGNETIC POWER BRAKE PRINTING PAPER AND TOP-GRADE ADHESIVE LABELS is a professional Inline Flexo label Press manufacturer in China. It is CE certified and the minimum order quantity is 1. The price is negotiable and the package is fumigation wooden box. The delivery time is 30-60 working days and the payment terms are TT and LC. The supply ability is 20sets/month. The max roll paper width and max. Printing width can be customized. The solid reply is Japan and it can print the color as the client requires. It also has the standard that the machine will stop automatically when the paper lack.
We provide full technical support and services for HIGH-PERFORMANCE FOCUS FLEXO LABEL PRINTING MACHINE MAGNETIC POWER BRAKE PRINTING PAPER AND TOP-GRADE ADHESIVE LABELS, including:
If you need any technical support and service for HIGH-PERFORMANCE FOCUS FLEXO LABEL PRINTING MACHINE MAGNETIC POWER BRAKE PRINTING PAPER AND TOP-GRADE ADHESIVE LABELS, please feel free to contact us.
The HIGH-PERFORMANCE FOCUS FLEXO LABEL PRINTING MACHINE MAGNETIC POWER BRAKE PRINTING PAPER AND TOP-GRADE ADHESIVE LABELS is packaged and shipped in a secure and safe manner. The product is wrapped in protective plastic and then placed in a box or crate. The box or crate is then sealed with tape, and labelled for shipping. The package is then placed onto a pallet and shrink-wrapped for extra protection. The pallet is then loaded onto a truck or other shipping vehicle and transported to its destination.
| Technical data | |
| Model | RY3204 |
| Max Printing speed | 60-80m/min |
| Printing color | 4color |
| Max roll paper width | 320mm |
| Max priniting width | 310mm |
| Max unwinding diameter | 600mm |
| Max rewinding diameter | 600mm |
| Printing cir | 175-381mm |
| Overprinting precision | +-0.1mm |
| Machine thickness | 22mm |
| Machine size | About 3400*1250*2160mm |
| Machine weight | About 4000kgs |
