| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | HBRY-W |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 60-80working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 5sets/month |
| Machine Weight: | Depends The Colors And Functions And The Width | Precision Of Registration: | +-0.1mm |
|---|---|---|---|
| Main Motor: | China | Max. Printing Width: | 340mm/440mm Or Customized |
| Machine Thickness: | 25mm | Printing Speed: | 150m/min |
| Machine Size: | Depends The Colors And Functions And The Width | Optional: | Servo Motor Driven |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |

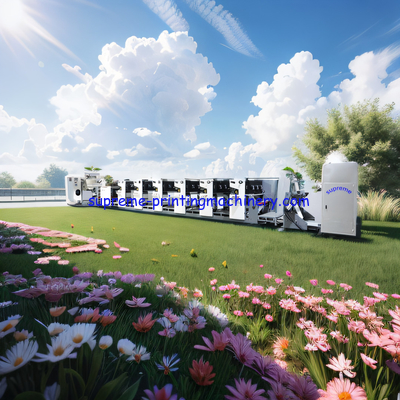

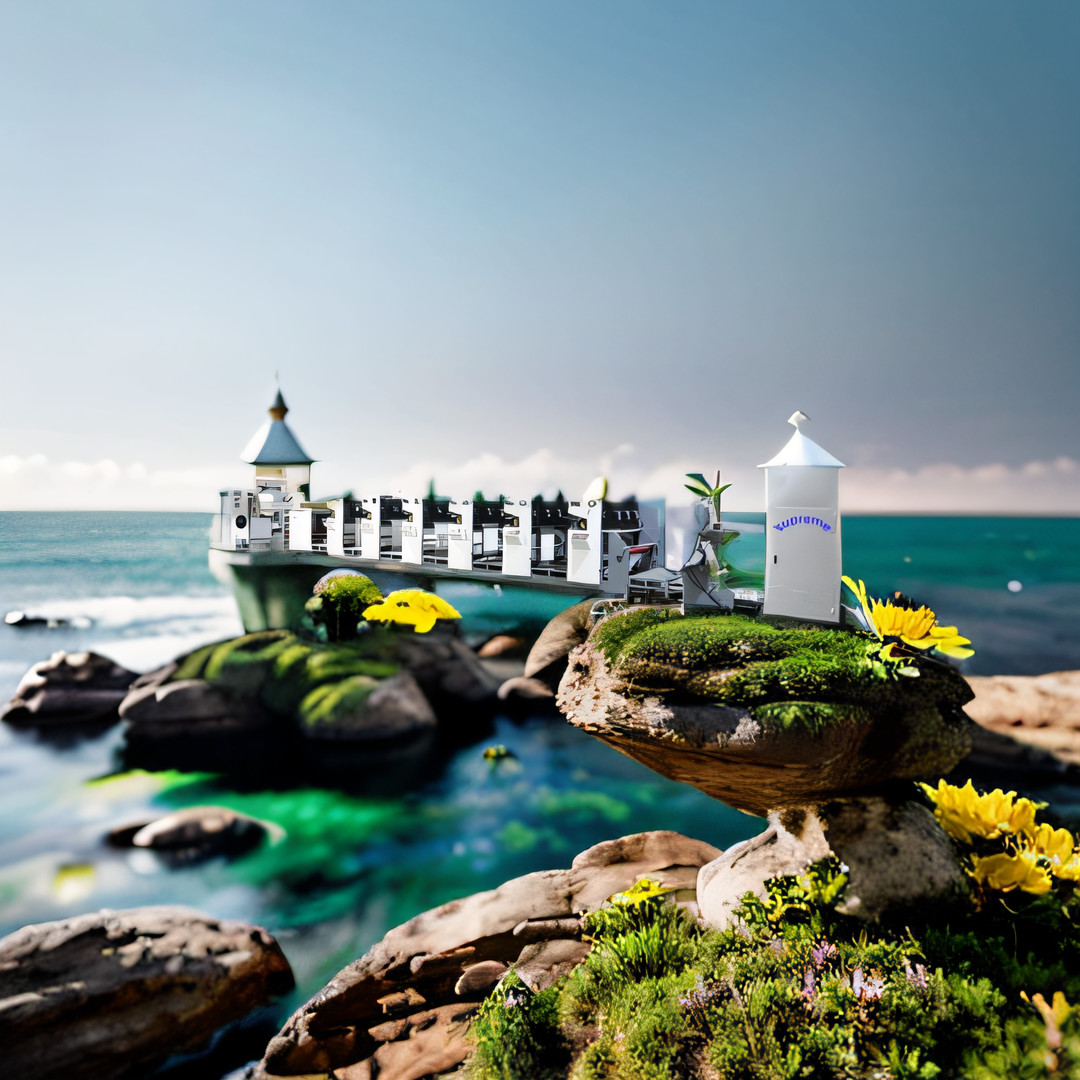

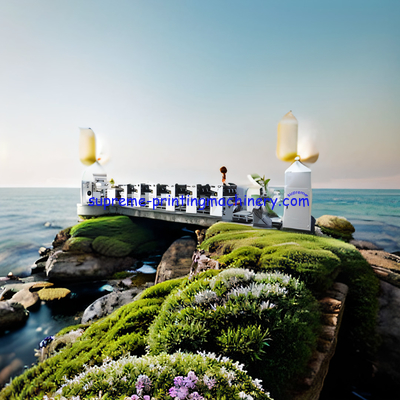

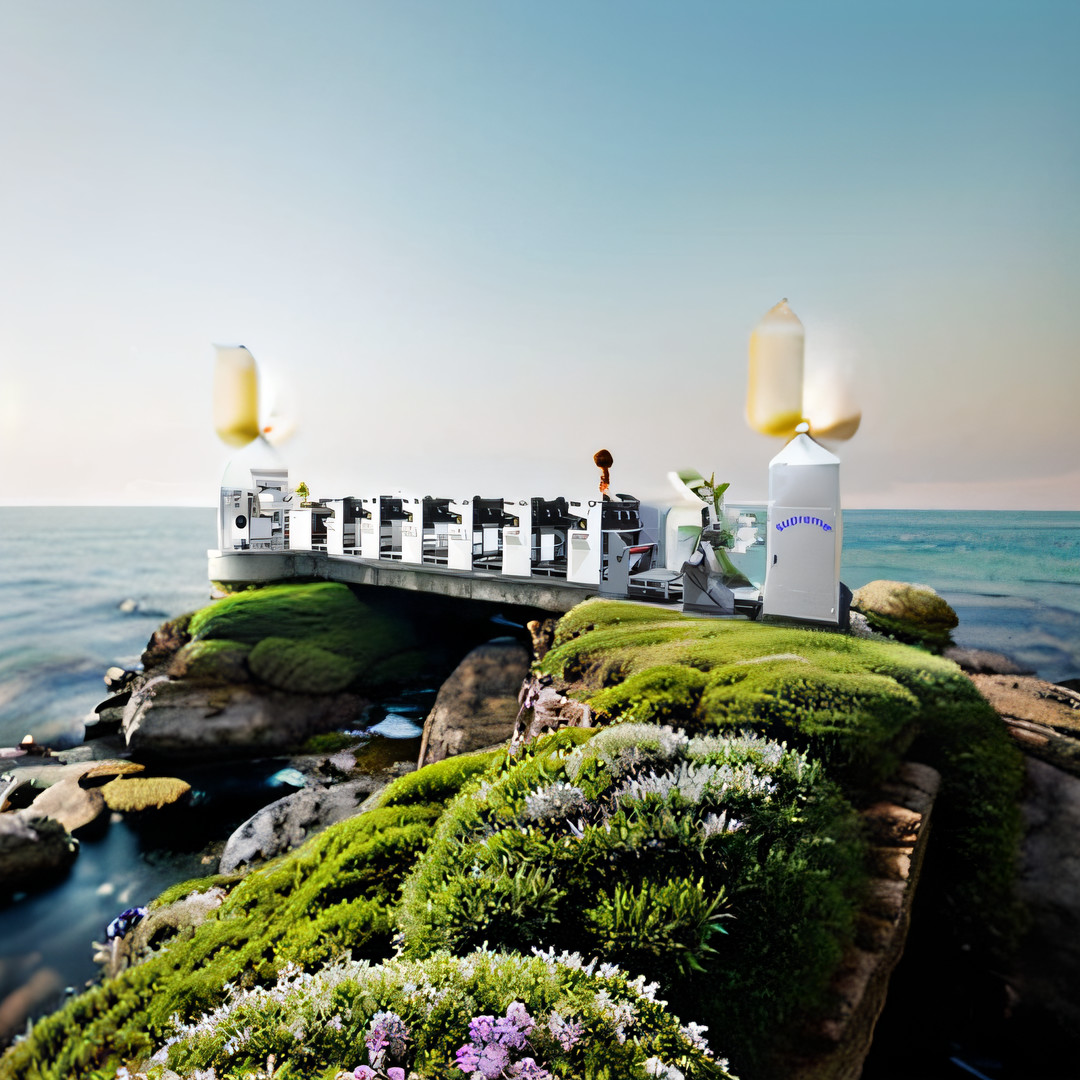

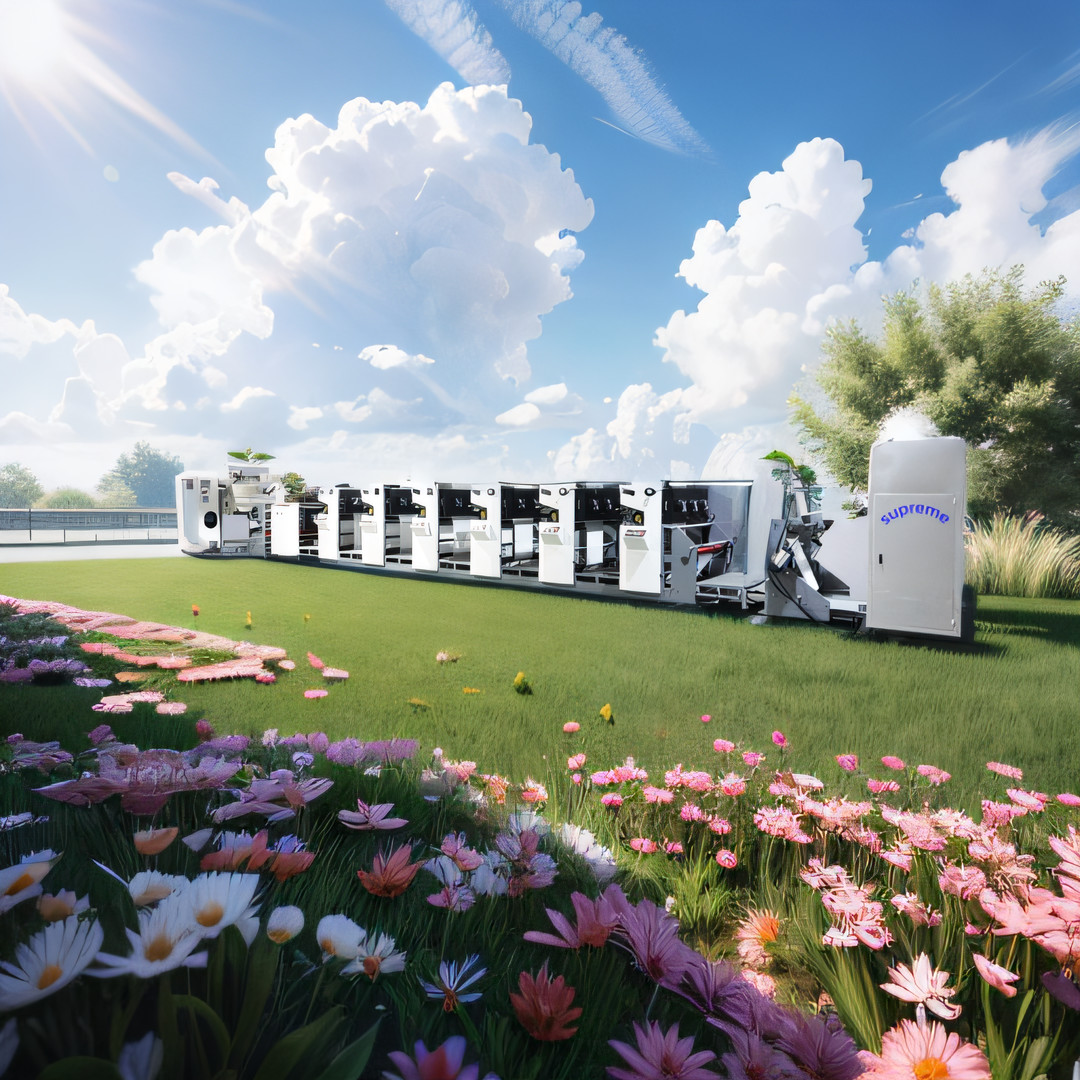

| Product Name: | PRECISION OF REGISTRATION -0.1MM HORIZONTAL LABEL FLEXO PRINT MACHINE PETAL 30-300G/M2 WEB PRINTING RELAM DELAM UV IR | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
This machine is mainly used for 30-300g/m2 web printing. It enables users to easily print multiple types of products with high fidelity, such as trademarks, self-adhesive labels, computer forms, bills, aluminum foils, films, milk cartons, battery films, and carton pre-printing.
These diverse materials can be printed onto in order to display various patterns and designs. It has revolutionized the way printing is done, allowing for increased efficiency with higher quality results.
PRECISION OF REGISTRATION -0.1MM HORIZONTAL LABEL FLEXO PRINT MACHINE PETAL 30-300G/M2 WEB PRINTING RELAM DELAM UV IR is the perfect choice for printing companies to print on adhesive-paper labels and other commercial label. With its brand name Supreme, model number HBRY-W, and origin from China, our PRECISION OF REGISTRATION -0.1MM HORIZONTAL LABEL FLEXO PRINT MACHINE PETAL 30-300G/M2 WEB PRINTING RELAM DELAM UV IR is certified with CE, and has a minimum order quantity of 1. With a price that is open to negotiation, it is packaged with fumigation wooden box and can be delivered within 60-80 working days. The payment terms are TT;LC and the supply ability is 5 sets/month. Our PRECISION OF REGISTRATION -0.1MM HORIZONTAL LABEL FLEXO PRINT MACHINE PETAL 30-300G/M2 WEB PRINTING RELAM DELAM UV IR is also equipped with a Wa of +8618072118971, a printing girth of 57T-158T, all air switches from Schneider France, and a maximum printing width of 340mm/440mm or even customized. Rewinding tension controller is also provided by ZXT China.
We provide comprehensive technical support and service for PRECISION OF REGISTRATION -0.1MM HORIZONTAL LABEL FLEXO PRINT MACHINE PETAL 30-300G/M2 WEB PRINTING RELAM DELAM UV IR , including:
PRECISION OF REGISTRATION -0.1MM HORIZONTAL LABEL FLEXO PRINT MACHINE PETAL 30-300G/M2 WEB PRINTING RELAM DELAM UV IR is securely packaged before shipping to ensure its safe arrival. After being inspected for quality assurance, each unit is plastic film-wrapped and placed in a custom-made fumigation wooden box. The box is then sealed with tape and labeled with the customer's address before being shipped.
Basic configuration
1. Unwinding unit
• Unwinding magnetic powder automatic tension control system
• Paper break stop device
• Equipped with air gun
2. Automatic web guide system (Taiwan Paursouce)
• Equipped with pneumatic paper receiving table
• The paper guide roller is anodized with high hardness
• Using ball screw electric actuator
• Ultrasonic sensor for guiding transfer sensing
• The system can continuously and accurately correct the slight deviation when the paper web moves
• Detection method: edge detection
• Correction accuracy: ±0.1mm
| Technical data | |
| Model | HBRY-8350W |
| Max unwinding diameter | 600mm |
| Repeat printing length | 57T-158T |
| Max paper width | 350mm |
| Max printing width | 340mm |
| Machine body thickness | 25mm |
| Suit for material | 30-300gsm paper;alu foil:38-100micron |
| Tension control range | 5-100kg |
| Tension control accurate | +-1kg |
| Gear | 1/8CP,teeth space 3.175mm |
| Print plate thickness | 1.14mm |
| Printing precision | +-0.1mm |
| Double side tape thickness | 0.38mm |
| Print servo motor power | 1.3KW+1.8KW |
| Unwinding and rewinding also traction servo motor power | 2.9KW |
| Machine max speed | 150m/min |
| Air pressure | 0.8mpa |
| Power requirement | 380V/3P/50HZ AC |
| Total power | About 100KW without UV |
