| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | HBRY-W |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 60-80working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 5sets/month |
| Optional: | Servo Motor Driven | Breaker: | Schneider Germany |
|---|---|---|---|
| Buttons: | Schneider Germany | Max. Printing Width: | 340mm/440mm Or Customized |
| Max. Unwinding Diameter: | 600mm | Temperature Controller: | China |
| Inverter: | Schneider Germany | Video: | For Video Sent Please Wechat/wa Me:+8618072118971 |

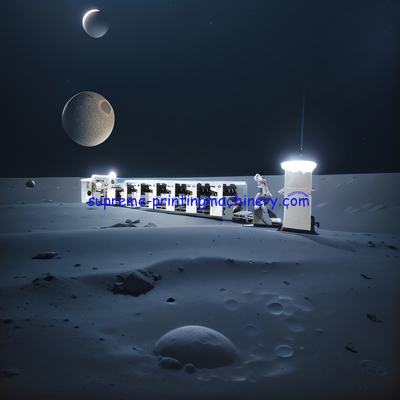

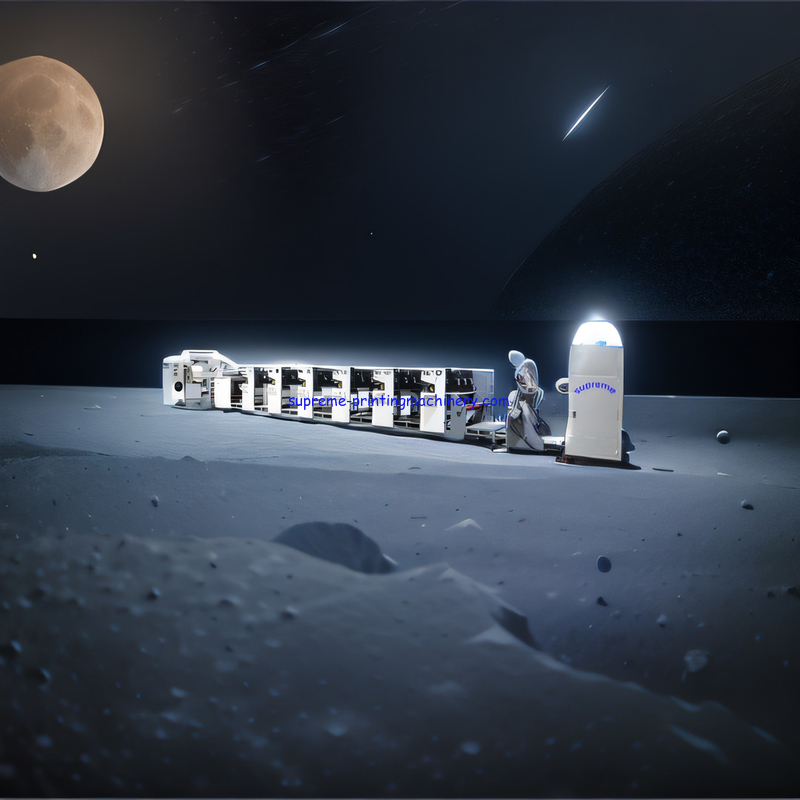

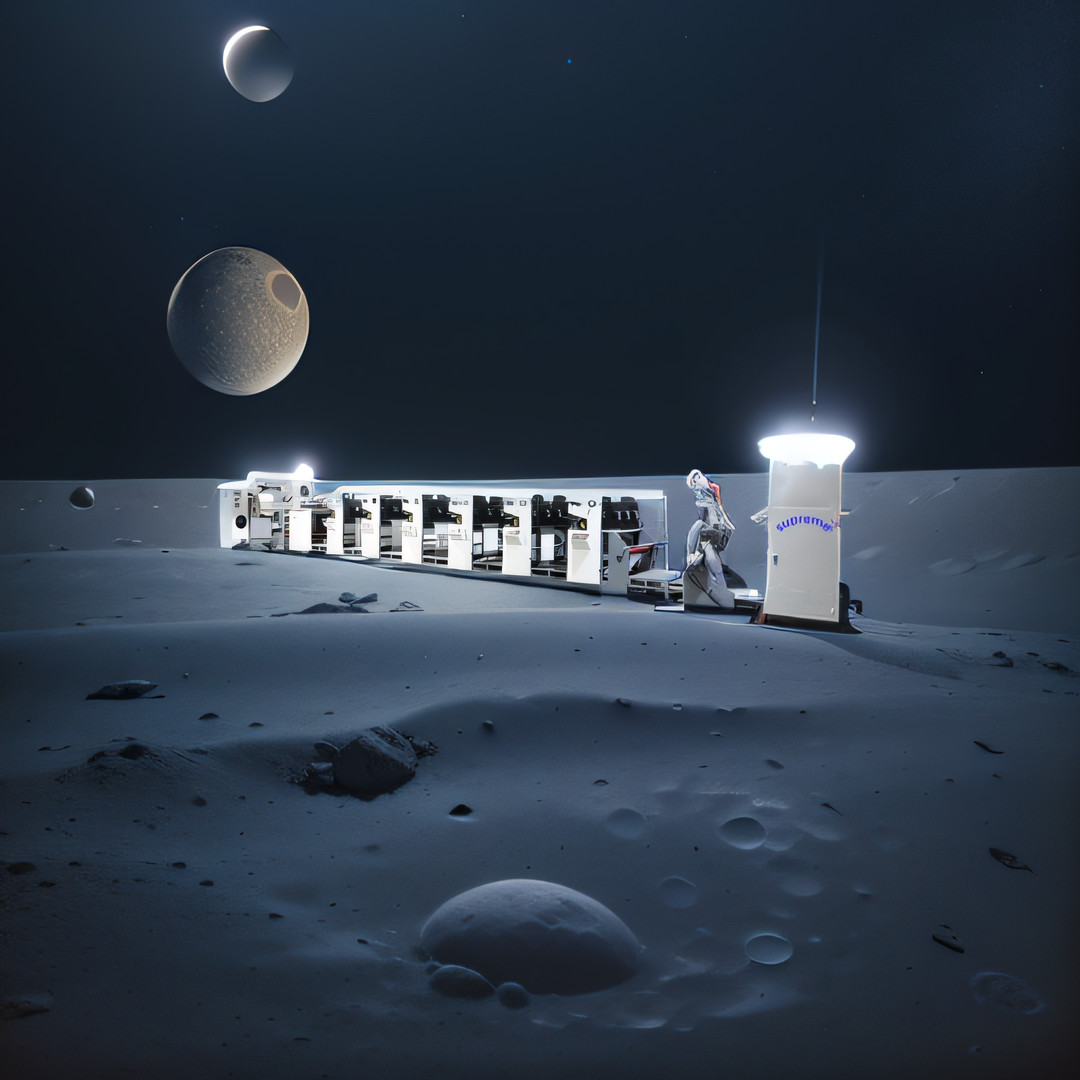

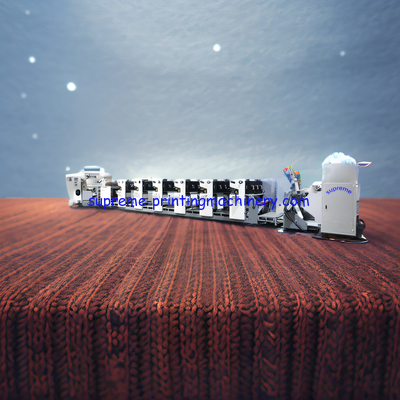

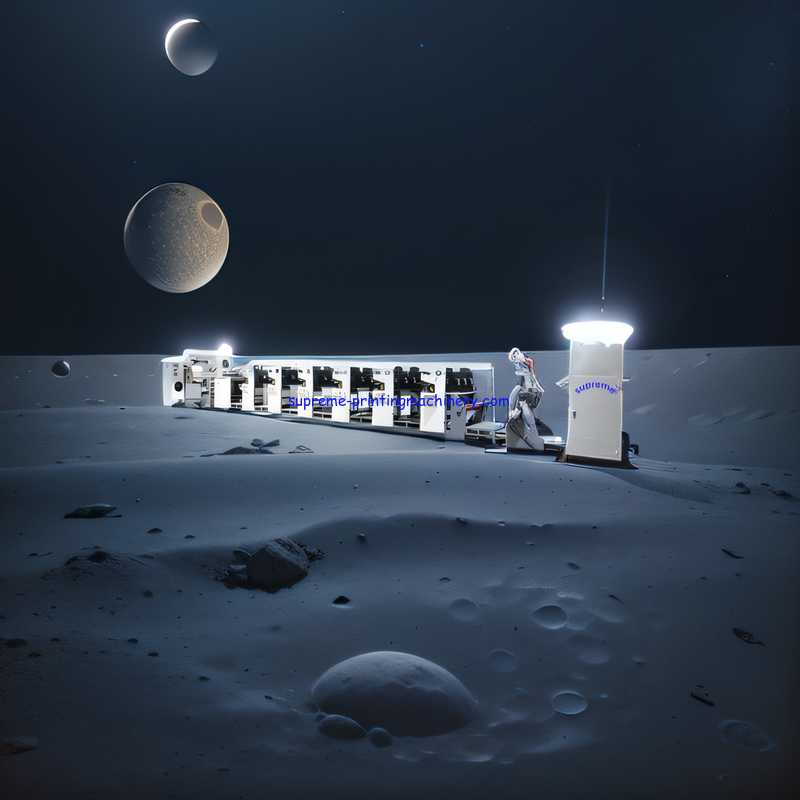

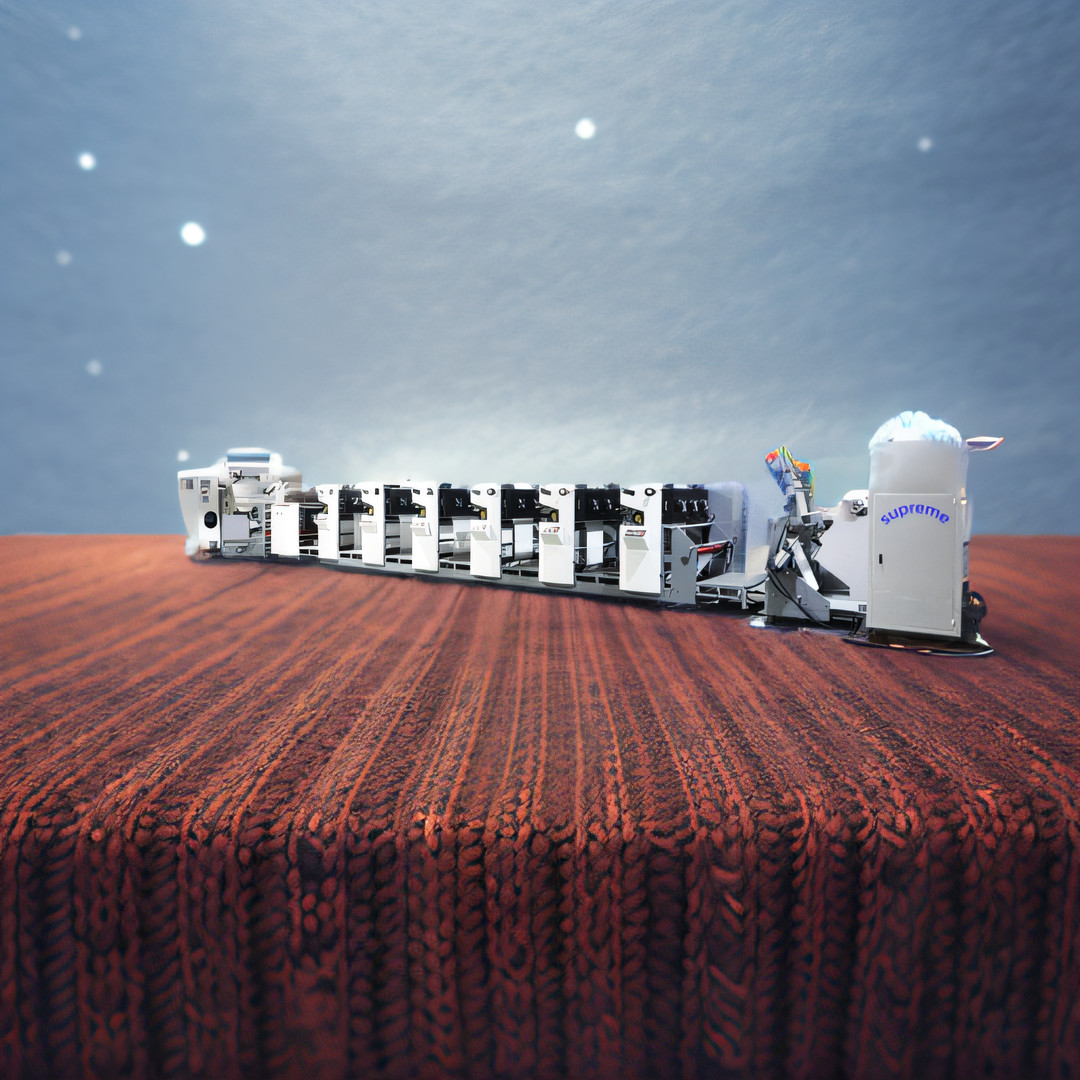

| Language: | Can Customized Into Client Regular Language For Easy Operations | Product Name: | ADHESIVE-PAPER LABELS AND COMMERCIAL LABELS SERVO MOTOR PETAL TYPE UV STICKER LABEL HORIZONTAL FLEXO PRINTING MACHINE |
| Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
This machine is predominantly used for web printing ranging between 30 and 300g/m2.
Using this printer, a variety of products such as trademarks, self-adhesive labels, computer forms, bills, aluminum foil, film, milk cardboard, battery film, carton pre-printing, and more can be printed.
The printer offers flexible functional configuration. By connecting it to other devices, it is possible to achieve double-sided printing, self-adhesive peeling printing, UV varnishing, embossing, die cutting, laminating, cold stamping, slitting as well as other processes.
In addition, it is the perfect printing solution for high-end products such as wine, cigarettes, medicine, cosmetics, milk packs, juice packs, and carton packaging (trademarks, boxes, bags, and boxes).
This machine is a specialized device mainly aimed for web printing between the range of 30-300g/m2. It can apply for variety of product printing, including trademarks, self-adhesive labels, computer forms, bills, aluminum foil, film, milk cardboard, battery film, carton pre-printing, etc.
Brand Name: Supreme
Model Number: HBRY-W
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 60-80working days
Payment Terms: TT;LC
Supply Ability: 5sets/month
Precision of registration: +-0.1mm
Inverter: Schneider Germany
Printing girth: 57T-158T
Max. winding diameter: 600mm
Temperature Controller: China
ADHESIVE-PAPER LABELS AND COMMERCIAL LABELS SERVO MOTOR PETAL TYPE UV STICKER LABEL HORIZONTAL FLEXO PRINTING MACHINE is designed for printing companies to print on adhesive-paper labels and other commercial label.
It features Petal Type UV Sticker Label Horizontal Flexo Printing Machine, 4 6 8 Color High Efficient Petal Type Paper Roll Flexo Flexographic label film Printing Machine horizontal in line petal flexo labels flexographic printing machine, Hot Sale 350 6 8 Colors Roll to Roll Paper Label Petal Type flexo printer horizontal flexographic printing machine 320-8 full servo petal-type flexo printing machine.
ADHESIVE-PAPER LABELS AND COMMERCIAL LABELS SERVO MOTOR PETAL TYPE UV STICKER LABEL HORIZONTAL FLEXO PRINTING MACHINE is securely packaged in a fumigation wooden box and shipped via a reliable freight carrier to its destination. All orders are closely monitored to ensure timely delivery and safe arrival of the product.
The product is wrapped in protective plastic film wrap and the box is sealed with strong adhesive tape to protect it from external elements. Special care is taken to ensure the product is not damaged during transit.
Once the product has been shipped, the customer will be notified with the tracking information and estimated time of arrival. Our team is always available to answer any questions or provide assistance with the shipment.
3. In/out paper system
• pressure roller and rubber cooperated to feed paper
• Servo motor controls tension
4. Printing color group
• Pneumatic clutch for anilox roller and printing roller
• Ceramic anilox roller, 1 piece per color (the number is determined by the customer)
• Plate roller, 1 piece per color (the number of teeth is determined by the customer)
• No need to re-adjust the pressure if the anilox roller and doctor blade are replaced
• Stainless steel ink tank
• The plate roller adopts the latest petal structure, the pressure is stable, and the roller can be changed quickly without any tools
• Automatic printing plate cleaning function: After the anilox roll is off the pressure every time the machine stops, the plate roller continues to rotate for 1.5 seconds to transfer the ink on the printing plate to the paper, keeping the printing plate clean.
•Anilox roller rotation function: The Anilox roller will run automatically every time the machine stops to prevent the ink from drying on the surface of the Anilox roller and causing blockage of the screen cells.
• Three-roller gear: cp1/8, made of 20CrMnTi, featuring high wear resistance and long service life
•Anilox roller, plate roller, bottom roller Runout: ≤0.003mm
| Technical data | |
| Model | HBRY-8350W |
| Max unwinding diameter | 600mm |
| Repeat printing length | 57T-158T |
| Max paper width | 350mm |
| Max printing width | 340mm |
| Machine body thickness | 25mm |
| Suit for material | 30-300gsm paper;alu foil:38-100micron |
| Tension control range | 5-100kg |
| Tension control accurate | +-1kg |
| Gear | 1/8CP,teeth space 3.175mm |
| Print plate thickness | 1.14mm |
| Printing precision | +-0.1mm |
| Double side tape thickness | 0.38mm |
| Print servo motor power | 1.3KW+1.8KW |
| Unwinding and rewinding also traction servo motor power | 2.9KW |
| Machine max speed | 150m/min |
| Air pressure | 0.8mpa |
| Power requirement | 380V/3P/50HZ AC |
| Total power | About 100KW without UV |
