| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | HBRY-W |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 60-80working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 5sets/month |
| Max. Winding Diameter: | 600mm | Standard With Machine: | All The Rollers Are Deal With High Temperature. |
|---|---|---|---|
| Optional: | Servo Motor Driven | Machine Weight: | Depends The Colors And Functions And The Width |
| Buttons: | Schneider Germany | Max. Printing Width: | 340mm/440mm Or Customized |
| Printing Color: | As Client Requirement | Max Roll Paper Width: | 350mm/450mm Or Customized |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |

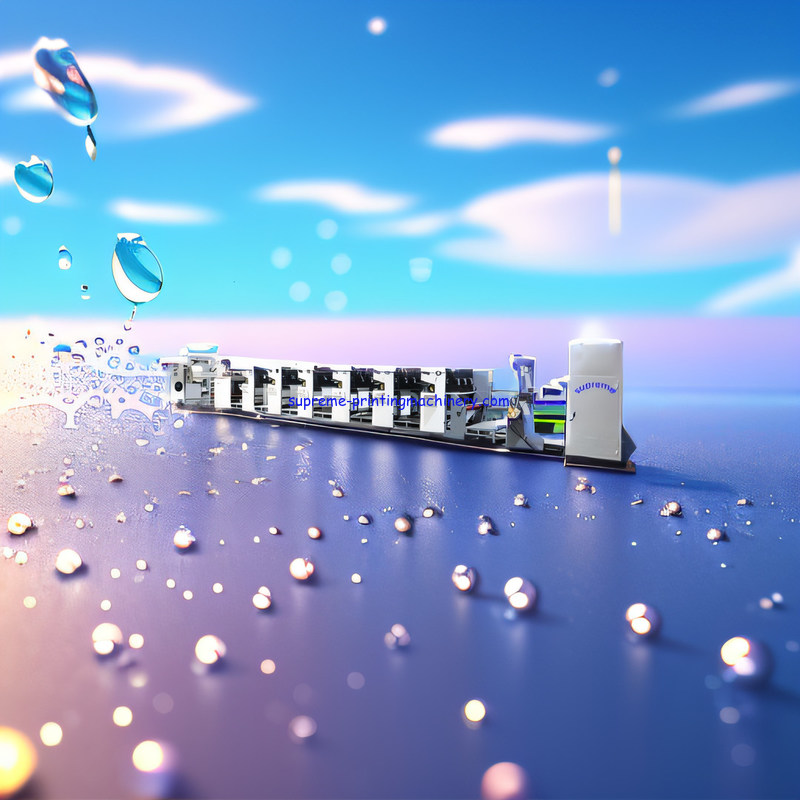

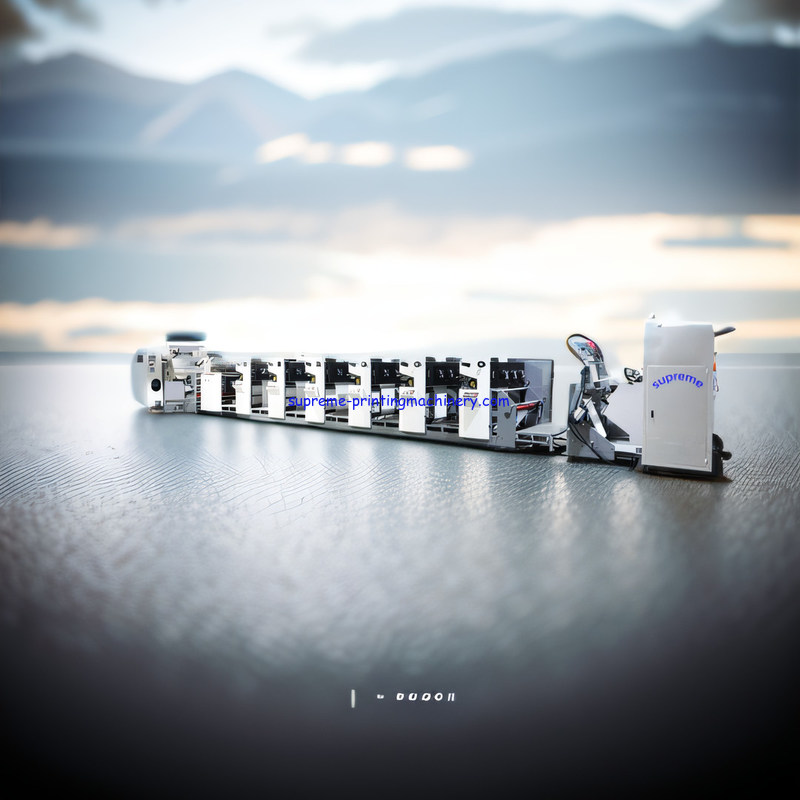

| Product Name: | PETAL PRINTER SERIES NARROW WEB FLEXO PRINTER INLINE PAPER FLEXO LABEL PRINTING MACHINE HORIZONTAL FOR ALUMINUM FOIL | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
This machine is primarily used for web printing of materials with an approximate thickness of 30-300g/m2. Some of the products that can be printed with this range of materials are trademarks, self-adhesive labels, computer forms, bills, aluminum foil, film, milk cardboard and even battery film. It also has the option of pre-printing on cartons.
This printer offers a variety of configurations and can establish connections with other machines for double-sided printing, self-adhesive peeling printing, UV varnishing, embossing, die cutting, lamination, cold stamping, slitting, and more. It is perfect printing equipment for wine, cigarettes, medicine, cosmetics, milk packs, juice packs, carton packaging items such as trademarks, boxes, bags, boxes and so on.
This printing machine is specially designed for web printing with paper from 30g/m2 to 300g/m2. It is widely used in printing a variety of products, including trademarks, self-adhesive labels, computer forms, bills, Aluminum foil, film, milk cardboard and battery film, along with pre-printing of cartons.
These sorts of products are printed very accurately with high quality and precision. This machine produces more products in lesser time in comparison with other machines present in the market.
Owing to its efficient mechanism, this printing machine is being used in industries all around the world. It is highly efficient and helps to reduce the time needed for manual labor.
PETAL PRINTER SERIES NARROW WEB FLEXO PRINTER INLINE PAPER FLEXO LABEL PRINTING MACHINE HORIZONTAL FOR ALUMINUM FOIL provides technical support and services to its customers, including:
PETAL PRINTER SERIES NARROW WEB FLEXO PRINTER INLINE PAPER FLEXO LABEL PRINTING MACHINE HORIZONTAL FOR ALUMINUM FOIL is securely packaged to prevent any damage or loss during transit. We use a combination of plastic film wrapped and fumigation wooden box, and other protective materials to ensure that the machinery arrives safely and in good condition. Shipping is typically handled via freight carriers and all shipments are fully insured.
3. In/out paper system
• pressure roller and rubber cooperated to feed paper
• Servo motor controls tension
4. Printing color group
• Pneumatic clutch for anilox roller and printing roller
• Ceramic anilox roller, 1 piece per color (the number is determined by the customer)
• Plate roller, 1 piece per color (the number of teeth is determined by the customer)
• No need to re-adjust the pressure if the anilox roller and doctor blade are replaced
• Stainless steel ink tank
• The plate roller adopts the latest petal structure, the pressure is stable, and the roller can be changed quickly without any tools
• Automatic printing plate cleaning function: After the anilox roll is off the pressure every time the machine stops, the plate roller continues to rotate for 1.5 seconds to transfer the ink on the printing plate to the paper, keeping the printing plate clean.
•Anilox roller rotation function: The Anilox roller will run automatically every time the machine stops to prevent the ink from drying on the surface of the Anilox roller and causing blockage of the screen cells.
• Three-roller gear: cp1/8, made of 20CrMnTi, featuring high wear resistance and long service life
•Anilox roller, plate roller, bottom roller Runout: ≤0.003mm
| Technical data | |
| Model | HBRY-8350W |
| Max unwinding diameter | 600mm |
| Repeat printing length | 57T-158T |
| Max paper width | 350mm |
| Max printing width | 340mm |
| Machine body thickness | 25mm |
| Suit for material | 30-300gsm paper;alu foil:38-100micron |
| Tension control range | 5-100kg |
| Tension control accurate | +-1kg |
| Gear | 1/8CP,teeth space 3.175mm |
| Print plate thickness | 1.14mm |
| Printing precision | +-0.1mm |
| Double side tape thickness | 0.38mm |
| Print servo motor power | 1.3KW+1.8KW |
| Unwinding and rewinding also traction servo motor power | 2.9KW |
| Machine max speed | 150m/min |
| Air pressure | 0.8mpa |
| Power requirement | 380V/3P/50HZ AC |
| Total power | About 100KW without UV |
