| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | HBRY-W |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 60-80working days |
| Payment Terms: | TT;LC, Western Union, MoneyGram |
| Supply Ability: | 5sets/month |
| Solid Reply: | Japan | Standard With Machine: | All The Rollers Are Deal With High Temperature. |
|---|---|---|---|
| AC Contactor: | Schneider Germany | Machine Size: | Depends The Colors And Functions And The Width |
| Rewinding Tension Controller: | ZXT China | Unwinding Tension Contoller: | Mistubishi Japan |
| Time Replay: | Taiwan | Max. Printing Width: | 340mm/440mm Or Customized |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |

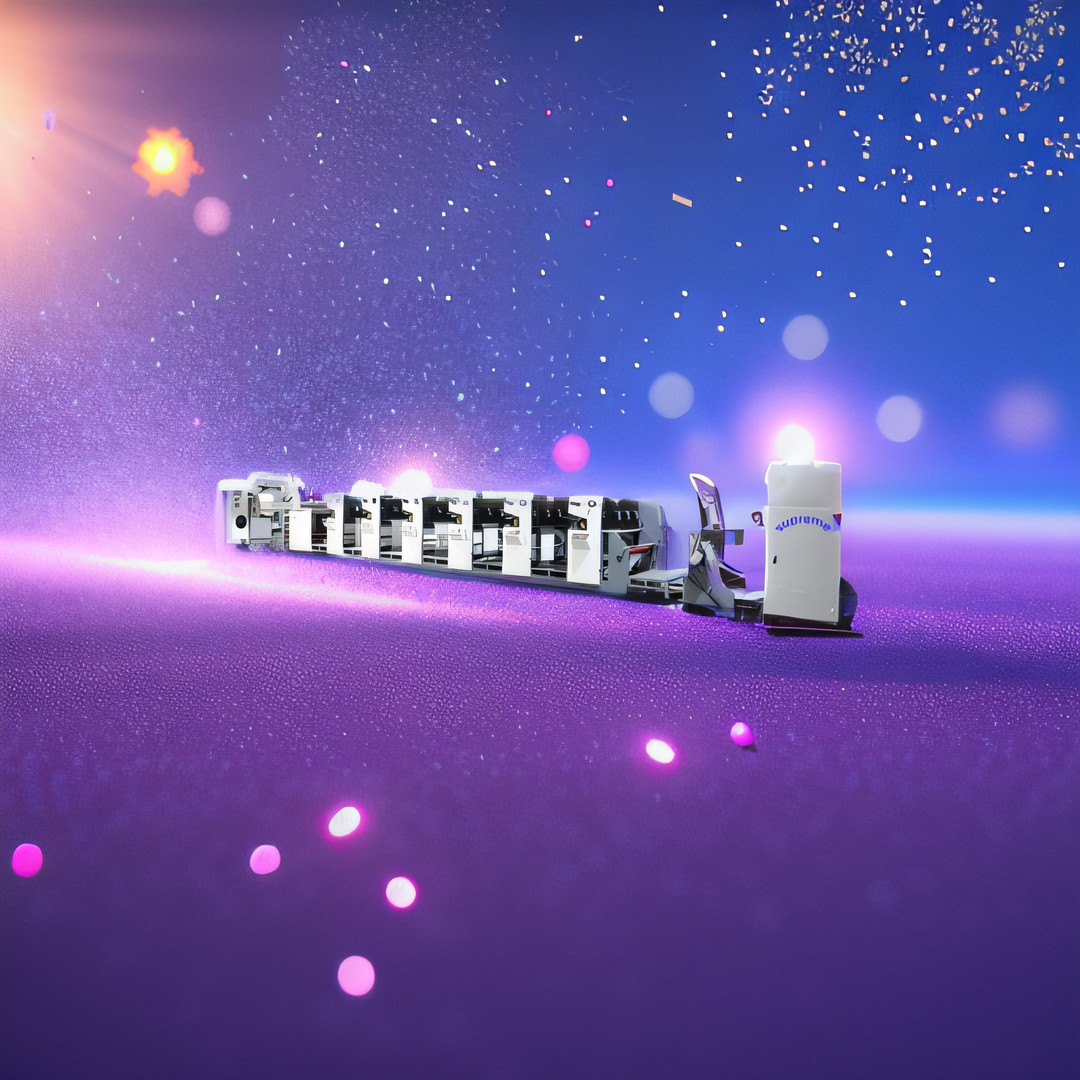

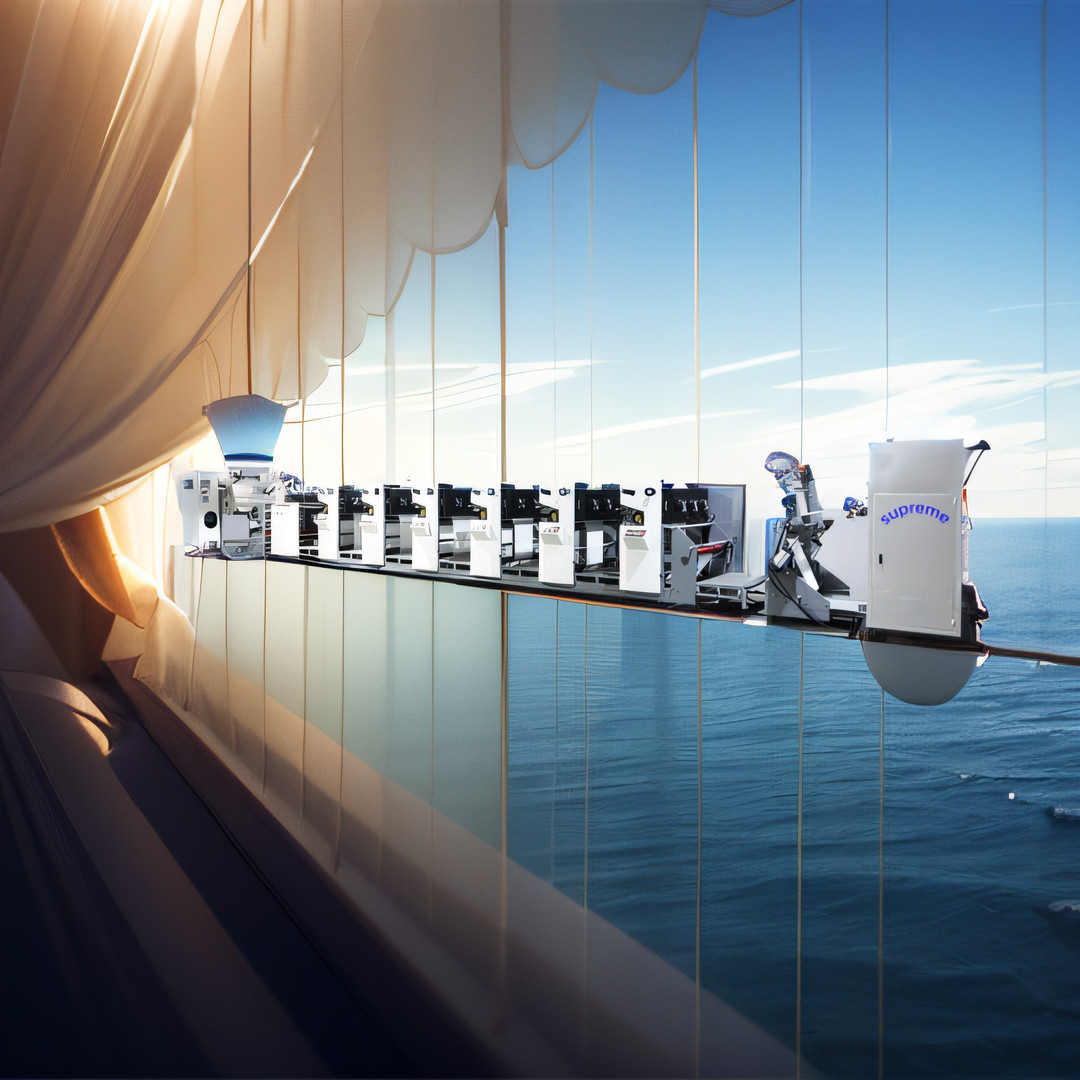

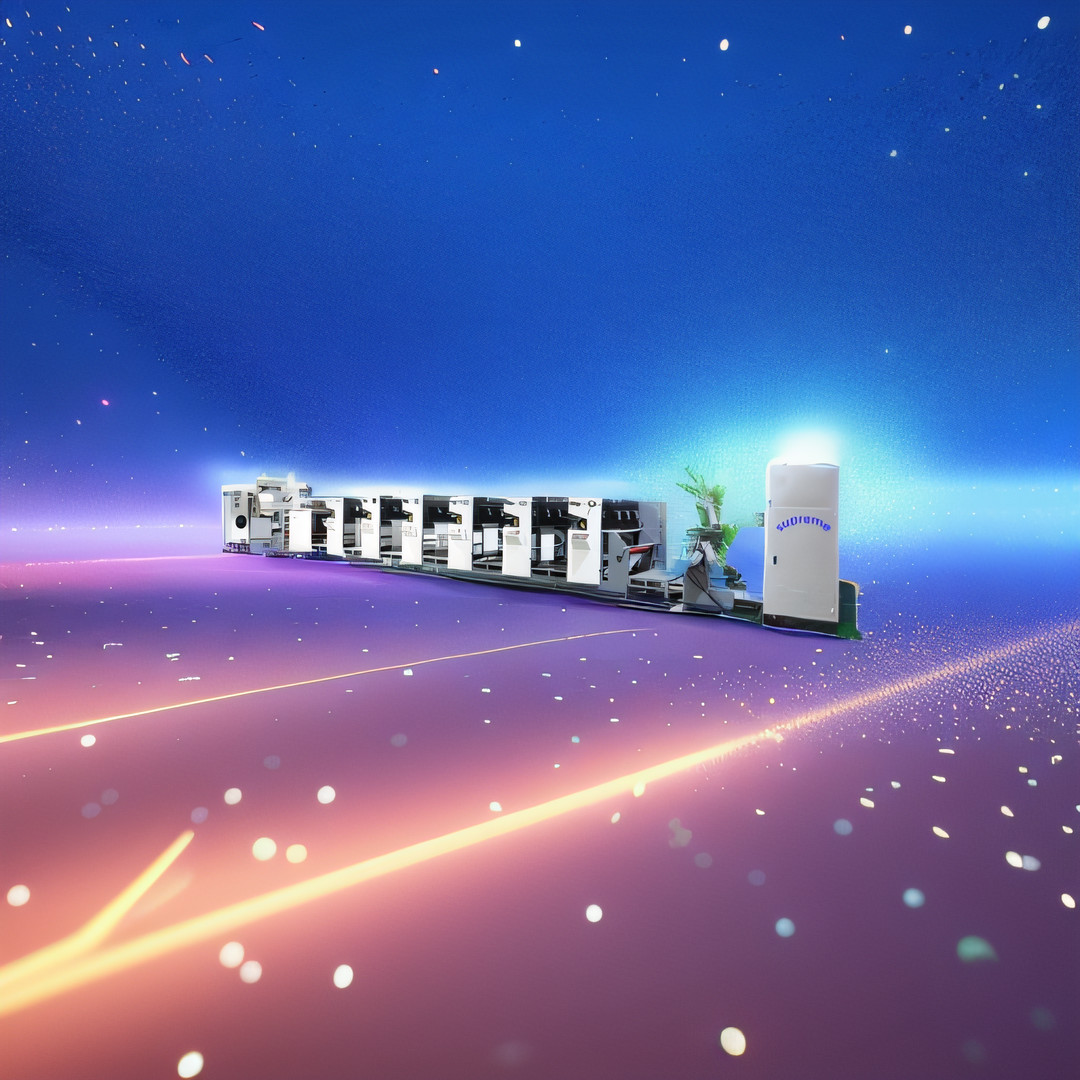

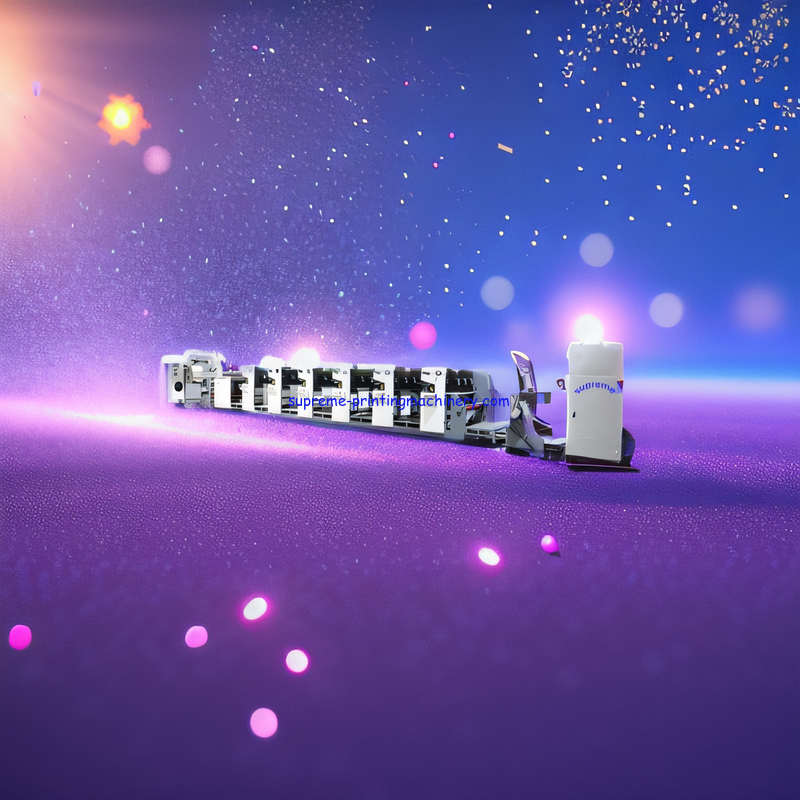

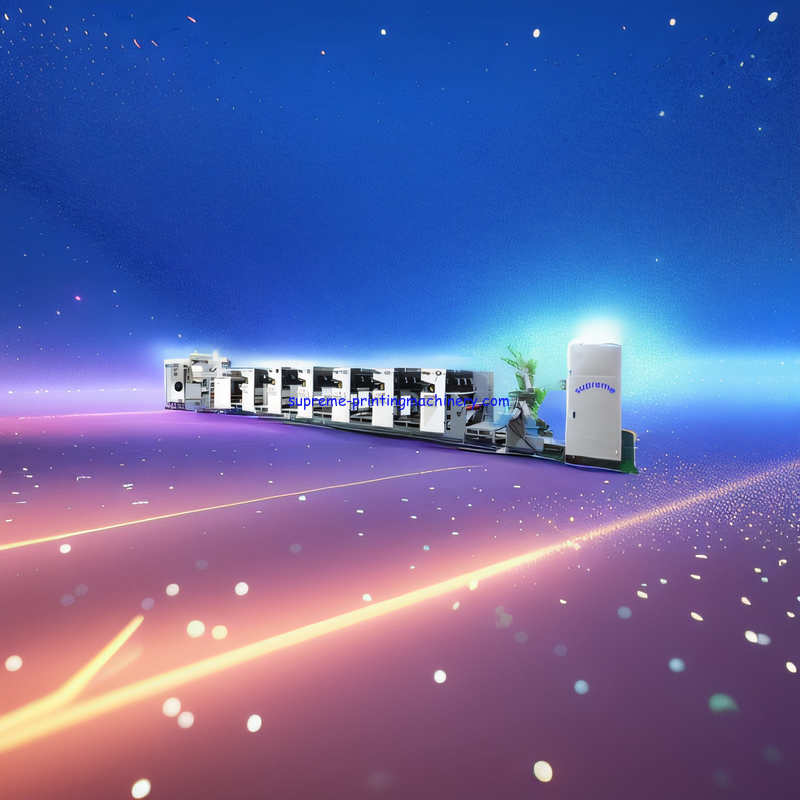

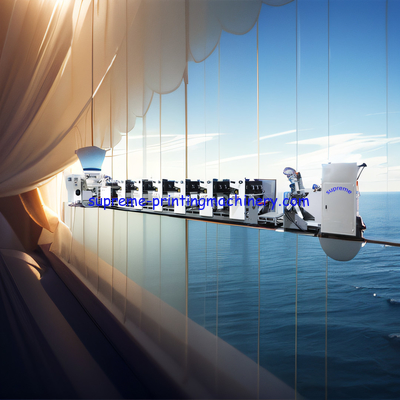

| Product Name: | 25mm Machine Thickness Horizontal Type Flexo Printing Machine With A Petal Type Plate Install For Efficient Operation | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery
This machine is mainly used for web printing with a weight range of 30-300g/m2. It is suitable for printing trademarks, self-adhesive labels, computer forms, invoices, aluminum foil, film, milk cardboard, battery film, carton pre-printing and other products.
What makes this printer unique is its flexibility in functional configuration. It can be connected to different systems to realize double-sided printing, self-adhesive peeling printing, UV varnishing, embossing, die cutting, laminating, cold stamping, slitting and other special processes.
This machine is ideal for wine, cigarette, medicine, cosmetics, milk packs, juice packs, carton packaging (trademarks, boxes, bags, boxes, etc.) and other industries.
This machine is mainly used for printing web of different thickness ranging from 30-300g/m2. It can provide a large variety of products, including trademarks, self-adhesive labels, computer forms, bills, aluminum foil, film, milk cardboard, battery film, and carton pre-printing.
Supreme's 25mm Machine Thickness horizontal type flexo printing machine with a petal type plate install for Efficient Operation, model number HBRY-W, is certified CE and requires a minimum order quantity of 1. The price is negotiable and the packaging details are fumigation wooden box. Delivery time is 60-80 working days and payment terms are TT or LC. It has a supply ability of 5 sets per month and the maximum printing width is 340mm/440mm or customized. The machine colors are customizable, buttons are Schneider Germany, printing speed is 150m/min, and a servo motor driven is optional.
Supreme's 25mm Machine Thickness horizontal type flexo printing machine with a petal type plate install for Efficient Operation is of the highest quality and offers a cheap price. It is a horizontal type flexo printing machine with a petal type plate installation. Each printing unit is independent and arranged horizontally in a straight line. Seven colors are also available.
We provide technical support and services for our 25mm Machine Thickness horizontal type flexo printing machine with a petal type plate install for Efficient Operation. Our team of highly skilled and experienced technicians is available to assist you with any questions or concerns you may have.
We offer several different services to ensure that your 25mm Machine Thickness horizontal type flexo printing machine with a petal type plate install for Efficient Operationruns smoothly and efficiently. Our services include:
Our technical support team is available 24/7 by phone, email, and online chat to answer any questions or provide assistance.
If you have any questions or need assistance with your 25mm Machine Thickness horizontal type flexo printing machine with a petal type plate install for Efficient Operation, please do not hesitate to contact us.
Basic configuration
1. Unwinding unit
• Unwinding magnetic powder automatic tension control system
• Paper break stop device
• Equipped with air gun
2. Automatic web guide system (Taiwan Paursouce)
• Equipped with pneumatic paper receiving table
• The paper guide roller is anodized with high hardness
• Using ball screw electric actuator
• Ultrasonic sensor for guiding transfer sensing
• The system can continuously and accurately correct the slight deviation when the paper web moves
• Detection method: edge detection
• Correction accuracy: ±0.1mm
3. In/out paper system
• pressure roller and rubber cooperated to feed paper
• Servo motor controls tension
4. Printing color group
• Pneumatic clutch for anilox roller and printing roller
• Ceramic anilox roller, 1 piece per color (the number is determined by the customer)
• Plate roller, 1 piece per color (the number of teeth is determined by the customer)
• No need to re-adjust the pressure if the anilox roller and doctor blade are replaced
• Stainless steel ink tank
• The plate roller adopts the latest petal structure, the pressure is stable, and the roller can be changed quickly without any tools
• Automatic printing plate cleaning function: After the anilox roll is off the pressure every time the machine stops, the plate roller continues to rotate for 1.5 seconds to transfer the ink on the printing plate to the paper, keeping the printing plate clean.
•Anilox roller rotation function: The Anilox roller will run automatically every time the machine stops to prevent the ink from drying on the surface of the Anilox roller and causing blockage of the screen cells.
• Three-roller gear: cp1/8, made of 20CrMnTi, featuring high wear resistance and long service life
•Anilox roller, plate roller, bottom roller Runout: ≤0.003mm
5. Drying system
• Printing unit UV drying
• The power of the printing unit is synchronized with the host, and the power can be adjusted individually
6. Synchronous strobe color detection unit
• Real-time image capture and detection of printed matter in the printing process, which can move left and right
• The detection position can be set horizontally and vertically
• The detection image can be enlarged for positioning observation
7. Winding unit
• Winding servo motor tension control system
• Equipped with air gun
8. Automatic stop function when the preset output is completed
9. Multi-point speed regulation function can be realized
10. PLC servo control
| Technical data | |
| Model | HBRY-8350W |
| Max unwinding diameter | 600mm |
| Repeat printing length | 57T-158T |
| Max paper width | 350mm |
| Max printing width | 340mm |
| Machine body thickness | 25mm |
| Suit for material | 30-300gsm paper;alu foil:38-100micron |
| Tension control range | 5-100kg |
| Tension control accurate | +-1kg |
| Gear | 1/8CP,teeth space 3.175mm |
| Print plate thickness | 1.14mm |
| Printing precision | +-0.1mm |
| Double side tape thickness | 0.38mm |
| Print servo motor power | 1.3KW+1.8KW |
| Unwinding and rewinding also traction servo motor power | 2.9KW |
| Machine max speed | 150m/min |
| Air pressure | 0.8mpa |
| Power requirement | 380V/3P/50HZ AC |
| Total power | About 100KW without UV |
