| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | SZ-330 |
| Minimum Order Quantity: | 1 |
| Price: | negotitaon |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30set/mont |
| Size: | 330/450/570mm | Video: | For Video Sent Please Wechat/wa Me:+8618072118971 |
|---|---|---|---|
| Number Of Spindles: | 4 Four | Tension Control: | Automatic |
| Language: | Can Customized Into Client Regular Language For Easy Operations | Color: | Customized(standard Grey White) |
| Touch Screen Control Panel: | YES | Weight: | 2500kg(glue Type)/3500kg(glue Free) |
| Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

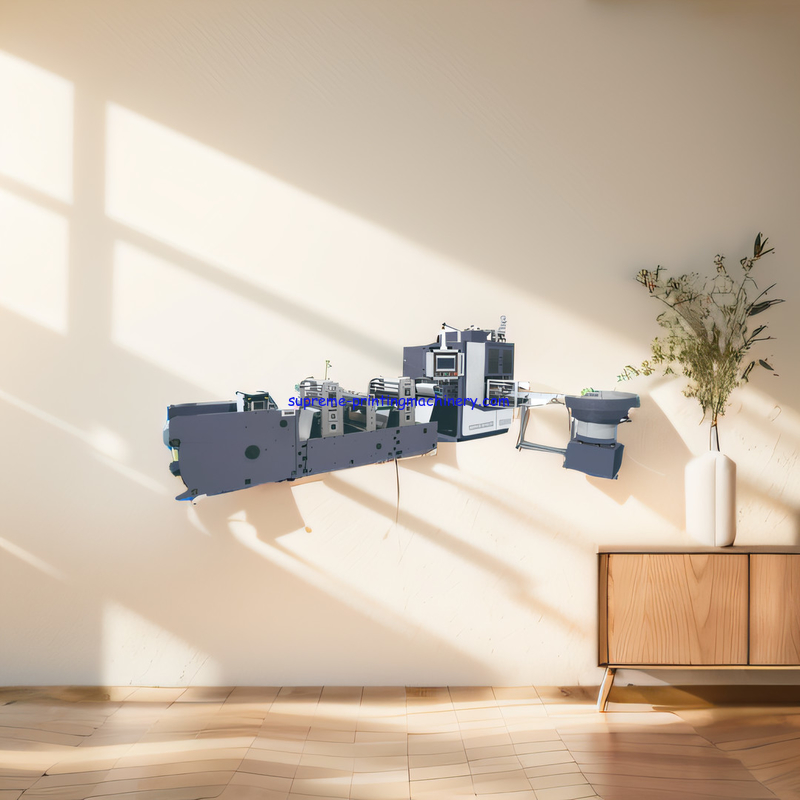

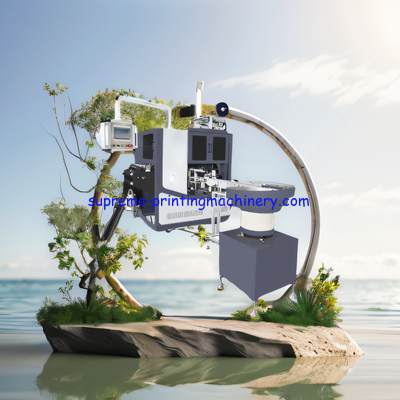

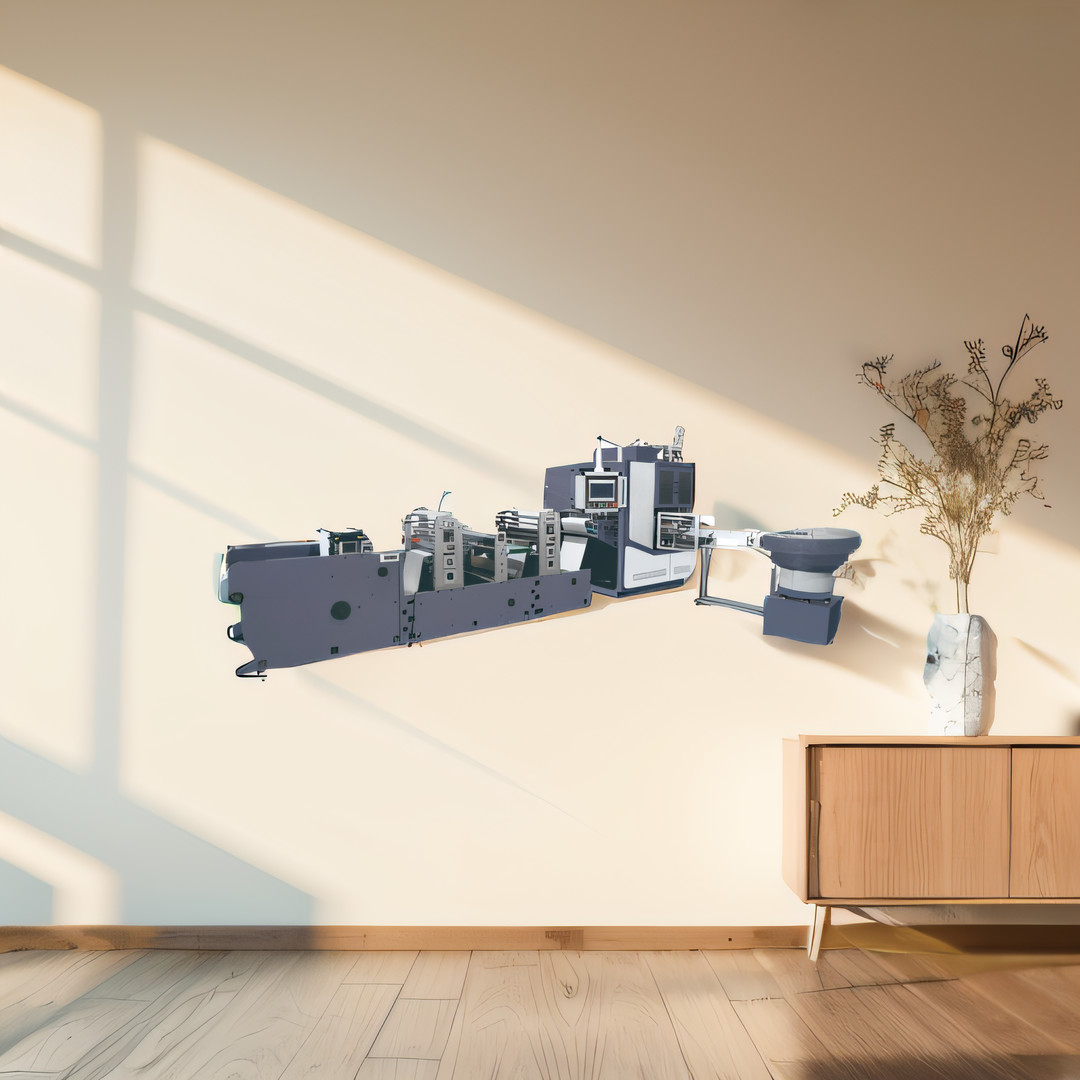

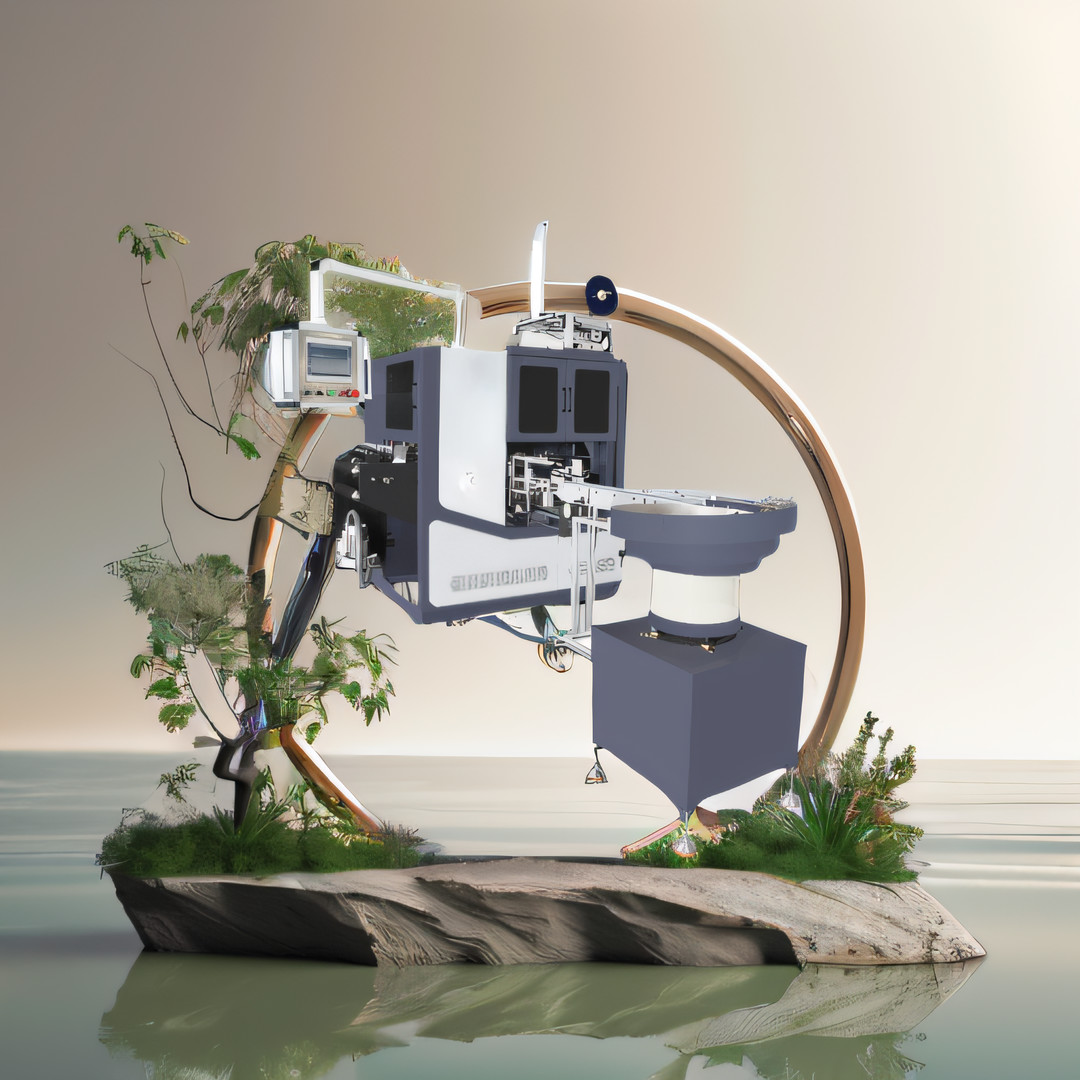

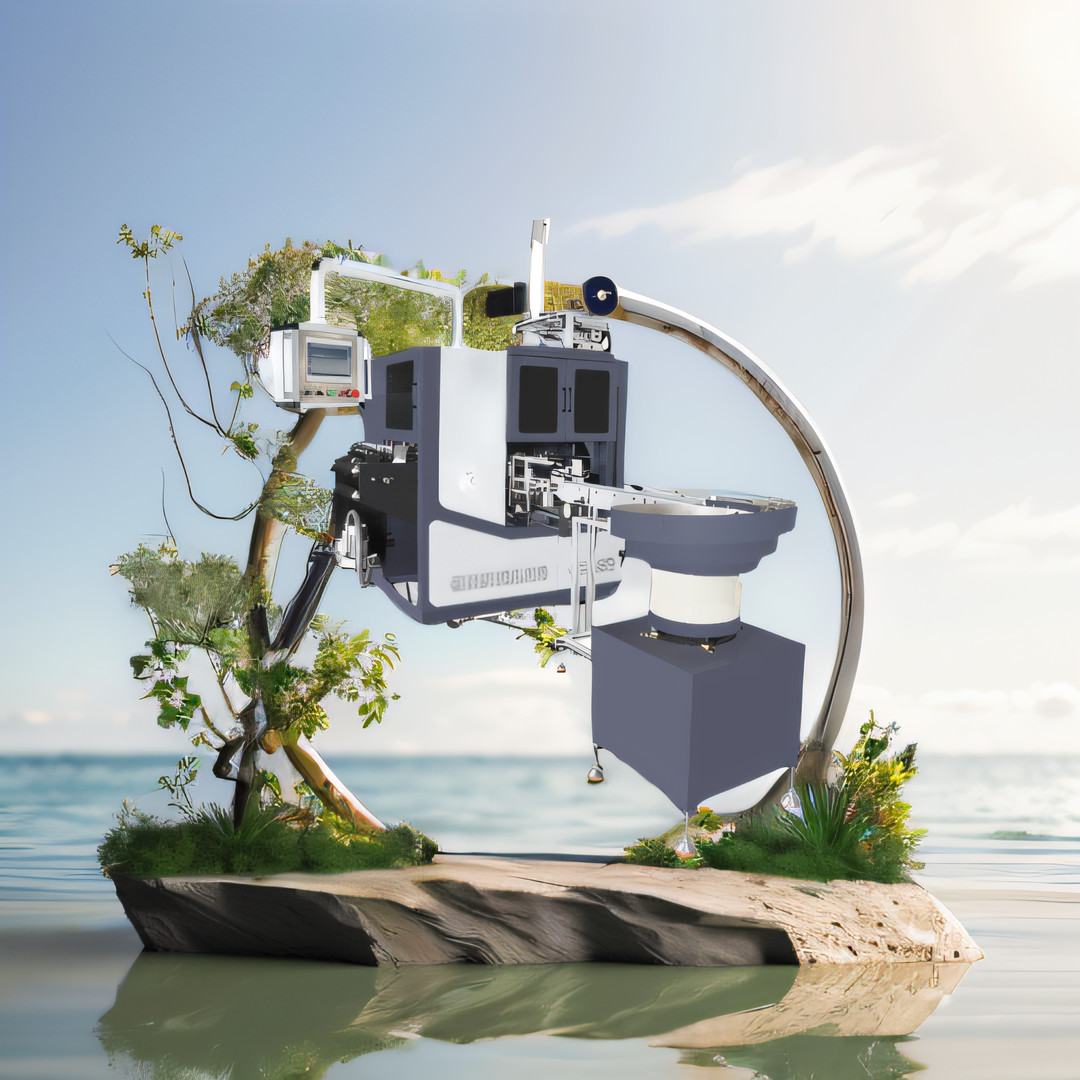

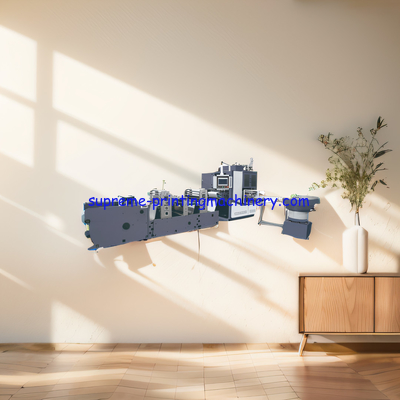

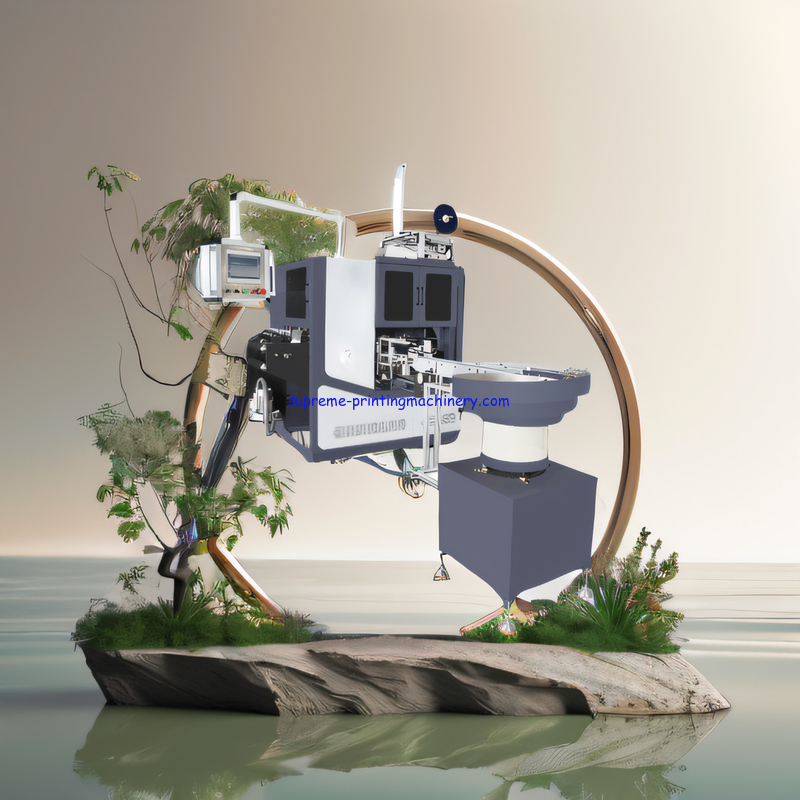

Label Paper Adhesive Sticker Non-Stop Automatic Turret Rewinder with 4 Four Spindles
http://www.youtube.com/@labelturretrewindingmachinery
The automatic slitting and rewinding machine is equipped with various automatic functions, including automatic threading, optional glue-free gluing, and automatic sealing or labeling. It has the capability of online non-stop rewinding and can be connected to other equipment such as die cutting machines, slitting machines, and flexographic printing presses.
The rewinder comes with a range of inflatable air shaft sizes, including 1 inch, 1.5 inches, 40mm, and 3 inches, which can be easily interchangeable. This feature not only reduces labor but also greatly improves efficiency.
This cutting-edge machine is revolutionizing the production of small label rolls with its highly efficient cutting and rewinding capabilities.
We utilize a variety of methods, including vertical and horizontal flexographic printing machinery, to ensure the precision and consistency of our adhesive paper sticker labels.
Our machine is able to handle a range of label sizes and shapes thanks to its intermittent semi and fully rotary die cutting machinery, as well as flatbed die cutting machinery.
To streamline production, we also offer high-speed slitting machinery for creating adhesive sticker labels on paper. This guarantees accurate and clean cuts, ready for immediate use.
In addition to blank labels and adhesive paper, our machine can handle a variety of materials.
Brand Name: Supreme
Model Number: SZ-330
Place of Origin: Wenzhou
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Fumigation Wooden Box
Delivery Time: 60 Working Days
Payment Terms: TT
Supply Ability: 30 Sets per Month
Number of Air Shafts: 2 Two
Voltage: 220V/380V
Size: 330/450/570mm
Tension Control: Automatic
Adhesive Type: Sticker
Key Features: Fully Automatic Non-Stop 4 Spindle Turret Rewinder for Label, Automatic NonStop Double Turret Slitter Rewinder, 13" 4-Spindle Turret Rewinder - 4-Spindle Right to Left, 3" Air Shaft, Automatic Tension Control, Adhesive Type Sticker, No Glue, No Stop, Free Glueless, Supreme Brand, SZ-330 Model, Wenzhou Origin, CE Certification, Minimum 1 Order, Negotiable Price, Fumigation Wooden Box Packaging, 60 Working Days Delivery, TT Payment, 30 Sets per Month Supply, 2 Air Shafts, 220V/380V Voltage, Size Options of 330/450/570mm, Automatic Tension Control for Smooth Operation.
The non stop no glue free glue-less 4 four spindle 2 shaft Label turret slitting rewinding machinery will be carefully packed and shipped to ensure its safe arrival to the customer.
The machinery will be packed in a sturdy wooden crate to protect it from any potential damage during transit. The crate will be securely sealed and labeled with the product name, model number, and destination address.
Our shipping team will work closely with our trusted logistics partners to arrange for the most efficient and reliable method of transportation. The machinery will be shipped via air, sea, or land, depending on the customer's location and preference.
For international shipments, all necessary customs documentation and requirements will be fulfilled to ensure a smooth and timely delivery. Any additional charges or fees incurred during customs clearance will be the responsibility of the customer.
Upon arrival, the customer will be notified and provided with a tracking number to monitor the status of their shipment. Our team will also be available to assist with any inquiries or concerns regarding the delivery of the machinery.
We take great pride in our packaging and shipping process to ensure our customers receive their non stop no glue free glue-less 4 four spindle 2 shaft Label turret slitting rewinding machinery in perfect condition and in a timely manner.
Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece
3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces
5. Tool box: 1 box
6. internal hexagonal wrench:1 set
7: open spanner:10-17:1 group
8: Slotted screwdriver and cross screwdriver: 1piece/each
9: Level adjuster screw: 4 piece
10: circlip plier: 6#: 2 pieces
11:Oil gun: 1 piece
12:magnetic valve:DC24V:2 pieces
13:Relay:DC24V:2pieces
14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece
15:330/450/570 knife:1 pieces
16:Auto labeling device:1 set
Specification:
| Machine Model | SZ-330 | SZ-450 | SZ-570 |
|
Max rewinding diameter (glue type) |
350mm | 350mm | 350mm |
|
Max rewinding diameter (glue free) |
200mm | 200mm | 200mm |
| Max Paper feeding | 330mm | 450mm | 570mm |
| Max rewinding speed | 50-120m/min | 50-120m/min | 50-120m/min |
| Mini rewinding width | 30mm | 30mm | 30mm |
| Power source | 380V/3P/50HZ | 380V/3P/50HZ | 380V/3P/50HZ |
| Power | 13 kw | 13 kw | 13kw |
| Air source | 0.8Mpa 1m3/min | 0.8Mpa 1.5m3/min | 0.8Mpa 1.5m3/min |
| Machine Dimensions |
2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) |
2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) |
2020x2200x2800mm (glue type) 3700 x2200 x2800 (glue free) |
| Machine weight |
2500 kgs (glue type) 3500 kgs (glue free) |
2500 kgs (glue type) 3500 kgs (glue free) |
2800 kgs (glue type) 3800 kgs (glue free) |
