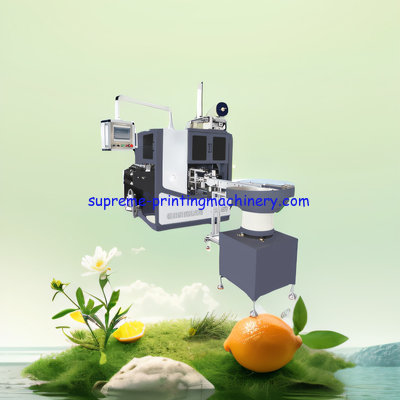

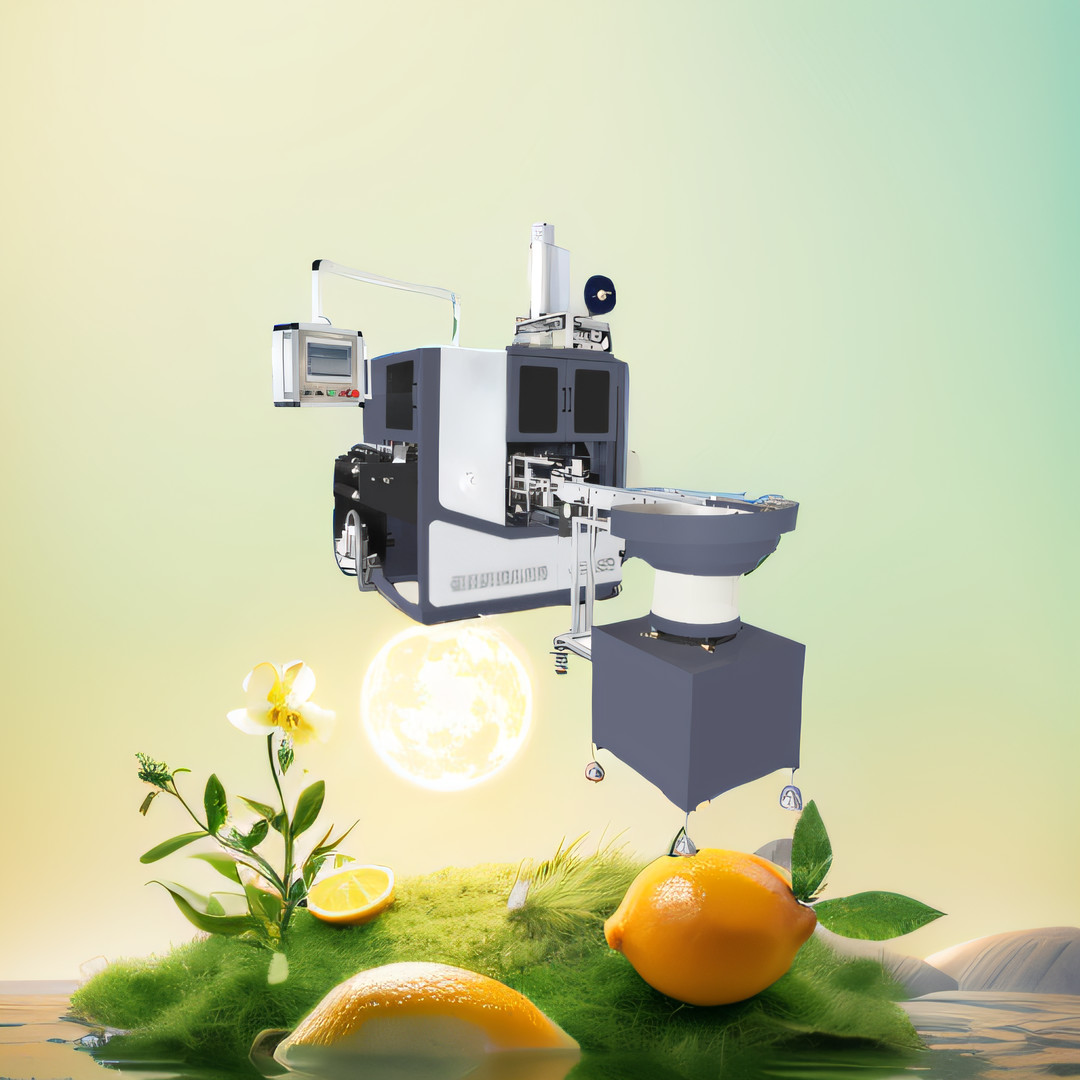

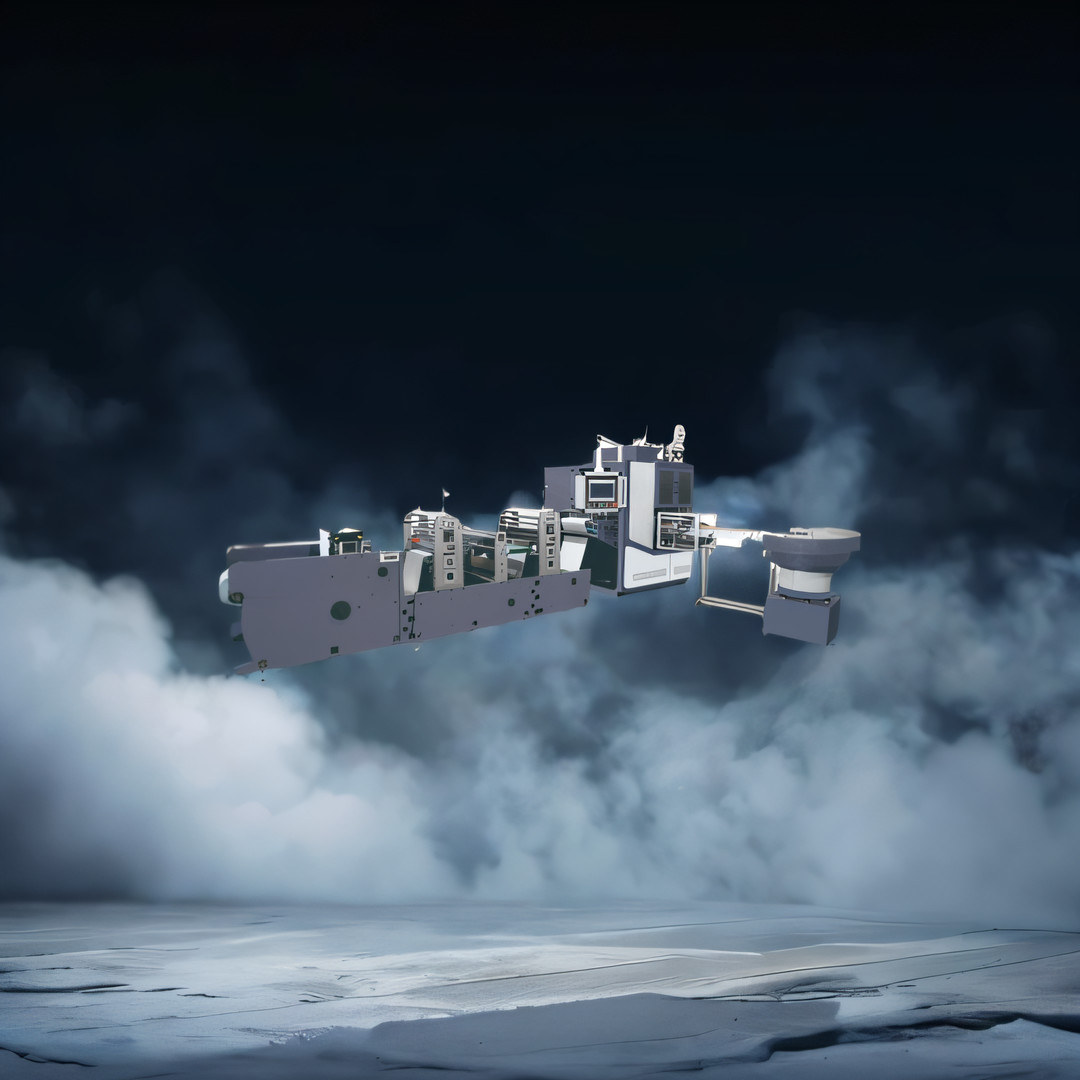

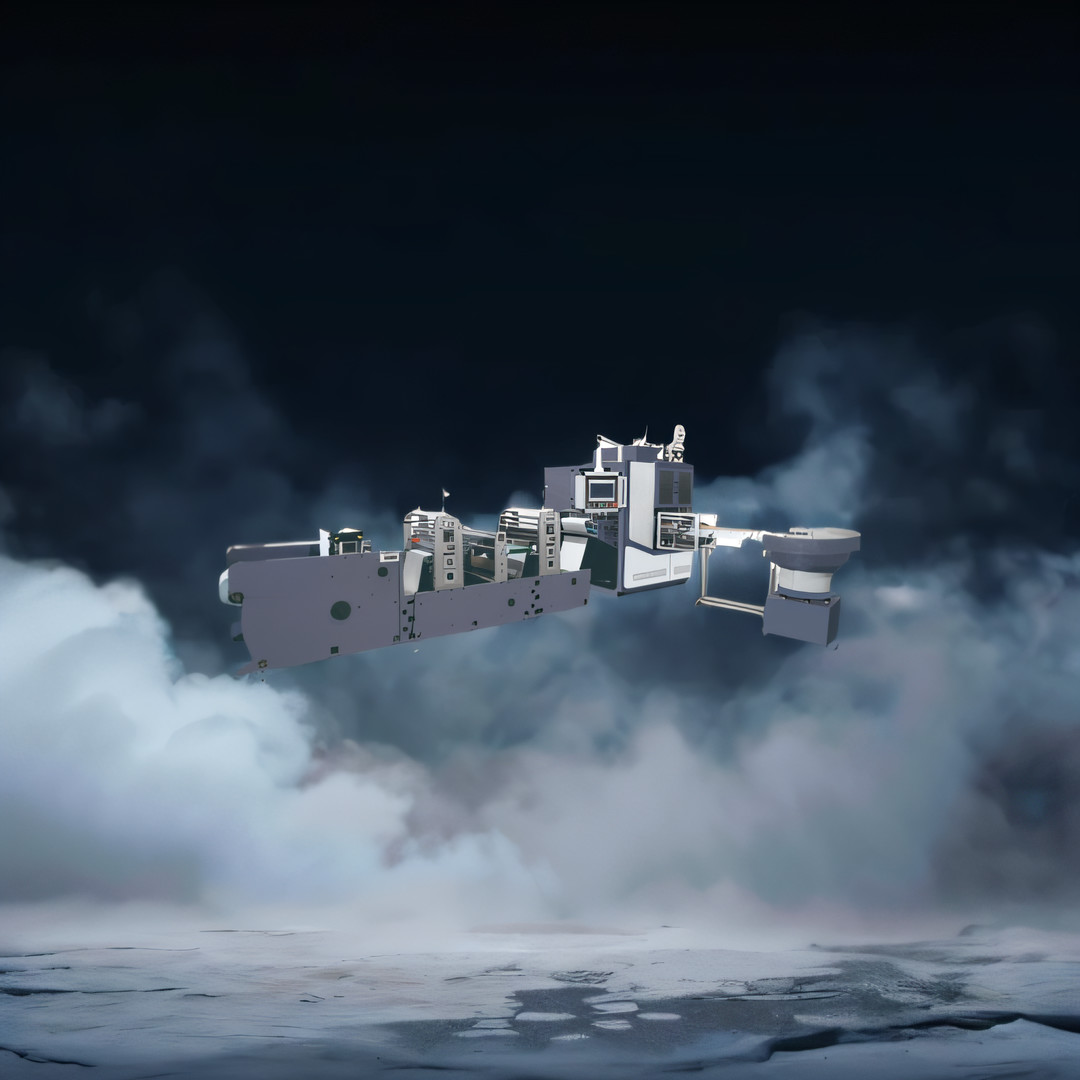

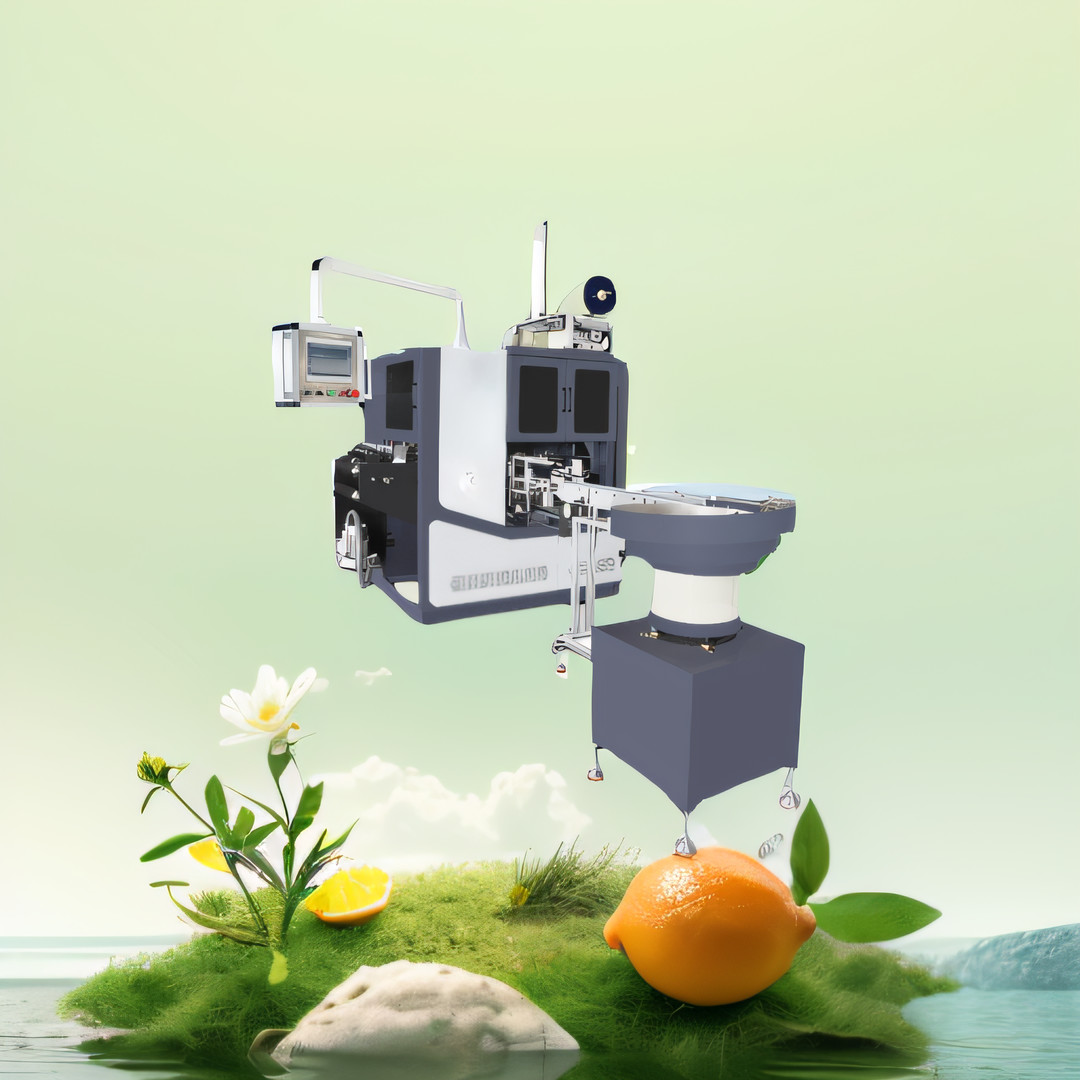

NO-STOp 4 SPINDLE TURRET REWINDER MACHINERY SERVO DRIVEN ACCURATE LOOP CONSENT TENSION CONTROL PRECISELY CUT IN THE GAP

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ-330
Minimum Order Quantity: 1
Price: negotitaon
Packaging Details: fumigation wooden box
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30set/mont
Detail Information
Power: 13KW Speed: Up To 120 M/min
Glue Type: No Glue/Free Glue-less Or Hot Melt Adhesive Glue Size: 330/450/570mm
Label: Paper Adhesive Sticker Voltage: 220V/380V
Maximum Unwind Diameter: 700mm Or Customized Into 1000mm Or 1200mm Power Supply: 380V, 50Hz, 3 Phase
Language: Can Customized Into Client Regular Language For Easy Operations Video: For Video Sent Please Wechat/wa Me:+8618072118971
Note: Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

NO-STOp 4 SPINDLE TURRET REWINDER MACHINERY SERVO DRIVEN ACCURATE LOOP CONSENT TENSION CONTROL PRECISELY CUT IN THE GAP



Product Description:

The automatic slitting and rewinding machine is designed with various advanced functions, such as automatic threading, optional glue-free gluing, and automatic sealing or labeling. It also allows for non-stop rewinding while being connected to other equipment such as die cutting machines, slitting machines, and flexographic printing presses.

Equipped with 1 inch, 1.5 inch, 40mm, and 3 inch inflatable air shafts, the rewinder offers the convenience of interchangeability, reducing the need for manual labor and increasing overall efficiency.

Applications:

Our Latest Innovation: Automatic Cutting and Rewinding Machine for Small Label Rolls

Introducing our state-of-the-art automatic cutting and rewinding machine designed specifically for small label rolls. This innovative machine is dedicated to providing high-efficiency in the cutting and rewinding process.

The creation of adhesive paper sticker labels can be achieved through various methods, such as vertical and horizontal flexographic printing machinery. With our machine, precision and consistency are ensured throughout the production process.

Versatile Cutting Methods

Our cutting and rewinding machine offers versatile options for different label sizes and shapes. It can accommodate various cutting methods such as intermittent semi and fully rotary die cutting machinery, as well as flatbed die cutting machinery.

Efficient Production

To further enhance efficiency, our high-speed slitting machinery is also available for the creation of adhesive sticker labels on paper. This guarantees the neat and accurate cutting of labels, making them ready for immediate use.

This machine is suitable for producing blank labels, adhesive paper, and more.

Features:
  • Glueless technology for eco-friendly and cost-saving production
  • Automatic tail sticking for label tail closure
  • Automatic paper core loading
  • Automatic roll eject (gluing type turret rewinding machine for labels)
  • Servo-driven with accurate loop consent tension control
  • Precisely cut in the gap between labels
Advantages:
  • Increase in production capacity by 20% compared to other brands
  • Improved finished product quality
  • Reduced material waste
  • Competitive prices
  • No creases on labels
  • Zero waste
  • Cost-saving on glue
  • Reduced electricity consumption

Customization:

Customized Service for Supreme SZ-330 Non Stop No Glue Free Glue-less 4 Four Spindle 2 Shaft Label Turret Slitting Rewinding Machinery

Brand Name: Supreme

Model Number: SZ-330

Place of Origin: Wenzhou

Certification: CE

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Fumigation Wooden Box

Delivery Time: 60 Working Days

Payment Terms: TT

Supply Ability: 30 Sets/Month

Maximum Unwind Diameter: 700mm or Customized into 1000mm or 1200mm

Label: Paper Adhesive Sticker

Weight: 2500kg (Glue Type) / 3500kg (Glue Free)

Voltage: 220V/380V

Number of Spindles: 4 Four

Key Features:
  • Non-stop 4 spindle turret rewinder
  • Automatic NonStop Double Turret Slitter Rewinder
  • 13" 4-Spindle Turret Rewinder - 4-Spindle Right to Left
  • 3" air expanding unwind shaft
  • 3" air expanding rewind shafts
  • Label Slitter Rewinder
  • Automatic Label Slitting Machine
  • Label Rewinding Machine
  • Non Stop Label Slitter Rewinder
  • Non Stop Label Rewinding Machine
  • No Glue Label Turret Slitter Rewinder
  • Free Glue Label Turret Slitter Rewinder

Experience improved efficiency and productivity with the Supreme SZ-330 Non Stop No Glue Free Glue-less 4 Four Spindle 2 Shaft Label Turret Slitting Rewinding Machinery. With a non-stop 4 spindle turret rewinder, this machine allows for continuous operation without any interruptions. The automatic non-stop double turret slitter rewinder ensures precise and accurate slitting of labels. The 13" 4-spindle turret rewinder can rotate from right to left, providing versatility and flexibility in label slitting. With 3" air expanding unwind and rewind shafts, this machine can handle different sizes of labels.

Designed for label slitting, this machine is equipped with features such as an automatic label slitting machine and a label rewinding machine. The non stop label slitter rewinder and non stop label rewinding machine ensure a smooth and efficient production process. The no glue label turret slitter rewinder and free glue label turret slitter rewinder offer options for different label types and needs.

Experience the high quality and reliability of Supreme with the SZ-330 Non Stop No Glue Free Glue-less 4 Four Spindle 2 Shaft Label Turret Slitting Rewinding Machinery. With a maximum unwind diameter of 700mm or customized into 1000mm or 1200mm, this machine can handle a variety of label sizes. The lightweight design and voltage options of 220V/380V make this machine easy to install and operate.

Trust in Supreme for all your label slitting needs. Contact us today for more information and to place your order.

Packing and Shipping:

Packaging and Shipping

This product will be packaged using high-quality materials to ensure its safe delivery. Each component will be carefully wrapped and secured to prevent any damage during transportation.

The product will be shipped using a reliable and fast shipping service to ensure timely delivery. Customers can choose from a variety of shipping options to best suit their needs.

For international orders, appropriate customs documentation will be provided to facilitate a smooth delivery process.

Once the product is shipped, customers will receive a tracking number to monitor the status and estimated delivery date of their order.



FAQ:

Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set





Specification:





Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)
