| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | SZ-330B |
| Minimum Order Quantity: | 1 |
| Price: | negotitaon |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30set/mont |
| Application: | Slitting And Turret Rewinding | Dimensions: | 1500*1200*3000mm |
|---|---|---|---|
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Minimum Slit Width: | 30mm | Power Supply: | 380V, 50Hz, 3 Phase |
| Warranty: | 1 Year | Web Guide: | Ultrasonic Sensor |
| Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

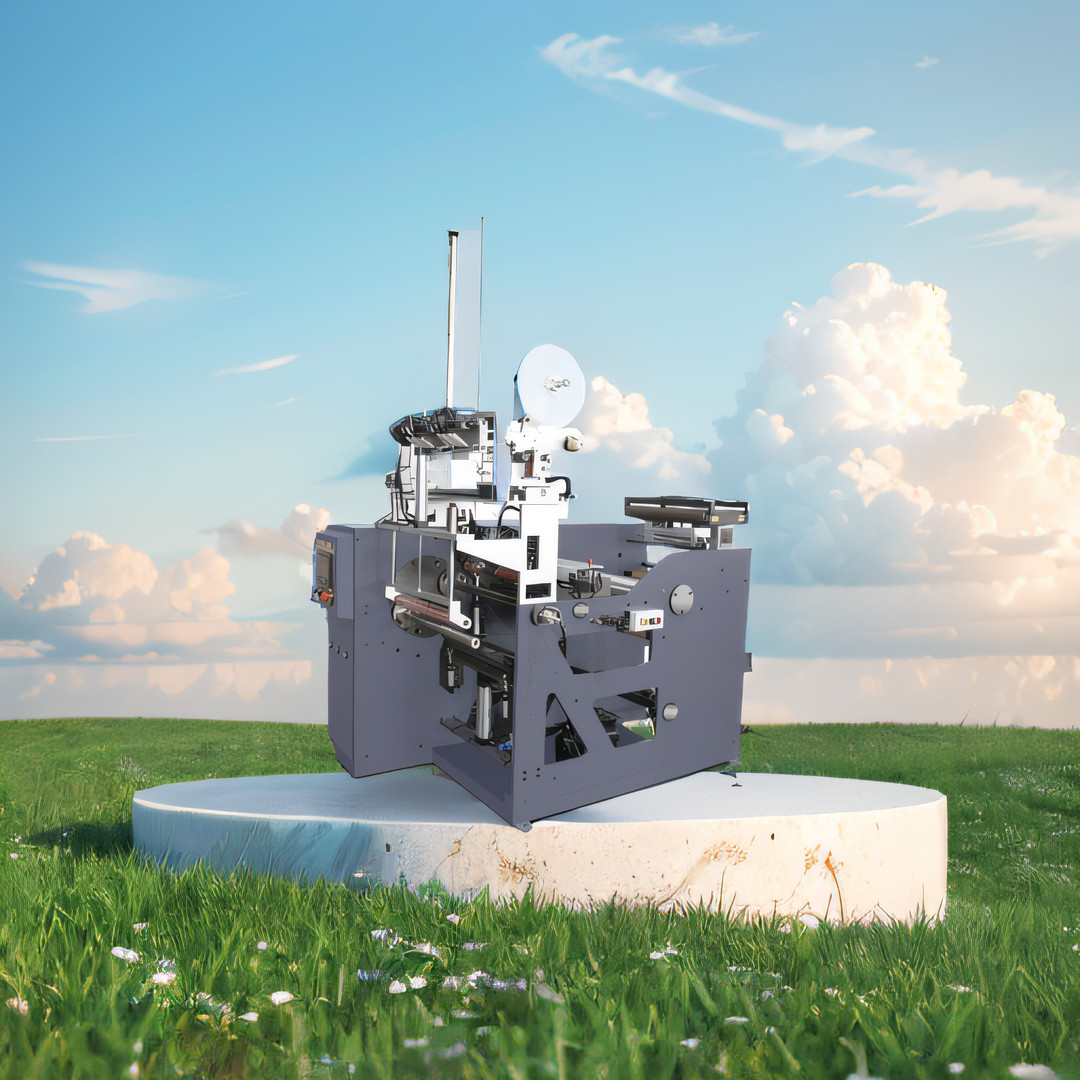

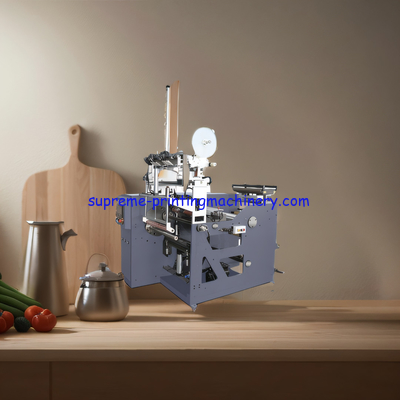

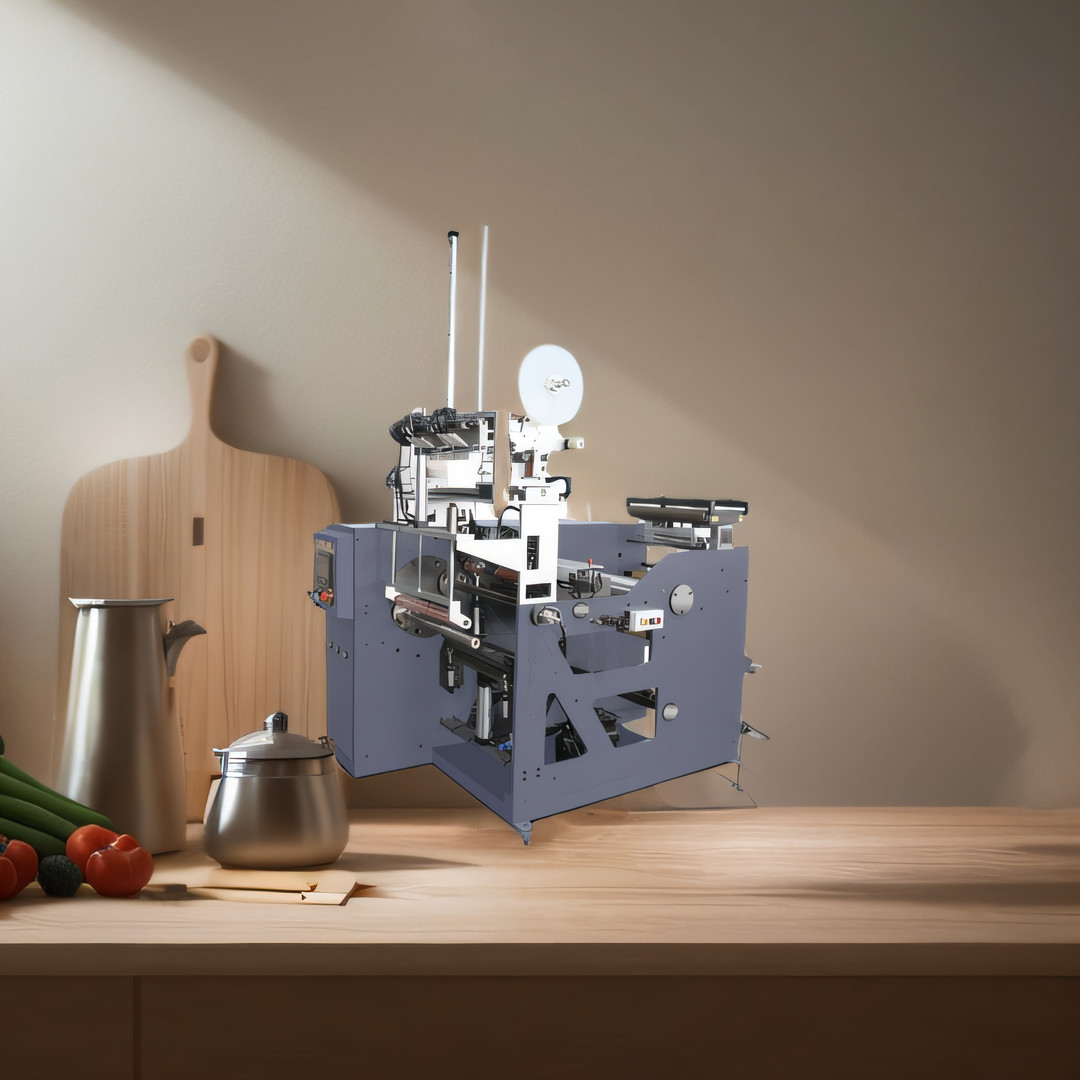

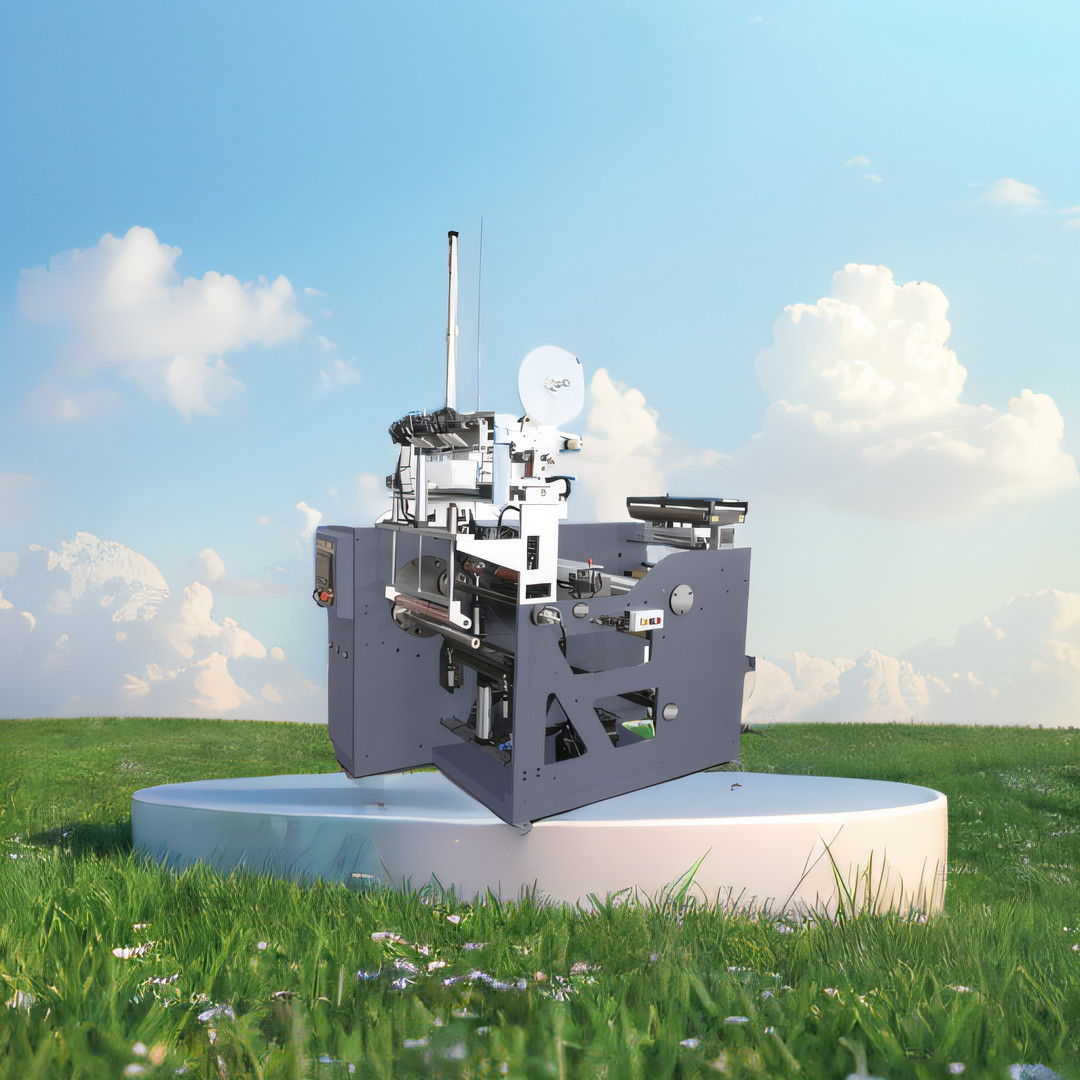

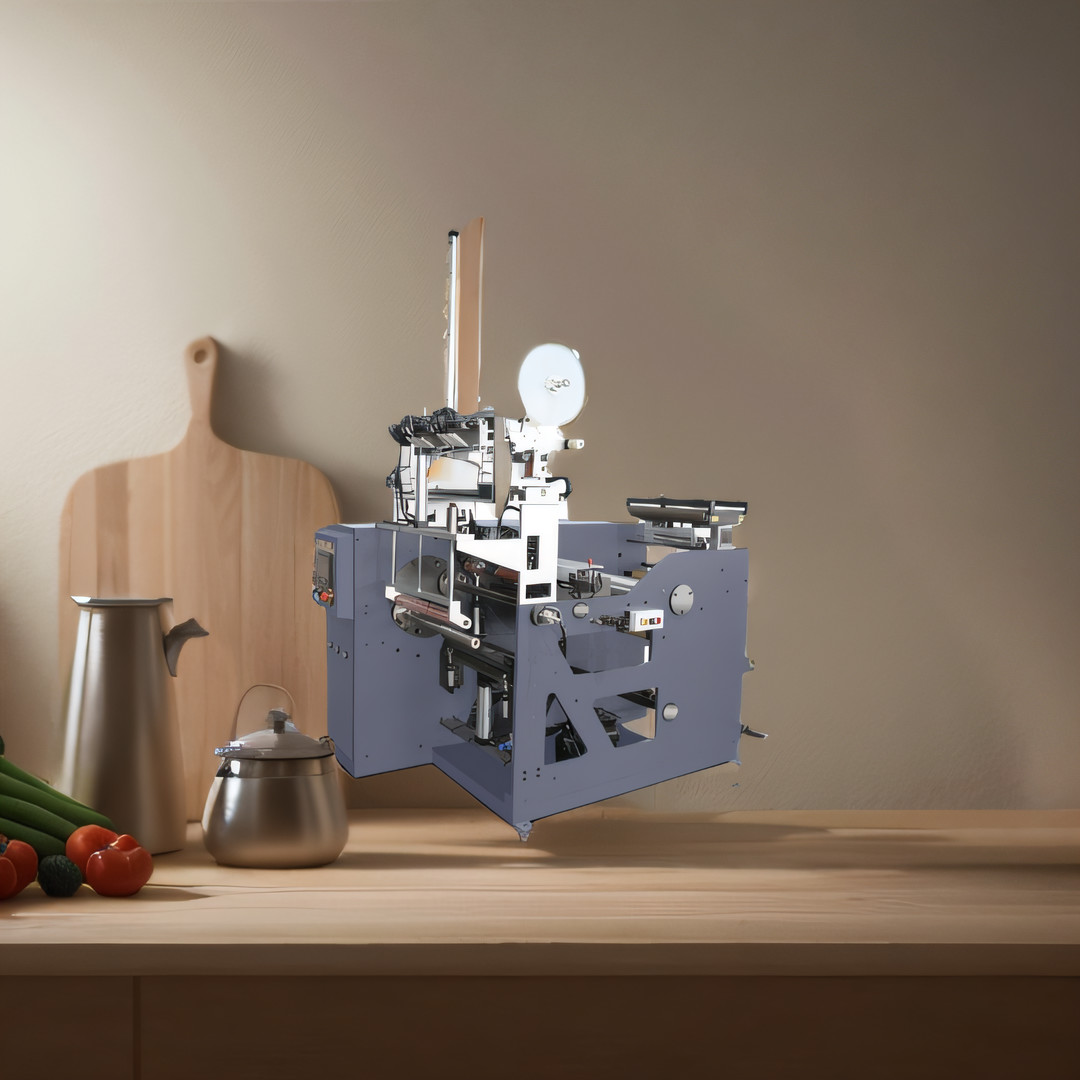

Turret Label Winding Machine Two 2 Air Shafts 4 Four Spindles High Efficiently Online Offline
http://www.youtube.com/@labelturretrewindingmachinery
The SZ-330/450/570B Label Automatic Non-stop Turret Rewinding Machine is an ideal intelligent narrow web label sticker production converting equipment.
Equipped with the most advanced and mature technology in the world, the SZ series turret rewinder is capable of working in-line with die cutting machines, printing machines, and slitting machines, as well as off line as a stand-alone solution with a separate unwinder. Its automatic tube threading, gluing, cutting, rewinding, and label sticking functions allow for quick processing of customer orders, reducing lead time, increasing productivity, saving labor costs, and providing a competitive edge in the market. This machine can handle both printed and blank labels, making it a versatile option for label production needs.
This advanced machine has a top speed of 150 meters per minute and is equipped with a powerful servo motor for precise control. It offers a range of impressive functions, including slitting, optional automatic paper core loading, automatic cutting, labeling, and rewinding. The paper core remains straight throughout the process without the need for glue. Additionally, the machine features a meter counter, quantity counter, and the convenient option for automatic unloading. With its high efficiency and flexibility, the SZ-330/450/570B Label Automatic Non-stop Turret Rewinding Machine is the perfect choice for any narrow web label production needs.
This type machine is designed for small label rolls automatic cutting and rewinding, ensuring high efficiency.
Vertical and horizontal flexographic printing machinery provide precision and consistency in production.
Intermittent semi and fully rotary die cutting machinery, as well as flatbed die cutting machinery, can also be used to manufacture these labels in different sizes and shapes.
To ensure efficient production, high speed slitting machinery is also available for creating adhesive sticker labels on paper, resulting in neat and ready-to-use labels.
.1. Servo motor driven and with accurate automatic loop tension control
2. Can handle a wide range of raw materials roll wide: 330, 450 and 570mm
3. No Glue free system can be selected
4. Both Blank unprinted label and printed label are available
5. Precision cut in gap of finished label rolls
6. Servo motor control Mechanical arm automatic feeding system
7: Auto loader by motor not pneumatic lifter or hydraulic lifter, it will be more stable for loader
8:Paper core vibrating pan can be customized into working with several sizes paper core, it save the space for workshop
9:The extra warranty time can be negotiation
10:Shear knife and razor knife as optional
11:workabel for the linerlabels
Packaging:
The non stop no glue free glue-less 4 four spindle 2 shaft Label turret slitting rewinding machinery will be securely packed in a sturdy wooden crate to ensure safe transportation. All delicate components will be properly protected and cushioned with foam and other materials to prevent any damage during transit. The packaging will also include clear labeling and handling instructions for easy identification and handling.
Shipping:
The machinery will be shipped via air or sea freight, depending on the customer's preference and location. We work with trusted and reliable shipping companies to ensure timely and efficient delivery of the product. Our team will also assist with all necessary export and customs documentation to ensure a smooth shipping process.
Estimated Shipping Time:
For air freight, the estimated shipping time is 5-7 business days, while for sea freight, it may take 20-30 days depending on the destination. The exact shipping time will be confirmed with the customer upon order placement.
Shipping Cost:
The shipping cost will be quoted based on the destination, shipping method, and weight of the machinery. Customers can also arrange for their own shipping if preferred.
Payment Terms:
We accept various payment methods, including wire transfer, letter of credit ect. The customer can choose the most convenient payment method for them.
Order Lead Time:
The lead time for production and shipping will be confirmed with the customer based on the order quantity and customization requirements. Typically, it takes 60 working days from order placement to shipment.
Warranty:
The non stop no glue free glue-less 4 four spindle 2 shaft Label turret slitting rewinding machinery comes with a 12-month warranty from the date of shipment. Our after-sales team will provide technical support and assistance during the warranty period.
Specification:
| Machine Model | SZ-330B | SZ-450B |
| Max paper feeding | 330mm | 450mm |
| Max speed | 150m/min | 150m/min |
| Slitting precision | +-0.1mm | +-0.1mm |
| Max unwinding diameter | 700mm(customized into 1000mm) | 700mm |
| Max rewinding diameter | 180mm(customized into 254mm) | 180mm |
| Voltage | 220V 1P 50HZ/380V 3P 50HZ | 220V 1P 50HZ/380V 3P 50HZ |
| Total power | 6KW | 8KW |
| Machine weight |
1000kg
|
1500kg
|
| Machine size | 1500*1200*3000mm | 1500*1400*3100 |
Machine details:
1:slitting speed:150m/min
2:slitting precision:+-0.1mm
3:paper feeding width max:330mm
4:max unwinding diameter:700mm(customized into 1000mm)
5:max rewinding diameter:180mm(customized into 254mm)
6:machine weight:1000kg
7:machine voltage:220V/380V
8:Total power:6kw
9:machine size:1500*1200*3000mm
Unwinding part:
1:unwinding at air shaft: 3inch 1 piece
2:auto tension controller
3:auto web guide
Slitting part:
1:up knife:8 piece
2:down knife:8 piece
3:left and right hand wheel for adjustment
4:number counting photo-eyes
5:vacuum waste absorb
6:material pulling traction roller(servo)
Rewinding part:
1:auto turret rewinding system(servo)
2:rewinding air shaft(1 inch or 1.5inch at 2pieces)
3:auto inflation
4:no glue system
5:auto cutting system
6:auto labeling system
7:auto paper core feeding system(optional)
8:auto unloading(optional)
