| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | MQ-320Z(S) |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Max. Cutting Speed: | 300 Times/min | Color: | Customizable(standard Grey White) |
|---|---|---|---|
| Max. Cutting Width: | 300 Mm | Die Cutting Type: | Flatbed |
| Power Supply: | 380 V | Dimensions: | 3700 (length) * 1250 (width) * 1700 (height) |
| Type: | Flatbed Die Cutting Machinery | Power Consumption: | 13kw |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

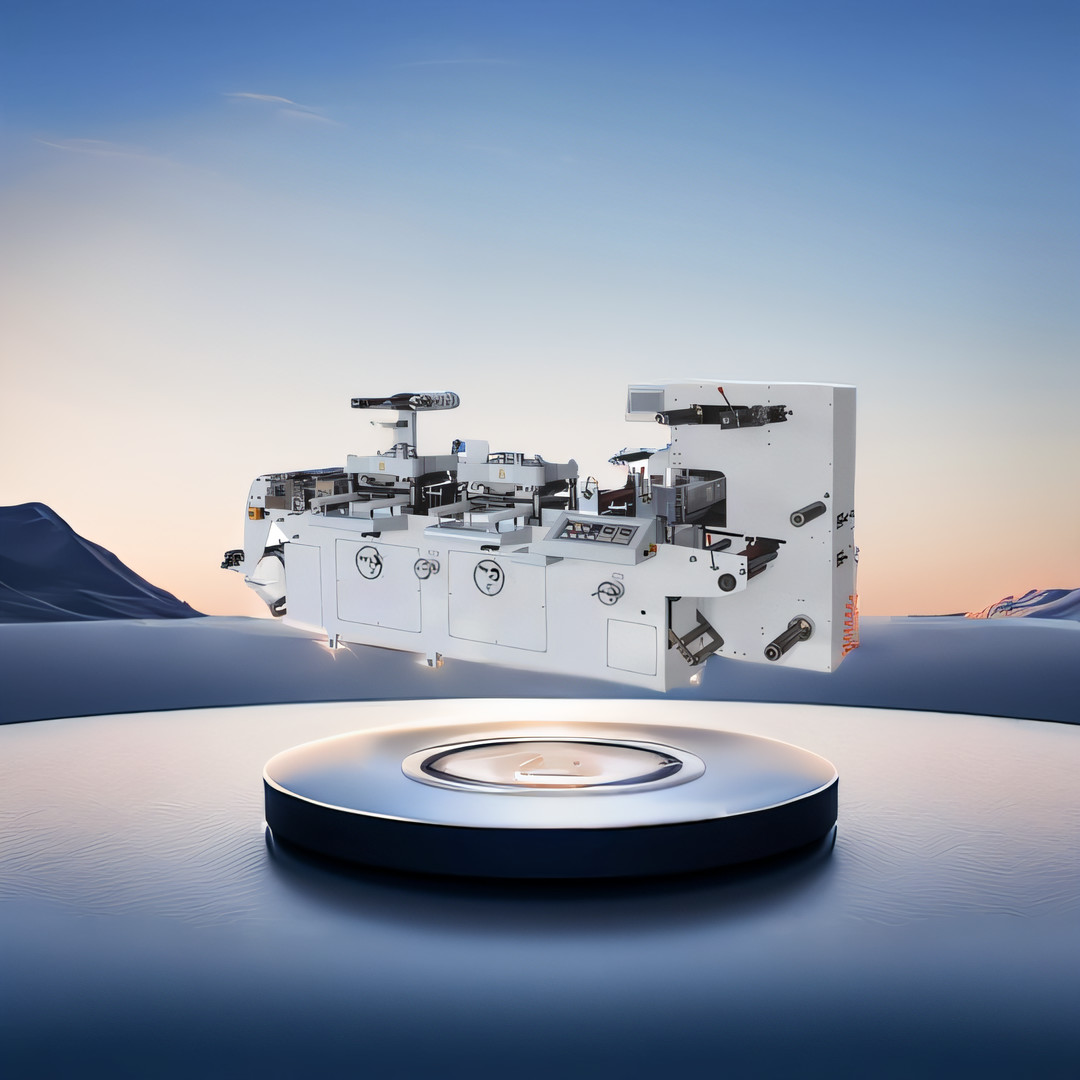

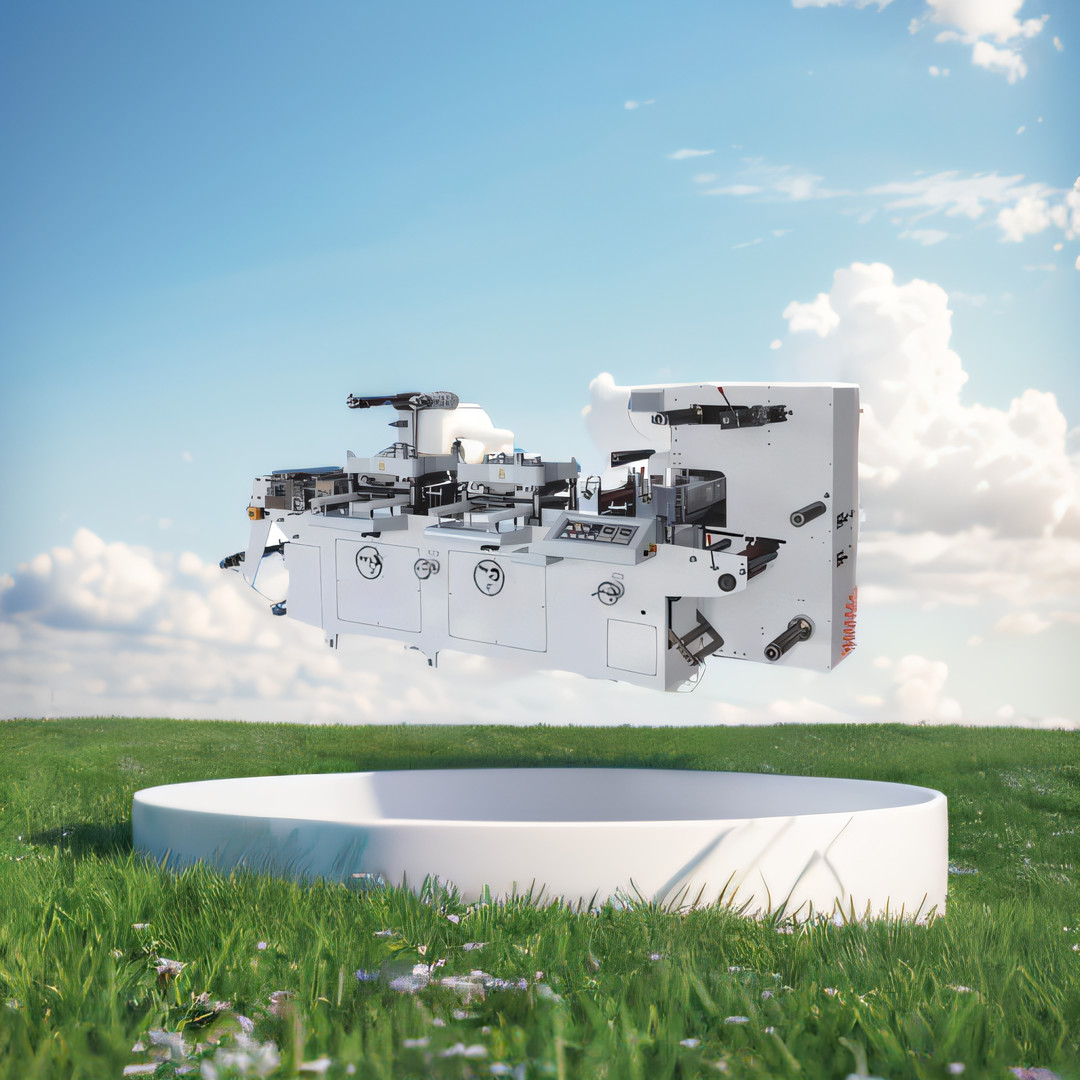

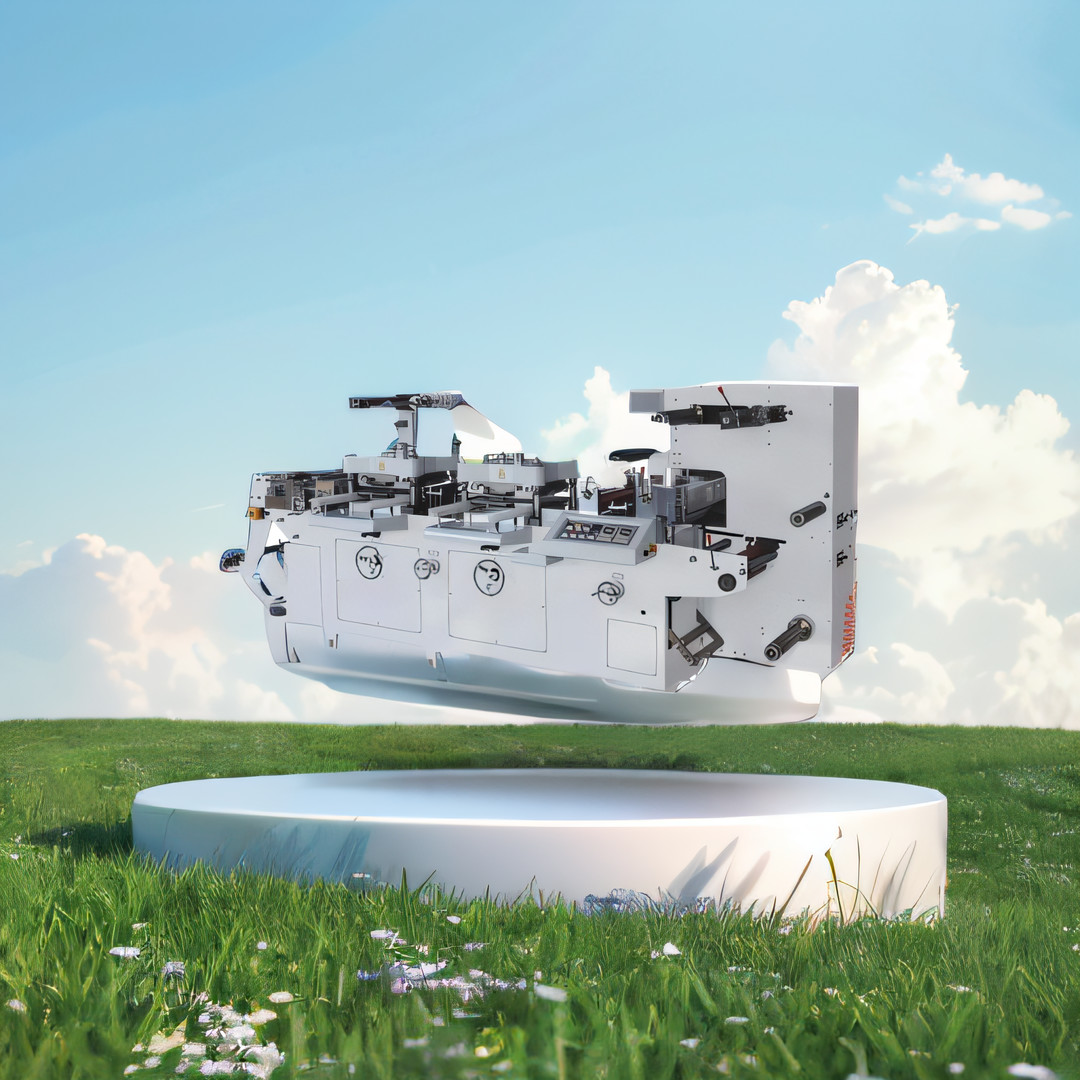

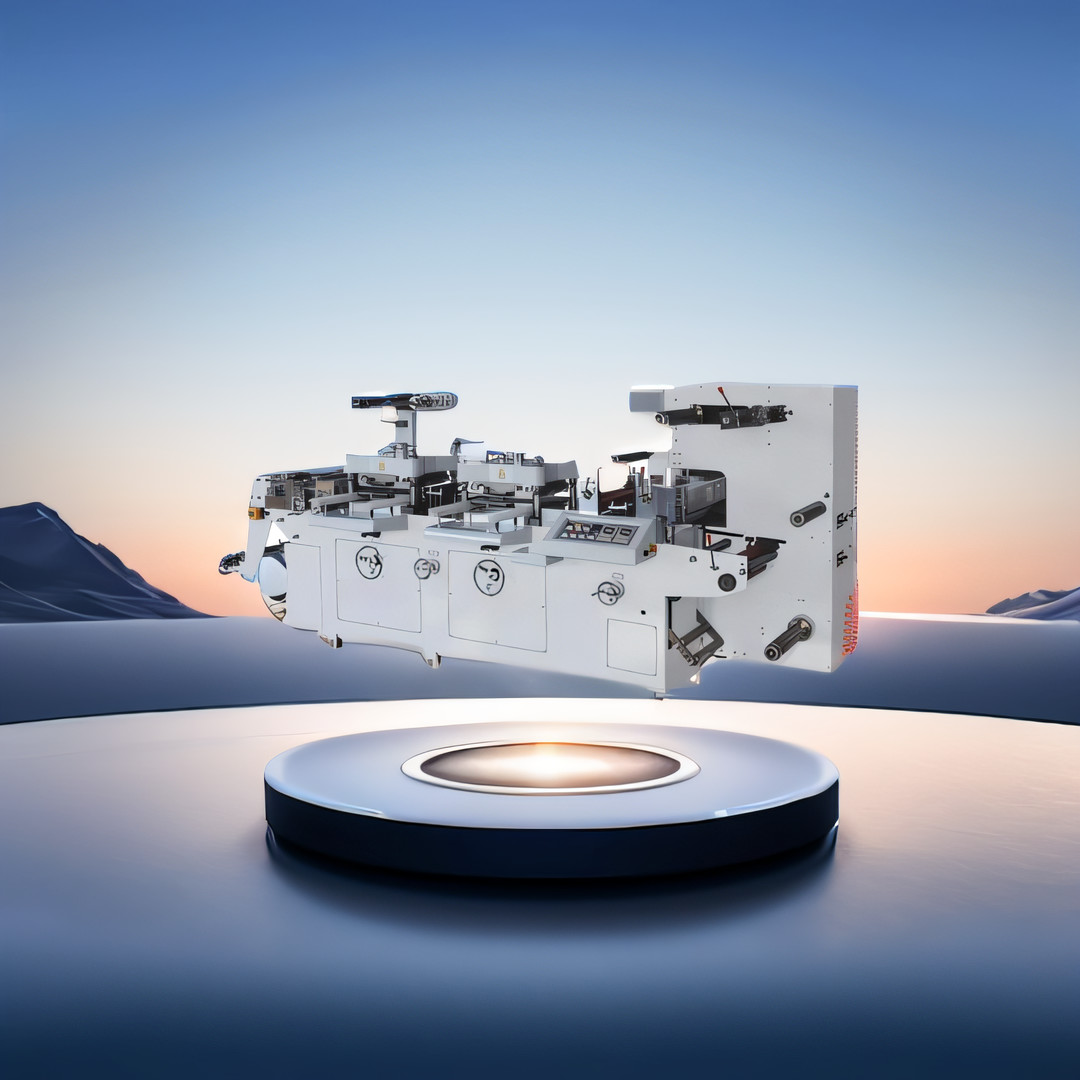

300 TIMES/MIN DOUBLE HEAD TWO STATION LABEL HOT FOIL STAMPING FLAT BED DIE CUTTING MACHINERY EMBOSSING GOLDEN SIVER
http://www.youtube.com/@labelturretrewindingmachinery
Applications:
This machine has many applications in the manufacturing industry, including electronic production lines and adhesive product lines.
Brand Name: Supreme
Model Number: MQ-320Z(S)
Place of Origin: Wenzhou
Certification: CE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT
Supply Ability: 20sets/month
Max. Cutting Width: 300 Mm
Power Consumption: 13kw
Material: Paper
Application: Label Adhesive Paper
Dimensions: 3700 (length) * 1250 (width) * 1700 (height)
Key Features: Foil Stamping Die Cutting Machine, Flatbed Die Cutting Machine, High-grade Flatbed labels full automatic die cutting machine
Packaging and Shipping:
| Model | MQ-320Z(S) |
| Max. web width | 320mm |
| Cutting/stamping area | 300*300mm |
| Max Die Cutting speed | 300 times/min |
| Position accuracy | ±0.10mm |
| Power of main motor | 13kw |
| Size(L*W*H) | 3700 (length) * 1250 (width) * 1700 (height) |
| Unwinding/rewinding diameter | 600mm |
| Voltage | 380v,3ph |
| Total power | 13kw |
| weight | 3500kg |
1. Performance characteristics
A. Die cutting speed 300/min
B. Die cutting accuracy+/-0.1
C. Die cutting area 300 (length) * 300 (width)
D. Maximum width of paper 320mm
E. Maximum diameter of unwinding 600mm
F. Maximum diameter of winding 600mm
G.Weight 3500kg
H.Voltage 380V
I. Total power 13KW
J.Packaging size: 3700 (length) * 1250 (width) * 1700 (height)
2.Unwinding section
A.Unwinding air shaft
B.Friction type tension controlled
C.Unwinding traction pulling roller
D.Unwinding dacing roller
E. Automatic deviation correction
F. Color tracking
3. Die cutting part
A. 5.5KW main motor
B. Automatic circulating lubrication system
C. Main bearing (Harbin)
D. Spring
E. Body Casting Assembly
F. Die cutting station assembly
4. Material pulling part
A. Pulling servo motor (Inovance, China)
B. Pulling rubber roller (rubber)
C. Bearing (Harbin)
D. Synchronous belt (Ningbo Fulong)
5. Waste collection
A. Waste shaft
B. Magnetic clutch
6. Rewinding section
A. Rewinding dacing roller
B. Rewinding traction rubber roller
C. Rewinding traction motor
D. Rewinding air shaft
E. Magnetic clutch
7. sheet cutting section
A. Steel cutting knife
B. Electromagnetic brake clutch
8. Electric control part
A. Controller PLC (China Inovance)
B. Servo motor driver (Inovance, China)
C. Touch screen (MCGS)
D. Host Inverter (Schneider, France)
E. Color tracking (German Leuze)
F. Proximity switch (Dongtou Baideli)
G. Knife control board (Supreme)
I. Switching power supply (Taiwan Mingwei)
J. Relay (China Chint)
K. Button (Schneider, France)
L. AC contactor (China Chint)
9.Sheet metal, cover,paint ect
10. Others
A. Toolbox
B. Instructions
