| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | MQ-350Z |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Weight: | 2000kg | Power Consumption: | 6kw |
|---|---|---|---|
| Dimensions: | 2900x1300x1400mm | Max. Cutting Speed: | 300 Times/min |
| Die Cutting Type: | Flatbed | Max. Cutting Width: | 340 Mm |
| Material: | Label Paper, Nylon Membrane, And Radium Trademark Security Trademark | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
45m/Min Flat Bed Labels Full Automatic Die Cutting Machine Economical Hot Foil Stamp Emboss Film Laminate Hole Punching
http://www.youtube.com/@labelturretrewindingmachinery

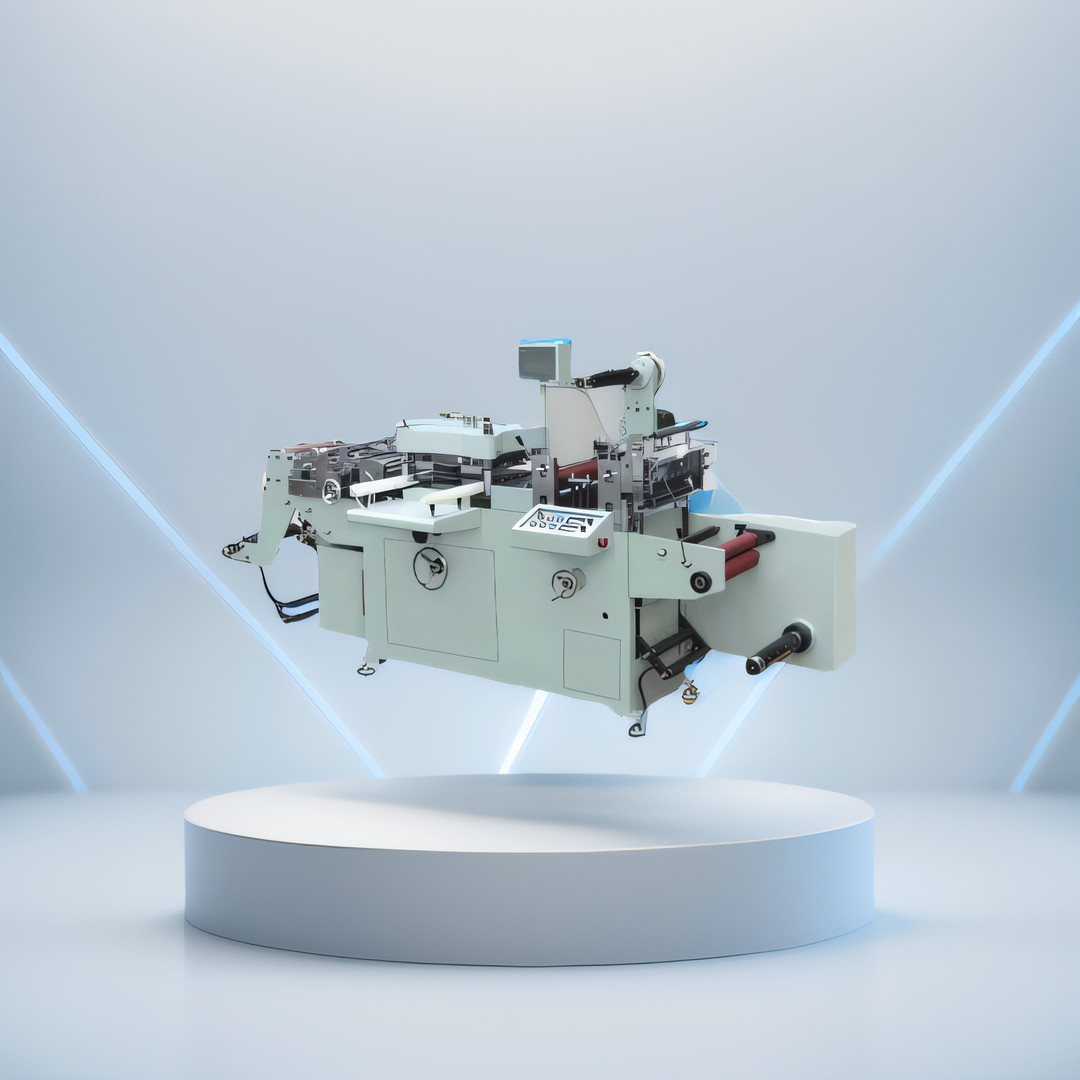

MQ-Z is a type of upgraded middle high speed flatbed die cutting machine, derived from MQ-A and offering increased economy and precision. The material is guided by a Schneider France servo motor, resulting in greater stability. With two web guides, precision of +-0.1mm can be achieved for both right and left side positioning. The photoelectric eyes, manufactured by Germany Leuze, are able to track colors for both printed and unprinted materials.
This machine boasts a range of functions, including material feeding, web guiding, color tracking, die cutting, laminating, hot stamping, hole punching, waste rewinding, and material sheeting or rewinding. All of these processes are controlled by a touch screen equipped with PLC automatic tension controller. This makes it the ideal solution for Post-press processing of labels, such as label paper, nylon membrane, radium trademark, and security trademark, for electronic and adhesive products.
The Post-press process of label is considered the optimal solution. This includes various items such as Label paper, nylon membrane, radium trademark security, and more. It is commonly implemented in electronic and adhesive products.
Brand Name: Supreme
Model Number: MQ-350Z
Place of Origin: Wenzhou
Certification: CE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT
Supply Ability: 20sets/month
Type: Flatbed Die Cutting Machinery
Power Supply: 380 V
Die Cutting Type: Flatbed
Weight: 2000kg
Application: Label Adhesive Paper
Customization Service:
This product will be carefully packaged and shipped using standard packaging materials to ensure safe delivery. It will be securely packed in a sturdy wooden box with protective materials to prevent any damage during transit.
We offer worldwide shipping using reliable and efficient carriers. The shipping cost will be calculated based on the destination and weight of the package. Customers can also choose their preferred shipping method at the time of checkout.
The estimated shipping time for this product is 3-7 business days for domestic orders and 20-30 business days for international orders. However, delivery times may vary depending on the destination and any potential delays caused by customs clearance.
For any further questions or concerns regarding packaging and shipping, please contact our customer service team.
Standard with the machine:
1. One Flatbed Die Cutting Station+sheet cutting function with collection.
2. With 1pc 3’’ Unwinding Air Shaft, 1pc 3” Rewinding Air Shaft
3. With Meter/Number counter.
4. With 2 Photoelectric Eyes---Web Guide System
5. With 1 piece Color Track Photocell Sensor
6. PLC, Touch Screen...Controller
7: with safety protection case
Specification:
| Machine Model | MQ-350Z | MQ-450Z | MQ-550A |
| Max Die Cutting Speed | 300 times/min | 300 times/min | 120 times/min |
| Max. Web Width | 350mm | 450mm | 550mm |
| Max. Unwinding Diameter | 650mm | 650mm | 650mm |
| Max. Rewinding Diameter | 600mm | 600mm | 600mm |
| Max. Die Cutting Area | 340*340mm | 440*440mm | 530*530mm |
| Precision of next die cut | ±0.1mm | ±0.1mm | ±0.1mm |
| Total Power: | 6 kw | 10 kw | 10kw |
| Voltage | 380V | 380V | 380V |
| Dimensions | 2900x1300x1400mm | 2900x1450x1400mm | 2900x1550x1400mm |
| Machine weight | 2000 kgs | 2500 kgs | 3200 kgs |
