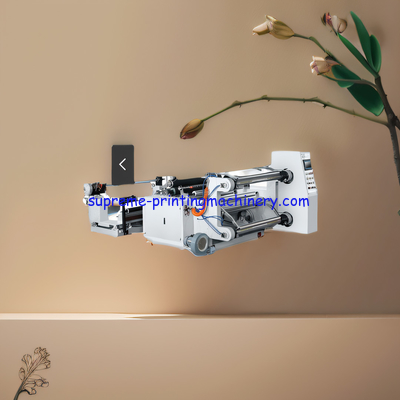

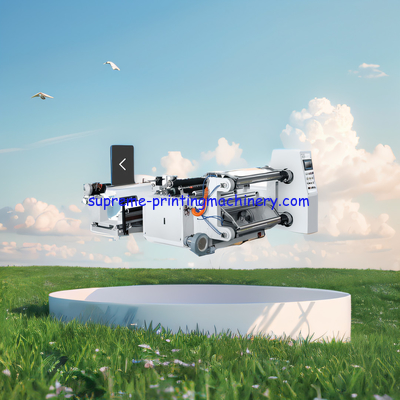

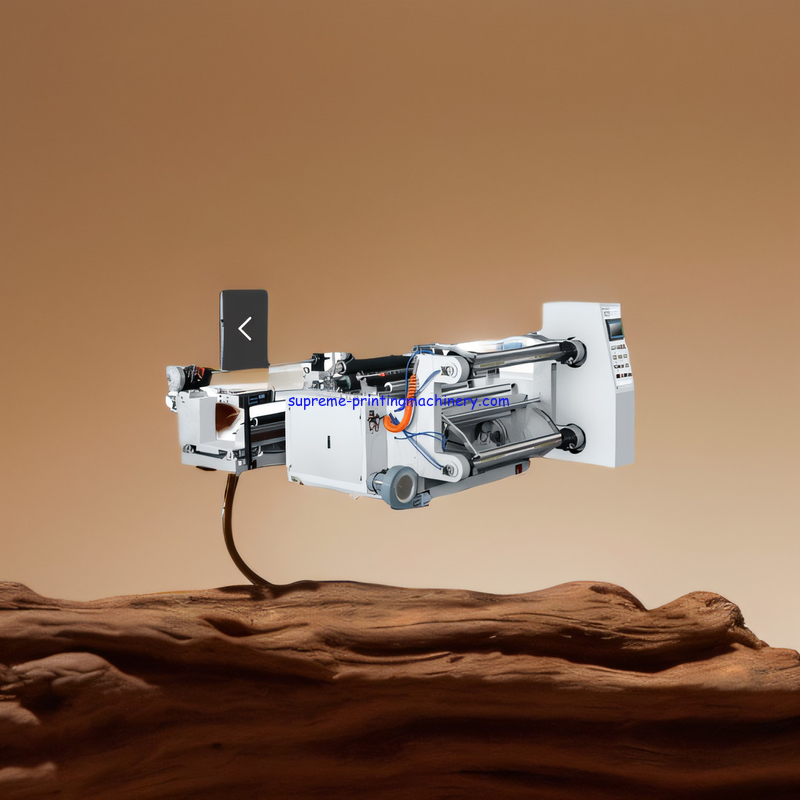

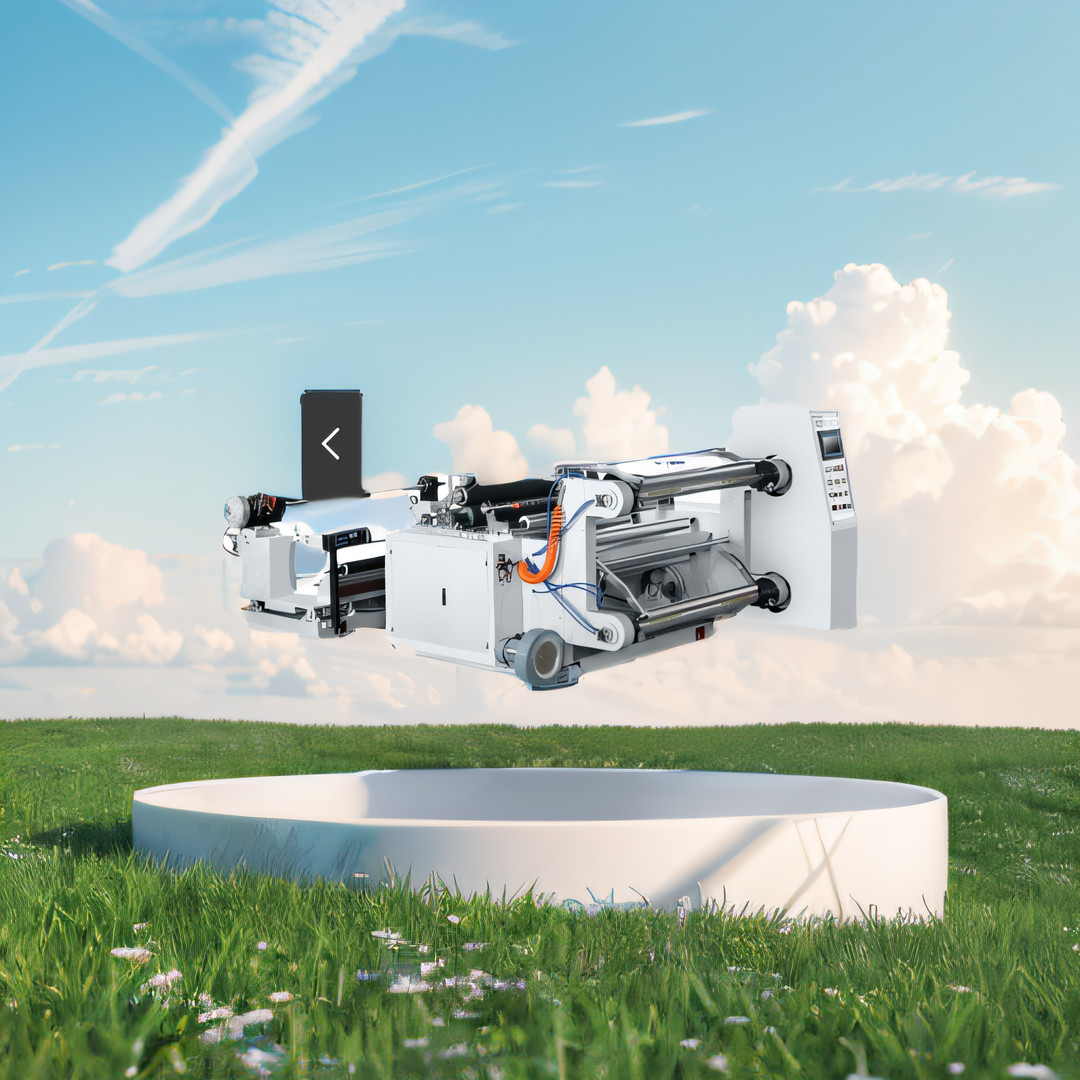

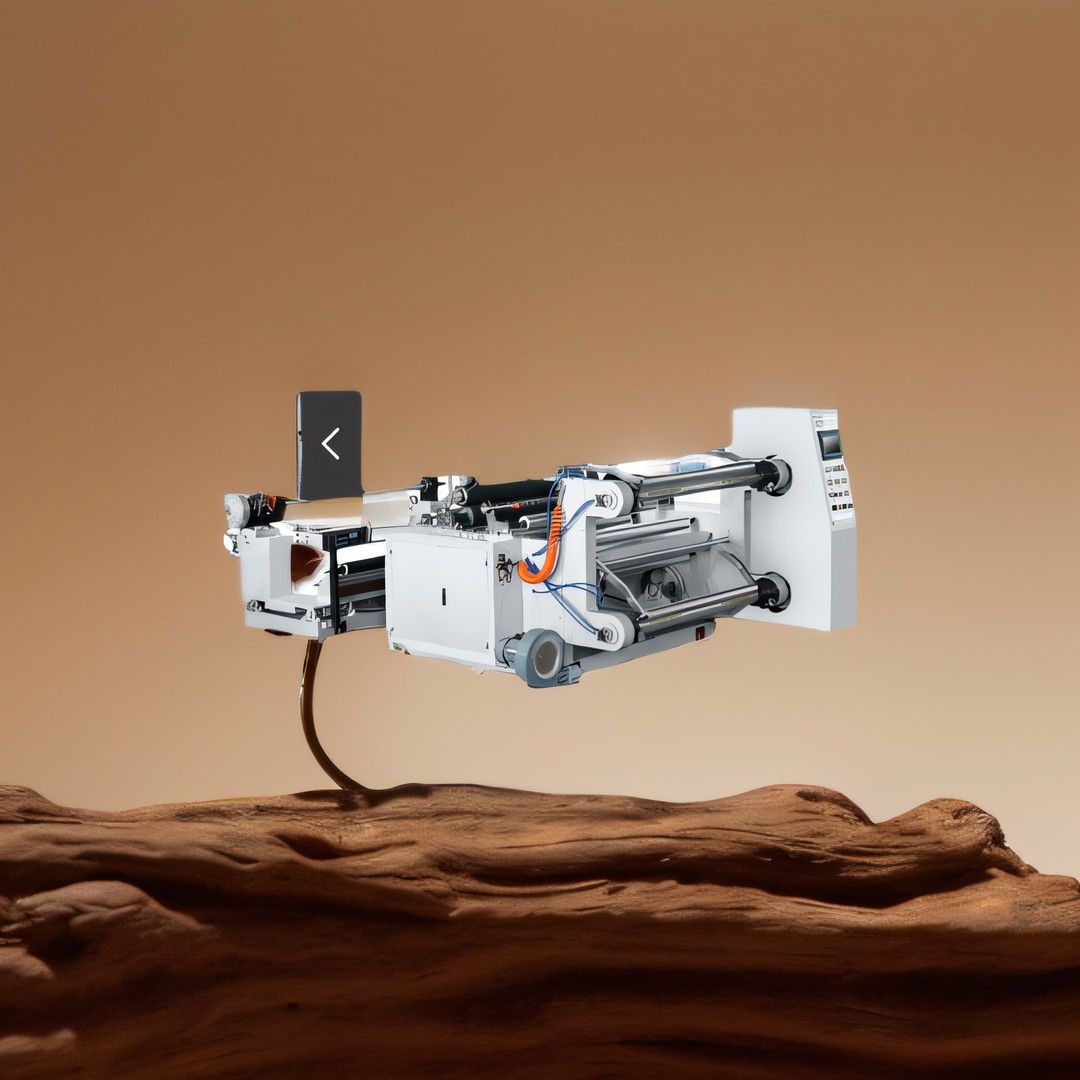

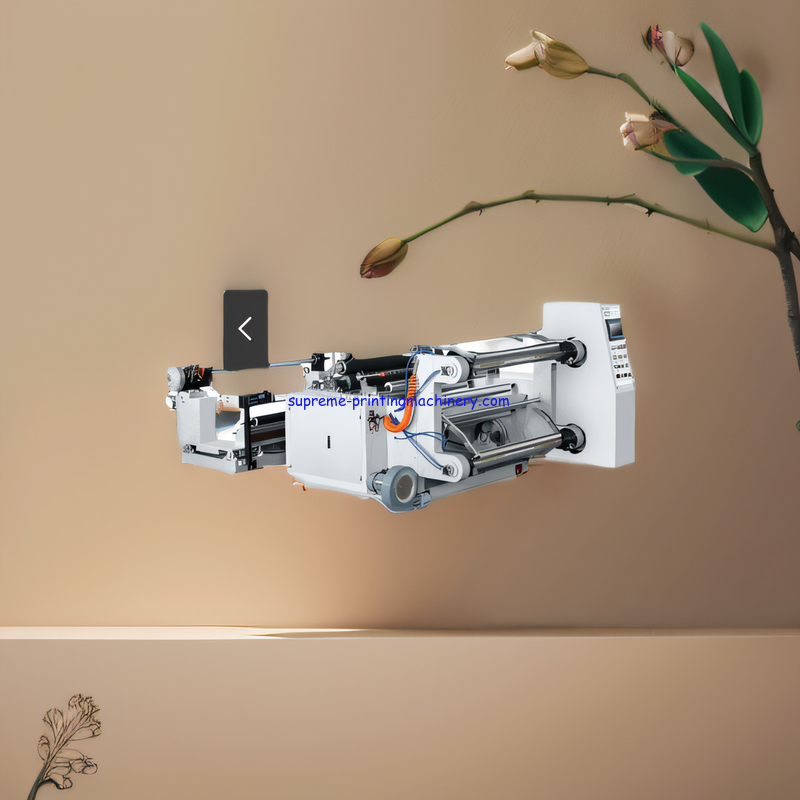

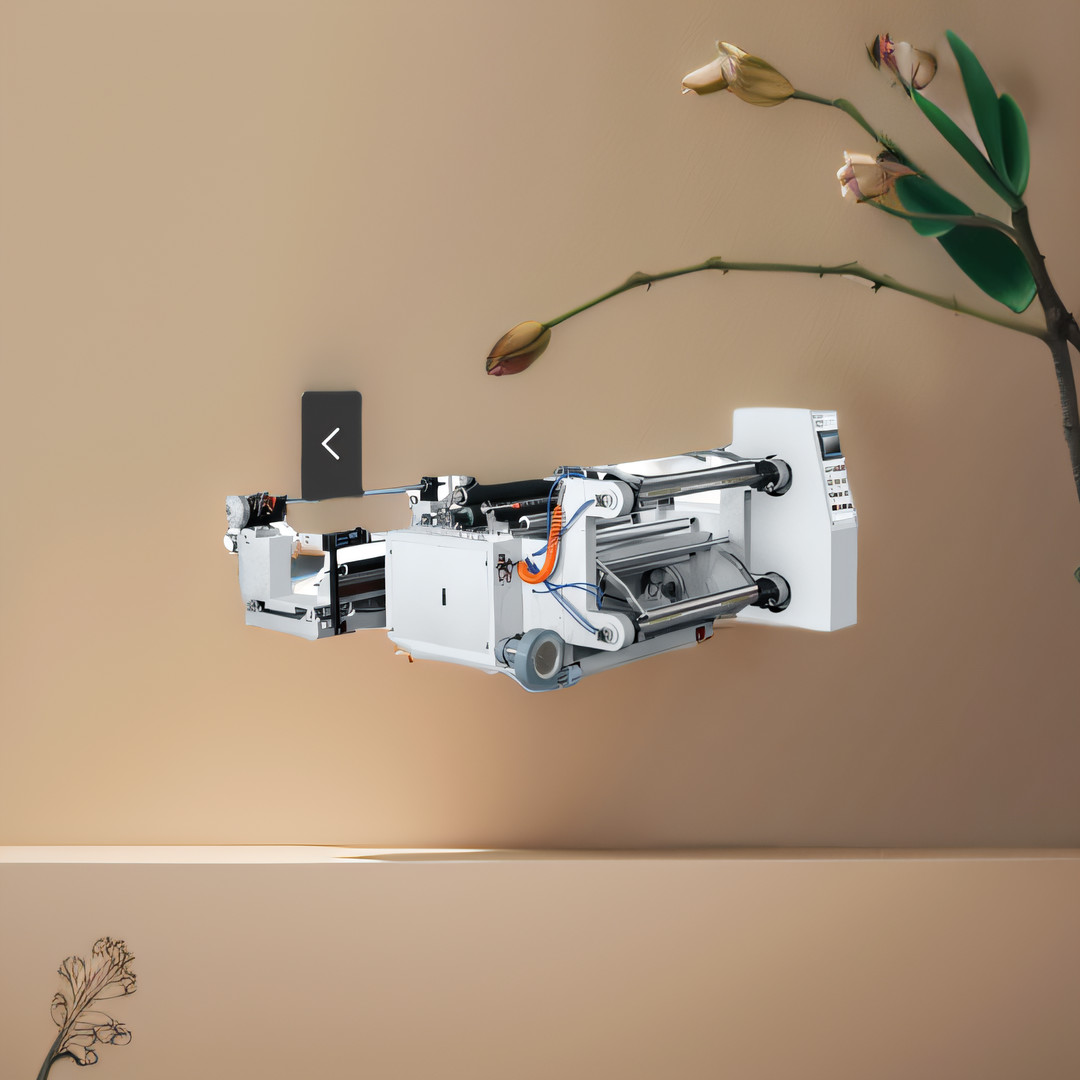

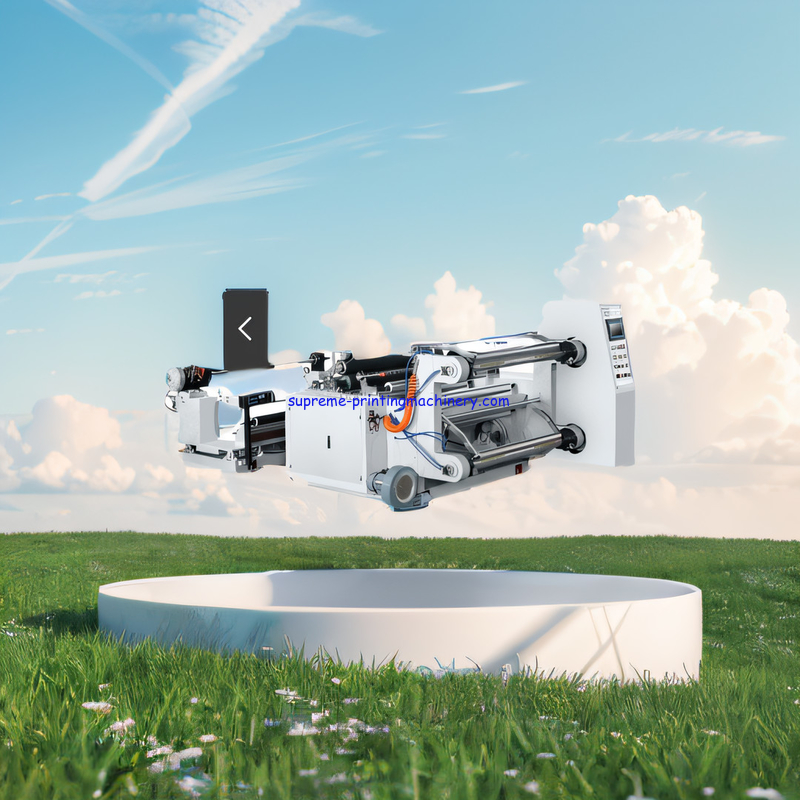

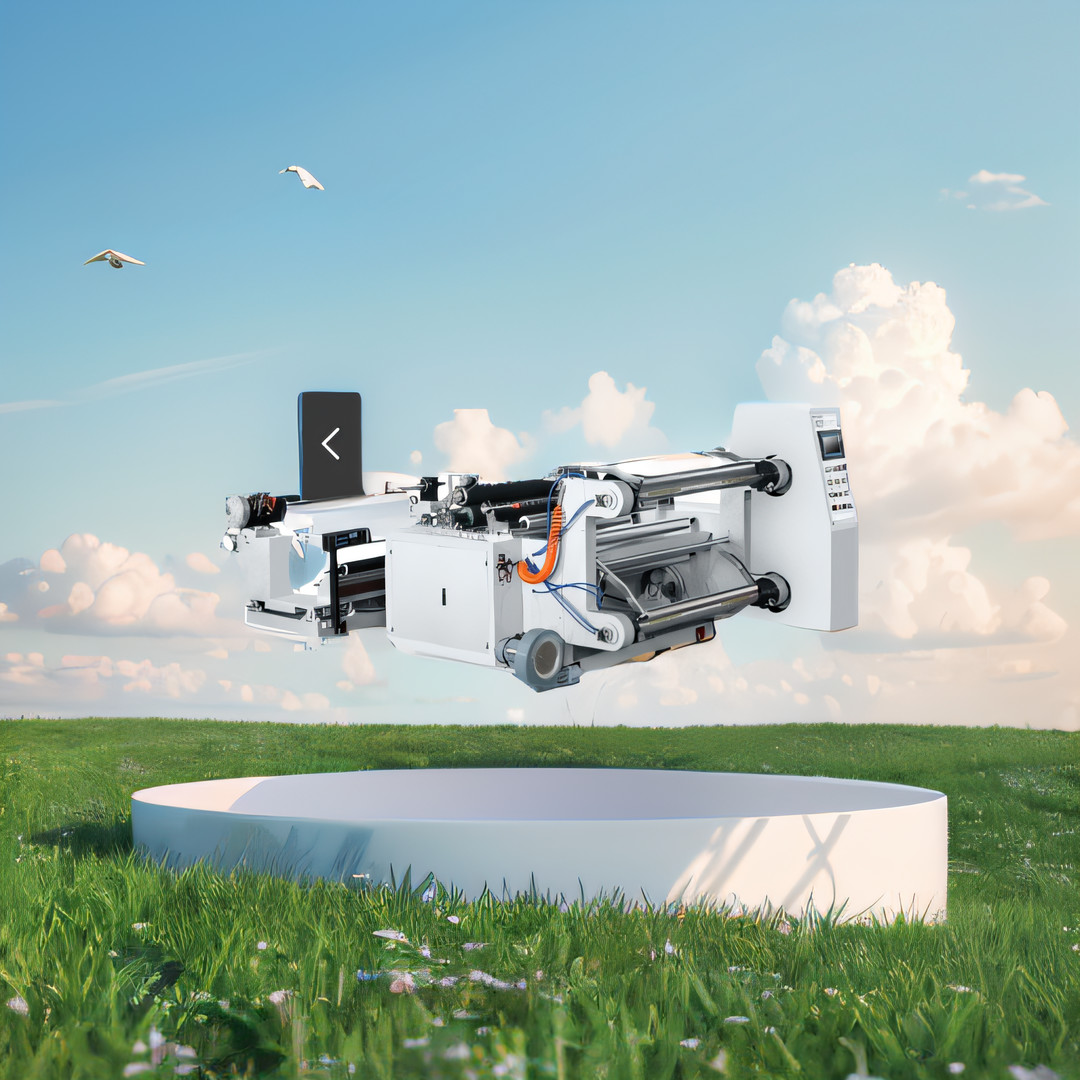

Auto Material Loader PLC Touch Screen Horizontal Slitting And Rewinding trimming Machinery 1000/600mm 200m/Min

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-1300W
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 20-40 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Maximum Rewinding Diameter: 600mm Control System: PLC(optional)
Max. Material Web Width: 1300mm Power Supply: AC380V, 50Hz
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Note: Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

Auto Material Loader PLC Touch Screen Horizontal Slitting And Rewinding trimming Machinery 1000/600mm 200m/Min



Product Description:

This machine is designed for cutting and trimming a variety of materials, including cellophane, heat-sealing cotton, melt-blown fabric, mask fabric, PET, OPP, CPP, PE, PS, PVC, and computer anti-counterfeit labels. It is also suitable for use with electronic computers, optical materials, film rolls, foil rolls, and various paper rolls that may require cutting or trimming. This versatile machine is perfect for handling a wide range of materials, including those that have been printed on.

Applications:

Our machine is designed to effectively cut and split a variety of materials, making it highly versatile for various applications. It is able to handle cellophane, heat-sealing cotton, and melt-blown fabric, as well as fabrics specifically used for masks. Additionally, it is capable of working with materials such as PET, OPP, CPP, PE, PS, PVC, and computer anti-counterfeiting labels.

In addition to these materials, our machine is also suitable for working with electronic computers, optical materials, film rolls, foil rolls, and various types of paper rolls. This makes it a valuable tool for a wide range of industries, from packaging and labeling to printing and film production.

The machine's versatility extends to post-printing materials as well, allowing it to effectively handle materials like film rolls and other materials that have been printed on. This makes it a valuable asset for businesses looking for a comprehensive and efficient solution to their material cutting needs.

.

Packing and Shipping:

Product Name: Auto Material Loader PLC Touch Screen Horizontal Slitting And Rewinding Trimming Machinery 1000/600mm 200m/Min
Packaging and Shipping:

The Auto Material Loader PLC Touch Screen Horizontal Slitting And Rewinding Trimming Machinery 1000/600mm 200m/Min will be carefully packaged to ensure its safe delivery to our customers. The packaging process will follow these steps:

  • Step 1: The machine will be wrapped with protective materials to prevent any damage during transportation.
  • Step 2: The wrapped machine will be placed in a sturdy wooden crate to provide additional protection.
  • Step 3: The crate will be sealed and labeled with the necessary shipping information, including the customer's name and address.
  • Step 4: The packaged machine will be loaded onto a shipping container for transportation.

Shipping options will be discussed and determined with the customer prior to the shipment. We work with reputable shipping companies to ensure timely and secure delivery of our products.

Thank you for choosing our Auto Material Loader PLC Touch Screen Horizontal Slitting And Rewinding Trimming Machinery 1000/600mm 200m/Min. We strive to provide the best packaging and shipping services to ensure your satisfaction.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Supreme.
  • Q: What is the model number of this product?
    A: The model number of this product is FQ-1300W.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Wenzhou, China.
  • Q: Does this product have any certifications?
    A: Yes, this product is CE certified.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 set.



Optional:

1:Touch screen with PLC auto tension control

2: slip shaft for rewinding

3:Auto loading by pneumatic lifter/hydraulic lifter

4:Flat and round knife system



Features:

1: Host part

1: The main machine structure of the equipment adopts Iron-casting parts and steel plate structure (casting parts are secondary processed and finalized)

2. The spindle drive roller is made of seamless steel pipe. After tempering, surface nitrile rubber, dynamic balance processing

3: The main pressure roller of the main shaft transmission is a rubber roller (Nitrile rubber)

4. The guide roller is made of metal (aluminum alloy material) and rubber roller (nitrile rubber material)

5: The transmission mode of main machine and rewinding material is synchronous wheel and synchronous belt transmission(optional)



2: Unwinding part

1: The unwinding structure is a separated unwinding rack

2: Install a movable support, the moving device is ball screw

3. The unwinding adopts automatic loading with shaft (optional), which effectively saves labor and is easy to operate

4. Equipped with 1 set of deviation adjustment device, which can be fine-tuned left and right, front and back through the hand wheel

5: The unwinding tension controlled by magnetic brake

6: The web guide adopts the Chinese brand photoelectric to achieve the effect of following the side and the line of the material



3. Rewinding part

1: The rewinding shaft is equipped with 2 key type air shafts, and the tension is controlled by magnetic clutch

2: The locking method adopts pneumatic control

3: Winding tension is controlled by magnetic clutch

4: Winding pressure roller can be customized according to customer requirements

5: The cutter adopts turbine control, manual adjustment (10 round knives)

6: Equipped with waste blowing device



4. Electronics part

1: Main inverter Delta Taiwan 5.5KW

2: Main motor 5.5KW Chinese brand



The main technical parameters

Material width 1100/1300mm/1600mm
Material diameter 1000mm
Rewinding diameter 600mm
Paper core inch 3’’
Slitting speed 10-200 m/min
precision ≤0.3mm
Mini width 50mm
Total power 10kw
Machine weight 3000kg
Machine size 3300mm*2600mm×1900mm



Random Accessories

01 Allen wrench 1 05 Oil gun 1
02 Adjustable wrench 1 06 Air gun 1
03 "One" screwdriver 1 07 Gas mouth 2
04 "Ten" screwdriver 1 08 Operating Instructions 1
