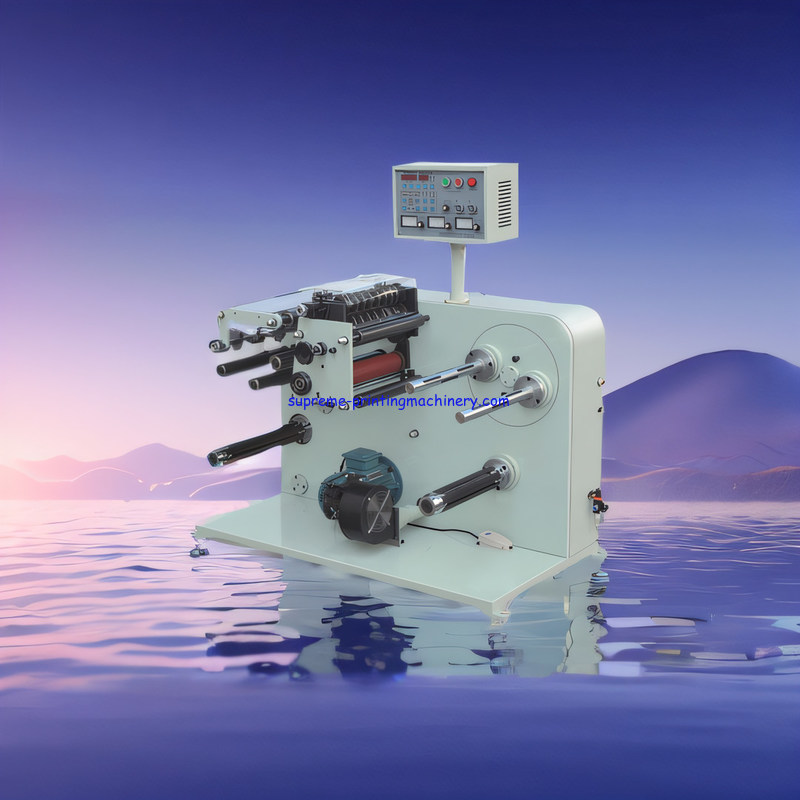

120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-350/450/550II
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Maximum Unwinding Diameter: 500mm Control System: PLC(optional)
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Note: Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft



Product Description:

FQ-350/450/550II Slitting Machine

The FQ-350/450/550II Slitting Machine is an automatic equipment specifically designed for narrow paper cutting. It is equipped with a variety of advanced features to ensure efficient and precise operation.

Key Features:
  • Automatic meter/number counting: Keep track of paper length and total number of cuts made effortlessly.
  • Length setting: Offers flexible options for precise and customized cuts.
  • Automatic stopping: Machine will automatically halt when desired length is reached for accurate and consistent cutting.
  • Material shortage reminder: Prevents interruptions and waste in production with a reminder function for material shortage.
  • Web guide for left and right: 2 web guides maintain proper positioning of paper web during cutting.
  • Air shafts: 2 3-inch air shafts ensure stable and efficient operation during unwinding and rewinding.
  • Real-time tracking: Display screen tracks paper length and number of cuts in real-time.
  • Compact and efficient design: Compact structure allows for fast, accurate, and stable operation while remaining user-friendly and easy to use.

Applications:

The FQ-350/450/550II Slitting Machine

This machine is specially designed for cutting narrow paper with automatic operation, high efficiency, and precision cutting capabilities.

Customization:

120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft - Supreme FQ-350/450/550II
Product Description:

The Supreme FQ-350/450/550II is a high speed slitting and rewinding machine designed specifically for adhesive paper sticker labels. It offers customizable services to meet the specific needs of our customers. With its advanced cutting method, circular blade, it delivers precise and efficient label slitting at a speed of 120m/min. Made in Wenzhou, our machine is certified with CE and has a minimum order quantity of 1. We offer competitive pricing, with negotiation available. Our packaging includes fumigation wooden boxes to ensure safe delivery, and our delivery time is 10-20 working days. Payment terms are TT and we have a monthly supply ability of 40 sets.

Product Features:
  • Brand Name: Supreme
  • Model Number: FQ-350/450/550II
  • Place of Origin: Wenzhou
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: Negotiation
  • Packaging Details: Fumigation Wooden Box
  • Delivery Time: 10-20 working days
  • Payment Terms: TT
  • Supply Ability: 40 sets/month
  • Cutting Method: Circular Blade
  • Slitting Speed: 120m/min
  • Material: Adhesive Paper
  • Rewinding Speed: Slitting And Rewinding Machine
  • Control System: PLC (optional)
Customization Services:

At Supreme, we understand that every customer has unique needs. That's why we offer customizable services for our FQ-350/450/550II model. From the cutting method to the control system, we can tailor our machine to meet your specific requirements.

Get Your 120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft Today!

Don't settle for anything less than the best when it comes to slitting and rewinding your adhesive paper sticker labels. Choose the Supreme FQ-350/450/550II for high speed, precision, and customization. Contact us today to get your own high speed label slitting machine!

Packing and Shipping:

Packaging and Shipping for 120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft

Our 120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft is carefully packaged to ensure safe arrival at your designated location. The packaging process includes the following steps:

  • Each machine is wrapped with protective materials to prevent any scratches or damages during transportation.
  • The machine is then placed in a sturdy wooden crate for additional protection.
  • The crate is sealed and labeled with the necessary shipping information, including the product name, weight, and dimensions.

For shipping, we work with reliable and experienced freight forwarders to ensure timely and secure delivery of your machine. The shipping method will be determined based on your location and specific requirements.

Upon arrival, our team will carefully unload and inspect the machine to ensure it is in perfect condition. Any necessary assembly or installation can also be provided by our trained technicians upon request.

Thank you for choosing our 120m/Min Label Slitter Rewinder Narrow Paper Slitting Machine Min.Slitting Width 16mm turret rewind 1/1.5/40mm air shaft. We are committed to providing the best packaging and shipping services to ensure your complete satisfaction.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Supreme.
  • Q: What is the model number of this product?
    A: The model number of this product is FQ-350/450/550II.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Wenzhou, China.
  • Q: Does this product have any certifications?
    A: Yes, this product is CE certified.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1.
  • Q: What is the price of this product?
    A: The price of this product is negotiable.
  • Q: How is this product packaged?
    A: This product is packaged in a fumigation wooden box.
  • Q: What is the delivery time for this product?
    A: The delivery time for this product is 10-20 working days.
  • Q: What are the payment terms for this product?
    A: The payment terms for this product is TT (telegraphic transfer).
  • Q: What is the supply ability of this product?
    A: The supply ability of this product is 40 sets per month.



Standard with machine:

1: 1 slitting station with 8 sets round knife

2: 3 pcs 3 inch unwinding and rewinding air shaft

3: meter/number counting by Imported

4: web guide 2 pcs right and left for material

5: fan blower for the waste blowing

6: low voltage Imported



Machine Model FQ350 FQ450 FQ550
Slitting speed 120m/min 120m/min 100m/min
Max. Web Width 350mm 450mm 540mm
Max. Unwinding Diameter 500mm 500mm 800mm
Max. Rewinding Diameter 500mm 500mm 500mm
Max. Rewinding Diameter of Turret Rewind(optional) 350mm 350mm
Dimensions 1100*800*1280mm 1200*900*1280mm 1800*1100*1280mm
Main motor 1.5 KW 2.2 KW 2.2kw
Voltage 220V/380V 220V/380V 380V
Min. Slitting Width 16mm 16mm 16mm
Machine weight 400kg 500kg 800kg
