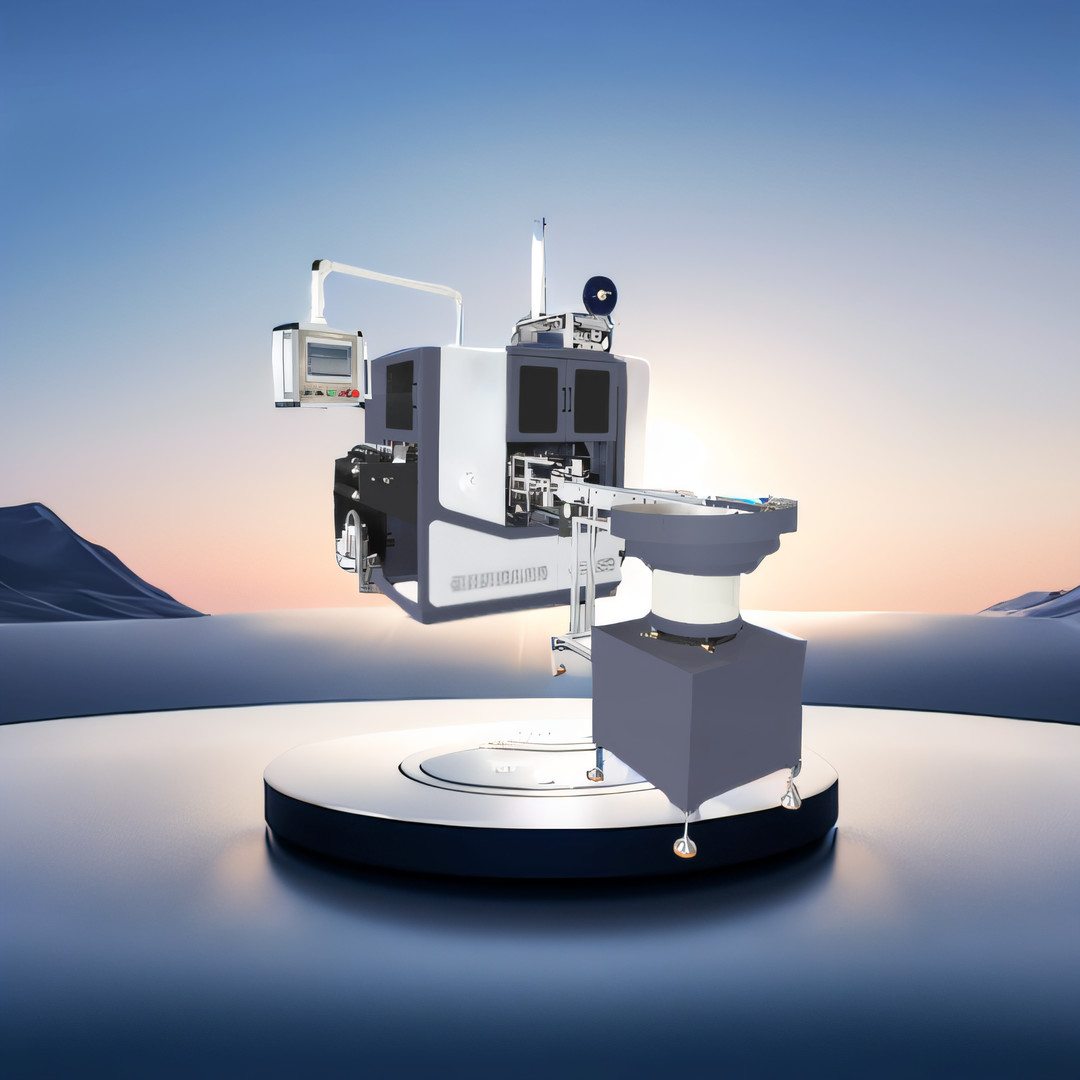

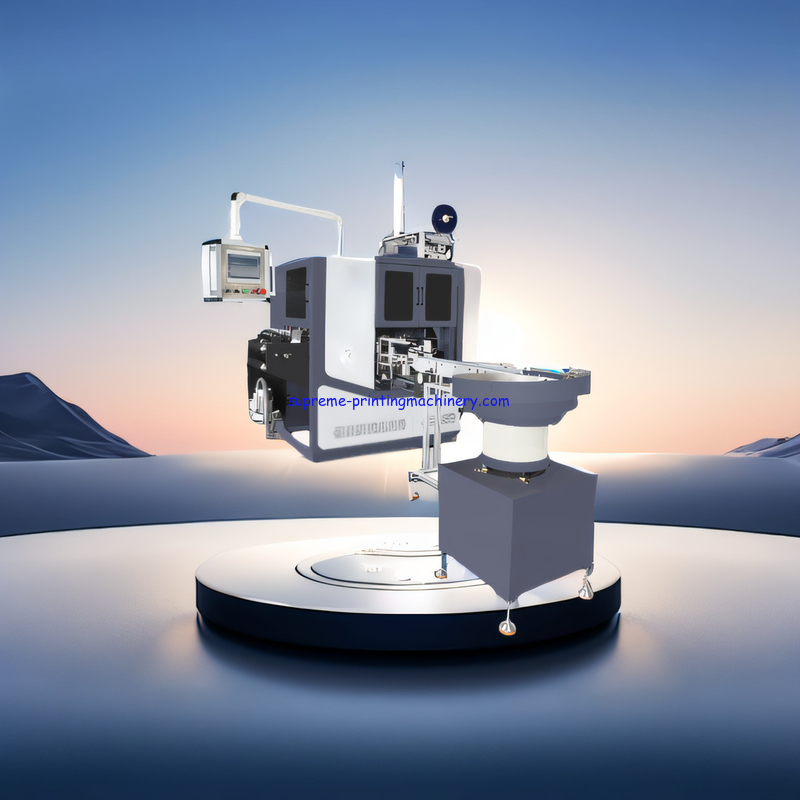

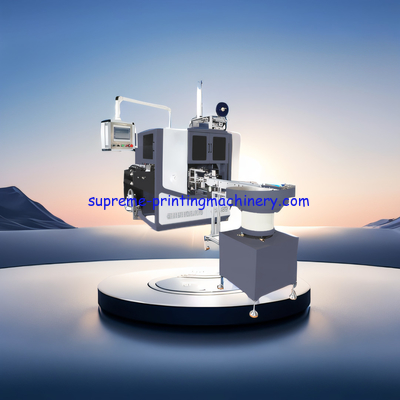

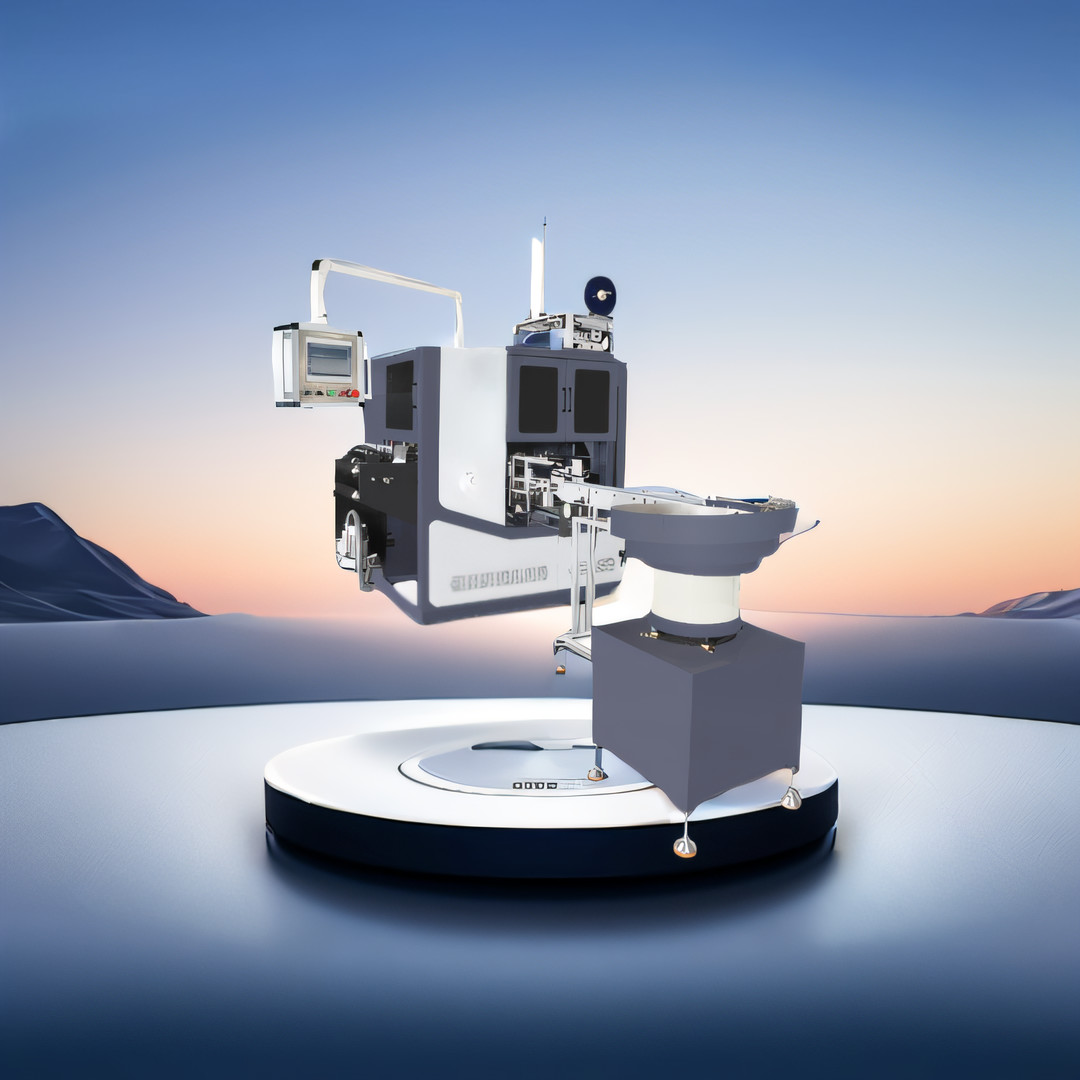

Environment-friendly Labor Saving No Glue Glueless Full Auto Non Stop Turret Rewinder for Self Label

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ-330/450/570
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: fumigation wooden box
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Material: Paper Sticker Label Self Adhesive Material Width: 330/450/570

Product Description

Great machine Machine Recommend:Environment-friendly Labor Saving No Glue Glueless Full Auto Non Stop Turret Rewinder for Self-adhensive Label



1:warranty 2 years=24 months

2:materials:white grid thermal paper logstics sticker

3:advantage:1:no glue glue-less glue free 2:max rewind diameter:300mm=12inch 3:4 shaft four spindle

4:Average speed:100m/min(finish the 6000meters only 64minutes)

5:max unwinding diamter at 1200mm

6:no decreasing speed for shaft changed(expect the dottted line paper)

7:2 second generations new generations label turret rewinding machine



SZ series turret rewinder is with matured and most advanced technology in the world, and own the ability to work in-line with die cutting machine, printing machine, slitting machine and work off line as a stand-alone solution with a separate unwinder. Automatic tube threading, automatic gluing(optional no glue), automatic cutting & rewinding and automatic label sticking, which can finish your customers’ orders quickly, shorten the lead-time, increase your productivity, save your labor cost and raise your product competitive advantage in the market. It can accept both printed labels and blank labels rewinding.



Machine Application: This type machine is our latest innovation for small label rolls automatic cutting and rewinding with high-efficiency.



Machine Highlights:

1. Servo driven and with accurate automatic loop tension control

2. Can handle a wide range of roll wide: 330, 450 and 570mm

3. Glue free system can be selected

4. Both Blank label and printed label are available

5. Precision cut in gap of finished label rolls

6. Servo motor control Mechanical arm automatic feeding system

7.Petal type holder: easier for the adjustment, not be easier loosen

8.Slitting part:servo driven for semi automatic adjustment controlled by the touch screen, save labor.

9:2 second generations labeling device: reduce noise and air compressor capacity , with belt transmission.



The advantage of ours machine(finished by new generations 2 second generations glue-less non-stop turret rewinder):

1:No creases

2:Zero waste

3:save glue cost

4:save electricity consumptions

5:max rewinding max at 300mm diameters

6:die cutting scrapping waste by mini 1mm

7: non stop no need material storage rack can realized no need decreasing the speed then cutting

8: servo driven for the precision cut into gap at high speed

9: servo driven for the die cutting into the dotted line

10: Asynchronous motor for the material loader PS others:1:Fold on the label 2:4-5 label waste at least



Standard with the machine:

1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece

2. tube delivery rack: 1 piece

3. vibration plate:1 piece

4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model: SZ-330 SZ-450 SZ-570

Max rewinding diameter (glue type):350mm 350mm 350mm

Max rewinding diameter (glue free): 300mm 300mm 300mm

Max Paper feeding: 330mm 450mm 570mm

Max rewinding speed: 80-150m/min 80-150m/min 80-150m/min

Mini rewinding width: 30mm 30mm 30mm

Power source: 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ

Power: 13 kw 13 kw 13kw

Air source: 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min

Machine Dimensions:

2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free)

2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free)

2020x2200x2800mm (glue type) 3700 x2200 x2800 (glue free)

Machine weight:

2500 kgs (glue type) 3500 kgs (glue free)

2500 kgs (glue type) 3500 kgs (glue free)

2800 kgs (glue type) 3800 kgs (glue free)
