| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | Mq - 350yiie |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 45-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |

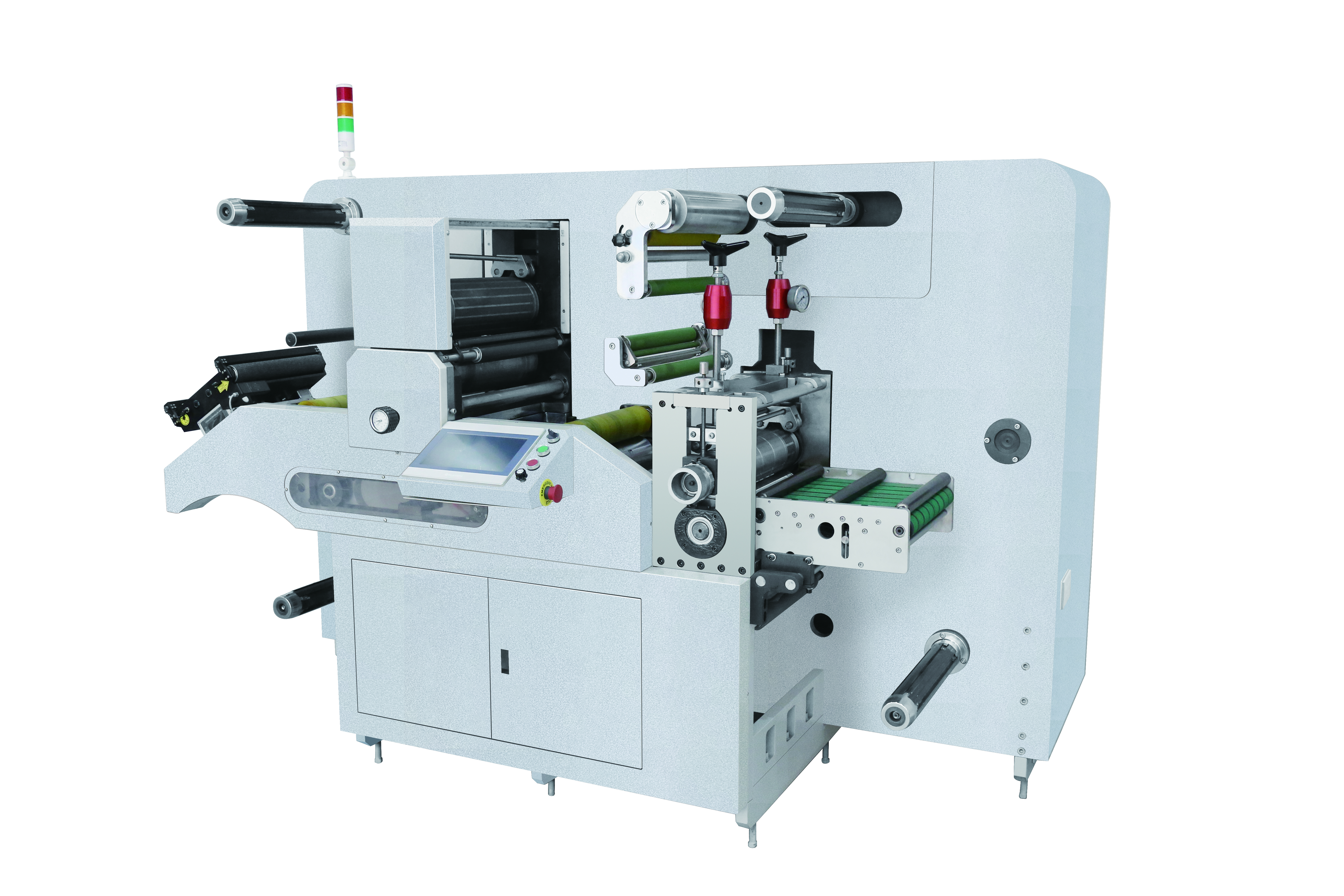

Characteristics: MQ - 350YIIE Semi - rotary die cutting with slitting machine is a new product. It is equipped with a servo motor motion control system and a register sensor to arrange a high - accuracy rotary die - cutting system. This machine is applicable to pre-printed labels. Unwinding, rotary die - cutting, slitting and rewinding can be finished in one process. It can run with semi - rotary mode as well as full rotary mode. When in semi - rotary mode, the machine doesn't need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The machine is equipped with a web guide to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Main Technical Parameters:
| Model | MQ-350YIIE | MQ-450YIIE | MQ-550YIIE |
| Max Material width | 350mm | 450mm | 550mm |
| Max unwinding diameter | 600mm | 600mm | 600mm |
| Max rewinding diameter | 600mm | 600mm | 600mm |
| Max die cutting speed (semi-rotary) | 50-60m/in | 50-60m/min | 50-60m/min |
| Max die cutting speed (full rotary) | 120m/min | 120m/min | 120m/min |
| Max die cutting length (full rotary) | 480mm (150 magnetic cylinder) | 480mm(150T) | 480mm(150T) |
| Max die cutting length (semi rotary) | 460mm | 460mm | 460mm |
| Standard magnetic cylinder | 150T(480mm) | 150T(480mm) | 150T(480mm) |
| Die cutting positioning method | Color tracking sensor | ||
| Voltage | 380V | 380V | 380V |
| Die cutting precision | +-0.15mm | +-0.15mm | +-0.15mm |
| Power | 15KW | 16KW | 18KW |
| Size | 2200*1300*1500mm | 2200*1400*1500mm | 2200*1500*1500mm |
| Weight | 1600kg | 1800kg | 2000kg |
| Function | PLC auto tension controller | ||
| Function | 3 pcs air shaft | ||
| Function | color tracking | ||
| Function | number counting meter counting | ||
| Function | 8sets round knife | ||
| Function | web guide | ||
| can be customized according to clients' different requirements. | |||
