| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | Qgj-1300 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 45-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |

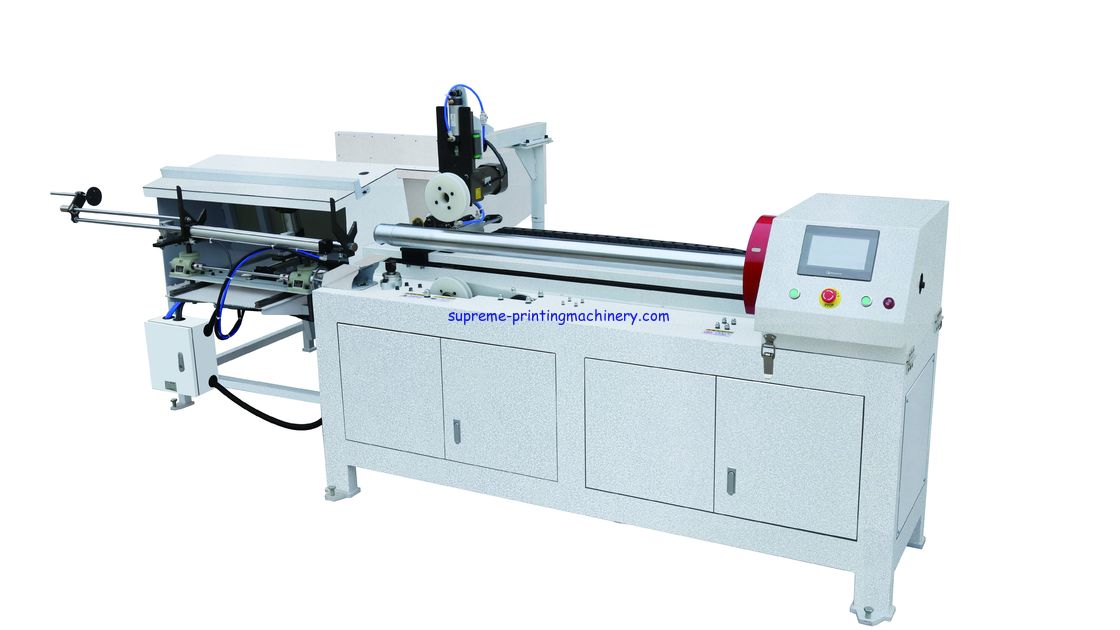

QGJ-1300 CNC Paper Plastic Tube Cutting Machine
| Technical Parameters/Parámetros Técnicos | |
| Cutting Tube Length Longitud de corte del tubo |
1m, 1.3m, 1.6m, 1.8m, 2m, 2.5m, 3.2m |
| Cutting Tube Diameter Diámetrode corte del tubo |
25 - 115mm |
| Number of Cutting Knives Número de cuchillos de corte |
1 Set / 1 conjunto |
| Cutting Table Moving Speed Velocidad de movimiento de la mesa de corte |
35m/min |
| Cutting Method Método de corte |
Paper tube rotates and the knife shaft does not rotate / El tubo de papel gira y el eje del cuchillo no gira |
| Loading&Unloading Method Método de carga y descarga |
Automatic loading and unloading Carga y descarga automática |
| Clamping Method Método de sujeción |
Automatic Pneumatic Chuck Chuck neumático automático |
| Number of Operators Número de operadore |
1 Person / 1 persona |
| Knife Feed Method Método de avance de la herramienta |
Pneumatic Cutting Knife Cuchillo de corte neumático |
| Minimum Cutting Width Ancho mínimo de corte |
1mm |
| Input Power Supply Fuente de alimentación de entrada |
380V Three - phase Four - wire / 380V Trifásica Cuatro - hilos |
| Cutting Thickness / Espesor de corte | 1mm - 18mm |
| Specifications and Dimensions/Dimensiones y especificaciones | |
| Installation Size: L×W×H Tamaño de instalación: Largo×Ancho×Alto |
3500mm×1600mm×1300mm |
| Weight / Peso | 650KG |
| Main Machine Power / Potencia de la máquina principal |
3KW |
| Control System/Sistema de Control | |
| PLC Controller / Controlador PLC | Mitsubishi System / Sistema Mitsubishi |
| Human - Machine Interface Interfaz hombre - máquina |
Taiwan Weinview |
| Program Version Versión del programa |
2025 |
| Frequency Inverter Convertidor de frecuencia |
|
| Actuating Devices (Contactors, etc.) Dispositivos actuadores Signal Elements (Photoelectric Switches, etc.) Elementos de señal (interruptores fotoeléctricos, etc.) |
CHINT Products Productos CHINT CHINT Products Productos CHINT |
| Pneumatic Components Componentes neumáticos | CHINT Products Productos CHINT |
| Servo Motor Motor servo |
Hongbaoda (6 - year quality guarantee) Hongbaoda (Garantía de calidad de 6 años) |
| Moving Screw Rod Tornillo de desplazamiento |
Xuanyang Xuanyang |
| Moving Track Vía de desplazamiento |
Xuanyang Xuanyang |
| Cutting Knife Material Material del cuchillo de corte |
Tungsten Steel Acero al tungsteno |
| Accessories Included / Accesorios incluidos | |
| Cutting Blades Cuchillos de corte |
2 Pieces / 2 piezas |
| Application Tools Herramientas de aplicación |
1 Set / 1 conjunto |
Function Description: The QGJ - 1300 CNC Paper / Plastic Tube Precision Cutting Machine can save labor and greatly boost work efficiency. The cut end of finished tube surface is smooth and burr-free, helping users enhance product quality. Once the machine is loaded with tubes, the entire process requires no further manual intervention; loading, cutting, and tube unloading are all completed automatically, eliminating safety issues. Moreover, the single-blade CNC method greatly facilitates customers in changing width specifications at will.
Features:
1.Automatic sensing of tube thickness
2.Automatic adjustment of knife feed depth
3.Automatic calculation of cutting time
4.Automatic height adjustment of conveyor wheels
5.Automatic lifting table for tube feeding
6.Automatic lubrication and oiling
7.Automatic sorting of finished product and waste (first tube and end tube)
8.Automatic calculation of the number of cuttable pieces
9.Common specifications archiving and retrieval
10.Multiple length combination cutting
11.Display of fault phenomena with intuitive photos
12.High precision and reliability
13.Simple operation and quick to master
