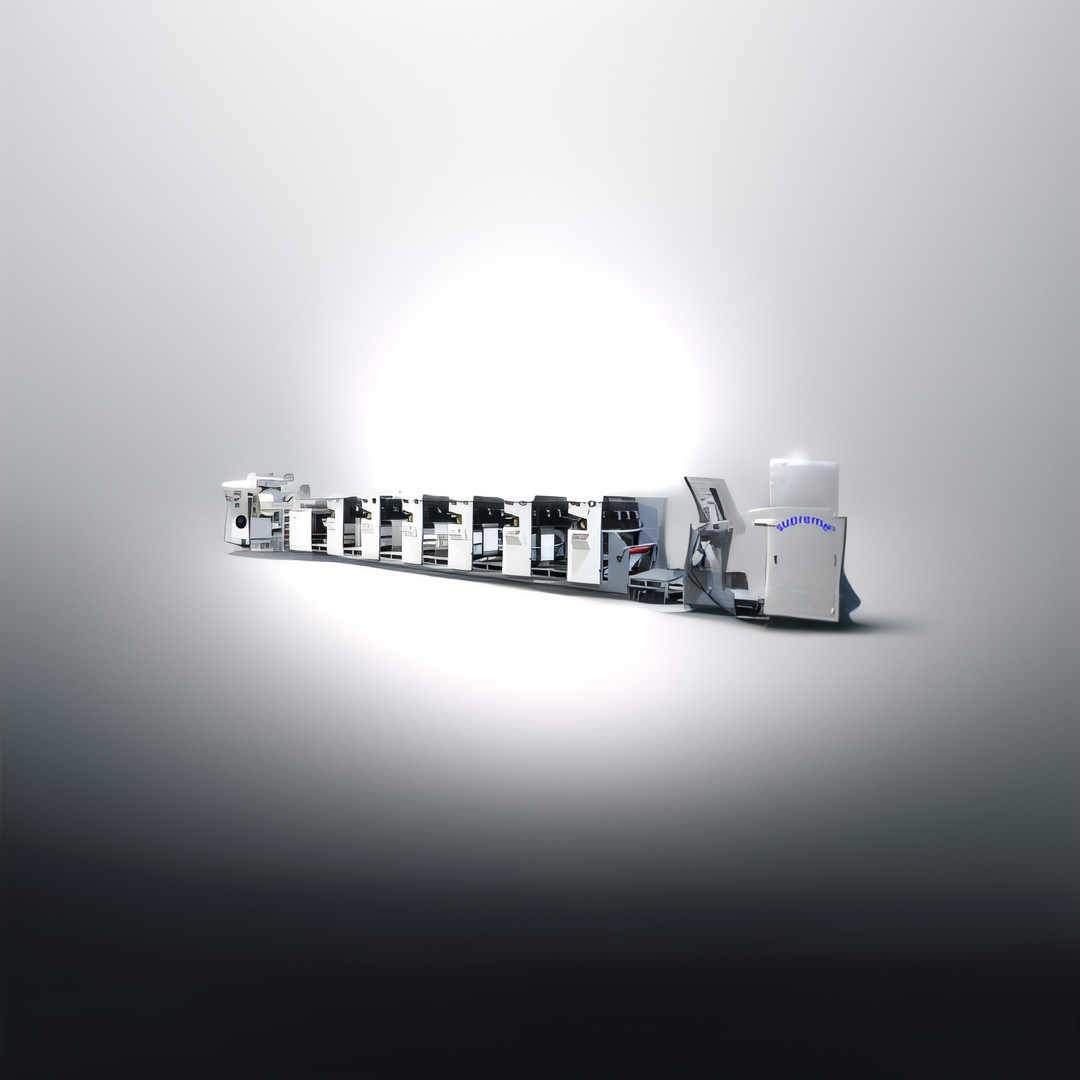

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: HBRY-W
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 60-80working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5sets/months
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE



Technical data
Model HBRY-650/850/950W
Max unwinding diameter 1200mm
Repeat printing length 250mm-800mm
Max paper width 650/850/950mm
Max printing width 600/800/900mm
Machine body thickness 38mm
Suit for material 50-350gsm paper
Tension control range 5-50kg
Tension control accurate +-1kg
Gear 1/8CP,teeth space 3.175mm
Print plate thickness 1.7mm
Printing precision +-0.15mm
Double side tape thickness 0.38mm
Machine max speed 150m/min
Main motor power 7.5KW
Rewinding motor power 11KW
Power requirement 380V;3P;50HZ
Total power About 70KW
Air source 0.8mpa



Basic configuration

1. Unwinding unit

• Unwinding magnetic powder automatic tension control system

• Hydraulic lifter

• Paper break stop device

• Equipped with air gun

2. Automatic web guide system (Chongqing Bat)

• Equipped with pneumatic paper receiving table

• The paper guide roller is anodized with high hardness

• Using ball screw electric actuator

• Ultrasonic sensor for guiding transfer sensing

• The system can continuously and accurately correct the slight deviation when the paper web moves

• Detection method: edge detection

• Correction accuracy: ±0.1mm

3. In/out paper system

• pressure roller and rubber cooperated to feed paper

4. Printing color group

• Pneumatic clutch for anilox roller and printing roller

• Ceramic anilox roller, 1 piece per color (the number is determined by the customer)

• Plate roller, 1 piece per color (the number of teeth is determined by the customer)

• Single knife reverse ink scraping system

• Stainless steel ink tank

• The plate roller adopts the latest petal structure, the pressure is stable, and the roller can be changed quickly without any tools

• Automatic printing plate cleaning function: After the anilox roll is off the pressure every time the machine stops, the plate roller continues to rotate for 1.5 seconds to transfer the ink on the printing plate to the paper, keeping the printing plate clean.

•Anilox roller rotation function: The Anilox roller will run automatically every time the machine stops to prevent the ink from drying on the surface of the Anilox roller and causing blockage of the screen cells.

• Three-roller gear: cp1/8, made of 20CrMnTi, featuring high wear resistance and long service life

•Anilox roller, plate roller, bottom roller Runout: ≤0.003mm

5. Drying system

• Printing unit infrared shortwave IR lamp heating and drying

• Printing unit natural wind blowing combination (including blower blower), adjustable intake and exhaust air volume

•The printing unit is equipped with an external closed air intake and exhaust integrated electric heating drying oven (starting at high speed as a supplementary heat source)

6. Synchronous strobe color detection unit

• Real-time image capture and detection of printed matter in the printing process, which can move left and right

• The detection position can be set horizontally and vertically

• The detection image can be enlarged for positioning observation

7. surface winding unit

• Winding frequency conversion motor tension control system

• Hydraulic loading and unloading

•Round knife slitting + curved roller (optional)

• Equipped with air gun

8. Automatic stop function when the preset output is completed

9. Multi-point speed regulation function can be realized

10. PLC touch screen controlled



Support and Services:

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE Technical Support and Services

We provide technical support and services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL AUTOMATIC PETAL HORIZONTAL FLEXO PRESS MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.
