| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | RY-L |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL VERTICAL LOW TEMPERATURE FLEXO PRESS MACHINERY | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

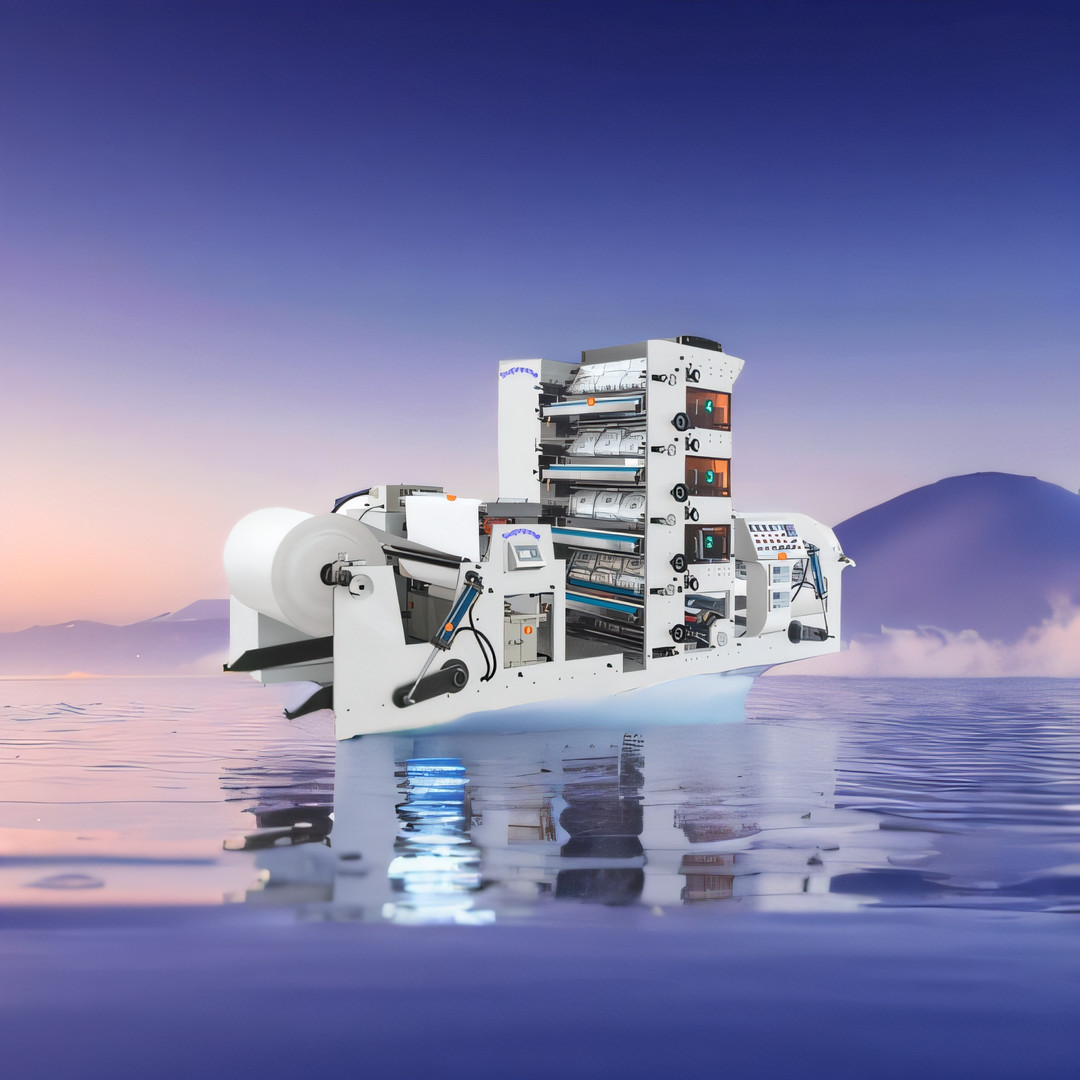

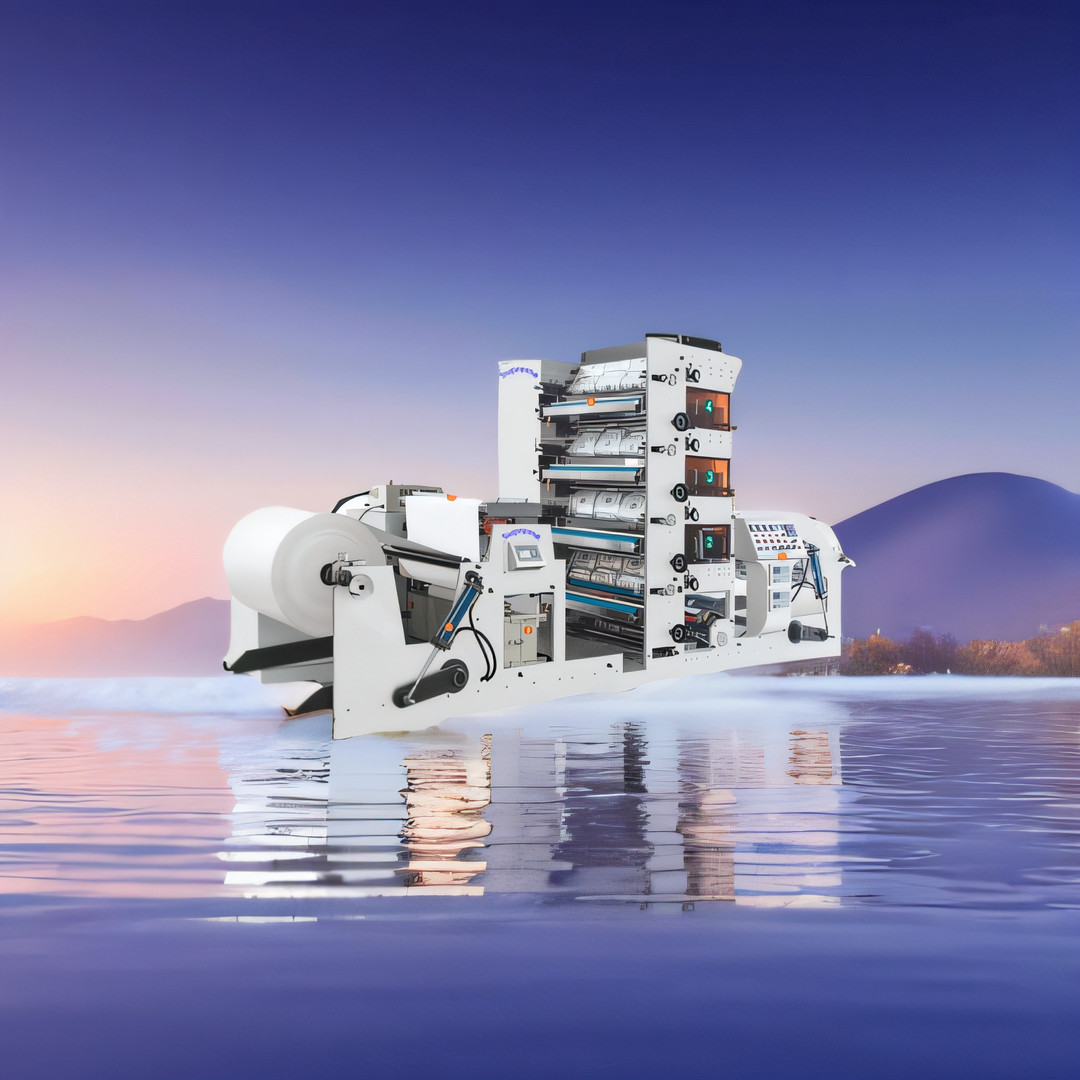

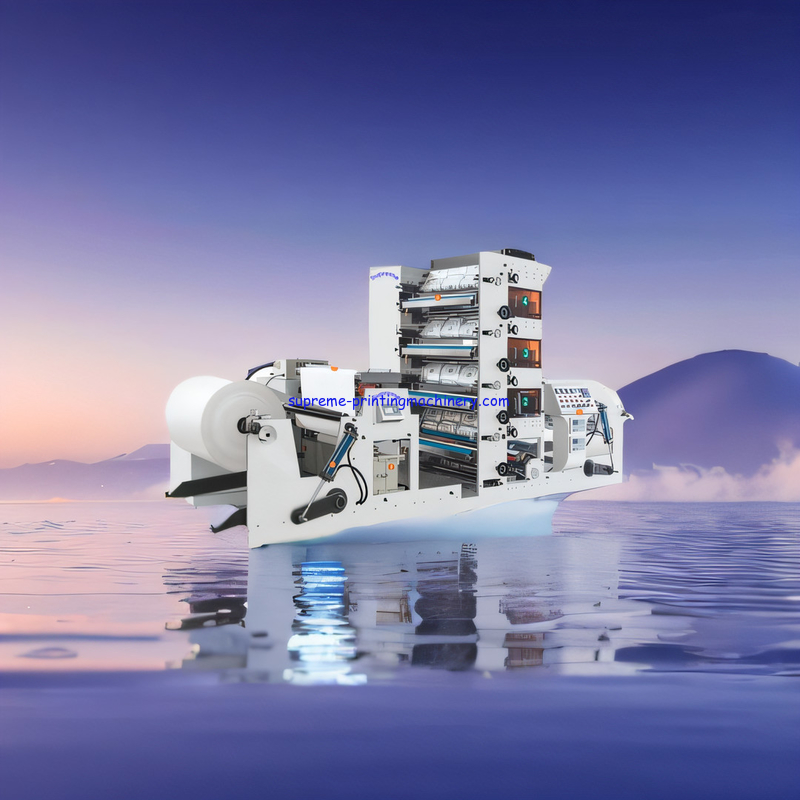

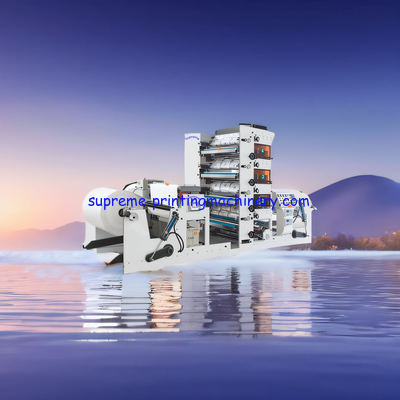

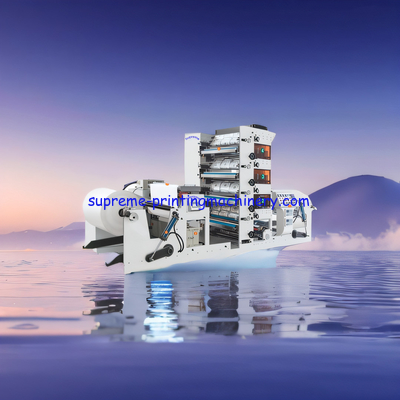

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL VERTICAL LOW TEMPERATURE FLEXO PRESS MACHINERY
http://www.youtube.com/@labelturretrewindingmachinery
The machine can finish material-feeding, printing, IR or UV drying, rewinding ect in one process,it is an ideal machine for printing thermal label paper low temperature controlled to avoid the paper surface to be blackened
1. The flexo printing machine adopts the ceramic anilox rollers to spread ink. which is characterized by wearable, harden treatment and long using life, etc. It can improve the printing efficiency and more pretty products.
2. Unwinding of the flexo printing machine is controlled by magnetism power brake. Tension controller is automatic. Rewinding is the Asynchronous servo motor,more stable and power compared with the normal motor or magnetic clutch,
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier(6 fans, customized for more efficient). UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while stop, and running at a low speed, in order to avoid ink being dried to damage the flexo resin plate.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft each 1 pc 3 inch, it's convenient to change load and unload the material.
| Technical data | |
| Model | RY650/850/940mm |
| Max Printing speed | 60-80m/min |
| Printing color | 4 color |
| Max roll paper width | 650mm/860/940mm |
| Max priniting width | 640mm/850mm/930mm |
| Max unwinding diameter | 1000mm |
| Max rewinding diameter | 1000mm |
| Printing cir | 180-380mm |
| Main motor | 4kw 6 grade (4 color 850) |
| Total power | About 40kw (4 color 850) |
| Total air pressure | 0.6mp(4 color 850) |
| Overprinting precision | +-0.15mm |
| Machine size | About:4800*2150*2250mm(L*W*H) (4 color 850) |
| Machine weight | About 5000KG (4 color 850) |
We provide technical support and services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL VERTICAL LOW TEMPERATURE FLEXO PRESS MACHINERY. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL VERTICAL LOW TEMPERATURE FLEXO PRESS MACHINERY. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL VERTICAL LOW TEMPERATURE FLEXO PRESS MACHINERY. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL VERTICAL LOW TEMPERATURE FLEXO PRESS MACHINERY is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
