THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350YII
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE



Characteristics:

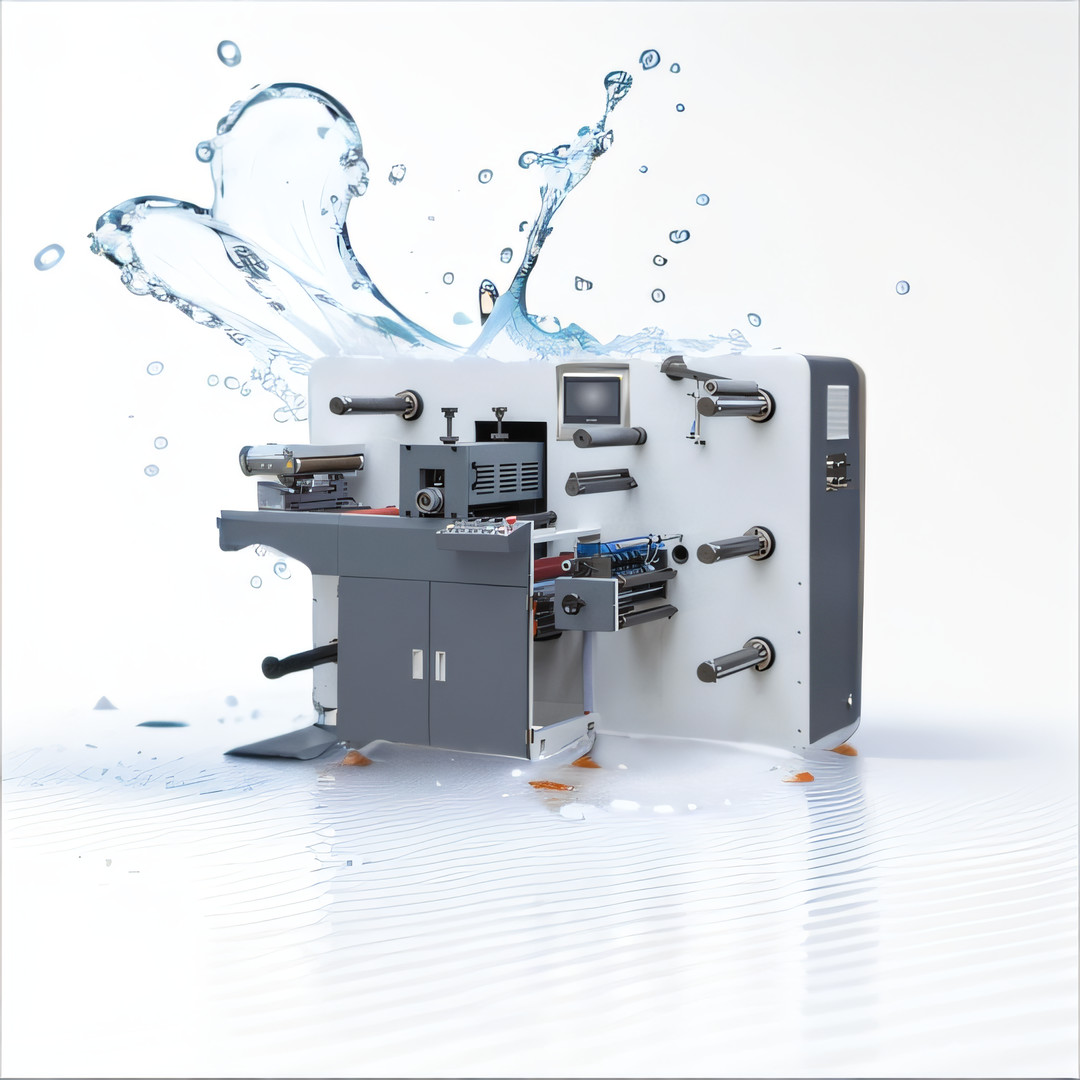

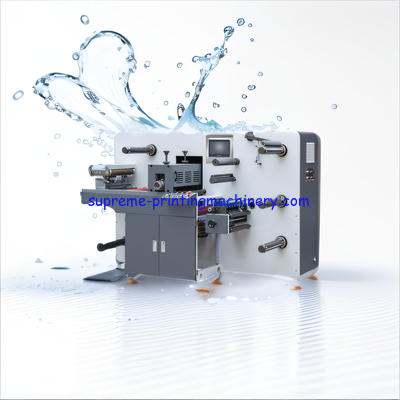

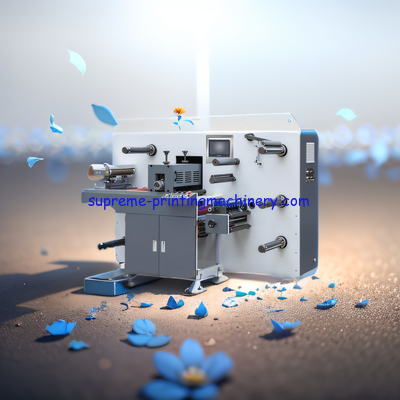

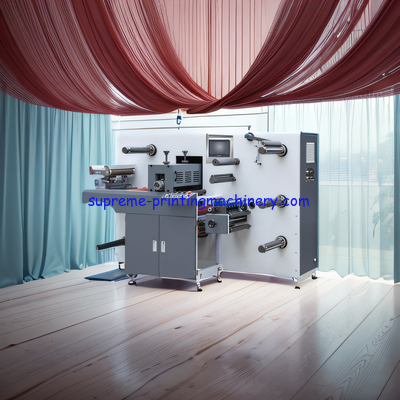

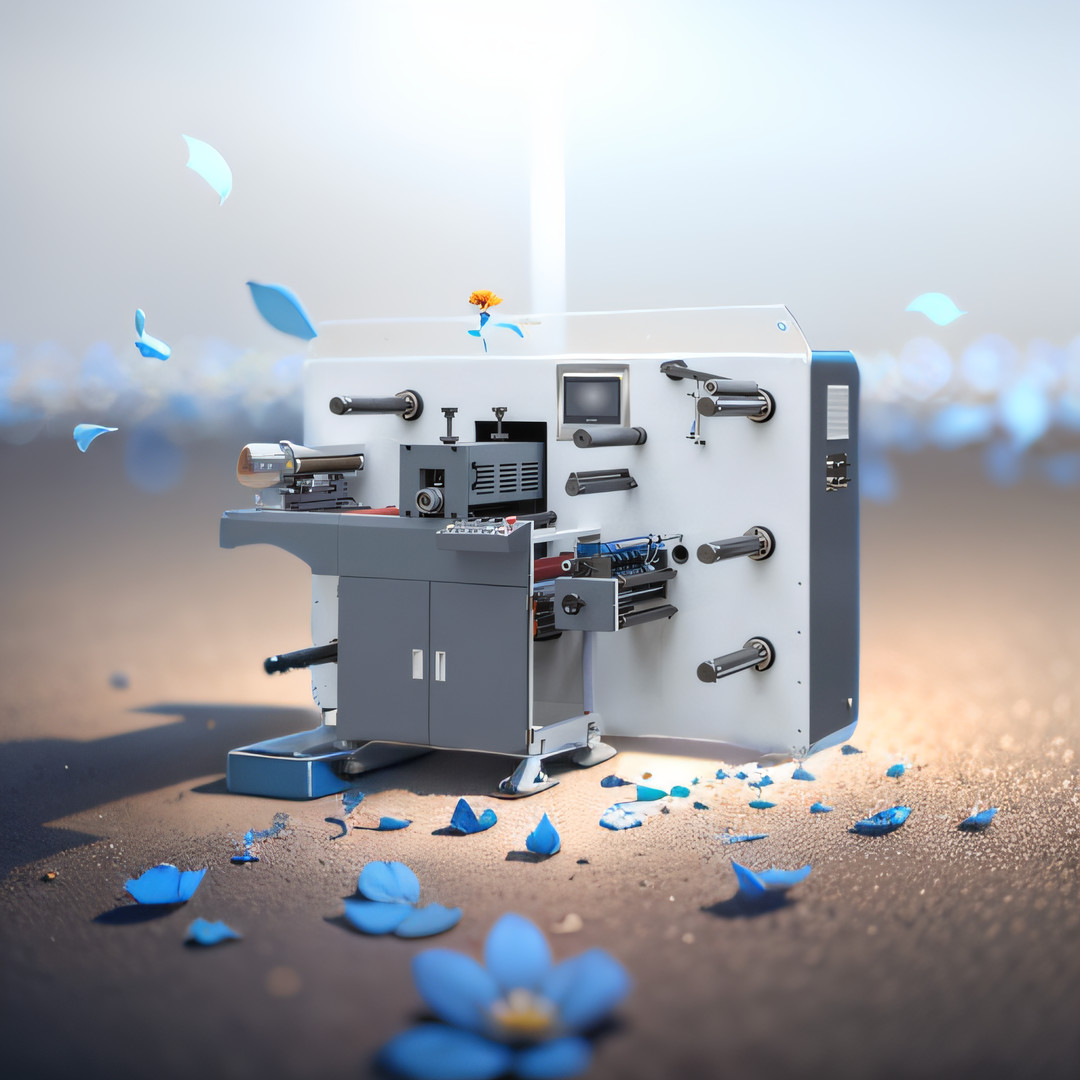

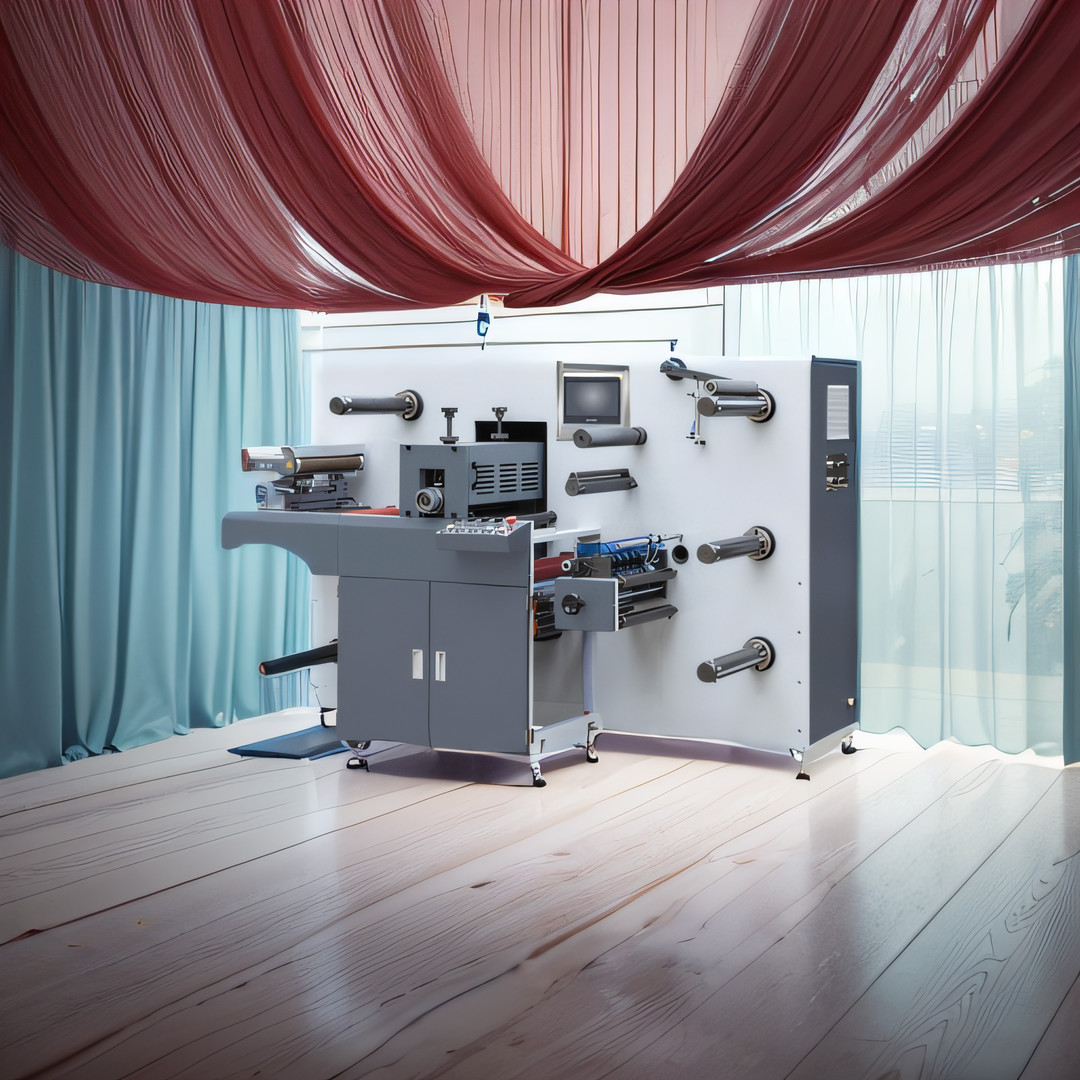

MQ-350YII Semi-rotary die cutting with slitting machine is a new product, it equipped with motion control system, and register sensor to arrange high accurate rotary die-cutting system. This machine is applicable to pre-printed labels. Unwinder, rotary die-cutting, slitting and rewinding can be finished in one process. It can run with semi-rotary mode as well as full rotary mode. With semi-rotary time, the machine doesn’t need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The machine was equiped with web guid to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.



2. Main Technical Parameters:



Slitting speed 120m/min
Die-cutting speed 60m/min (intermittent)
120m/min (full-rotary)
Max web width 320mm
Max unwinding diameter 650 mm
Max rewinding diameter 650 mm
Die cutting length 200mm-450mm (intermittent)
250mm-550mm (full rotary)
Overall diameter 2300* 1300* 1500mm
Machine weight 1000kgs
Voltage 380V, 3P
Power 12KW



3. Standard configuration:

  • One rotary die cutting station with waste rewinder shaft
  • One Lamination station with waste rewind for over-lamination film with liner
  • With 1pc 3’’ unwinding shaft with tension controller.
  • With 2pcs 3'' air shaft for rewind
  • With meter/number counter.
  • With one register sensor
  • With 8 pcs rotary knife.
  • Machine has blower fan to blow away the trimmed sides.
  • With auto web guiding

Support and Services:

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE Technical Support and Services

We provide technical support and services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

THERMAL BOND CASH REGISTER FAX POS ATM PAPER AND OTHER SMALL RIBBON ROLL SEMI-ROTARY DIE CUTTING TURRER SLITTER MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.
