| Product Name: | LOTTERY TICKET BANK CARD DECAL PRINTING OF CERAMIC GLASS AUTOMOBILE MOTORCYCLE FISHING POLE SPORTS PRODUCTION LINE AUTO | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

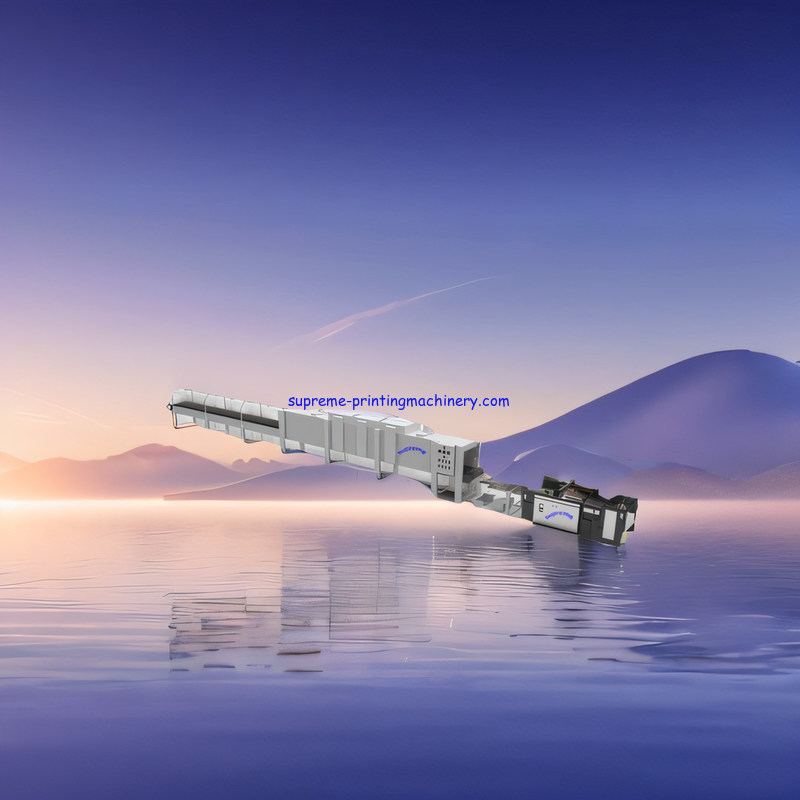

LOTTERY TICKET BANK CARD DECAL PRINTING OF CERAMIC GLASS AUTOMOBILE MOTORCYCLE FISHING POLE SPORTS PRODUCTION LINE AUTO
http://www.youtube.com/@labelturretrewindingmachinery
SW-720 780 1020 FULL-AUTO CYLINDER SCREEN PRESS
Application range:
Model SW-720/780/1020 full-auto cylinder screen press is a kind of automatic flat screen press with high
efficiency (more than duplation printing speed over the flat one), high quality (linear touch, more suitable for
spot printing), high precision (usually the precision of overprint is less than 0.10mm), it is suitable for sequence
printing in bulk of high precision screen productions. It is suitable for sequence printing in bulk of high precision
screen productions. It is suitable for 108~400g/m 2 materials, especially for paper productions (such as
cigarette case,. wine case, toiletry case, present case, brand, poster, other paper packing production and
special fake against materials etc),flower paper, soft plastic etc.
Main Characteristics:
1,Driven by frequency control of motor, the whole machine movement is controlled by PLC program logic
controller, optional and touched operation screen shows all functions and data which makes the operation
more convenient and simple.
2,Full-automatic inspect the malfunction with the whole process, stoppage and pressure-off automatic
when no paper or paper locked, so that decrease the waste of paper.
3,Perfect alarm system can show the workers to deal with the malfunction purposefully which make the
service more easily and quickly.
4,Except the motor ,the full set electron elements import, increase the stability of the wiring system and
decrease the difficulty of service ,inspect and measure.
5,Cast iron machine body machining minutely by Shanghai“machining center”, can ensure the precision of
the crucial elements, make the machine runs stably,lasting and quickly.
6,The machine assembles the back pick-up feeder and two-ply pile feeder without stoppage increase the
printing efficiency. Single or consecutive feeding can be changed freely.
7,The high precision and durable printing cylinder is made from stainless steel, the elasticity range of tooth-
like thing feeder is designed agilely, adjusted conveniently.
8,Paper collection can be overturned up to 90°which is in favor of cleaning and assemble and
unassembled; inching switch of half-tone can adjust the half-tone omni directionally.
9,It forms the full-automatic product line linked with the UV solidify machine,UV&IR dryer or SW series
screen drying machine and automatic delivery.
10,Offer the long ,perfect training and quickly,one-year service for free, ensure the customers master
the technology of screen printing to use the machine skilled.
Optional equipment or function:
| Equipment | SW-720 | SW-780 | SW-1020 | Remark | |
| 1 | Front pick-up feeder | □ | □ | □ | Standard: Rear pick-up feeder |
| 2 | Dust remove device | □ | □ | □ | |
| 3 | Anti-static device | □ | □ | □ | |
| 4 | Double sheet detector | □ | □ | ● | |
| 5 | Brush wheel and rubber wheel convey device | □ | □ | □ | |
| 6 | Conveying with vacuum | □ | □ | □ | |
| 7 | Pull/push convertible side lays | □ | □ | □ | |
| 8 | Side lays sensors | □ | □ | □ | |
| 9 |
Cylinder bulit-in front lay sensor (Gripper sensor) |
－ | － | － | |
| 10 | Small sheet conveying device | □ | □ | □ | Convey the sheet smaller than min. size |
| 11 | Squeegee printing pressure kept device | □ | □ | □ | |
| 12 | Ink dropping pan | － | － | － | |
| 13 | Screen frame pneumatic lock clamp | □ | □ | ● | |
| 14 | Thick sheet anti-rebound device | □ | □ | ● | |
| 15 | Delivery board lowering system | □ | □ | ● | |
| 16 | Automatic lubrication | ● | ● | ● | |
| 17 | Net frame taking out system | － | － | － | |
| 18 | Delivery bridge | ● | ● | ● | Delivery part |
| 19 | Touch screen with man machine interface | □ | □ | □ | |
| 20 | Safety light guard | □ | □ | □ | |
| 21 | BACKER vacuum pump | □ | □ | □ | two |
| 22 |
●Standard □optional －Not available
Note:Some of optional equipment or function increase additional expenditure.
Structure of each part and its function:
Feeder is composed of feeding head, feeding table, feeding board, motor for lifting feeding table and control panel. It is used to feed the sheets or others to be printed automatically, correctly and continuously into the printing part of the main machine.
The main part is called printing part, composed of feeding board, printing roller, printing, ink reclaiming blade, delivery table and some other control components. This part is the core of the whole machine, its main function is to print, and ensure the printing precision together with other elements, forward the sheets from the feeder onto printing roller, then output them, fulfill the full－auto printing.
Paper advancing holder is composed of stand and conveyor motor,conveyor belt. It is used to advance the printed sheets from the delivery table of the main part into drying machine or stacker.
Main technical Parameter:
| SW-1020 | SW-720 | SW-780 | |
| Max paper size | 1020×720㎜² | 720×520 | 780×540 |
| Min paper size | 560×350㎜² | 350×270 | 350×270 |
| Max printing area | 1020×700㎜² | 720×500 | 780×520 |
| Size of screen frame | 1280×1140㎜² | 880×880 | 940×940 |
| Paper weight | 120～400 g /㎡ | 108～400 | 108～400 |
| Paper margin | ≤15㎜ | ≤15 | ≤15 |
| Precision of overprint | ≤0.10㎜ | ≤0.10 | ≤0.10 |
| Pile height | 700㎜ | 700 | 700 |
| Printing speed | 1000-3000 pcs/h | 1000-3600 | 1000-3300 |
| Power | 3P 380V 11.09KW | 3P 380V 6.93 | 3P 380V 6.93 |
| Total weight | 4900㎏ | 3500 | 3800 |
| Overall dimension | 4600×2310×1520㎜³ | 4100×1810×1480 | 4200×1870×1480 |
YPHD-780III Wicket dryer
The application of this production line is mainly for decal printing of ceramic, glass, automobile
and motorcycle fishing pole and sports supplies; Meanwhile, it is also used for printing and drying
of scratch ink of lottery ticket, various banking card and package printing matter of paper and
plastic. Since selling in market, with its reliable performance, cost-effective, easy maintenance,
good service and support, win the vast number of users trust and praise
Full-automatic Cylinder Printing Press + SW Series Screen Drying Machine
Power of whole machine : about 38kw
Power of main part : 6.93kw(720/780)
Power of SW series screen drying machine : about 31kw( power of heating silk thread :9kw×3 groups, main
motor:1.5kw, blower :0.25kw×5, cooling blower : 0.12kw×7);
When the dryer used with the printing machine together, the power is offered by the printing machine and it is necessary to start the dryer motor.
Application :
Paper and plastic, such as general paper,transfer paper and so on . it meets the need of packing and
upholstering products such as paper cases,paper boxes and drumbeating pictures.
SW drying machine for screen-printing is a drying device for screen printing ink(pigment)operated
together with the screen printer. The product is mainly used in printing Industry, for example, porcelain
pattern, lottery ticket, and package, etc. Since coming onto the market, the product has won trust and
favorable comment from customers for its reliability, cheapness, maintainability and excellent after-sale
service.
| Model | YPHD-780Ⅲ | YPHD-1020Ⅲ | Remark |
| Overall | 1800x1730x2350mm | 13500x1900x2500mm | ※1 |
| (LxWxH ) | Soaking zone8000mm | Soaking zone8000mm | |
| Paper clip | 550x780mm | 750x1000mm | |
| Pass speed(Sheet/min) | 40 | 40 | Self function |
| Temperature | 50℃ | 50℃ | |
| Power | 31Kw | 31Kw | |
| Paper clip quantity | 1346 | 953 | 25.40 |
| Weight | 6.5T | 6.0T |
TB-1100T Screen Coating Machine
It's specialized in coating the emulsion for large size screen frame. The machine is full automatic and can make high precision screen without skillful technician. The application range is widely.
Main characteristic
1.The machine is controlled by PLC, through the touch screen, data of all function can be setted in advance, shows with numerical value, it's easy for operation. Can make the high precision screen without skillful technician.
2.Foot switch control the pressure clamp to load and unload the frame which is easy for holding the frame by hands.
3.The coating thickness can be controlled by setted the coating pressure and coating times (4 ~ 35μ)
4.It can coating front and back side separately or two sides at the same time, and the coating times for front and back sides can be adjusted independence.
5.The up and down speed of coating speed in two sides all can be adjusted stepless change.
6.Before finishing to coating, it can turn the angle of the scrape tank and leave the frame about 15mm, and no need to coating the edge of the screen;
7.Adopt the best scrape tank which ensure the emulsion can be coated in screen equally;
8.The bottom tank is stainless steel which avoid the emulsion dropping,conveniently clean and keep the machine clean; the coating head is deal with
9.It has the buzzer, when the coating is finished, it rings;
10.All pneumatic elements are from Japanese SMC, which make the machine run stably and low noise.
Main technical parameters:
| Model | TB-1100T |
| Max.frame size(mm) | 1200×1300 |
| Max.coating size(mm) | 1100×1150 |
| Screen frame thickness(mm) | 30 ~ 50 |
| Coating speed(mm/s) | 0 ~ 99 |
| Coating time in advance(time) | 1 ~ 20 |
| Total weight(Kg) | About 400 |
| Overall size(LxWxH)(mm) | 2100×620×2050 |
LW SERIES MECHANICAL TYPE NET PULLER
Characteristic:
1,The net puller collet and frame are made of aluminum alloy model materials, which ensures not to be distorted with the loading;
2,The collet is designed with the collet structure locked by itself, the fabric won’t slide and loose under the high tension;
3,The net acreage can be adjusted easily with the push and pull leader.
4,The net is fixed by pneumatically-driven, which making the tension more equality and more stability, and avoiding the fabric to be teared .
5,Manual net pulled and micro-adjusting are in favor of being controlled by the tension.
Main technical variables :
| Max frame size | 1200×1500mm | 1500*1500mm | 1500*1800mm |
| Work air pressure | 0.4-0.7mpa | ||
| Max tension | 40 N/cm2 | ||
LW-1215B Screen Net Puller
| Model | LW-1215B |
| Max. Frame Size | 1200x1500mm |
| Air Supply | 0.4-0.7mpa |
| Weight | 250kgs |
| Dimension(LxWxH) | 2000×880×1000mm |
Remarks: Special specification is available.
Vacuum Exposuring Machine
Characteristis:
1,It is fit for printing circuit board, silk printing etc such high precision lines,mesh spot and high density mesh reticle screen exposure.
2,The exact calculative light flux control device ensure the veracity of exposure and avoid exposal bug such as mesh reticle, lack of exposure caused by lack of voltage, lamp aging, lamp start up instability and so on.
3,Full automatic model, vacuum, exposure, exhaust are finished automatically once, operation conveniently.
4,The best angle import material glisten cover ensure the illumination intensity equality.
5,Microcomputer control many groups memory mode for transferring, using convenienty.
Main Technical Variables
SB-1213SII Screen Print Exposure Machine
| Model | SB-1213SII |
| Max. Frame Dimension | 1000×1200mm |
| Air Exhaust Speed | 1Liter/second |
| Vacuum degree | 0-600mm HG |
| Vaccum Degree | 4kw(cold air UV lamp) |
| Weight | 300kgs |
| Dimension(LxWxH) | 1650×1600×1350mm |
Remarks: Special specification is available.
Horizontal Type Drying Container
Main technical variables
| Model | HB-1012H | HB-1214H |
| Max. Working Distance | 1000×1200mm | 1200×1400mm |
| Exposure Lamp | 0.7kw×6pcs | 0.7kw×6pcs |
| Temperature Range | Normal - 50℃ | Normal - 50℃ |
| Weight | 200kgs | 220kg |
| Dimension(LxWxH) | 1430×1200×1300mm | 1630×1400×1300mm |
Remarks: Special specification is available.
MD-120MII Automatic Scraper and Muller
Main Technical Variables
| Model | MD-120MII |
| Max.work distance | 1200MM |
| Power | 1.0KW |
| Weight | 290KG |
| overall dimension | 1725*550*1250MM |
1.Melaleuca frame
Specification:700*1000mm*50 layer
Mark:special specification should be made to your order
2.Aluminum screen frame
Sectional dimensions of the aluminium tube
| Item | Size |
| 1 | 25*25*1.0mm |
| 2 | 25*38*1.0mm |
| 3 | 25*38*1.5mm |
| 4 | 25*38*1.5mm |
| 5 | 30*60*1.8mm |
| 6 | 32*42*2.0mm |
Mark:special specification should be made to your order
