| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | SW-5070B |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20set/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | HORIZONTAL LIFT MICROCOMPUTER CONTROLLED SCREEN PRINTING MACHINE DECAL PAPER PET FILM WATER HEAT TRANSFER MANIPULATOR | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

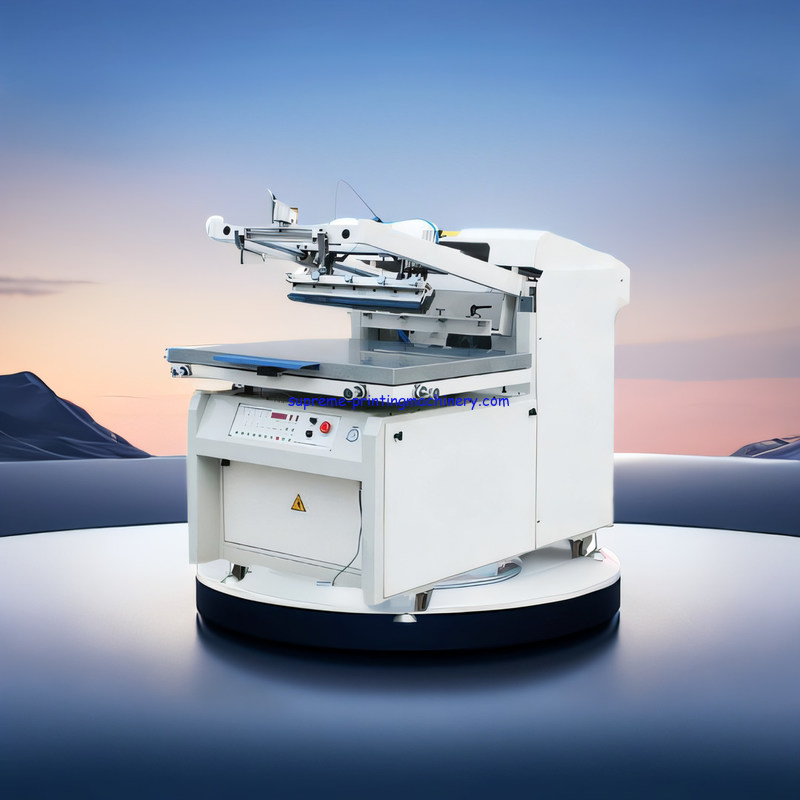

HORIZONTAL LIFT MICROCOMPUTER CONTROLLED SCREEN PRINTING MACHINE DECAL PAPER PET FILM WATER HEAT TRANSFER MANIPULATOR
http://www.youtube.com/@labelturretrewindingmachinery
This machine has the advantages of perfect design and appearance, convenient and flexible operating system, high-speed and stable printing, and reasonable price; The upper and down straight arms are lifted and down, and the printing method is left and right, with complete functions, simple operation, and high overprinting accuracy; Suitable for screen printing of hard objects such as advertising, organic glass, iron sheet, circuit boards, film switches, stickers, cards, etc.
Performance Introduction:
1. Control system: microcomputer computer version with complete LCD display and easy operation mode
2. Big arm assembly: It adopts a special alloy aluminum profile beam for silk screen printing machine combined with high-precision linear guide rail.
3. Lifting power: electric/variable frequency control reciprocating lifting and braking
4. Printing transmission: electric/variable frequency control for reciprocating printing ink return and smooth speed adjustment.
5. Printing blade: Double pneumatic control for scraper and ink blade, independent pressure adjustment for single blade; Secondary pneumatic lifting blade for easy tool replacement and disassembly of screen plates.
6. Printing platform: 1.2mm diameter vacuum platform that automatically and firmly adsorbs the substrate. The platform is equipped with directional fine adjustment and manual lifting of the overall four pillars, making it easy to adjust and control pressure.
7. Safety protection: Press the front side of the platform, step on it, and any braking platform will rise and return to its original position to ensure safe operation (photoelectric braking can be installed)
| Machine model | SW-5070B |
| Printing platform size | 600mm * 900mm |
| Maximum screen size | 750mm * 1100mm |
| Minimum screen size | Unlimited |
| Maximum printing size | 500mm * 700mm |
| Thickness of substrate | 0.1-50mm |
| Printing speed | 6-20 times/minute |
| Working air pressure | 5-8/par |
| Power supply | 380v/50Hz |
| Total power | 2.3kw |
| Machine weight | approximately 560kg |
| Machine dimensions | 1300 * 1120 * 1700mm |
We provide technical support and services for HORIZONTAL LIFT MICROCOMPUTER CONTROLLED SCREEN PRINTING MACHINE DECAL PAPER PET FILM WATER HEAT TRANSFER MANIPULATOR. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for HORIZONTAL LIFT MICROCOMPUTER CONTROLLED SCREEN PRINTING MACHINE DECAL PAPER PET FILM WATER HEAT TRANSFER MANIPULATOR. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for HORIZONTAL LIFT MICROCOMPUTER CONTROLLED SCREEN PRINTING MACHINE DECAL PAPER PET FILM WATER HEAT TRANSFER MANIPULATOR. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
HORIZONTAL LIFT MICROCOMPUTER CONTROLLED SCREEN PRINTING MACHINE DECAL PAPER PET FILM WATER HEAT TRANSFER MANIPULATOR is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
