| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | -ZY350 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 45-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
HM-ZY350/450/570

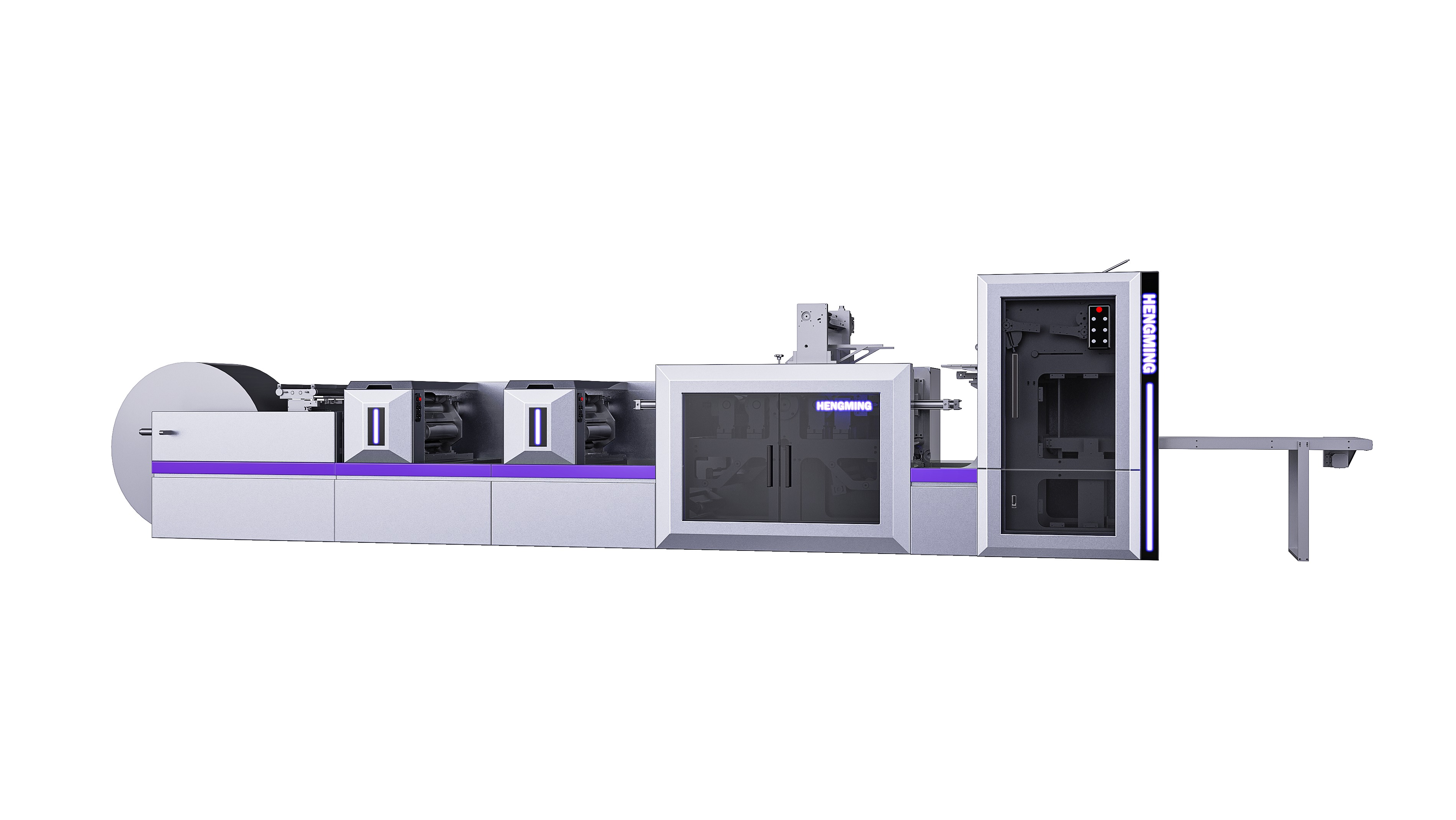

High speed flexo press drawer type rotary die cutting and folding machine
Main features:
1: die cutting station with the separated high precision body which much different from the traditional bottom roller insert to the body 2: die cutting adopt 3 roller structure to reduce the dancing of the magnetic cylinder, can realize the 35g bottom paper at 120m/min high speed with stable die cutting
3: The unwinding adopts the hook arm loading and unloading mode, the maximum unwinding diameter at 1200mm, save labor
4: The whole machine adopts full servo motion control, accurately cutting the perforation lines, greatly enhancing the stability and neatness of the folding process. The folding process can be as fast and stable as the die-cutting process
Parameter configuration:
| Model | HM-ZY350 | HM-ZY450 | HM-ZY570 |
| Max unwinding diameter | 1200mm | 1200mm | 1200mm |
| Max paper feeding width | 350mm | 450mm | 570mm |
| Max die cutting speed | 80-150m/min | 80-150m/min | 80-150m/min |
| Max folding speed | 80-150m/min | 80-150m/min | 80-150m/min |
| The folding length range | 100-400mm | 100-400mm | 100-400 |
| Die cutting unit size | 3600 × 1480 × 1600 | 3600 × 1580 × 1600 | 3600 × 1700 × 1600 |
| Weight | 3600KG | 3900KG | 4200KG |
| Folding unit size | 2700 × 1380 × 1900 | 2700 × 1480 × 1900 | 2700 × 1600 × 1900 |
| Weight | 1200KG | 1300KG | 1400KG |
| Power supply | 380V 50HZ 3P | 380V 50HZ 3P | 380V 50HZ 3P |
| Die cutting unit power | 11KW | 13KW | 13KW |
