| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FQ-1300L |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | PAPER FILM FOIL ROLLS CELLOPHANE PET OPP CPP PE PS PVC COMPUTER ANTI-COUNTERFEITING LABELS ETC VERTICAL SLITTING MACHINE | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

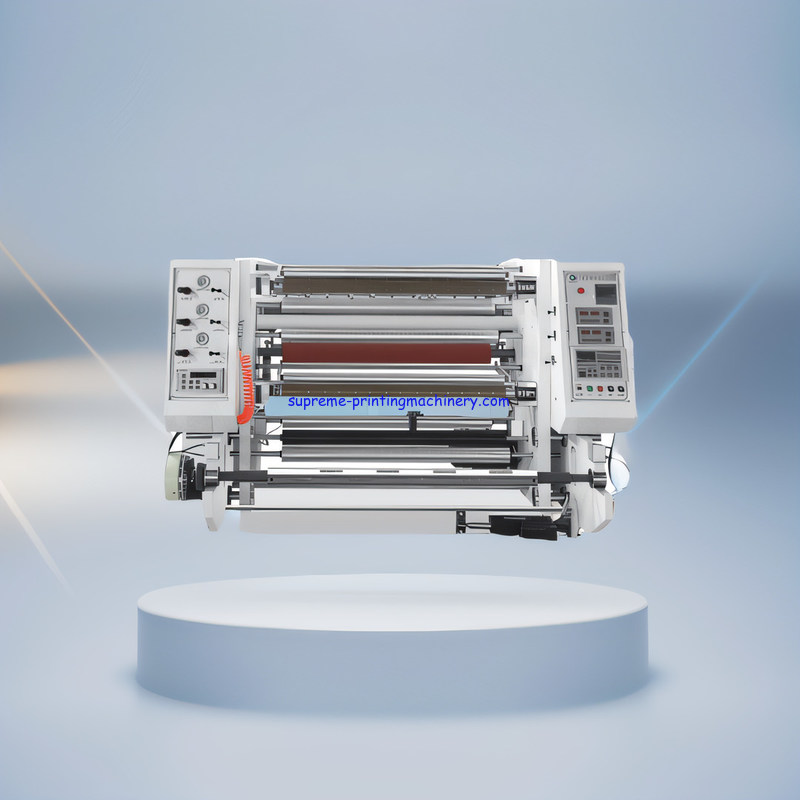

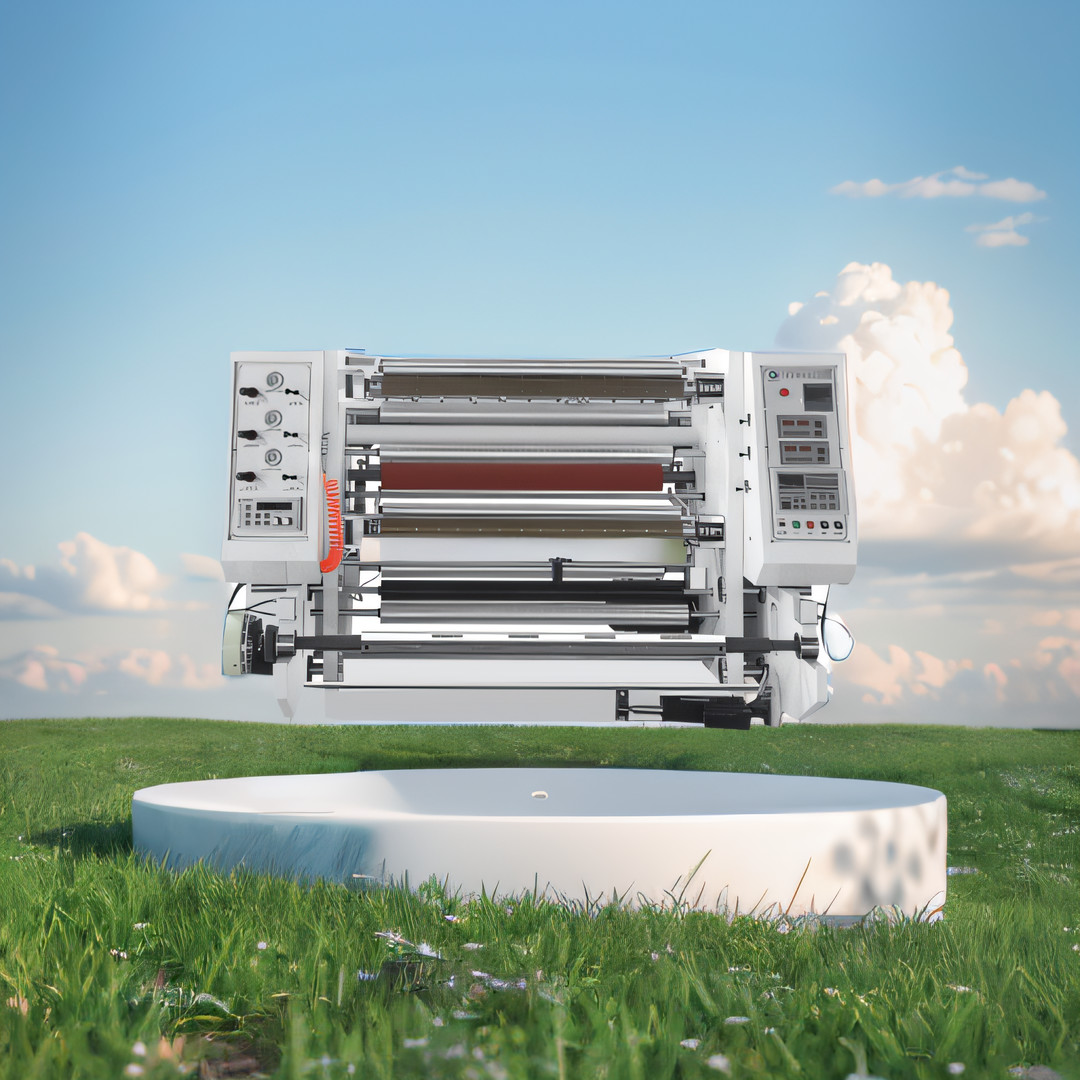

PAPER FILM FOIL ROLLS CELLOPHANE PET OPP CPP PE PS PVC COMPUTER ANTI-COUNTERFEITING LABELS ETC VERTICAL SLITTING MACHINE
http://www.youtube.com/@labelturretrewindingmachinery
Optional:
1:Touch screen with PLC auto tension control
2:Slip shaft for rewinding
This machine is suitable for slitting cellophane, PET, OPP, CPP, PE, PS, PVC and computer anti-counterfeiting labels, electronic computers, optical materials, film rolls, foil rolls, various paper rolls, film rolls and various materials after printing.
Features:
1: Host part
1: The main machine structure of the equipment adopts Iron-casting parts and steel plate structure (casting parts are secondary processed and finalized)
2: The spindle drive roller is made of rubber roller. After dynamic balance processing
3: The main pressure roller of the main shaft transmission is a rubber roller (Nitrile rubber)
4: The guide roller is metal (aluminum alloy)
5: The transmission mode of main machine and rewinding material is synchronous wheel and synchronous belt transmission(optional)
2: Unwinding part
1: The unwinding structure is a one-piece unwinding rack
2: Install a movable support, the moving device is a one-piece pusher
3: Equipped with 1 set of deviation adjustment device, which can be fine-tuned left and right, front and back through the hand wheel
4: The unwinding tension controlled by magnetic brake
5: The web guide adopts the Chinese brand photoelectric to achieve the effect of following the side and the line of the material
3. Rewinding part
1: The rewinding shaft is equipped with 2 air shafts, and the tension is controlled by magnetic clutch
2: The locking method adopts pneumatic control
3: Winding tension is controlled by magnetic clutch
4: Winding pressure roller can be customized according to customer requirements
5: The cutter adopts pneumatic control, equipped with 10 cutter holders, manual adjustment (10 flat knives)
6: Equipped with waste blowing device
4. Electronics part
1: Main inverter adopts Delta Taiwan 1 pc 4kw
2: Main Motor 4KW China brand 1 set
3:. Inverter analog control, synchronous motor drive, photoelectric control
4: PLC is used to achieve precise and stable control functions. Conversational parameter setting environment, no complicated settings can be started: the user only needs to input diameter and speed of the raw material before starting the machine, and the next work is automatically calculated by the computer (optional)
The main technical parameters
| Material width | 1100/1300mm/1600mm |
| Material diameter | 600mm |
| Rewinding diameter | 450mm |
| Paper core inch | 3’’ |
| Slitting speed | 10-200 m/min |
| precision | ≤0.2mm |
| Mini width | 30mm |
| Total power | 6kw |
| Machine weight | 3500kg |
| Machine size | 1200mm*2400mm×1370mm |
Random Accessories
| 01 | Allen wrench | 1 | 05 | Oil gun | 1 |
| 02 | Adjustable wrench | 1 | 06 | Air gun | 1 |
| 03 | "One" screwdriver | 1 | 07 | Gas mouth | 2 |
| 04 | "Ten" screwdriver | 1 | 08 | Operating Instructions | 1 |
We provide technical support and services for PAPER FILM FOIL ROLLS CELLOPHANE PET OPP CPP PE PS PVC COMPUTER ANTI-COUNTERFEITING LABELS ETC VERTICAL SLITTING MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for PAPER FILM FOIL ROLLS CELLOPHANE PET OPP CPP PE PS PVC COMPUTER ANTI-COUNTERFEITING LABELS ETC VERTICAL SLITTING MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for PAPER FILM FOIL ROLLS CELLOPHANE PET OPP CPP PE PS PVC COMPUTER ANTI-COUNTERFEITING LABELS ETC VERTICAL SLITTING MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
PAPER FILM FOIL ROLLS CELLOPHANE PET OPP CPP PE PS PVC COMPUTER ANTI-COUNTERFEITING LABELS ETC VERTICAL SLITTING MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
