| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | SW-720 780 1020 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | FULLAUTO CYLINDER SCREEN PRESS AUTOMATIC FLAT HIGH EFFICIENCY QUALITY PRECISION 108~400G DECAL PAPER Cigarette Wine Case | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
FULLAUTO CYLINDER SCREEN PRESS AUTOMATIC FLAT HIGH EFFICIENCY QUALITY PRECISION 108~400G DECAL PAPER cigarette wine case
http://www.youtube.com/@labelturretrewindingmachinery

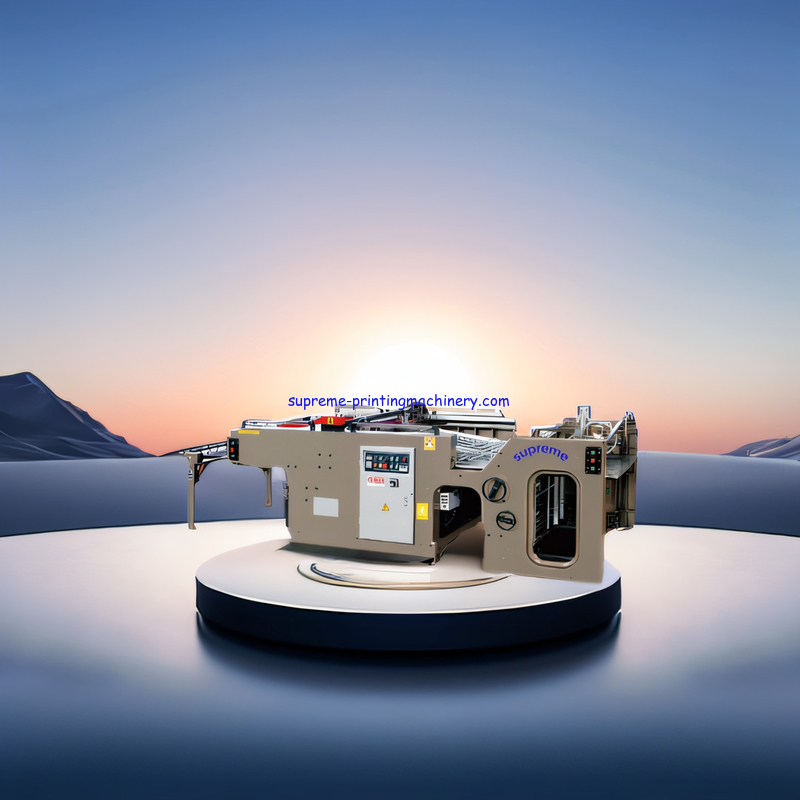

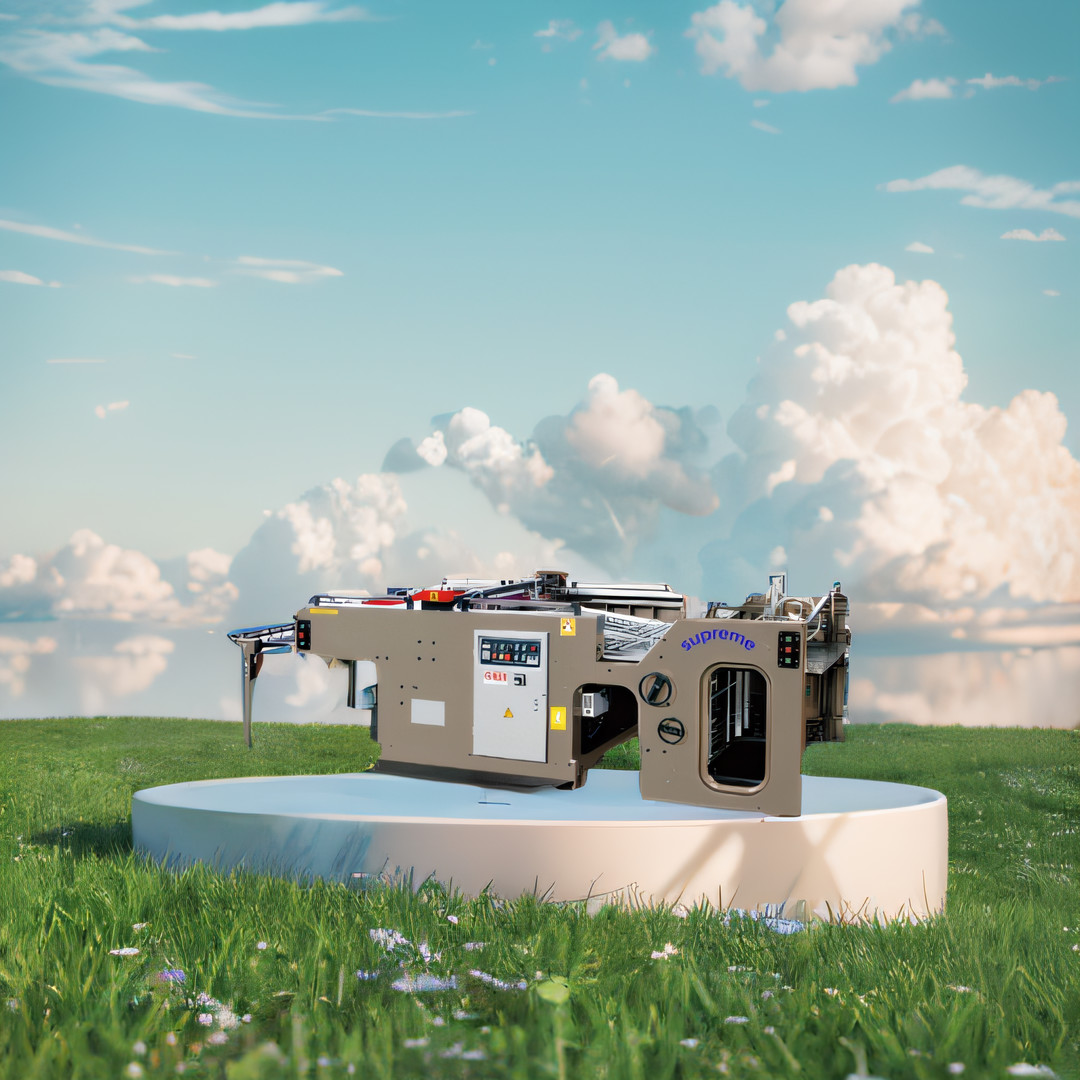

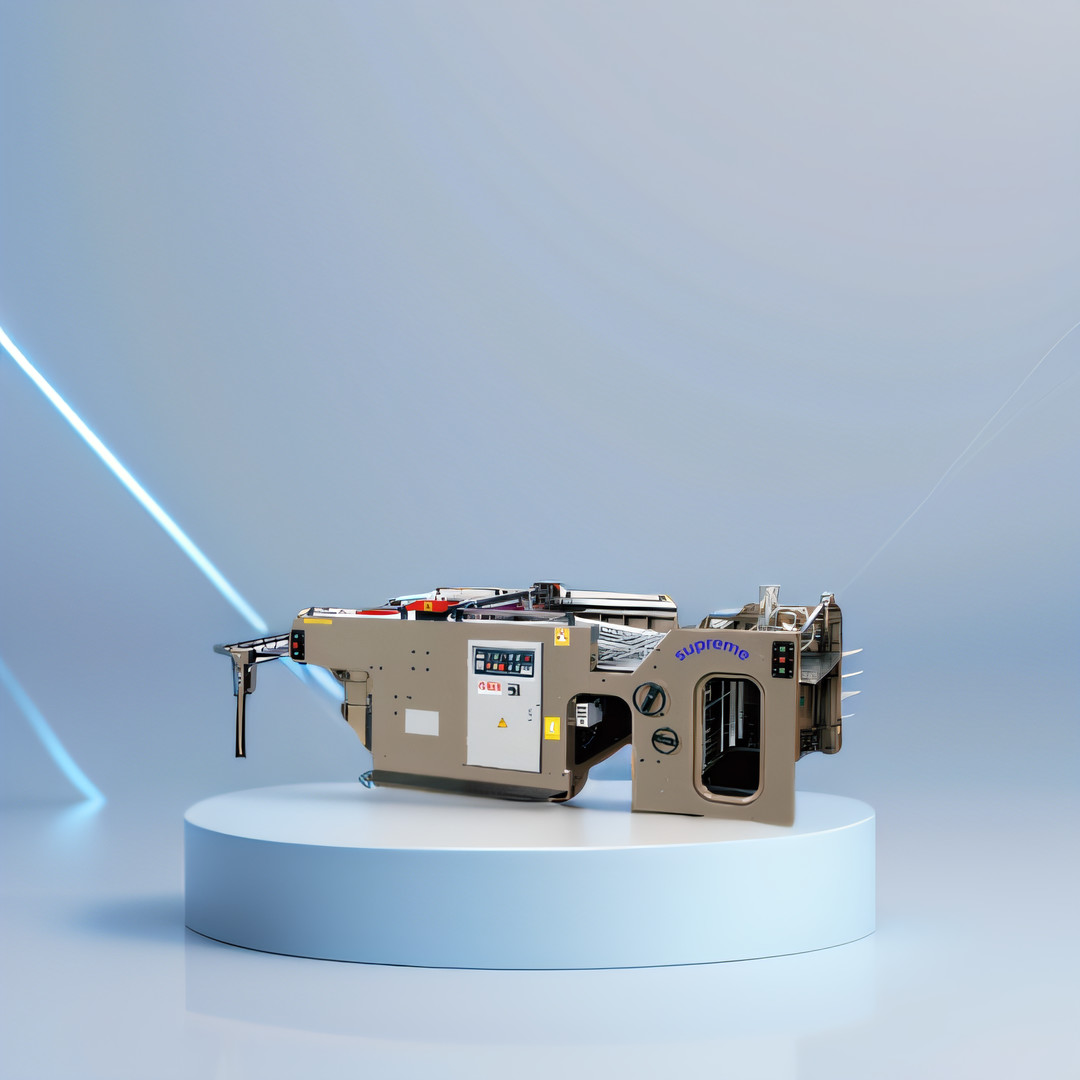

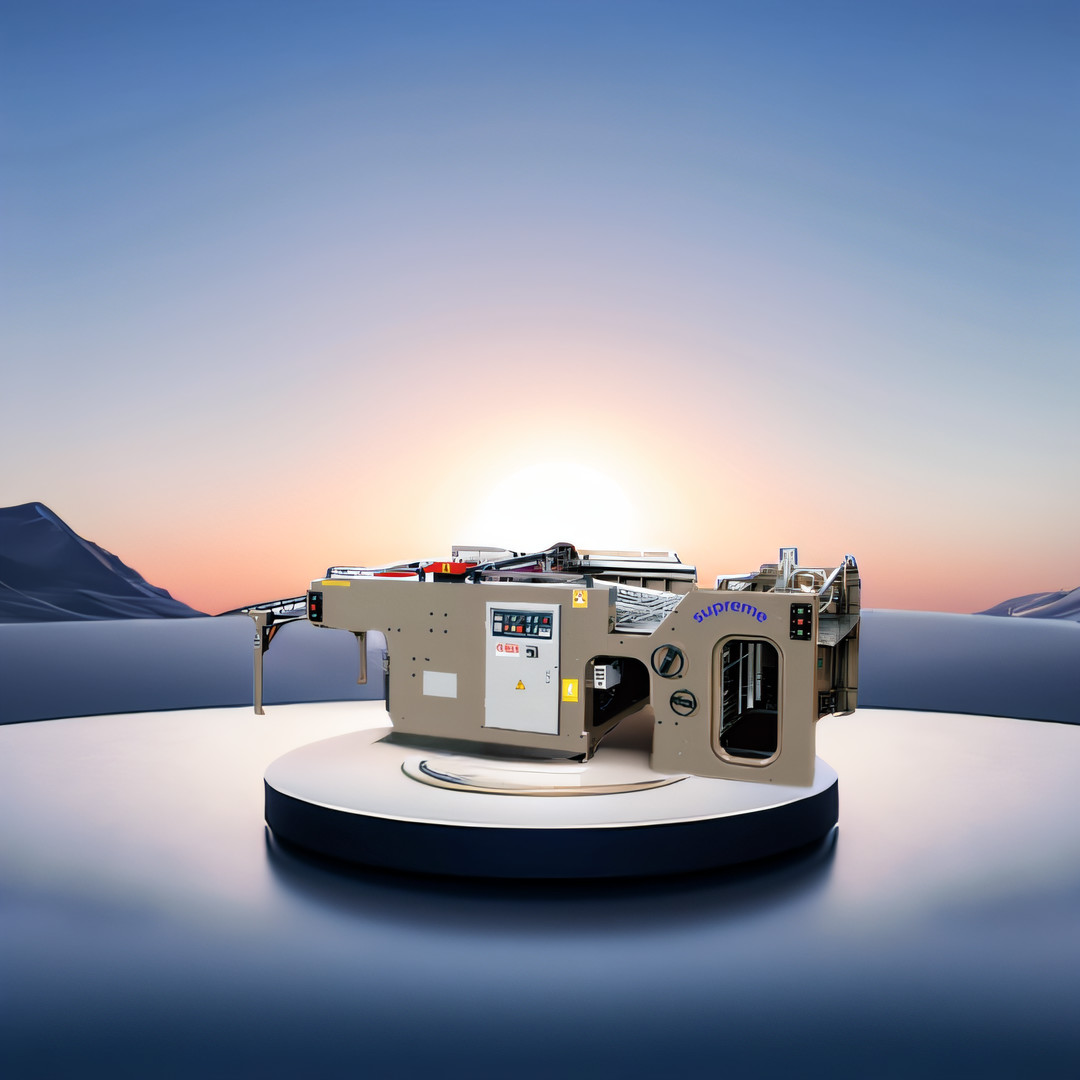

SW-720 780 1020 FULL-AUTO CYLINDER SCREEN PRESS
Application range:
Model SW-720/780/1020 full-auto cylinder screen press is a kind of automatic flat screen press with high
efficiency (more than duplation printing speed over the flat one), high quality (linear touch, more suitable for
spot printing), high precision (usually the precision of overprint is less than 0.10mm), it is suitable for sequence
printing in bulk of high precision screen productions. It is suitable for sequence printing in bulk of high precision
screen productions. It is suitable for 108~400g/m 2 materials, especially for paper productions (such as
cigarette case,. wine case, toiletry case, present case, brand, poster, other paper packing production and
special fake against materials etc),flower paper, soft plastic etc.
Main Characteristics:
1,Driven by frequency control of motor, the whole machine movement is controlled by PLC program logic
controller, optional and touched operation screen shows all functions and data which makes the operation
more convenient and simple.
2,Full-automatic inspect the malfunction with the whole process, stoppage and pressure-off automatic
when no paper or paper locked, so that decrease the waste of paper.
3,Perfect alarm system can show the workers to deal with the malfunction purposefully which make the
service more easily and quickly.
4,Except the motor ,the full set electron elements import, increase the stability of the wiring system and
decrease the difficulty of service ,inspect and measure.
5,Cast iron machine body machining minutely by Shanghai“machining center”, can ensure the precision of
the crucial elements, make the machine runs stably,lasting and quickly.
6,The machine assembles the back pick-up feeder and two-ply pile feeder without stoppage increase the
printing efficiency. Single or consecutive feeding can be changed freely.
7,The high precision and durable printing cylinder is made from stainless steel, the elasticity range of tooth-
like thing feeder is designed agilely, adjusted conveniently.
8,Paper collection can be overturned up to 90°which is in favor of cleaning and assemble and
unassembled; inching switch of half-tone can adjust the half-tone omni directionally.
9,It forms the full-automatic product line linked with the UV solidify machine,UV&IR dryer or SW series
screen drying machine and automatic delivery.
10,Offer the long ,perfect training and quickly,one-year service for free, ensure the customers master
the technology of screen printing to use the machine skilled.
Optional equipment or function:
| Equipment | SW-720 | SW-780 | SW-1020 | Remark | |
| 1 | Front pick-up feeder | □ | □ | □ | Standard: Rear pick-up feeder |
| 2 | Dust remove device | □ | □ | □ | |
| 3 | Anti-static device | □ | □ | □ | |
| 4 | Double sheet detector | □ | □ | ● | |
| 5 | Brush wheel and rubber wheel convey device | □ | □ | □ | |
| 6 | Conveying with vacuum | □ | □ | □ | |
| 7 | Pull/push convertible side lays | □ | □ | □ | |
| 8 | Side lays sensors | □ | □ | □ | |
| 9 |
Cylinder bulit-in front lay sensor (Gripper sensor) |
－ | － | － | |
| 10 | Small sheet conveying device | □ | □ | □ | Convey the sheet smaller than min. size |
| 11 | Squeegee printing pressure kept device | □ | □ | □ | |
| 12 | Ink dropping pan | － | － | － | |
| 13 | Screen frame pneumatic lock clamp | □ | □ | ● | |
| 14 | Thick sheet anti-rebound device | □ | □ | ● | |
| 15 | Delivery board lowering system | □ | □ | ● | |
| 16 | Automatic lubrication | ● | ● | ● | |
| 17 | Net frame taking out system | － | － | － | |
| 18 | Delivery bridge | ● | ● | ● | Delivery part |
| 19 | Touch screen with man machine interface | □ | □ | □ | |
| 20 | Safety light guard | □ | □ | □ | |
| 21 | BACKER vacuum pump | □ | □ | □ | two |
| 22 |
●Standard □optional －Not available
Note:Some of optional equipment or function increase additional expenditure.
Structure of each part and its function:
Feeder is composed of feeding head, feeding table, feeding board, motor for lifting feeding table and control panel. It is used to feed the sheets or others to be printed automatically, correctly and continuously into the printing part of the main machine.
The main part is called printing part, composed of feeding board, printing roller, printing, ink reclaiming blade, delivery table and some other control components. This part is the core of the whole machine, its main function is to print, and ensure the printing precision together with other elements, forward the sheets from the feeder onto printing roller, then output them, fulfill the full－auto printing.
Paper advancing holder is composed of stand and conveyor motor,conveyor belt. It is used to advance the printed sheets from the delivery table of the main part into drying machine or stacker.
Main technical Parameter:
| SW-1020 | SW-720 | SW-780 | |
| Max paper size | 1020×720㎜² | 720×520 | 780×540 |
| Min paper size | 560×350㎜² | 350×270 | 350×270 |
| Max printing area | 1020×700㎜² | 720×500 | 780×520 |
| Size of screen frame | 1280×1140㎜² | 880×880 | 940×940 |
| Paper weight | 120～400 g /㎡ | 108～400 | 108～400 |
| Paper margin | ≤15㎜ | ≤15 | ≤15 |
| Precision of overprint | ≤0.10㎜ | ≤0.10 | ≤0.10 |
| Pile height | 700㎜ | 700 | 700 |
| Printing speed | 1000-3000 pcs/h | 1000-3600 | 1000-3300 |
| Power | 3P 380V 11.09KW | 3P 380V 6.93 | 3P 380V 6.93 |
| Total weight | 4900㎏ | 3500 | 3800 |
| Overall dimension | 4600×2310×1520㎜³ | 4100×1810×1480 | 4200×1870×1480 |
We provide technical support and services for FULLAUTO CYLINDER SCREEN PRESS AUTOMATIC FLAT HIGH EFFICIENCY QUALITY PRECISION 108~400G DECAL PAPER cigarette wine case. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for FULLAUTO CYLINDER SCREEN PRESS AUTOMATIC FLAT HIGH EFFICIENCY QUALITY PRECISION 108~400G DECAL PAPER cigarette wine case. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for FULLAUTO CYLINDER SCREEN PRESS AUTOMATIC FLAT HIGH EFFICIENCY QUALITY PRECISION 108~400G DECAL PAPER cigarette wine case. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
FULLAUTO CYLINDER SCREEN PRESS AUTOMATIC FLAT HIGH EFFICIENCY QUALITY PRECISION 108~400G DECAL PAPER cigarette wine case is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
