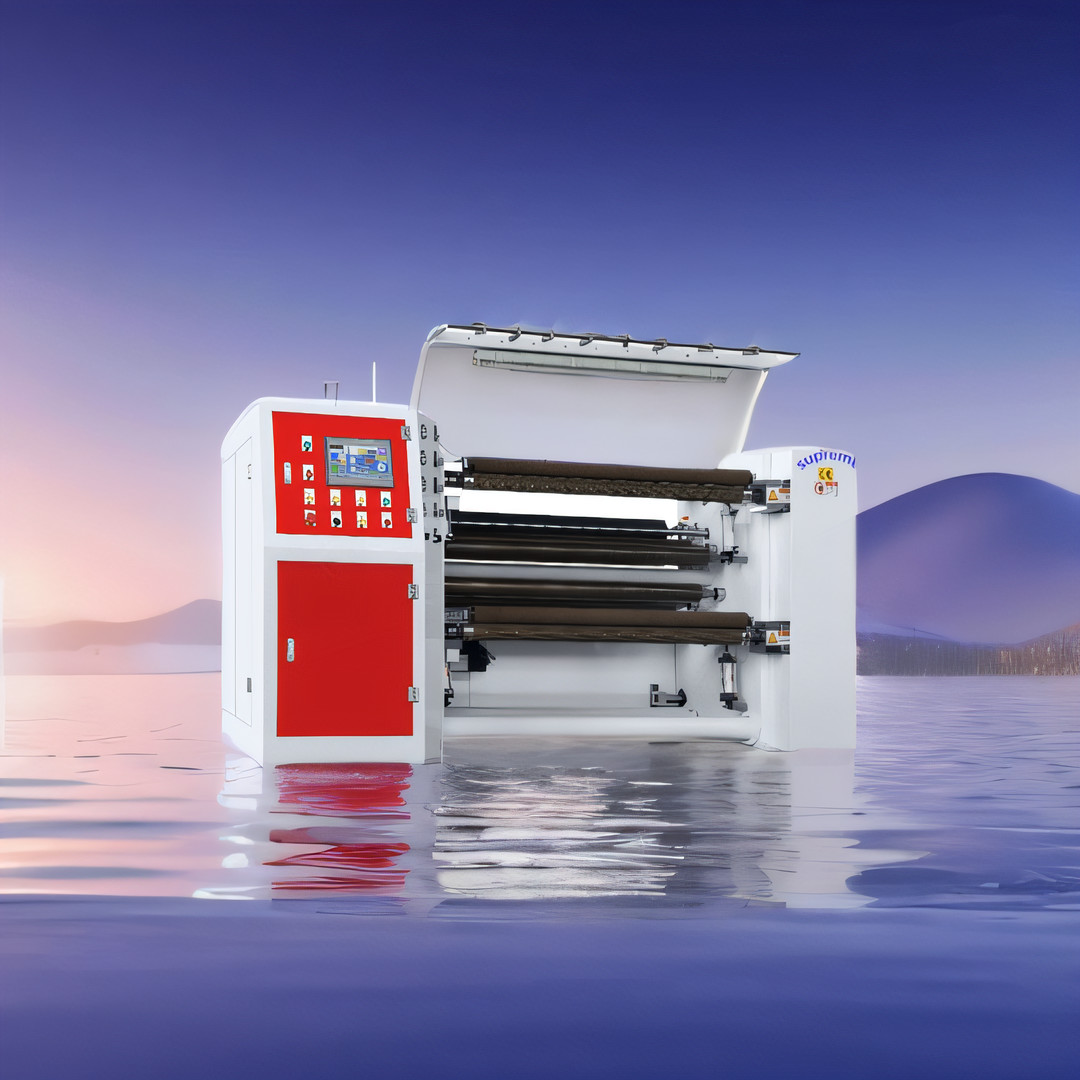

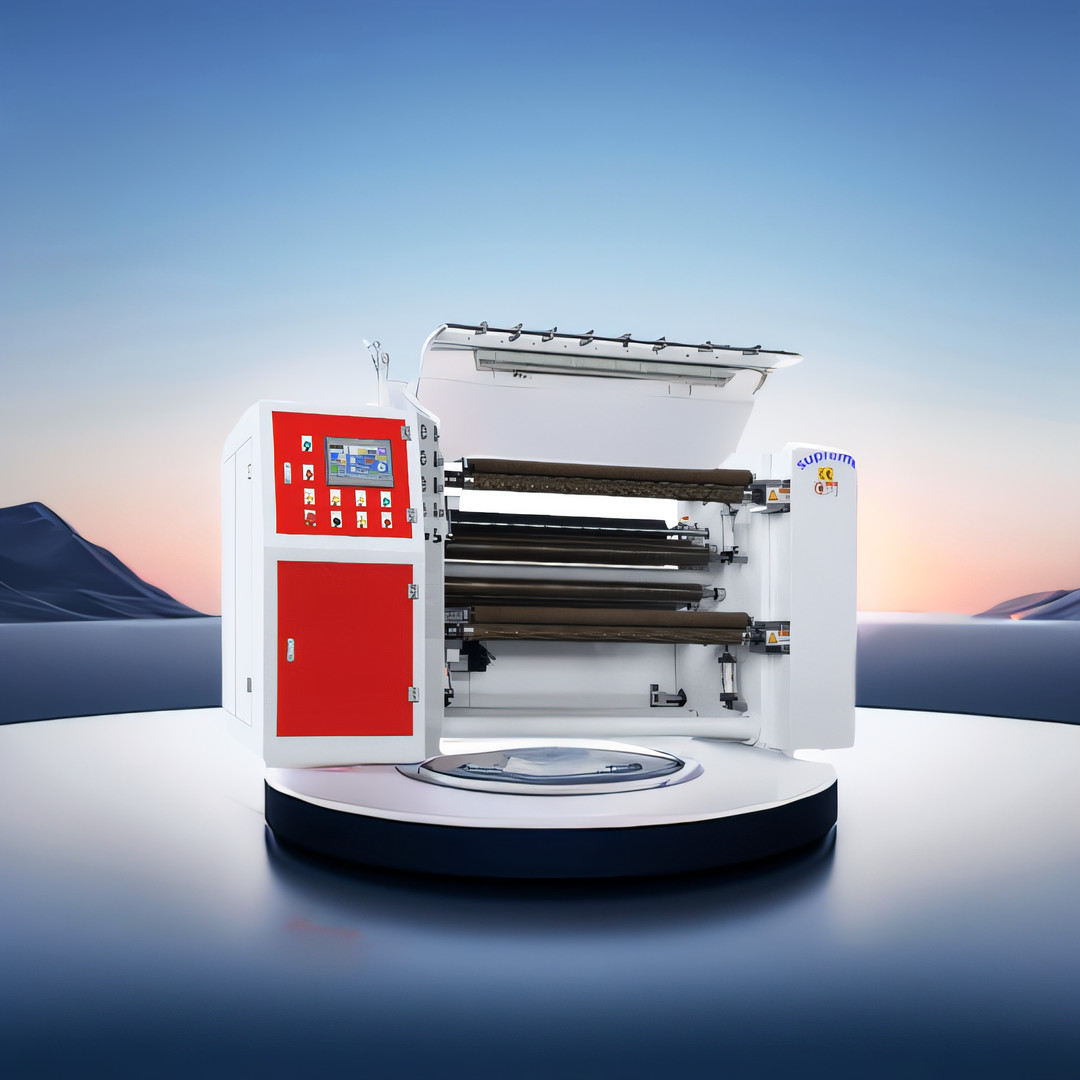

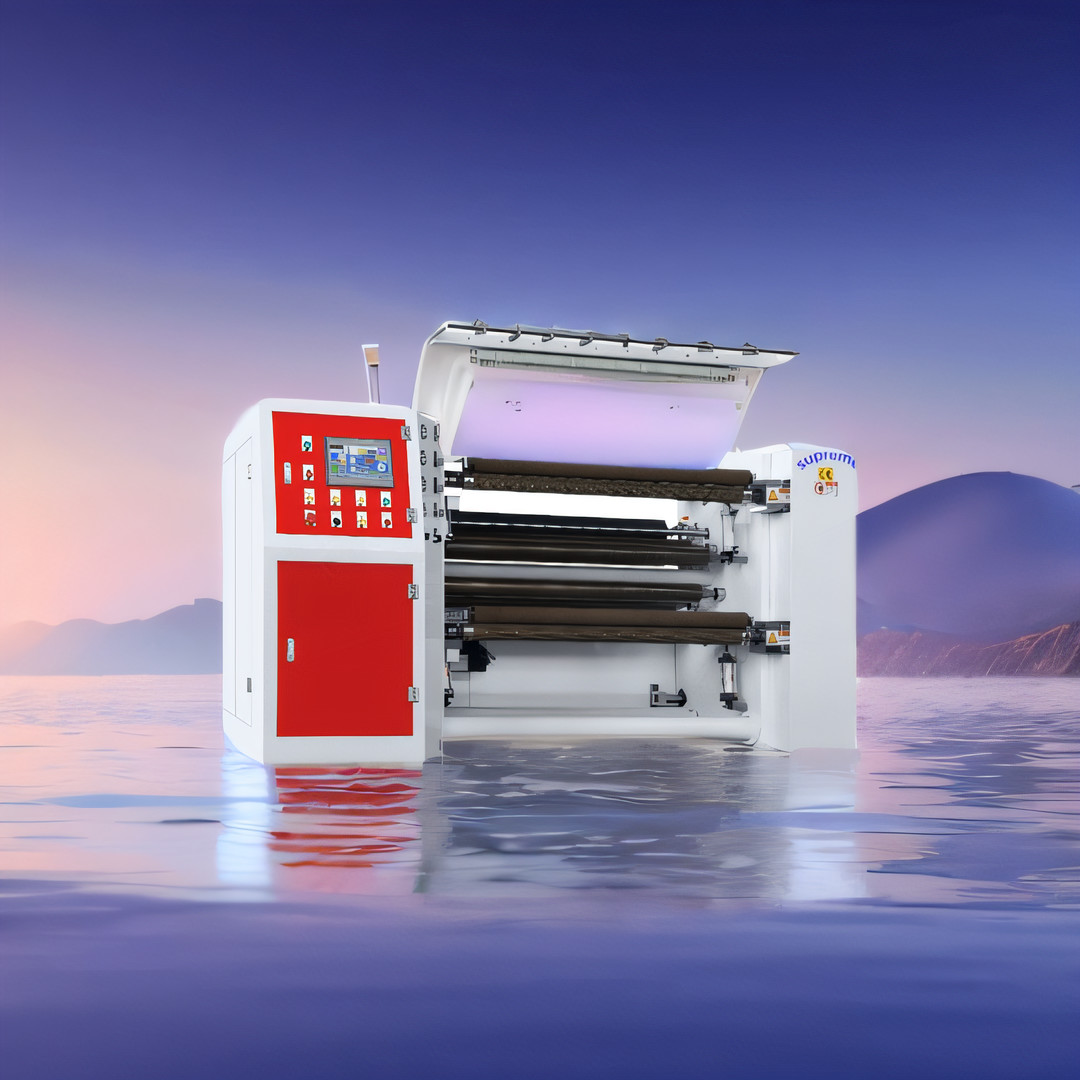

300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS

300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS

http://www.youtube.com/@labelturretrewindingmachinery

Optional:

1:slip shaft for rewinding

2:3 motor drive

This machine is suitable for slitting cellophane, PET, OPP, CPP, PE, PS, PVC and computer anti-counterfeiting labels, electronic computers, optical materials, film rolls, foil rolls, various paper rolls, film rolls and various materials after printing.
Features:

1: Host part

1: The main machine structure of the equipment adopts steel parts and steel plate structure (steel parts are secondary processed and finalized)

2: The spindle drive roller is made of seamless steel pipe. After tempering, surface hardening, plating, and dynamic balance processing

3: The main pressure roller of the main shaft transmission is a rubber roller (Nitrile rubber)

4: The guide roller is metal (aluminum alloy) and rubber (nitrile rubber)

5: The transmission mode of main machine and rewinding material is synchronous wheel and synchronous belt transmission

2: Unwinding part

1: The unwinding structure is a one-piece unwinding rack

2: Install a movable support, the moving device is a linear guide

3: The unwinding adopts shaft less air pressure lifting, which effectively saves labor and is easy to operate

4: Equipped with 1 set of deviation adjustment device, which can be fine-tuned left and right, front and back through the hand wheel

5: The unwinding tension controlled by magnetic brake

6: The web guide adopts the bat technology configuration system to achieve the effect of following the side and the line of the material

3. Rewinding part

1: The rewinding shaft is equipped with 2 slip type rotating shafts(optional), and the tension is controlled by servo motors(optional)

2: The locking method adopts pneumatic control

3: Winding tension is controlled by servo motor(optional)

4: Winding pressure roller can be customized according to customer requirements, winding pressure roller rubber roller two-way flattening line roller

5: The cutter adopts pneumatic control, equipped with 10 cutter holders, manual pneumatic (10 flat knives)

6: Equipped with waste blowing device

4. 1.

1: Main inverter :servo motor to control vector frequency inverter 1 piece Taiwan Delta 4KW

2: Main motor: servo motor Danma 4KW + air cooling

3: Rewinding inverter :servo motor control vector frequency inverter Taiwan Delta 4kw 1 piece

4: Rewinding motor: servo motor Danma 4KW 1 set + air cooling

5: EPC adopts analog control, imported DC motor drive, CCD wave photoelectric control,

6: Imported PLC Siemens is used to achieve precise and stable control functions. The true color touch screen makes the image display simple and beautiful. Conversational parameter setting environment, no complicated settings can be started: the user only needs to input the thickness, width, density, diameter and speed of the raw material before starting the machine, and the next work is automatically calculated by the computer

4.2

1: The unwinding method adopts an independent unwinding rack. According to the independent feeding, the two-direction automatic clamping function and the automatic up and down lifting function are used.

The main technical parameters

Random Accessories

Support and Services:

We provide technical support and services for 300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for 300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for 300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Minimum Order Quantity of 300M/M PLC CONTROLL HIGH SPEED VERTICAL SLITTING MACHINE PET OPP CPP PE PS PVC FILM FOIL PAPER ROLLS OPTICAL MATERIALS?

A: The Minimum Order Quantity is 1.
