| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | GSPJ |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | PLC CONTROLLED INSPECTION MACHINE VERIFYING-ROLLING -SLITTING BOPP, PET, CPP, PVC, AL- FOIL AND PAPER IN PRINTING PROCES | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

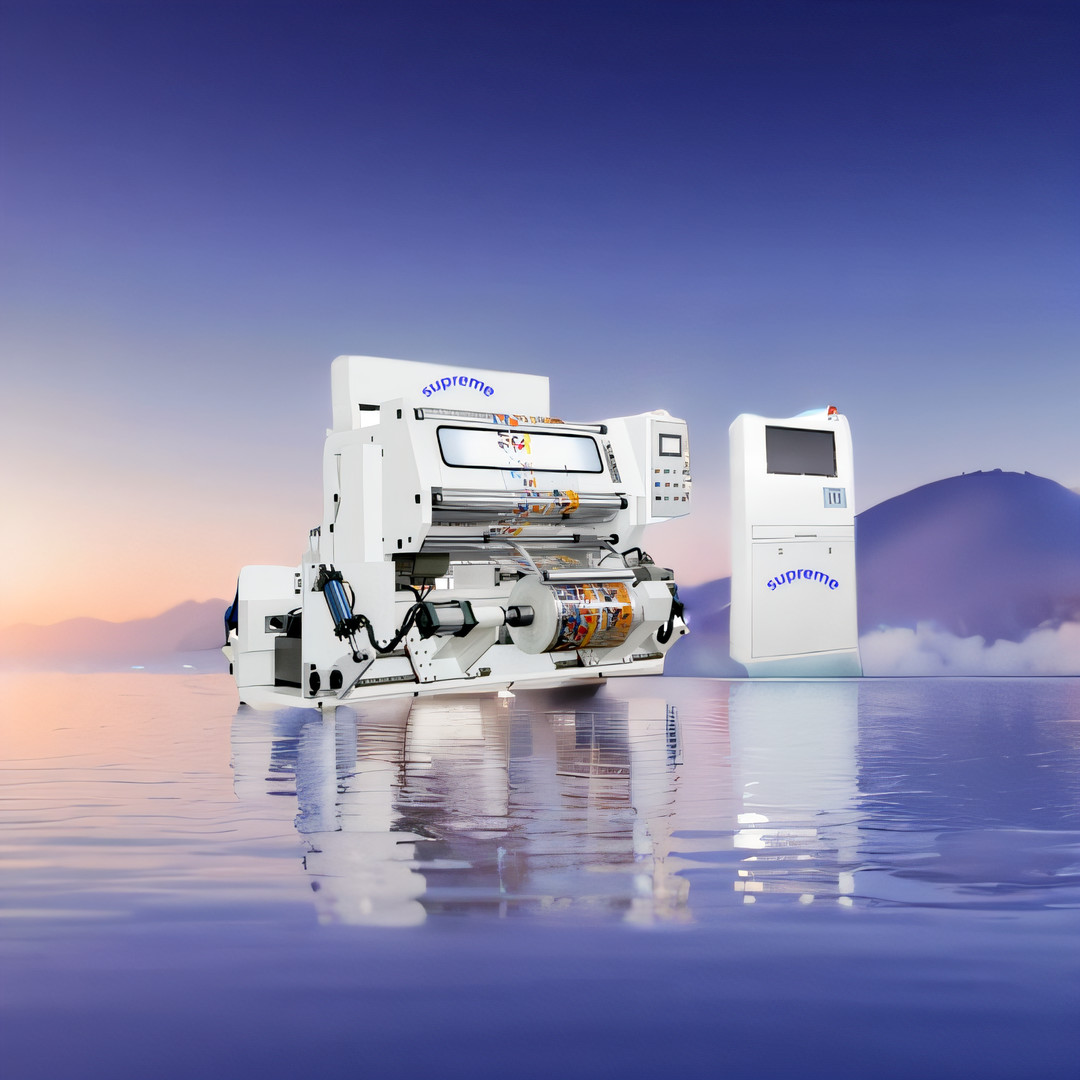

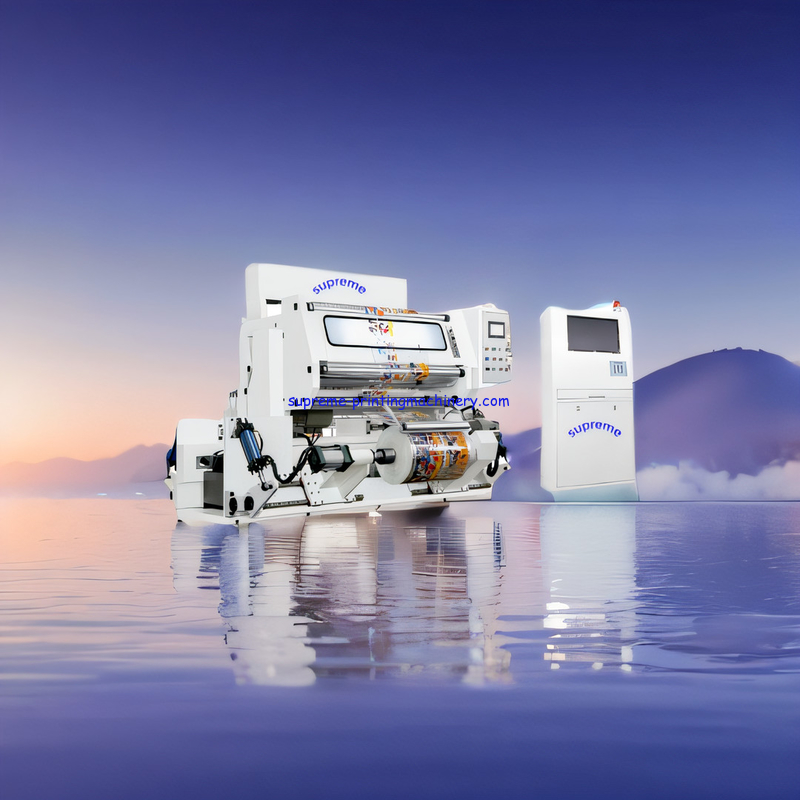

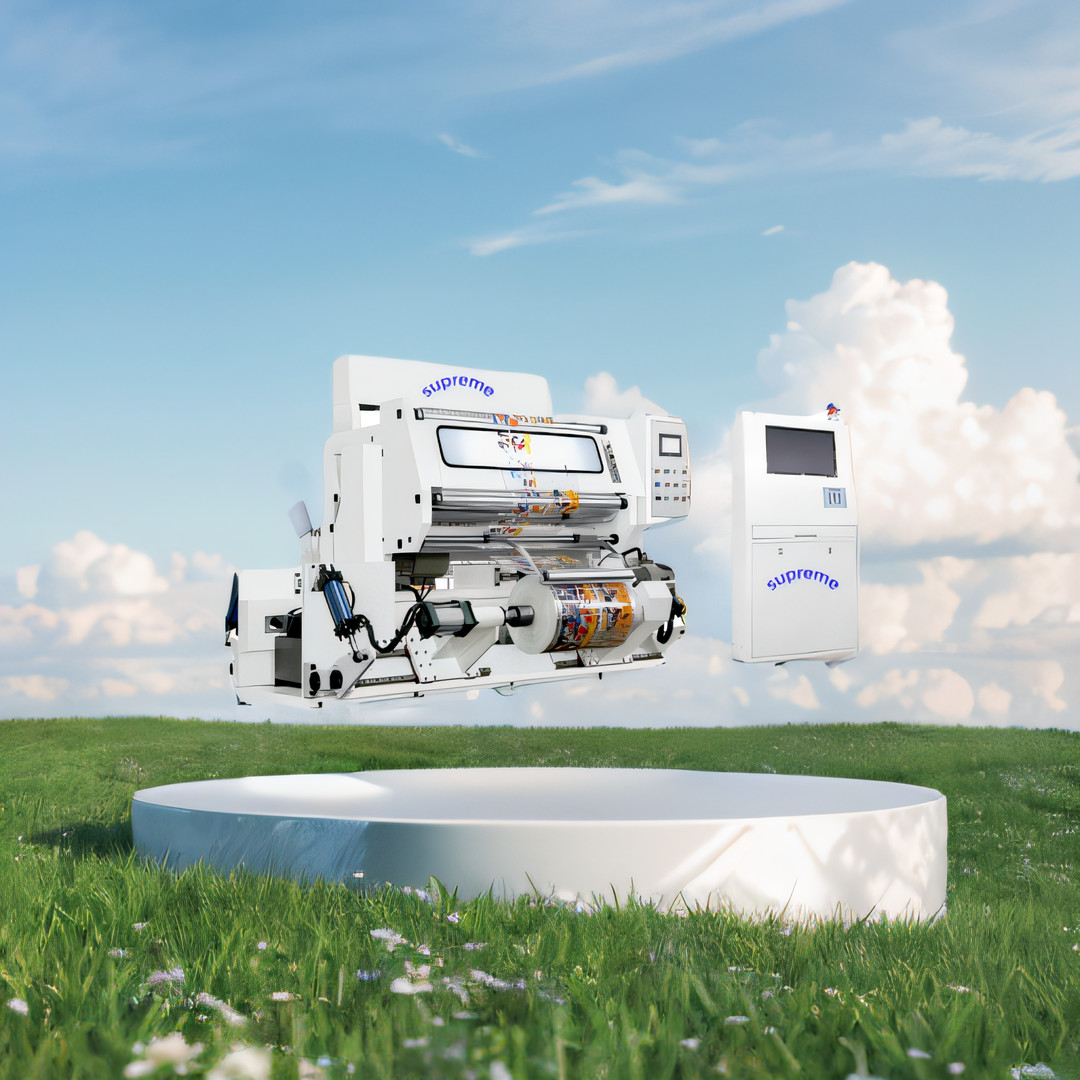

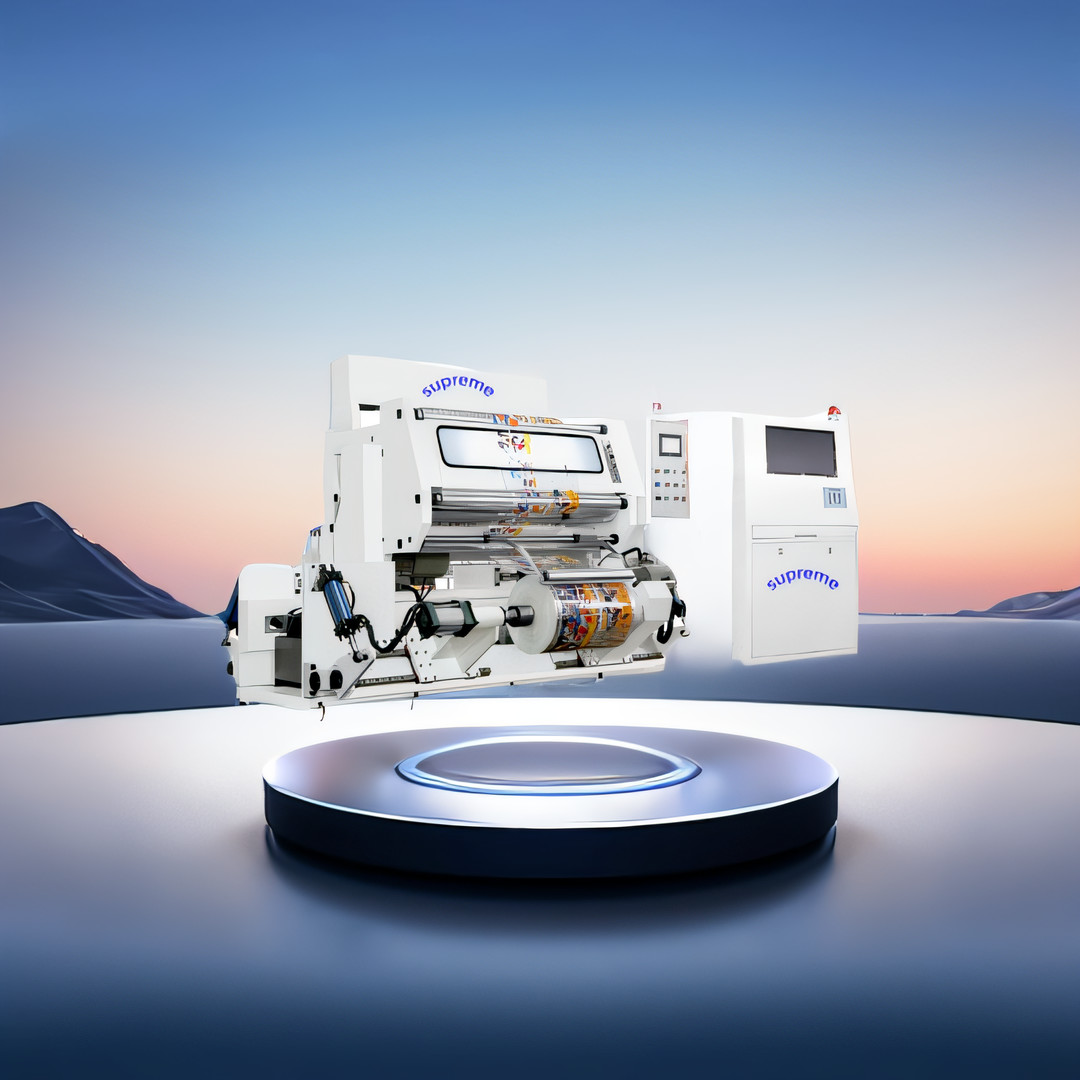

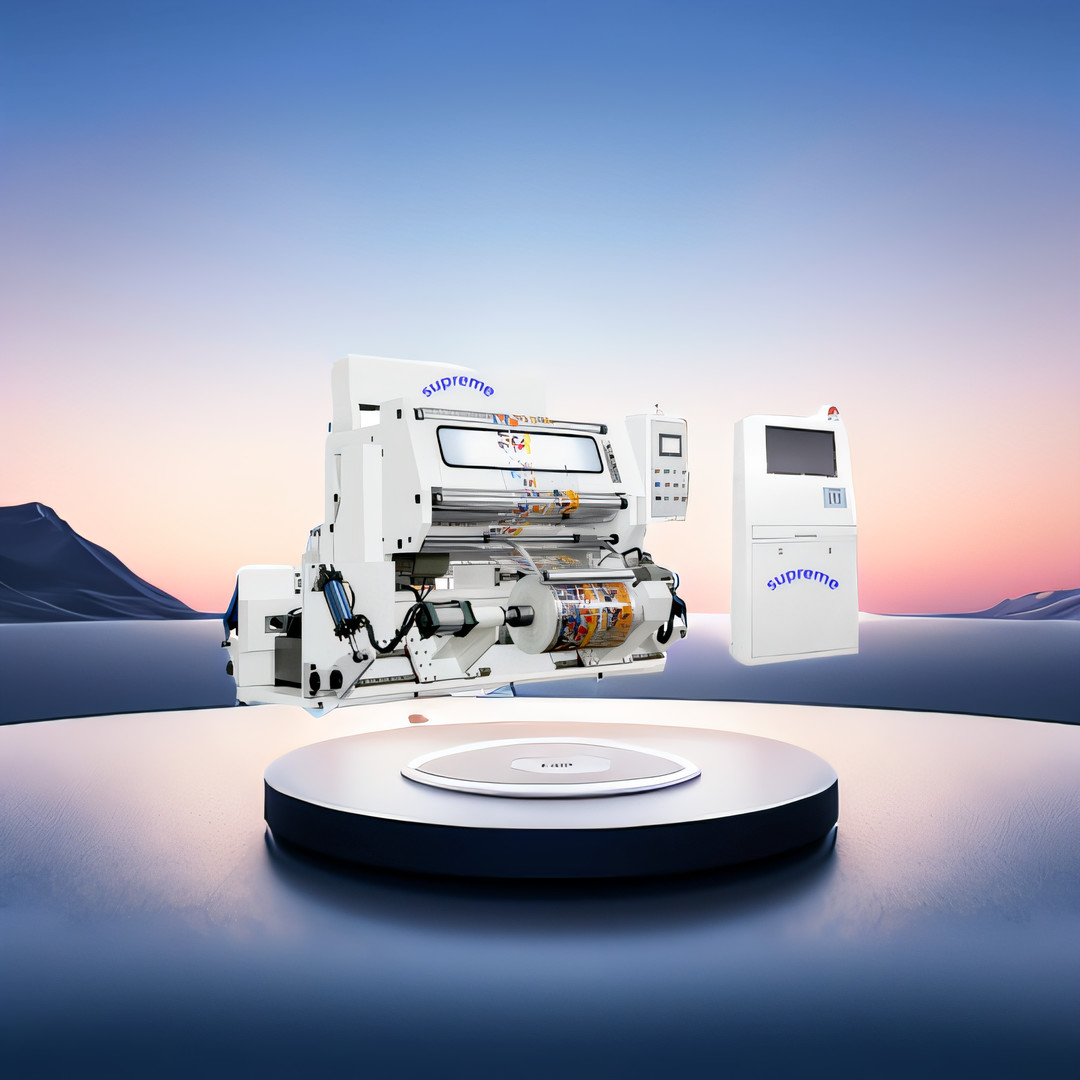

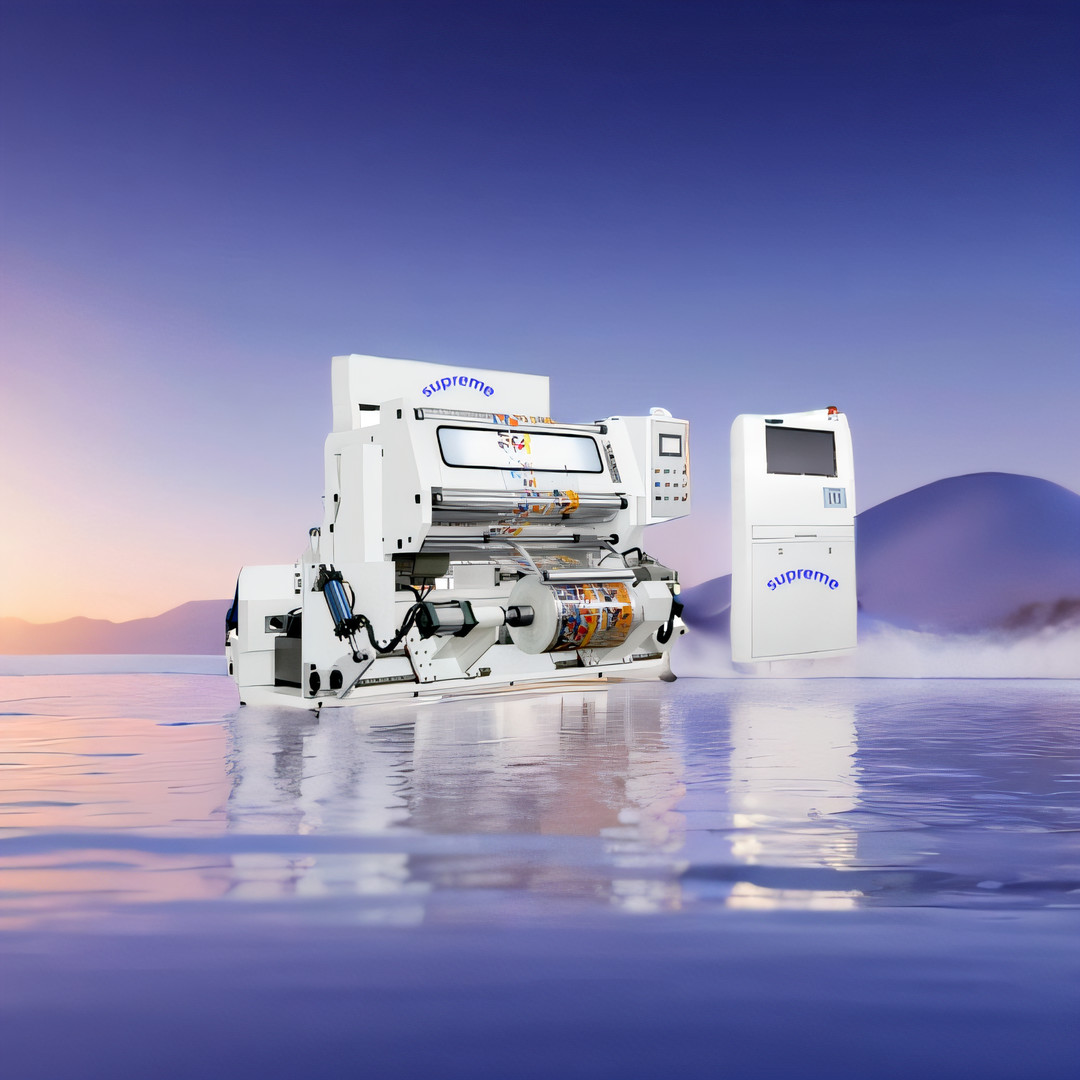

PLC CONTROLLED INSPECTION MACHINE VERIFYING-ROLLING -SLITTING BOPP, PET, CPP, PVC, AL- FOIL AND PAPER IN PRINTING PROCES
http://www.youtube.com/@labelturretrewindingmachinery
Optional:
1:Shaftless unwinding
2:Trim cutting
3:Strobe light
4:Computer inspection
This machine is suitable to verifying-rolling -slitting BOPP, PET, CPP, PVC, AL- FOIL and paper in printing Characteristics.
Main Features:
1.The complete machine is equipped with imported PLC, and with a touch screen and man-machine interface in operation.
2. The unwinding transmission is governed by a frequency inverter vector adjusting vector motor, and PLC can automatically calculate the unwinding Diameter , which can achieve the unwinding tension controlling constantly.
3. The traction transmission adopts frequency vector inverter adjusting vector motor; achieving constantly controlling the linear speed.
4. The rolling transmission is driven by a vector frequency motor and floating roller system and PLC can automatically calculate the unwinding Diameter , achieving the unwinding tension conical controlling. Adopting floating roller to control tension that can realer achieve the rolling of zero tension, to solve the problem of printing picture inverse adhibit and material strengthen because of the heavy tension.
5. The system is equipped with an auto flasher in order to observe the printing patterns. If the printing defects of the printing patterns are observed in eyes, please press the button to automatically return to the defect point.
6. The system can calculate the meters, measure the roller Diameter , protect the machine when the feeding material roller becomes smallest and the collecting roller becomes largest, and protect the machine when it is short of materials.
7. The rewinding and unwinding device adopts shaft-free core (also called air shaft feeding), which is feed material through clipping closely by a thread rod, and the width adjustment is done electrically as well.
8. The edge correcting device is static with the movement routine ranging to 120mm.
9.It can install slitting device. (optional)
10. The design of this machine is integrated the electric, mechanical, and pneumatic technology, and with a complete security protecting device.
| Technical Parameter | 1300mm |
| Width of Material : | 1300mm |
| Diameter of Material: | Diameter 600mm |
| Diameter of Paper core: | Diameter 76mm |
| Verifying Speed : | 300m/min |
| Width of Finished Products : | 30-1300mm |
| Weight : | About 2650kg |
| Total Power: | About 15kw |
| Overall Dimension(L*W*H)(mm): | About 1735*3100*1800 |
We provide technical support and services for PLC CONTROLLED INSPECTION MACHINE VERIFYING-ROLLING -SLITTING BOPP, PET, CPP, PVC, AL- FOIL AND PAPER IN PRINTING PROCES. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for PLC CONTROLLED INSPECTION MACHINE VERIFYING-ROLLING -SLITTING BOPP, PET, CPP, PVC, AL- FOIL AND PAPER IN PRINTING PROCES. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for PLC CONTROLLED INSPECTION MACHINE VERIFYING-ROLLING -SLITTING BOPP, PET, CPP, PVC, AL- FOIL AND PAPER IN PRINTING PROCES. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
PLC CONTROLLED INSPECTION MACHINE VERIFYING-ROLLING -SLITTING BOPP, PET, CPP, PVC, AL- FOIL AND PAPER IN PRINTING PROCES is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
