| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | QD-350C |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | WATER LABEL DRINK PRINTED SHRINKABLE FILM BATTERY LABEL MINERAL WATER LABEL HIGH SPEED PAPER CROSS SHEET CUTTING MACHINE | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

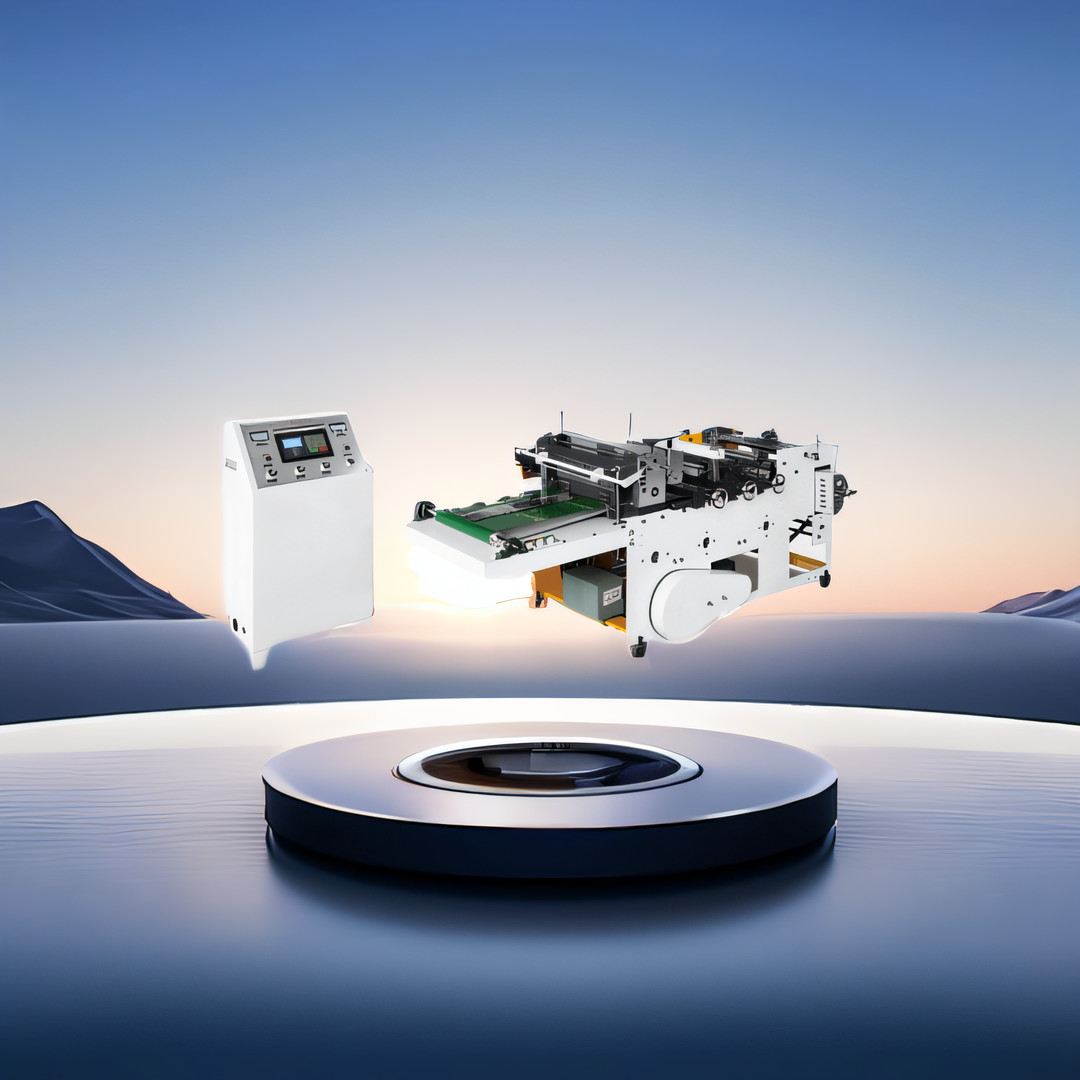

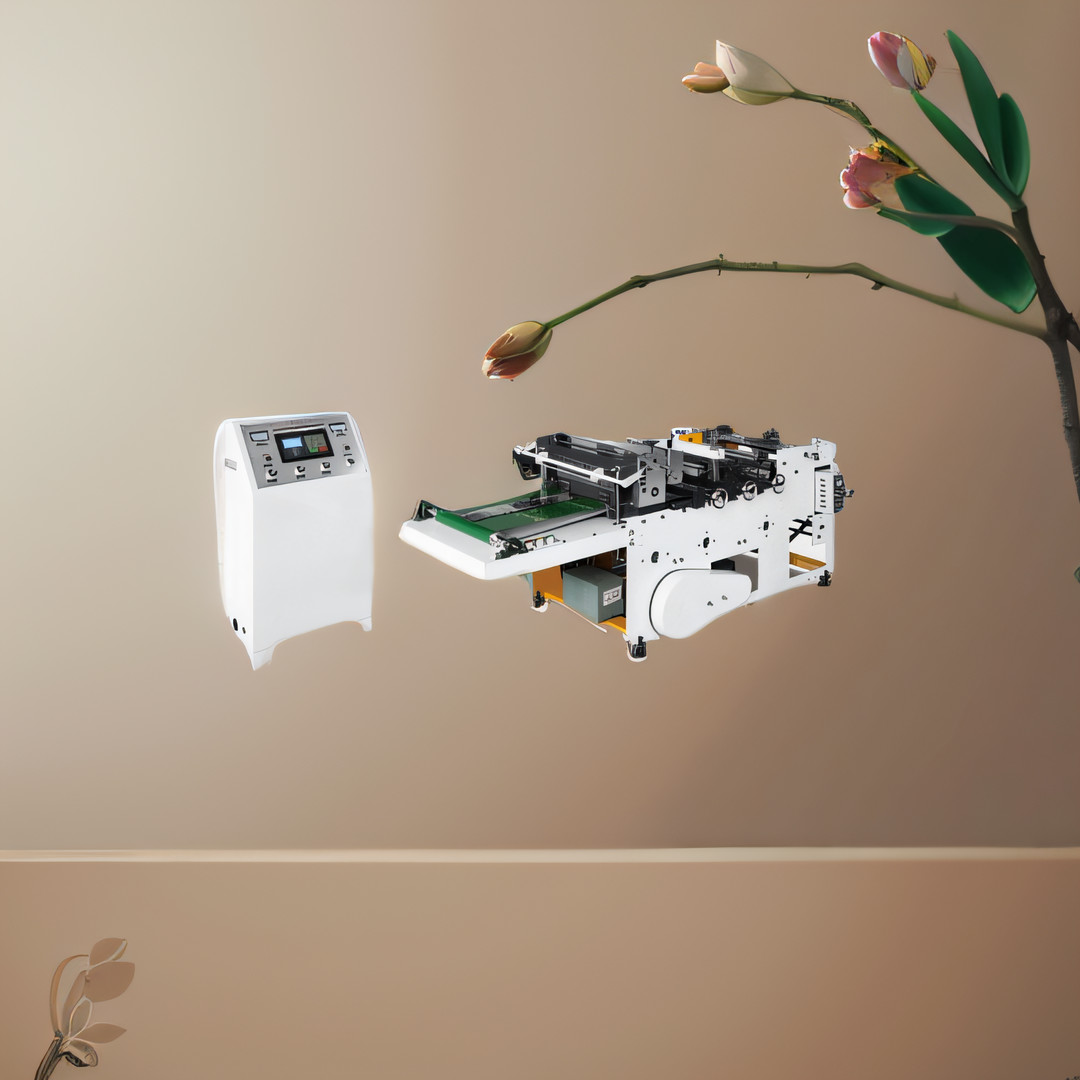

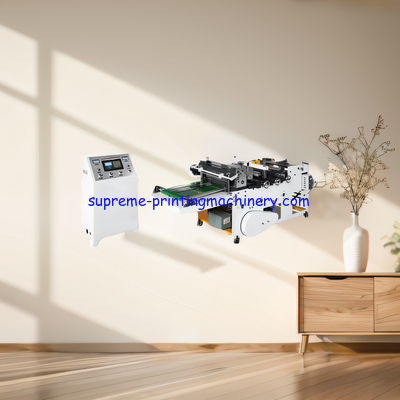

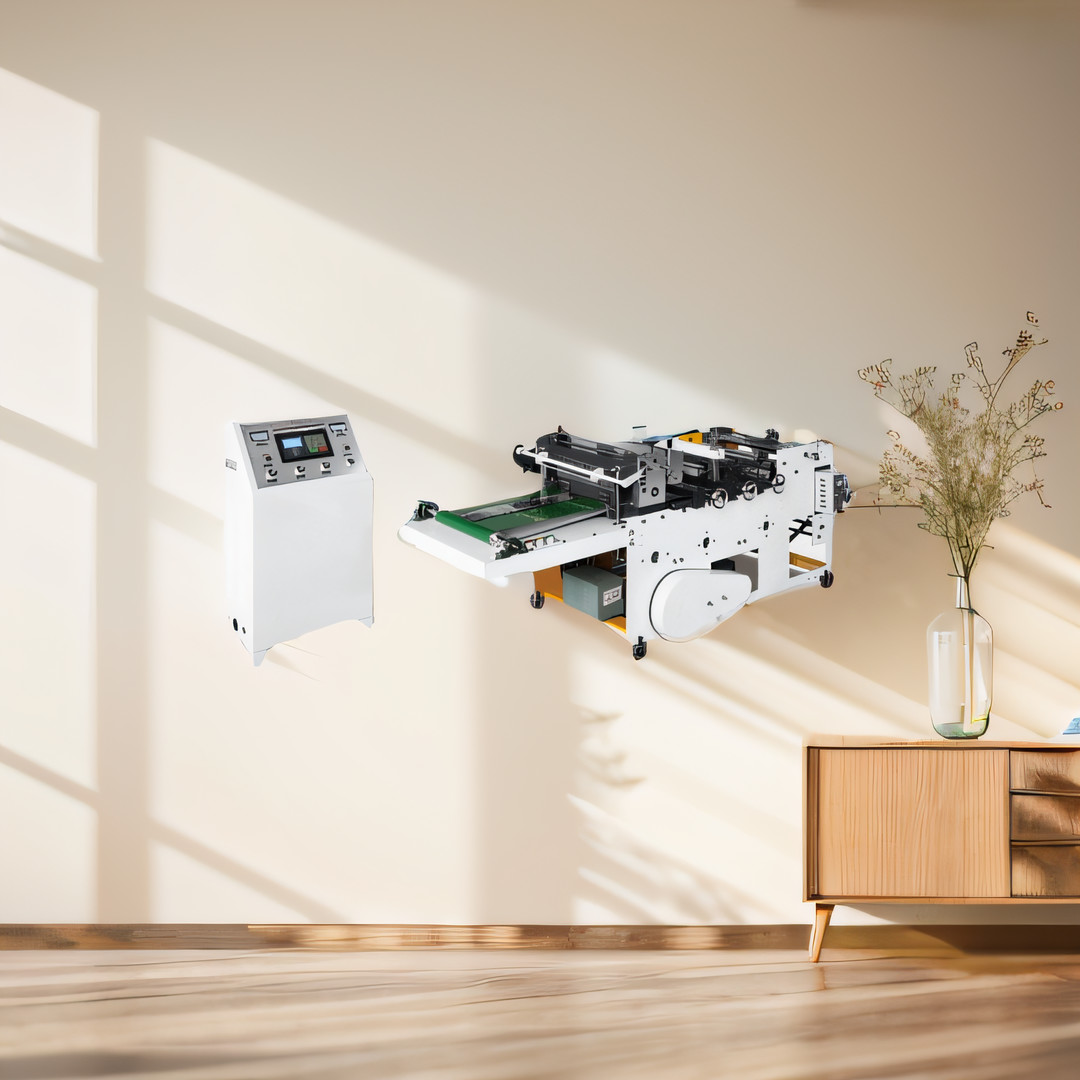

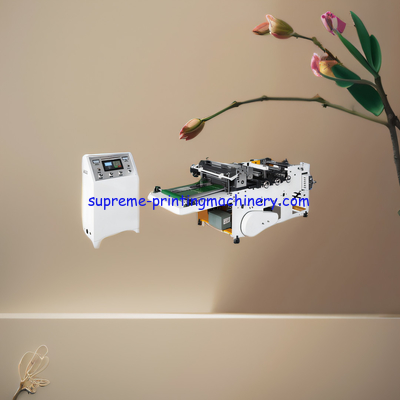

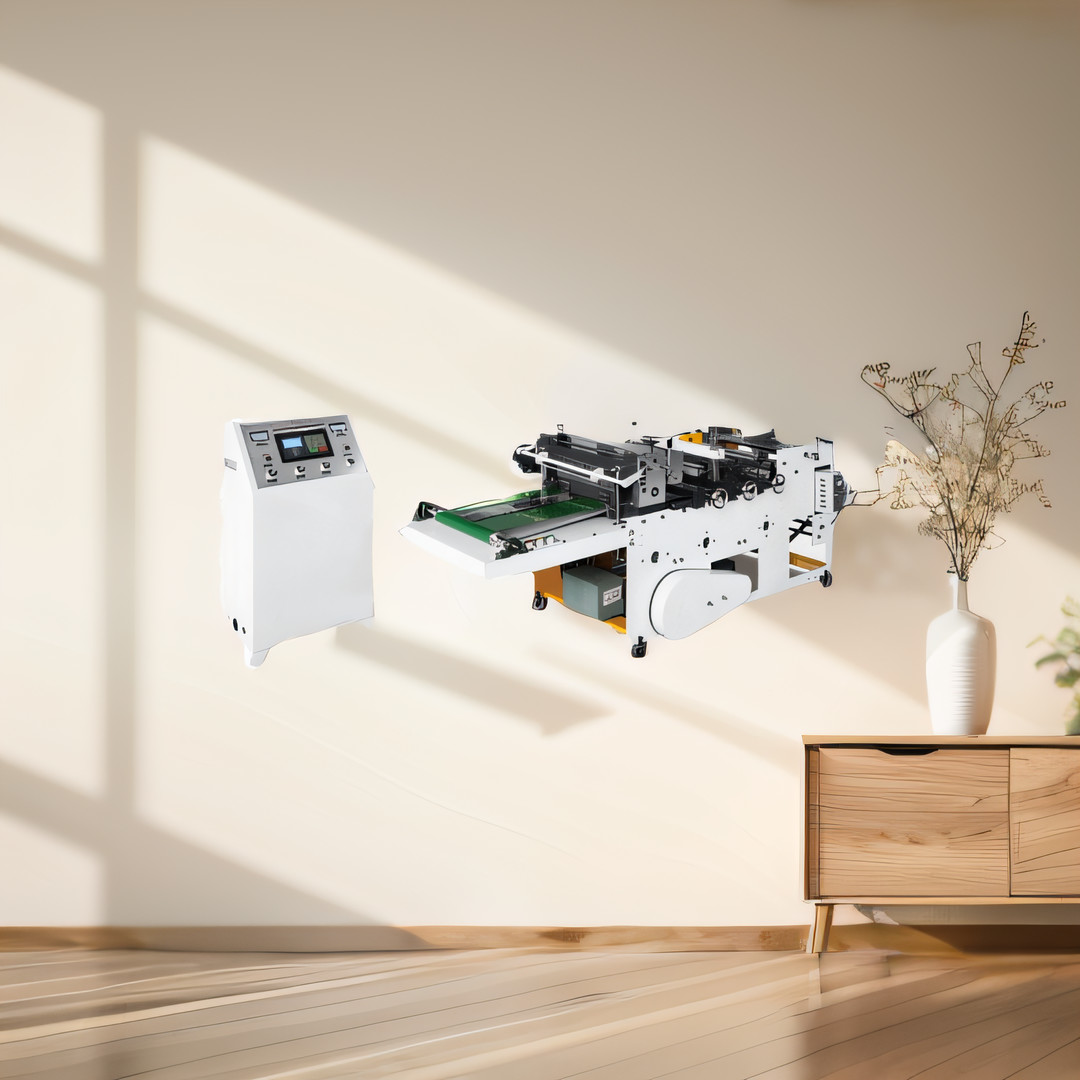

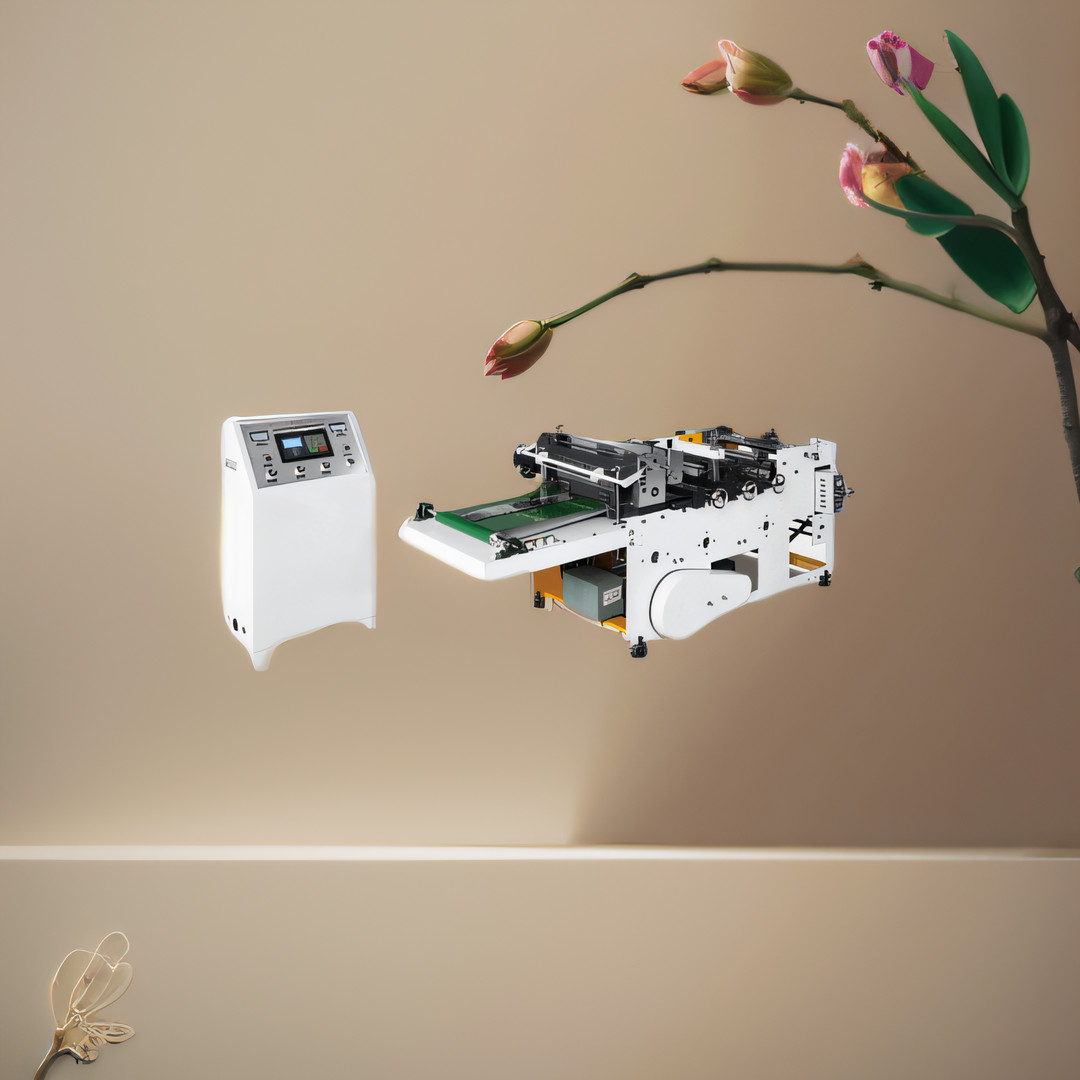

WATER LABEL DRINK PRINTED SHRINKABLE FILM BATTERY LABEL MINERAL WATER LABEL HIGH SPEED PAPER CROSS SHEET CUTTING MACHINE
http://www.youtube.com/@labelturretrewindingmachinery
characteristic
This machine adopts the best of domestic and foreign similar machines, with elegant design.
1: Step motor or servo motor
2:Frequency inverter speed regulator
3:Color tracking
4:Auto meter/number counting
5:Power saving, high speed, high precision ect
It is suit for printed film, shrinkable film, battery label, mineral water label ect
Optional:
1: Step motor feeding upgraded to servo motor
2: Vertical and horizontal perforation for easier tear off
3: Movable conveyor table for material collection
4: Micro computer upgraded to PLC auto tension controller with touch screen
5: Web guide for the unwinding
6: Enlarge the unwinding and rewinding diameter
| Datasheet | |
| Model | QD-350C |
| Max cutting width | 350mm |
| Min cutting width | 20mm |
| Max cutting length | 999mm |
| Max unwinding diameter | 600mm |
| Max cutting speed | 500pcs/min |
|
Total Power
Voltage |
2kw
220V/50HZ |
|
Overall dimensions
Weight |
2500*1200*1200
500KG |
Q: what is the difference from the step motor and servo motor?
A: this machine body is different. Example, step motor 10mm thick, servo motor will be 16mm. with the servo motor, the precision will be more about +-0.1mm, Japan Yaskwa will be optional
Q: what is the optional for this machine?
A: 1: servo motor; 2: touch screen with plc auto tension controller 3: web guide for unwinding 4: air shaft for the unwinding (auto inflation) 5: movable conveyor table 6: unwinding by magnetic brake 7: vertical and horizontal perforation
Q: what is the easy fault for this machine?
A: 1: sheet cutting knife 2: vertical and horizontal knife. We will equip with the machine extra 1 set for the replacement
Q:what is the cost for the easy fault spare parts?
A: 1: sheet cutting knife: 100USD 2: vertical knife: 50USD 3: horizontal knife:10USD
Q: how long will be the knife last?
A: in generally 1 year. You can use grinding machine to grind it if it was deactivation.
We provide technical support and services for WATER LABEL DRINK PRINTED SHRINKABLE FILM BATTERY LABEL MINERAL WATER LABEL HIGH SPEED PAPER CROSS SHEET CUTTING MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for WATER LABEL DRINK PRINTED SHRINKABLE FILM BATTERY LABEL MINERAL WATER LABEL HIGH SPEED PAPER CROSS SHEET CUTTING MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for WATER LABEL DRINK PRINTED SHRINKABLE FILM BATTERY LABEL MINERAL WATER LABEL HIGH SPEED PAPER CROSS SHEET CUTTING MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
WATER LABEL DRINK PRINTED SHRINKABLE FILM BATTERY LABEL MINERAL WATER LABEL HIGH SPEED PAPER CROSS SHEET CUTTING MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
