| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | GSFQ-LI |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | PET OPP CPP PE PS PVC OPTICAL MATERIALS FILM FOIL PAPER ROLLS VARIOUS LABELS PLC CONTROLLED HIGH SPEED SLITTING MACHINE | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

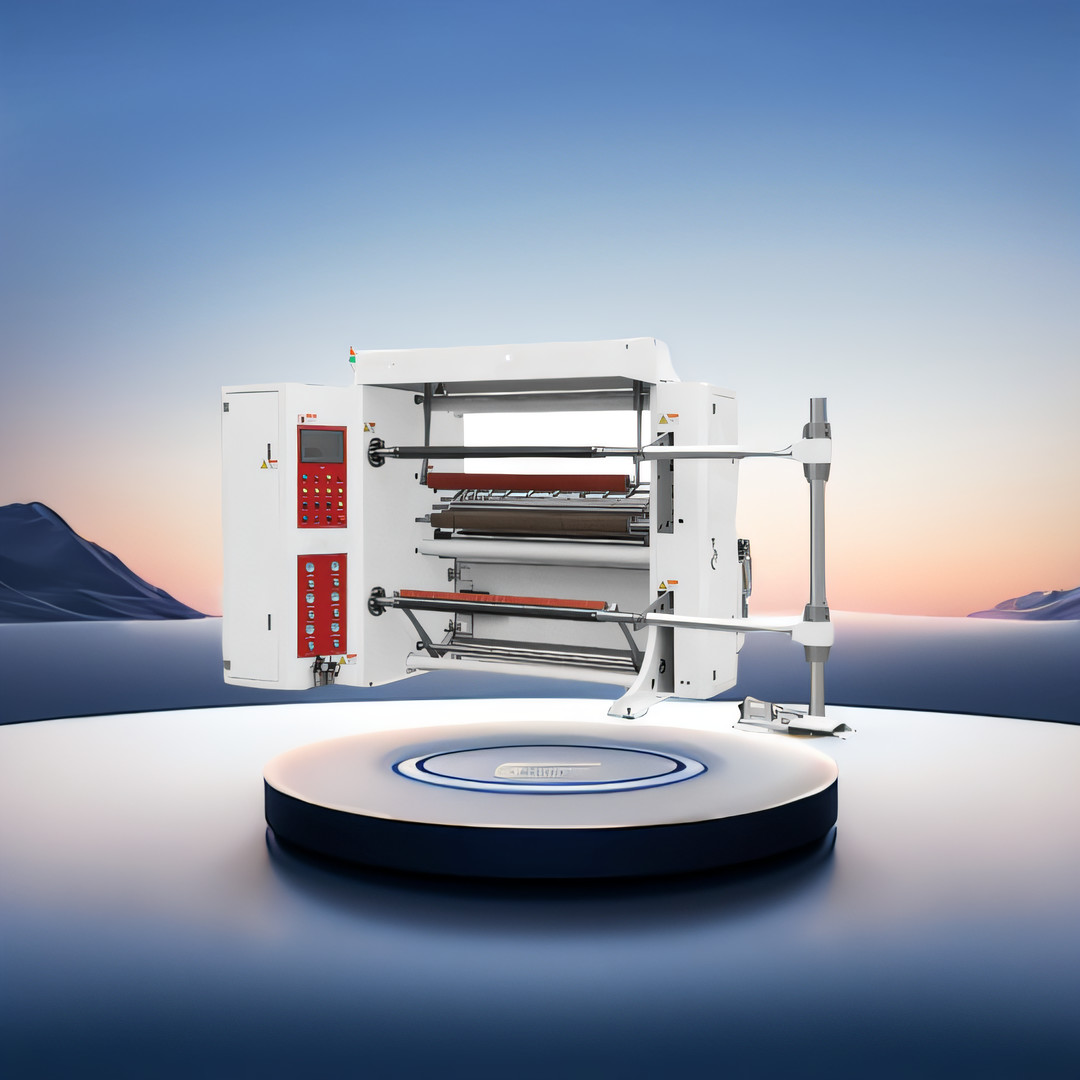

PET OPP CPP PE PS PVC OPTICAL MATERIALS FILM FOIL PAPER ROLLS VARIOUS LABELS PLC CONTROLLED HIGH SPEED SLITTING MACHINE
http://www.youtube.com/@labelturretrewindingmachinery
Optional:
1:slip shaft for rewinding
2:3 motor drive
This machine is suitable for slitting cellophane, PET, OPP, CPP, PE, PS, PVC and computer anti-counterfeiting labels, electronic computers, optical materials, film rolls, foil rolls, various paper rolls, film rolls and various materials after printing.
Features:
1: Host part
1: The main machine structure of the equipment adopts iron-casting parts and steel plate structure (casting parts are secondary processed and finalized)
2: The spindle drive roller is made of seamless steel pipe. After tempering, surface hardening, plating, and dynamic balance processing
3: The main pressure roller of the main shaft transmission is a rubber roller (Nitrile rubber)
4: The guide roller is metal (aluminum alloy) and rubber (nitrile rubber)
5: The transmission mode of main machine and rewinding material is synchronous wheel and synchronous belt transmission
6. All guide rollers of the machine are processed synchronously (using flat belts and synchronous belts) to effectively prevent the stretched material from stretching
2: Unwinding part
1: The unwinding structure is a one-piece unwinding rack
2: Install a movable support, the moving device is a linear guide
3: The unwinding adopts shaft less air pressure lifting, which effectively saves labor and is easy to operate
4: Equipped with 1 set of deviation adjustment device, which can be fine-tuned left and right, front and back through the hand wheel
5: The unwinding tension controlled by magnetic brake 10kg
6: The web guide adopts the bat technology configuration system to achieve the effect of following the side and the line of the material
3. Rewinding part
1: The rewinding shaft is equipped with pneumatic type air shafts 2 pcs, Controlled by electric proportional valve
2: The locking method adopts pneumatic control
3:Rewinding tension is controlled by precision regulating valve; electric proportional valve
4: Winding pressure roller can be customized according to customer requirements (2sets)
5: The cutter adopts pneumatic control, equipped with 10 cutter holders, manual pneumatic
6: Equipped with waste blowing device
4. Electrical part:
1. Main motor: asynchronous servo motor 1 set Shanghai brand
2. Rewinding motor: Servo motor 1 sets Shanghai
3. EPC adopts analog control, servo motor pusher Bianfu Technology CCD photoelectric control
4. Imported PLC Mitsubishi is used to achieve precise and stable control functions, and the true color touch screen makes the image display simple and beautiful. Conversational parameter setting environment, no complicated settings can be started: the user only needs to input the thickness, width, density, diameter and speed of the raw material before starting the machine, and the next work is automatically calculated by the computer
The main technical parameters
| Material width | 1300mm/1600mm |
| Material diameter | 800mm |
| Rewinding diameter | 600mm |
| Paper core inch | 3’’ |
| Slitting speed | 10-300 m/min |
| precision | ≤0.1mm |
| Mini width | 30mm |
| Total power | 12KW |
| Machine weight | 4500kg |
| Machine size | 2300mm×4300mm×1900mm |
Random Accessories
| 01 | Allen wrench | 1 | 06 | Oil gun | 1 |
| 02 | Adjustable wrench | 1 | 07 | Air gun | 1 |
| 03 | "One" screwdriver | 1 | 08 | Gas mouth | 2 |
| 04 | "Ten" screwdriver | 1 | 09 | Operating Instructions | 1 |
We provide technical support and services for PET OPP CPP PE PS PVC OPTICAL MATERIALS FILM FOIL PAPER ROLLS VARIOUS LABELS PLC CONTROLLED HIGH SPEED SLITTING MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for PET OPP CPP PE PS PVC OPTICAL MATERIALS FILM FOIL PAPER ROLLS VARIOUS LABELS PLC CONTROLLED HIGH SPEED SLITTING MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for PET OPP CPP PE PS PVC OPTICAL MATERIALS FILM FOIL PAPER ROLLS VARIOUS LABELS PLC CONTROLLED HIGH SPEED SLITTING MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
PET OPP CPP PE PS PVC OPTICAL MATERIALS FILM FOIL PAPER ROLLS VARIOUS LABELS PLC CONTROLLED HIGH SPEED SLITTING MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
