Place of Origin: | China |
---|---|
Brand Name: | Supreme |
Certification: | CE |
Model Number: | FQ-1300W |
Minimum Order Quantity: | 1 |
Price: | negotiation |
Packaging Details: | Fumigation wooden box |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20sets/month |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
---|---|---|---|
Product Name: | HEAT SEALING COTTON MELT BLOWN MASK FABRIC PET OPP CPP PE PS PVC FOIL PAPER PLC CONTROLLED HORIZONTAL SLITTING MACHINERY | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

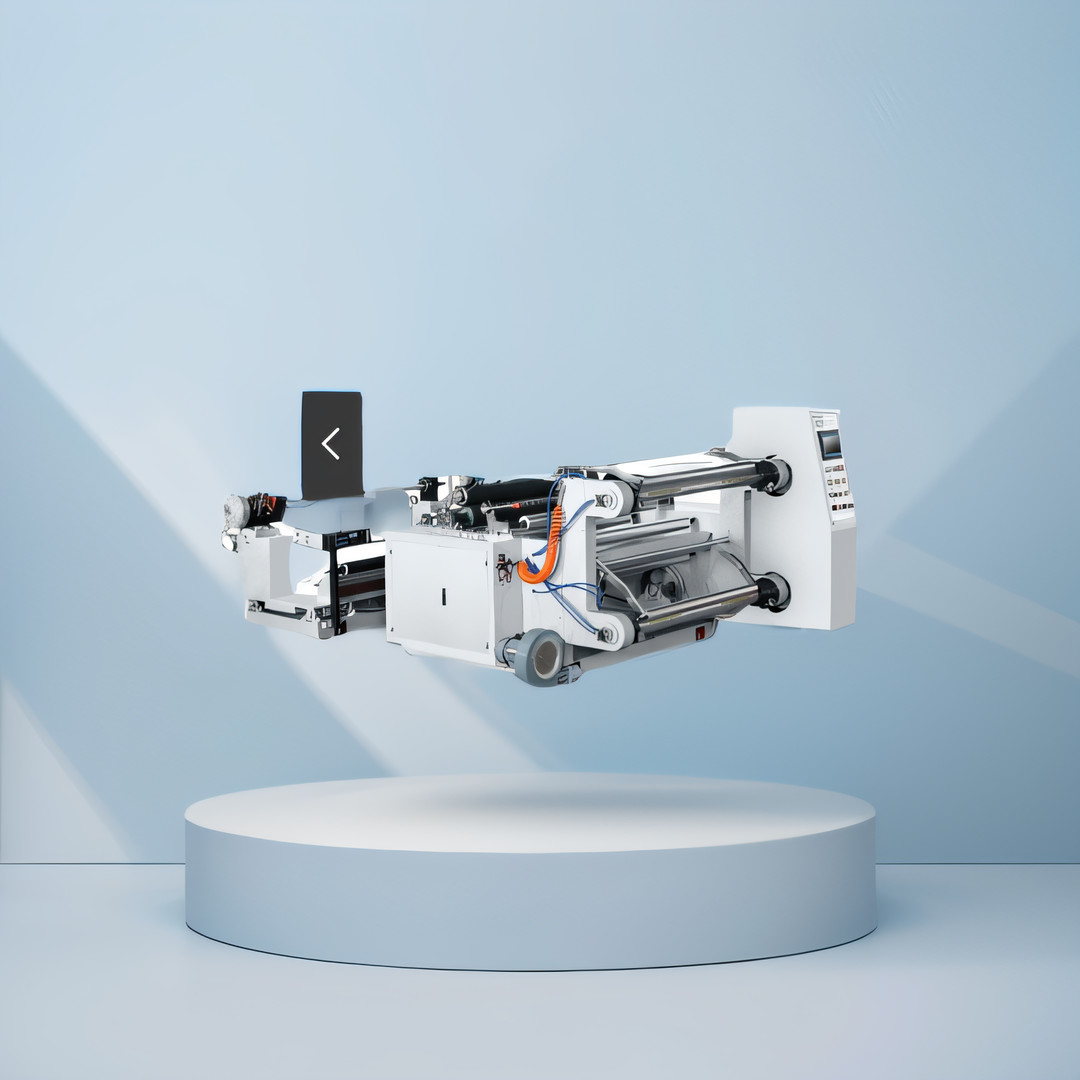

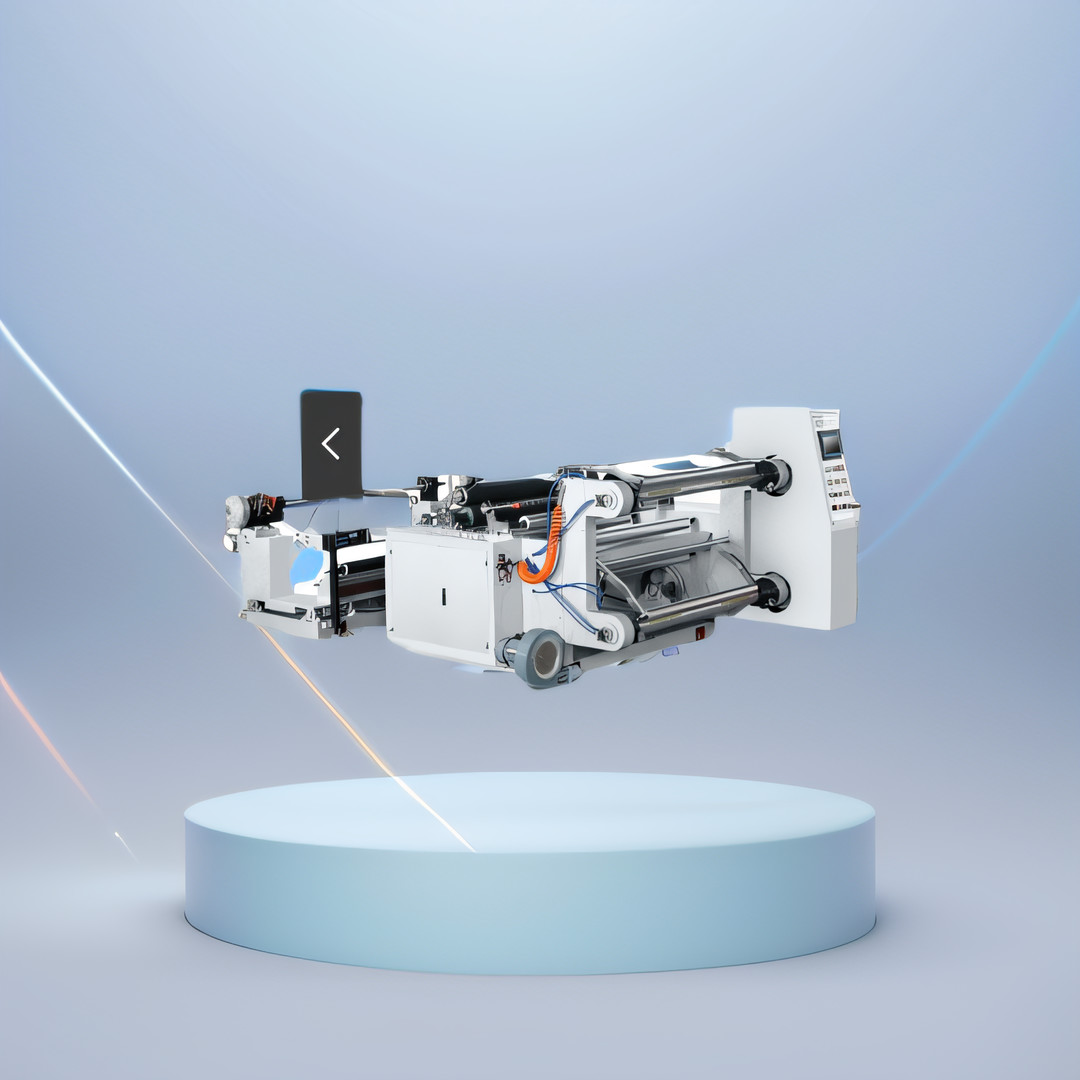

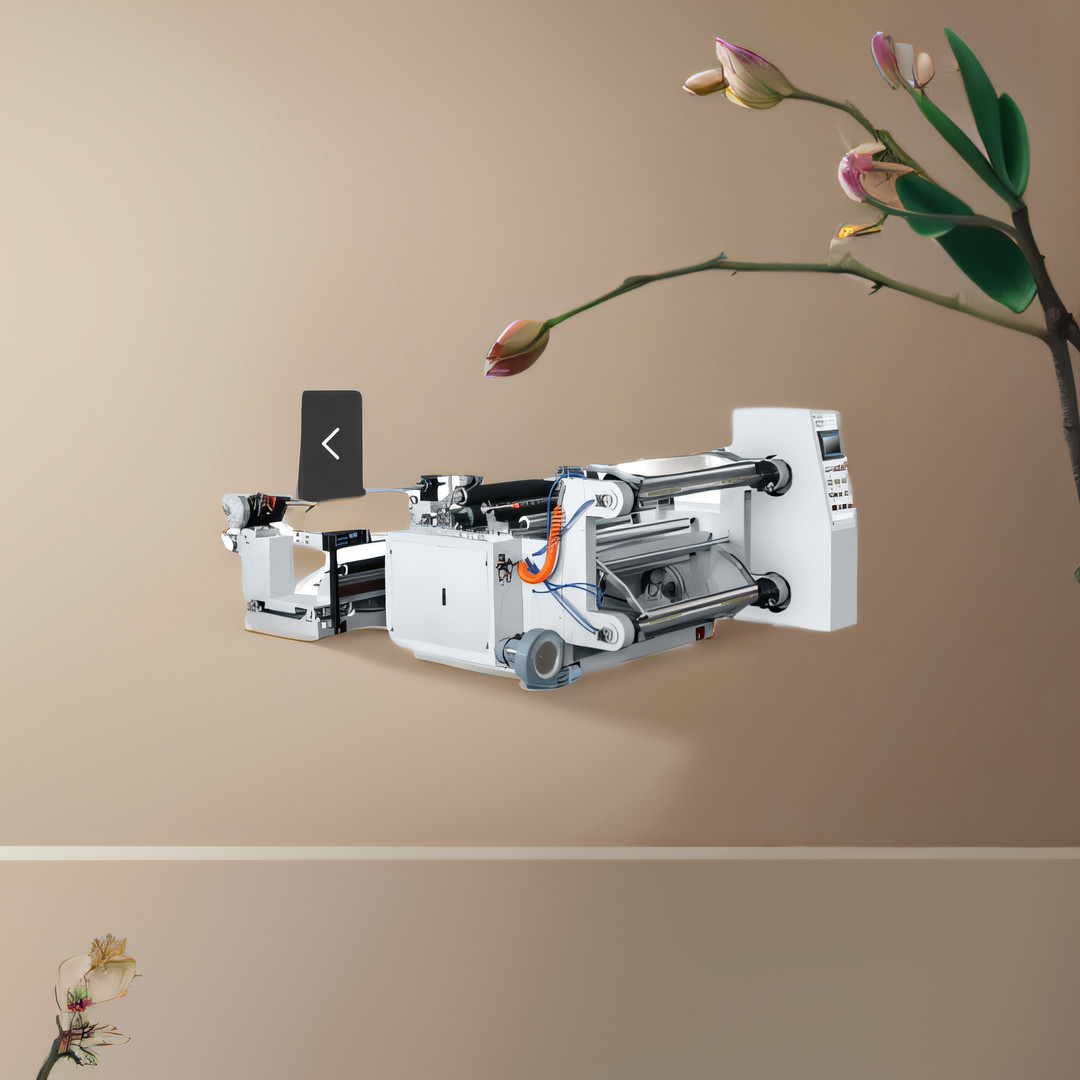

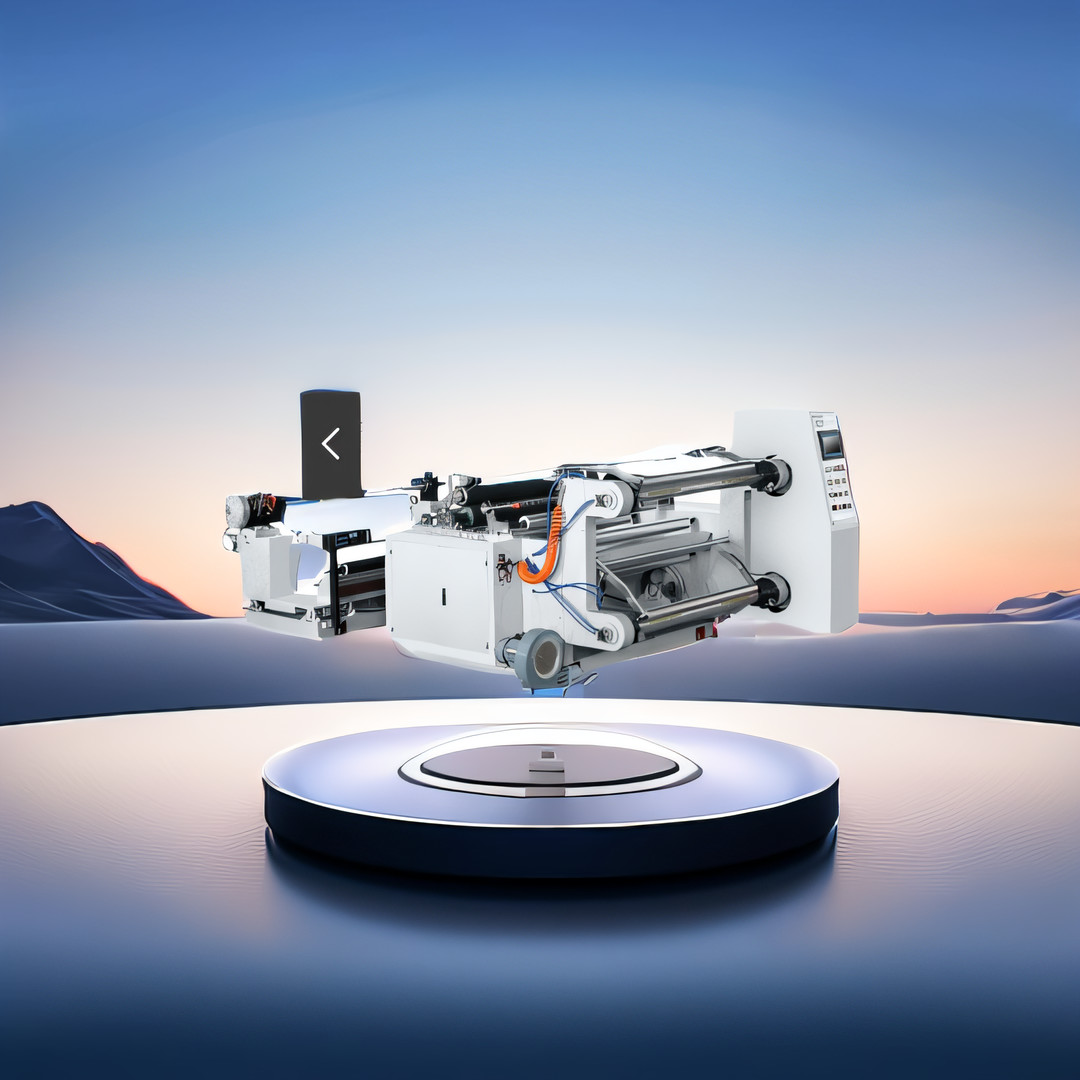

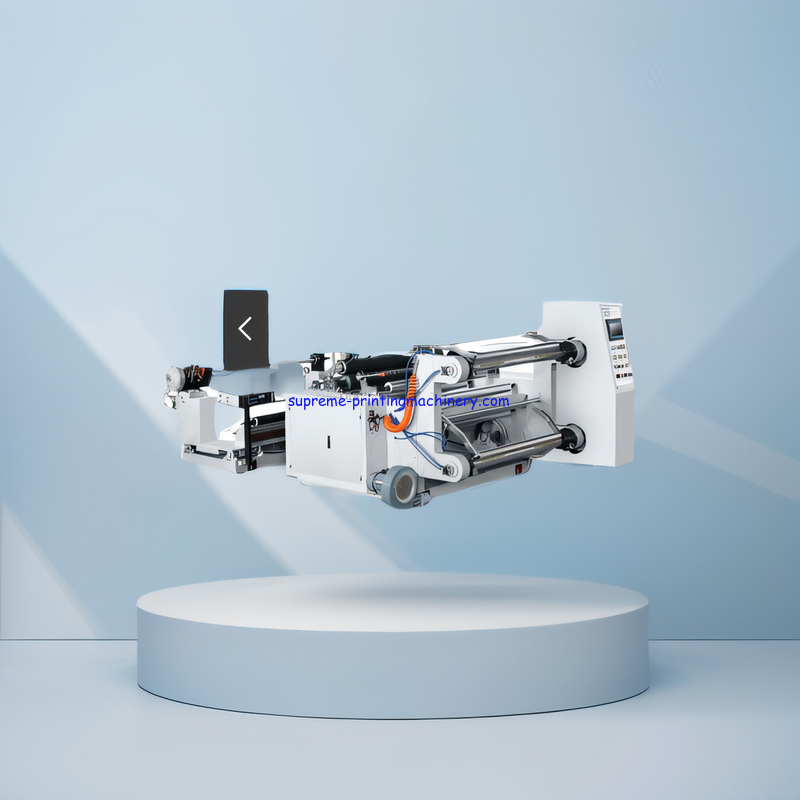

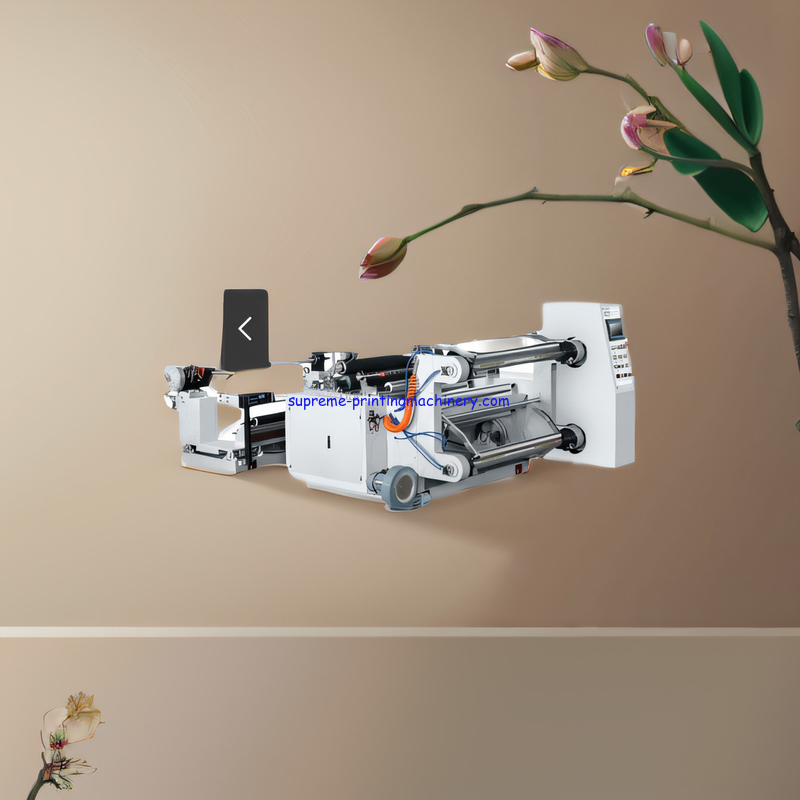

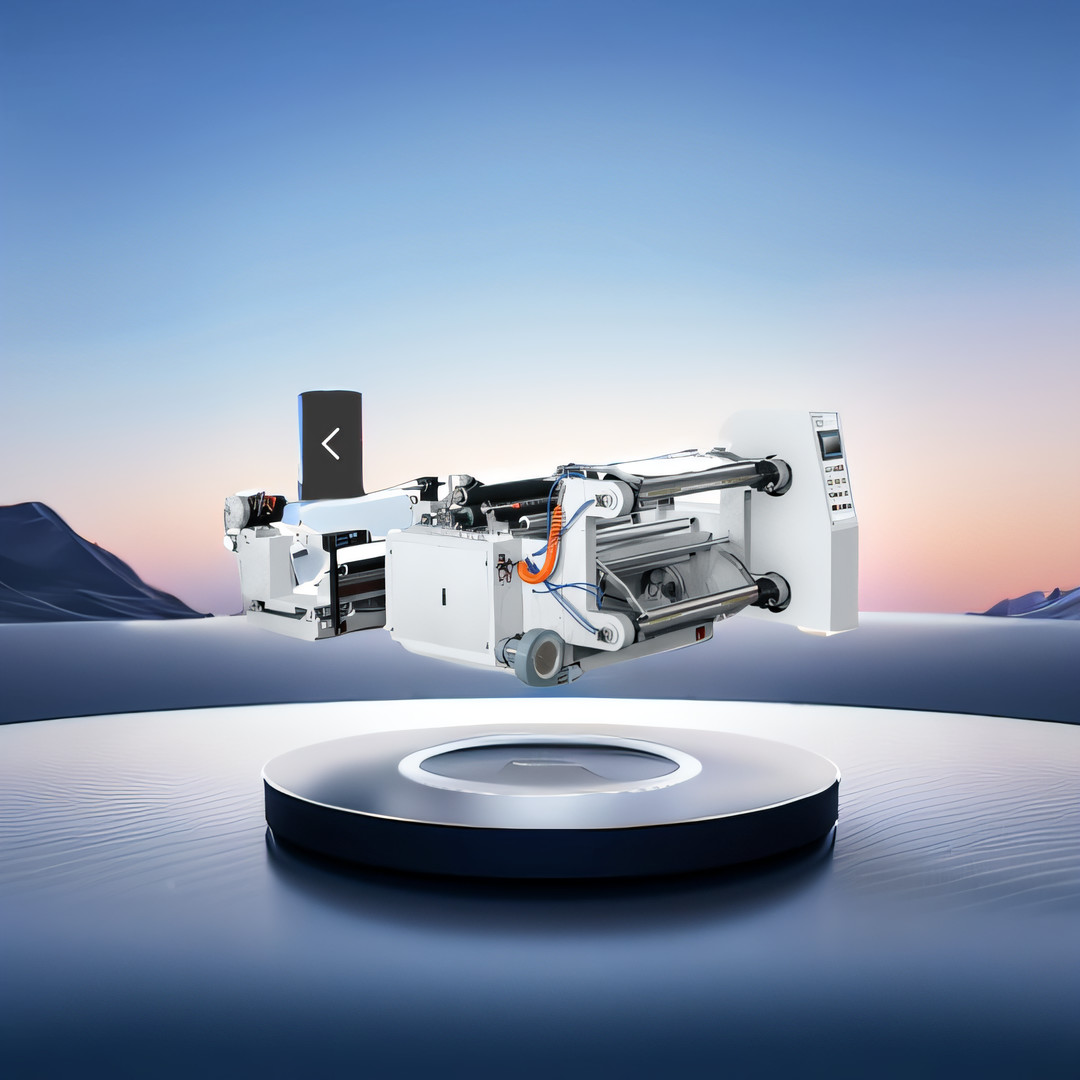

HEAT SEALING COTTON MELT BLOWN MASK FABRIC PET OPP CPP PE PS PVC FOIL PAPER PLC CONTROLLED HORIZONTAL SLITTING MACHINERY
http://www.youtube.com/@labelturretrewindingmachinery
Optional:
1:Touch screen with PLC auto tension control
2: slip shaft for rewinding
3:Auto loading by pneumatic lifter/hydraulic lifter
4:Flat and round knife system
This machine is suitable for slitting cellophane, heat sealing cotton, Melt blown fabric, mask fabric, PET, OPP, CPP, PE, PS, PVC and computer anti-counterfeiting labels, electronic computers, optical materials, film rolls, foil rolls, various paper rolls, film rolls and various materials after printing
Features:
1: Host part
1: The main machine structure of the equipment adopts Iron-casting parts and steel plate structure (casting parts are secondary processed and finalized)
2. The spindle drive roller is made of seamless steel pipe. After tempering, surface nitrile rubber, dynamic balance processing
3: The main pressure roller of the main shaft transmission is a rubber roller (Nitrile rubber)
4. The guide roller is made of metal (aluminum alloy material) and rubber roller (nitrile rubber material)
5: The transmission mode of main machine and rewinding material is synchronous wheel and synchronous belt transmission(optional)
2: Unwinding part
1: The unwinding structure is a separated unwinding rack
2: Install a movable support, the moving device is ball screw
3. The unwinding adopts automatic loading with shaft (optional), which effectively saves labor and is easy to operate
4. Equipped with 1 set of deviation adjustment device, which can be fine-tuned left and right, front and back through the hand wheel
5: The unwinding tension controlled by magnetic brake
6: The web guide adopts the Chinese brand photoelectric to achieve the effect of following the side and the line of the material
3. Rewinding part
1: The rewinding shaft is equipped with 2 key type air shafts, and the tension is controlled by magnetic clutch
2: The locking method adopts pneumatic control
3: Winding tension is controlled by magnetic clutch
4: Winding pressure roller can be customized according to customer requirements
5: The cutter adopts turbine control, manual adjustment (10 round knives)
6: Equipped with waste blowing device
4. Electronics part
1: Main inverter Delta Taiwan 5.5KW
2: Main motor 5.5KW Chinese brand
The main technical parameters
Material width | 1100/1300mm/1600mm |
Material diameter | 1000mm |
Rewinding diameter | 600mm |
Paper core inch | 3’’ |
Slitting speed | 10-200 m/min |
precision | ≤0.3mm |
Mini width | 50mm |
Total power | 10kw |
Machine weight | 3000kg |
Machine size | 3300mm*2600mm×1900mm |
Random Accessories
01 | Allen wrench | 1 | 05 | Oil gun | 1 |
02 | Adjustable wrench | 1 | 06 | Air gun | 1 |
03 | "One" screwdriver | 1 | 07 | Gas mouth | 2 |
04 | "Ten" screwdriver | 1 | 08 | Operating Instructions | 1 |
We provide technical support and services for HEAT SEALING COTTON MELT BLOWN MASK FABRIC PET OPP CPP PE PS PVC FOIL PAPER PLC CONTROLLED HORIZONTAL SLITTING MACHINERY. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for HEAT SEALING COTTON MELT BLOWN MASK FABRIC PET OPP CPP PE PS PVC FOIL PAPER PLC CONTROLLED HORIZONTAL SLITTING MACHINERY. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for HEAT SEALING COTTON MELT BLOWN MASK FABRIC PET OPP CPP PE PS PVC FOIL PAPER PLC CONTROLLED HORIZONTAL SLITTING MACHINERY. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
HEAT SEALING COTTON MELT BLOWN MASK FABRIC PET OPP CPP PE PS PVC FOIL PAPER PLC CONTROLLED HORIZONTAL SLITTING MACHINERY is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
