Place of Origin: | China |
---|---|
Brand Name: | supreme |
Certification: | CE |
Model Number: | FQGS-S1300 |
Minimum Order Quantity: | 1 |
Price: | negotiation |
Packaging Details: | fumigation wooden box |
Delivery Time: | 30-60 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20set/month |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
---|---|---|---|
Product Name: | HIGH-SPEED SLITTING MACHINE PLASTIC FILM (PET OPP PE PVC COMPOSITE FILM, ALUMINIZED FILM KRAFT SELF-ADHESIVE PAPER | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

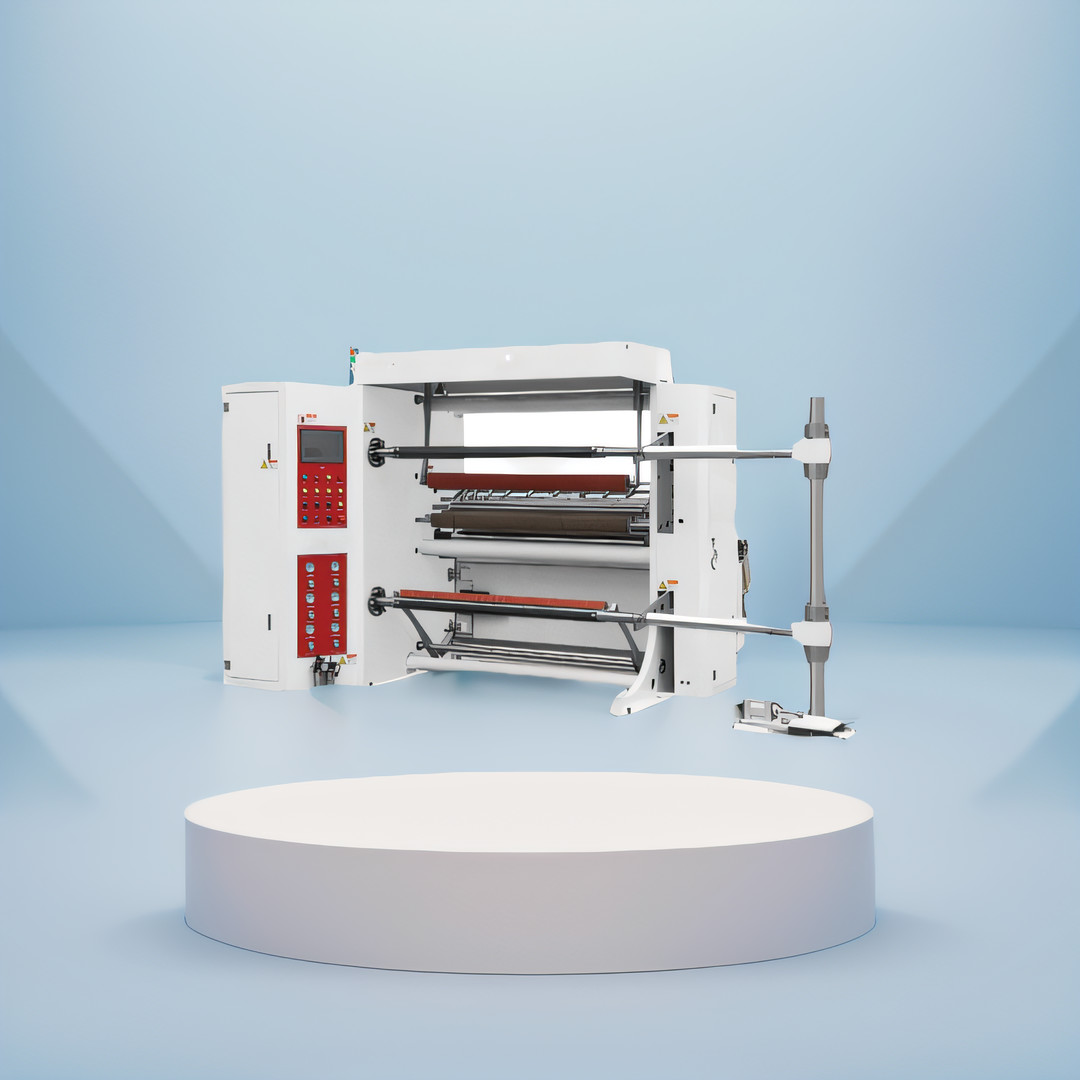

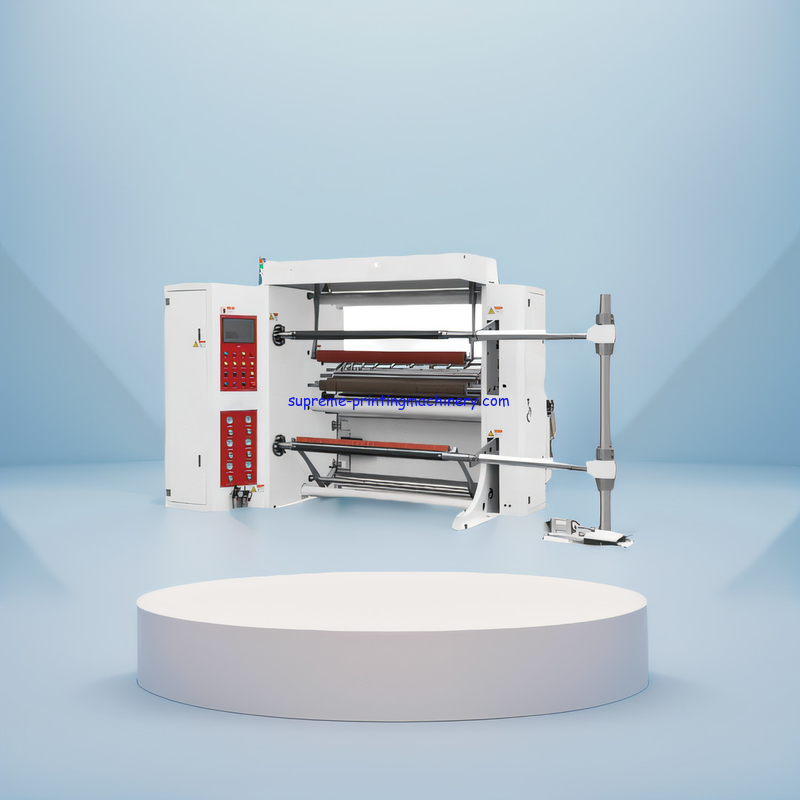

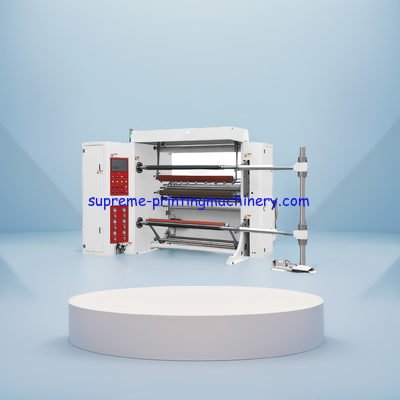

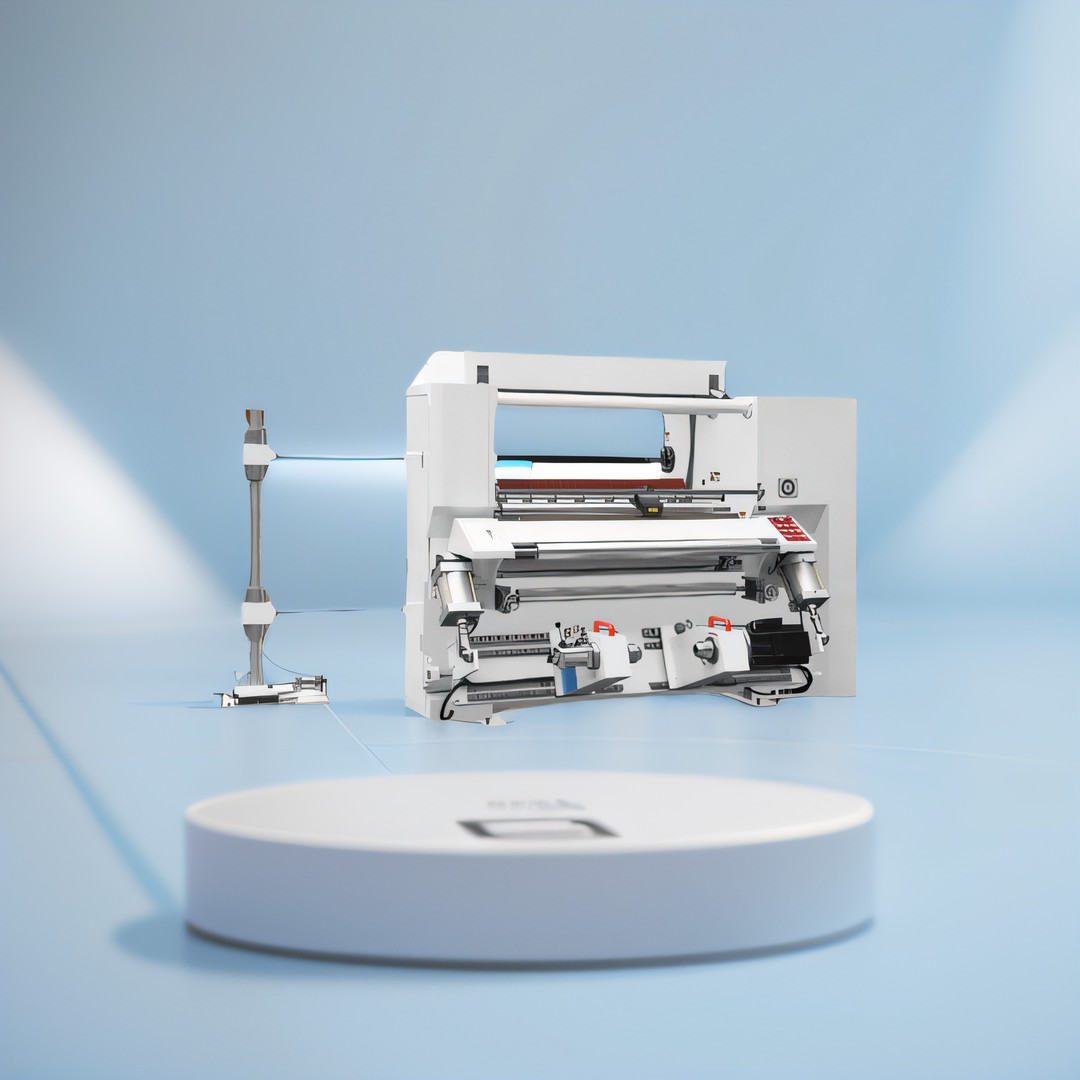

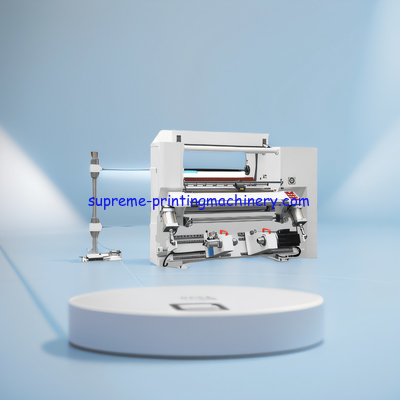

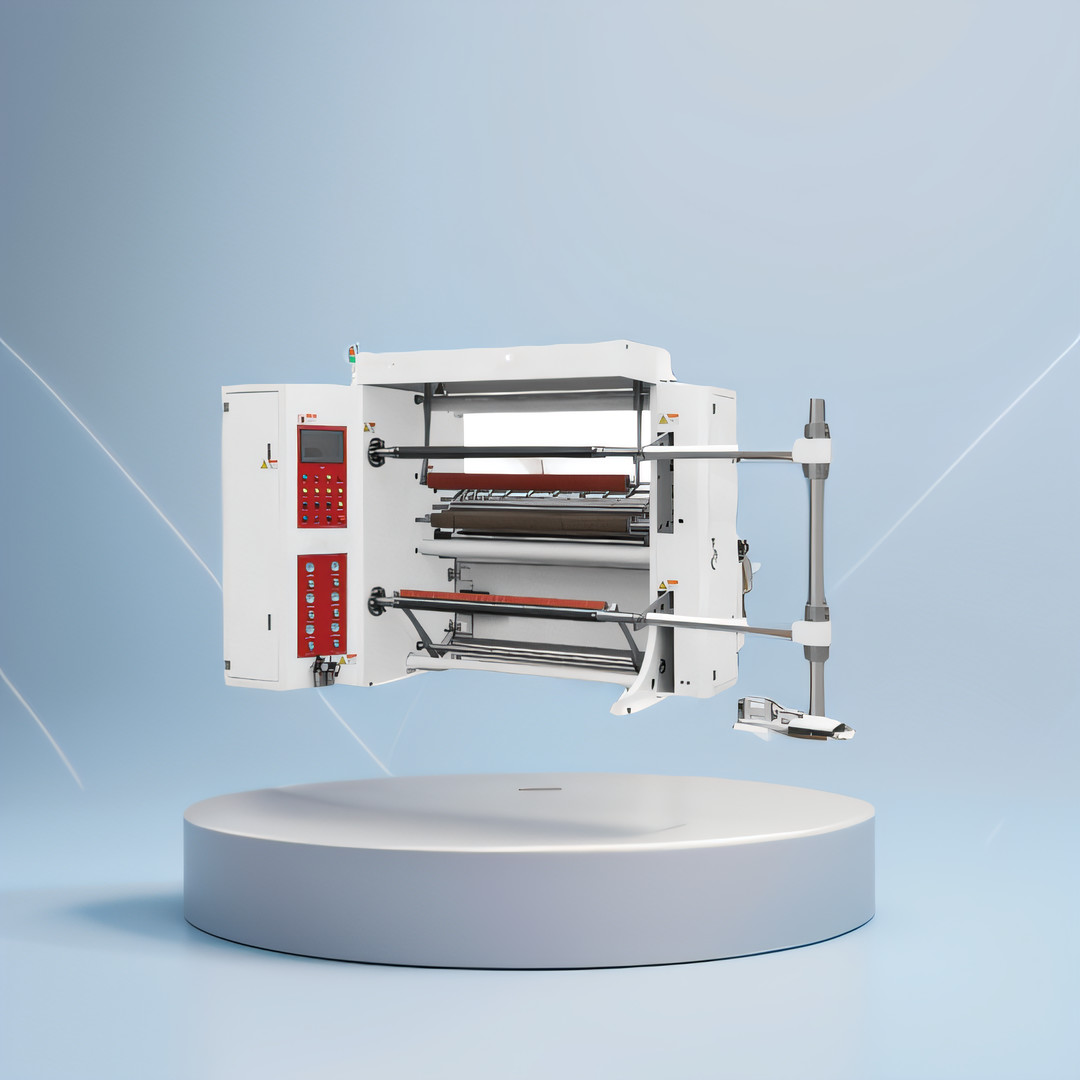

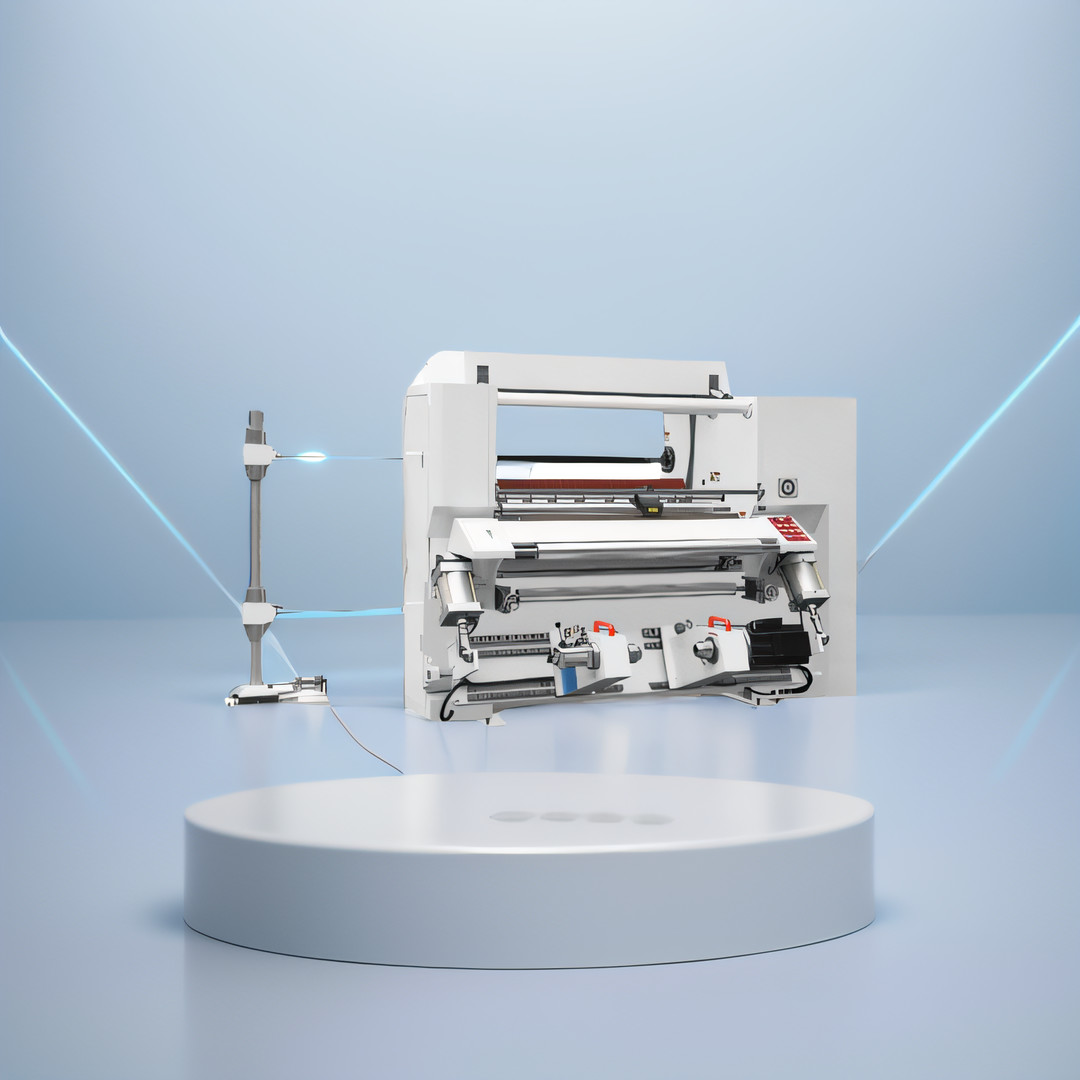

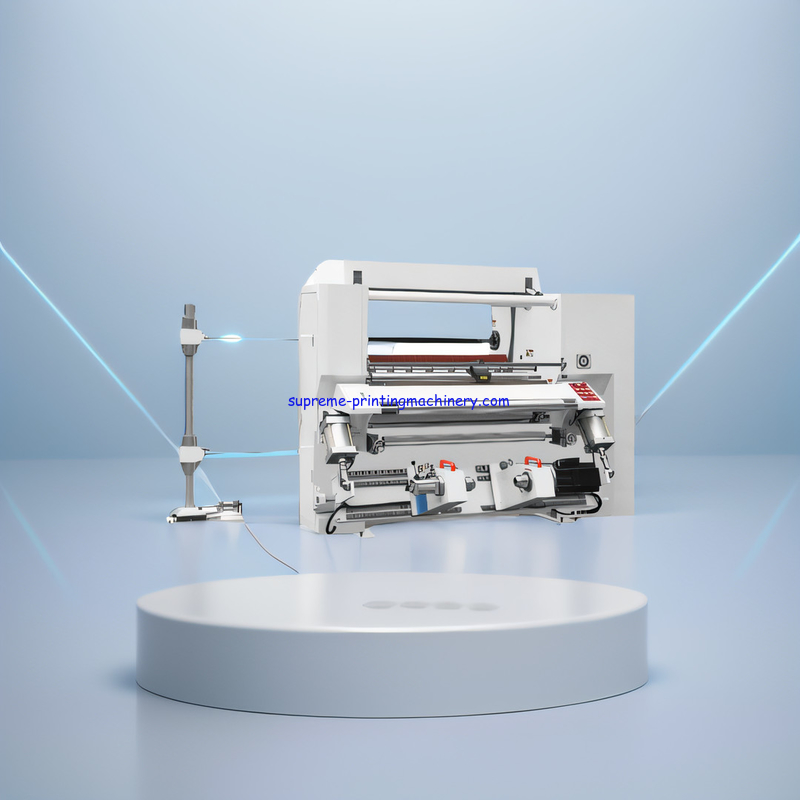

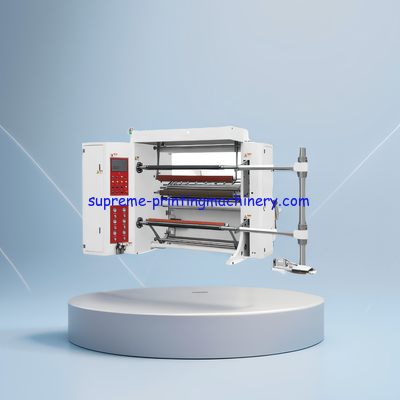

HIGH-SPEED SLITTING MACHINE PLASTIC FILM (PET OPP PE PVC COMPOSITE FILM, ALUMINIZED FILM KRAFT SELF-ADHESIVE PAPER
http://www.youtube.com/@labelturretrewindingmachinery
1:Usage:
This machine is suitable for cutting and rewinding various types of rolls; For example, cutting and rewinding of plastic film (PET OPP PE PVC composite film, aluminized film), various roll papers (Kraft paper, masking tape paper, self-adhesive paper, coated paper, glossy paper etc.) and other roll materials.
2:Technical parameters:
Model | FQGS-S1300 |
Cutting speed | 10-400m/min |
Maximum material width | 200-1300mm |
Cutting width | 20-1300mm |
Cutting material thickness | 12 μ M-1000 μ M |
Cutting accuracy | ± 0.1mm |
Maximum unwinding diameter | 800mm |
Maximum winding diameter | 600mm |
Web guide method | photoelectric or ultrasonic tracking |
Tension control method | PLC control |
Total power (KW) | 19.5KW |
The machine weighs | approximately 4000kg |
Machine size (mm) L * W * H | 2500 × 3900 × 2250mm |
Machine colors | refer to the above image |
Working voltage | 3P 380V-50HZ |
3:Detailed machine configuration sheet:
1. Unwinding section
1)Unwinding station:single station
2)The support method:adopts a steel plate structure
3)Unwinding width:200-1300
4)Clamping and telescoping method:oil cylinder control
5)Width of feed guide roller:1350mm
6)Unwinding diameter:800mm or 1000mm
7)Maximum bearing capacity:≥ 3000kg
8)Unwinding method: shaftless hydraulic feeding
9)Shaft core diameter:3 inches 6 inches inflatable shaft head
10)Control method:Magnetic powder
11)Loading and unloading method: hydraulic automatic loading and unloading
12)Unwinding correction:photoelectric correction (linear guide rail for left and right movement)
13)Web guide route: ± 75mm
14):Feeding guide roller:1350mm
15)Material receiving platform:Pneumatic material receiving platform (air cylinder to press material, convenient for customers to change materials)
2.Traction+transmission part
1)The machine structure:adopts high-quality steel plate structure
2)Iron plate thickness:≥ 46mm
3)Drive and transmission mechanism:servo motor drive
4)Motor power:5.5KW
5)Structural type:Active traction pneumatic compression method
6)The traction method:adopts rubber rollers for the compression roller, and chrome plated steel rollers for the driving roller
7)Roller width:1350mm
8)The compression method:adopts air cylinder control
3.Cutting section:
1)The cutting method:adopts two types of cutting device structures: round knife or flat knife
2)Adjustment method:manual
3)Cutting accuracy:± 0.1mm
4)The safety cover of the blade holder is made of 1.5mm thick cold-rolled plate and transparent organic glass
5)Number of blades: 10 sets of flat blades
4.Winding section
1)Structural mode: alternating winding with upper and down A and B axes
2)rewinding material and support method:mechanical arm, pneumatic control
3)Drive method: Servo motor drive
4)Motor power:5.5KW × 2 sets
5)Width of guide roller:1350mm
6)Winding station:dual station
7)Winding shaft:slip shaft × 2 pieces( φ 76mm)
8)Maximum winding diameter:600mm × 2 or 800mm × two
9)10 sets of infrared probes for installation of irradiation paper tubes
5.Unloading part
1)material pushing method:After stopping the machine, the motor automatically pushes out the rolled material and sends it to the feeding arm
2)Unloading method:Unloading arm Unloading
3)Maximum bearing capacity:≥ 1000kg
6.Control part:
1)Control method: PLC centralized control
2)Other additional functions: 1. Automatic shutdown for residual material detection. 2. Display the total number of meters and diameter. 3. Working meters. 4. Set meter sensing automatic deceleration shutdown. 5. Automatic tension control of winding and unwinding 6. Imported PLC is used to achieve precise and stable control functions, and the true color touch screen makes the image display simple and beautiful. Dialogue-based parameter setting environment, eliminating complicated settings to start operations: Before starting the machine, users only need to input parameters such as thickness, width, density, diameter, and speed of the raw material, and the following tasks are automatically calculated by the computer
3)Working voltage:3P 380V-50HZ
7.Other parts:
1)Waste edge blowing method: centrifugal fan blowing away
2)Waste edge treatment method:blown out from the side of the machine
3)1 set of speed display table (displaying the working speed of the machine on the screen)
8.Delivery of random spare parts:
1)Toolbox:standard:1 set
2)Oil gun:standard:1pc
3)air nozzles:standard:1pc
4)Level pads:standard:1pc
5)Manual:standard:1pc
We provide technical support and services for HIGH-SPEED SLITTING MACHINE PLASTIC FILM (PET OPP PE PVC COMPOSITE FILM, ALUMINIZED FILM KRAFT SELF-ADHESIVE PAPER. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for HIGH-SPEED SLITTING MACHINE PLASTIC FILM (PET OPP PE PVC COMPOSITE FILM, ALUMINIZED FILM KRAFT SELF-ADHESIVE PAPER. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for HIGH-SPEED SLITTING MACHINE PLASTIC FILM (PET OPP PE PVC COMPOSITE FILM, ALUMINIZED FILM KRAFT SELF-ADHESIVE PAPER. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
HIGH-SPEED SLITTING MACHINE PLASTIC FILM (PET OPP PE PVC COMPOSITE FILM, ALUMINIZED FILM KRAFT SELF-ADHESIVE PAPER is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
